    NonDataFlags Class
    In This Topic
    Contains available non-data flags.

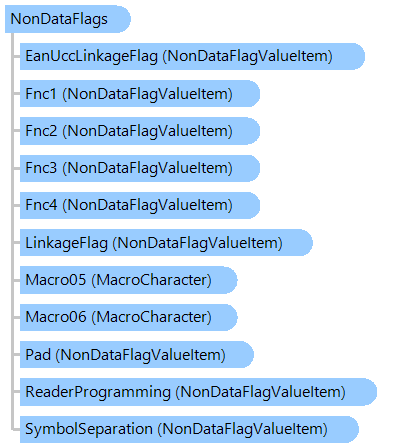

    Object Model
    NonDataFlags ClassNonDataFlagValueItem ClassNonDataFlagValueItem ClassNonDataFlagValueItem ClassNonDataFlagValueItem ClassNonDataFlagValueItem ClassNonDataFlagValueItem ClassMacroCharacter ClassMacroCharacter ClassNonDataFlagValueItem ClassNonDataFlagValueItem Class
    Syntax
    'Declaration

    Public NotInheritable Class NonDataFlags
    'Usage

    Dim instance As NonDataFlags
    public sealed class NonDataFlags
    public __gc __sealed class NonDataFlags
    public ref class NonDataFlags sealed
    Example
    This example shows how to write and read non-data flags in barcode.
    Imports System.Collections.Generic
    Imports System.Drawing
    Imports Vintasoft.Barcode
    Imports Vintasoft.Barcode.BarcodeInfo

    ''' <summary>
    ''' Test that shows how to create barcodes with data flags.
    ''' </summary>
    Class NonDataFlagsExample

    	''' <summary>
    	''' Runs the test.
    	''' </summary>
    	Public Shared Sub Test()
    		' create image with Code128 barcode with FNC1 flag
    		Using image As Image = WriteFlagUsingValueProperty(BarcodeType.Code128, "", NonDataFlags.Fnc1, "abc")
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.Code128)
    		End Using
    		' create image with Code128 barcode with FNC1 flag
    		Using image As Image = WriteFlagUsingValueItemsProperty(BarcodeType.Code128, "123", NonDataFlags.Fnc1, "456")
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.Code128)
    		End Using


    		' create the barcode value with multiple FNC1 flags
    		Dim barcodeValue As String = NonDataFlags.Fnc1.Name
    		barcodeValue += "A" + NonDataFlags.Fnc1.Name
    		barcodeValue += "B" + NonDataFlags.Fnc1.Name
    		barcodeValue += "C" + NonDataFlags.Fnc1.Name

    		' create the barcode writer
    		Dim writer As New BarcodeWriter()
    		' specify that writer must generate Code128 barcode
    		writer.Settings.Barcode = BarcodeType.Code128
    		writer.Settings.ProcessSpecialSymbols = True
    		' set the barcode value
    		writer.Settings.Value = barcodeValue
    		' create image with Code128 barcode with  multiple FNC1 flags
    		Using image As Image = writer.GetBarcodeAsBitmap()
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.Code128)
    		End Using


    		' create image with DataMatrix barcode with FNC1 flag
    		Using image As Image = WriteFlagUsingValueItemsProperty(BarcodeType.DataMatrix, "DataMatrix", NonDataFlags.Fnc1, "!")
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.DataMatrix)
    		End Using

    		' create image with QR barcode with ECI123456 flag
    		Using image As Image = WriteFlagUsingValueProperty(BarcodeType.QR, "", NonDataFlags.CreateECICharacter(123456), "QR Test ECI123456")
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.QR)
    		End Using

    		' create image with DataMatrix barcode with Macro05 flag
    		Using image As Image = WriteFlagUsingValueItemsProperty(BarcodeType.DataMatrix, "", NonDataFlags.Macro05, "BarcodeData")
    			' read barcode from image
    			ReadBarcode(image, BarcodeType.DataMatrix)
    		End Using
    	End Sub

    	''' <summary>
    	''' Writes a data flag to barcode using WriterSettings.Value property.
    	''' </summary>
    	Private Shared Function WriteFlagUsingValueProperty(barcodeType As BarcodeType, leftValuePart As String, flag As NonDataFlagValueItem, rightValuePart As String) As Image
    		' create the barcode writer
    		Dim writer As New BarcodeWriter()

    		' specify that writer must generate barcode of specified type
    		writer.Settings.Barcode = barcodeType

    		' specify that writer must process special characters in the barcode value
    		writer.Settings.ProcessSpecialSymbols = True

    		' set the barcode value
    		writer.Settings.Value = leftValuePart & Convert.ToString(flag.Name) & rightValuePart

    		' create image with barcode
    		Return writer.GetBarcodeAsBitmap()
    	End Function

    	''' <summary>
    	''' Writes a data flag to barcode using WriterSettings.ValueItems property.
    	''' </summary>
    	Private Shared Function WriteFlagUsingValueItemsProperty(barcodeType As BarcodeType, leftValuePart As String, flag As NonDataFlagValueItem, rightValuePart As String) As Image
    		' create the barcode writer
    		Dim writer As New BarcodeWriter()

    		' specify that writer must generate barcode of specified type
    		writer.Settings.Barcode = barcodeType

    		' create the barcode value items

    		Dim items As New List(Of ValueItemBase)()
    		If leftValuePart <> "" Then
    			items.Add(New TextValueItem(leftValuePart))
    		End If
    		items.Add(flag)
    		If rightValuePart <> "" Then
    			items.Add(New TextValueItem(rightValuePart))
    		End If

    		' set the barcode value items
    		writer.Settings.ValueItems = items.ToArray()

    		' create image with barcode
    		Return writer.GetBarcodeAsBitmap()
    	End Function

    	''' <summary>
    	''' Reads a barcode and shows the recognized barcode value.
    	''' </summary>
    	Private Shared Sub ReadBarcode(image As Image, barcodeType As BarcodeType)
    		' create the barcode reader
    		Using reader As New BarcodeReader()
    			' specify that reader must search for barcodes of specified type
    			reader.Settings.ScanBarcodeTypes = barcodeType

    			' reader barcode from image
    			Dim barcodeInfo As IBarcodeInfo = reader.ReadBarcodes(image)(0)

    			barcodeInfo.ShowNonDataFlagsInValue = False
    			Console.WriteLine("Barcode value without flags: {0}", barcodeInfo.Value)

    			barcodeInfo.ShowNonDataFlagsInValue = True
    			Console.WriteLine("Barcode value with flags:    {0}", barcodeInfo.Value)

    			Console.WriteLine("Barcode value items:")
    			For i As Integer = 0 To barcodeInfo.ValueItems.Length - 1
    				Dim valueItem As ValueItemBase = barcodeInfo.ValueItems(i)
    				Console.WriteLine("  [{0}]: {1}", valueItem.[GetType]().Name, valueItem)
    			Next
    		End Using

    		Console.WriteLine()
    	End Sub

    End Class
    using System;
    using System.Collections.Generic;
    using System.Drawing;
    using Vintasoft.Barcode;
    using Vintasoft.Barcode.BarcodeInfo;

    /// <summary>
    /// Test that shows how to create barcodes with data flags.
    /// </summary>
    class NonDataFlagsExample
    {

        /// <summary>
        /// Runs the test.
        /// </summary>
        public static void Test()
        {
            // create image with Code128 barcode with FNC1 flag
            using (Image image = WriteFlagUsingValueProperty(BarcodeType.Code128, "", NonDataFlags.Fnc1, "abc"))
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.Code128);
            }
            // create image with Code128 barcode with FNC1 flag
            using (Image image = WriteFlagUsingValueItemsProperty(BarcodeType.Code128, "123", NonDataFlags.Fnc1, "456"))
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.Code128);
            }


            // create the barcode value with multiple FNC1 flags
            string barcodeValue = NonDataFlags.Fnc1.Name;
            barcodeValue += "A" + NonDataFlags.Fnc1.Name;
            barcodeValue += "B" + NonDataFlags.Fnc1.Name;
            barcodeValue += "C" + NonDataFlags.Fnc1.Name;

            // create the barcode writer
            BarcodeWriter writer = new BarcodeWriter();
            // specify that writer must generate Code128 barcode
            writer.Settings.Barcode = BarcodeType.Code128;
            writer.Settings.ProcessSpecialSymbols = true;
            // set the barcode value
            writer.Settings.Value = barcodeValue;
            // create image with Code128 barcode with  multiple FNC1 flags
            using (Image image = writer.GetBarcodeAsBitmap())
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.Code128);
            }


            // create image with DataMatrix barcode with FNC1 flag
            using (Image image = WriteFlagUsingValueItemsProperty(
                BarcodeType.DataMatrix, "DataMatrix", NonDataFlags.Fnc1, "!"))
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.DataMatrix);
            }

            // create image with QR barcode with ECI123456 flag
            using (Image image = WriteFlagUsingValueProperty(
                BarcodeType.QR, "", NonDataFlags.CreateECICharacter(123456), "QR Test ECI123456"))
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.QR);
            }

            // create image with DataMatrix barcode with Macro05 flag
            using (Image image = WriteFlagUsingValueItemsProperty(
                BarcodeType.DataMatrix, "", NonDataFlags.Macro05, "BarcodeData"))
            {
                // read barcode from image
                ReadBarcode(image, BarcodeType.DataMatrix);
            }
        }

        /// <summary>
        /// Writes a data flag to barcode using WriterSettings.Value property.
        /// </summary>
        static Image WriteFlagUsingValueProperty(
            BarcodeType barcodeType,
            string leftValuePart,
            NonDataFlagValueItem flag,
            string rightValuePart)
        {
            // create the barcode writer
            BarcodeWriter writer = new BarcodeWriter();

            // specify that writer must generate barcode of specified type
            writer.Settings.Barcode = barcodeType;

            // specify that writer must process special characters in the barcode value
            writer.Settings.ProcessSpecialSymbols = true;

            // set the barcode value
            writer.Settings.Value = leftValuePart + flag.Name + rightValuePart;

            // create image with barcode
            return writer.GetBarcodeAsBitmap();
        }

        /// <summary>
        /// Writes a data flag to barcode using WriterSettings.ValueItems property.
        /// </summary>
        static Image WriteFlagUsingValueItemsProperty(
            BarcodeType barcodeType,
            string leftValuePart,
            NonDataFlagValueItem flag,
            string rightValuePart)
        {
            // create the barcode writer
            BarcodeWriter writer = new BarcodeWriter();

            // specify that writer must generate barcode of specified type
            writer.Settings.Barcode = barcodeType;

            // create the barcode value items

            List<ValueItemBase> items = new List<ValueItemBase>();
            if (leftValuePart != "")
                items.Add(new TextValueItem(leftValuePart));
            items.Add(flag);
            if (rightValuePart != "")
                items.Add(new TextValueItem(rightValuePart));

            // set the barcode value items
            writer.Settings.ValueItems = items.ToArray();

            // create image with barcode
            return writer.GetBarcodeAsBitmap();
        }

        /// <summary>
        /// Reads a barcode and shows the recognized barcode value.
        /// </summary>
        static void ReadBarcode(Image image, BarcodeType barcodeType)
        {
            // create the barcode reader
            using (BarcodeReader reader = new BarcodeReader())
            {
                // specify that reader must search for barcodes of specified type
                reader.Settings.ScanBarcodeTypes = barcodeType;

                // reader barcode from image
                IBarcodeInfo barcodeInfo = reader.ReadBarcodes(image)[0];

                barcodeInfo.ShowNonDataFlagsInValue = false;
                Console.WriteLine("Barcode value without flags: {0}", barcodeInfo.Value);

                barcodeInfo.ShowNonDataFlagsInValue = true;
                Console.WriteLine("Barcode value with flags:    {0}", barcodeInfo.Value);

                Console.WriteLine("Barcode value items:");
                for (int i = 0; i < barcodeInfo.ValueItems.Length; i++)
                {
                    ValueItemBase valueItem = barcodeInfo.ValueItems[i];
                    Console.WriteLine("  [{0}]: {1}", valueItem.GetType().Name, valueItem);
                }
            }

            Console.WriteLine();
        }

    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Barcode.BarcodeInfo.NonDataFlags

    Requirements

    Target Platforms: Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
