    TesseractOcr Class
    In This Topic
    Represents the Tesseract OCR engine.

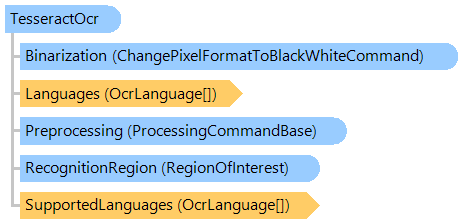

    Object Model
    TesseractOcr ClassChangePixelFormatToBlackWhiteCommand ClassRegionOfInterest ClassOcrLanguage Enumeration
    Syntax
    'Declaration

    Public NotInheritable Class TesseractOcr
       Inherits Vintasoft.Imaging.Ocr.OcrEngine
    public sealed class TesseractOcr : Vintasoft.Imaging.Ocr.OcrEngine
    public __gc __sealed class TesseractOcr : public Vintasoft.Imaging.Ocr.OcrEngine
    public ref class TesseractOcr sealed : public Vintasoft.Imaging.Ocr.OcrEngine
    Example
    This example shows how to recognize text in image using Tesseract OCR engine.
    Class TesseractOcrExample
        ''' <summary>
        ''' Recognizes text in image using Tesseract OCR engine.
        ''' </summary>
        ''' <param name="filename">The name of file, which stores images with text.</param>
        ''' <param name="ocrLanguage">The language of recognizing text.</param>
        Public Shared Sub RecognizeTextInImageUsingTesseractOcrEngine(filename As String, ocrLanguage As Vintasoft.Imaging.Ocr.OcrLanguage)
            ' create an image collection
            Using images As New Vintasoft.Imaging.ImageCollection()
                ' add images from file to the image collection
                images.Add(filename)

                System.Console.WriteLine("Create Tesseract OCR engine...")
                ' create the Tesseract OCR engine
                Using tesseractOcr As New Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr()
                    System.Console.WriteLine("Initialize OCR engine...")
                    ' init the Tesseract OCR engine
                    tesseractOcr.Init(New Vintasoft.Imaging.Ocr.OcrEngineSettings(ocrLanguage))

                    ' for each image in image collection
                    For Each image As Vintasoft.Imaging.VintasoftImage In images
                        System.Console.WriteLine("Recognize the image...")

                        ' recognize text in image
                        Dim ocrResult As Vintasoft.Imaging.Ocr.Results.OcrPage = tesseractOcr.Recognize(image)

                        ' output the recognized text

                        System.Console.WriteLine("Page Text:")
                        System.Console.WriteLine(ocrResult.GetText())
                        System.Console.WriteLine()
                    Next

                    ' shutdown the Tesseract OCR engine
                    tesseractOcr.Shutdown()
                End Using

                ' free images
                images.ClearAndDisposeItems()
            End Using
        End Sub
    End Class
    class TesseractOcrExample
    {
        /// <summary>
        /// Recognizes text in image using Tesseract OCR engine.
        /// </summary>
        /// <param name="filename">The name of file, which stores images with text.</param>
        /// <param name="ocrLanguage">The language of recognizing text.</param>
        public static void RecognizeTextInImageUsingTesseractOcrEngine(
            string filename,
            Vintasoft.Imaging.Ocr.OcrLanguage ocrLanguage)
        {
            // create an image collection
            using (Vintasoft.Imaging.ImageCollection images =
                new Vintasoft.Imaging.ImageCollection())
            {
                // add images from file to the image collection
                images.Add(filename);

                System.Console.WriteLine("Create Tesseract OCR engine...");
                // create the Tesseract OCR engine
                using (Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr tesseractOcr =
                    new Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr())
                {
                    System.Console.WriteLine("Initialize OCR engine...");
                    // init the Tesseract OCR engine
                    tesseractOcr.Init(new Vintasoft.Imaging.Ocr.OcrEngineSettings(ocrLanguage));

                    // for each image in image collection
                    foreach (Vintasoft.Imaging.VintasoftImage image in images)
                    {
                        System.Console.WriteLine("Recognize the image...");

                        // recognize text in image
                        Vintasoft.Imaging.Ocr.Results.OcrPage ocrResult = tesseractOcr.Recognize(image);

                        // output the recognized text

                        System.Console.WriteLine("Page Text:");
                        System.Console.WriteLine(ocrResult.GetText());
                        System.Console.WriteLine();
                    }

                    // shutdown the Tesseract OCR engine
                    tesseractOcr.Shutdown();
                }

                // free images
                images.ClearAndDisposeItems();
            }
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Ocr.OcrEngine
          Vintasoft.Imaging.Ocr.Tesseract.TesseractOcr

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003

    See Also
