    VintasoftImageFigure Class
    In This Topic
    Represents a VintasoftImage graphics figure, i.e. a set of graphical commands for drawing image on Vintasoft.Imaging.Pdf.Drawing.PdfGraphics.

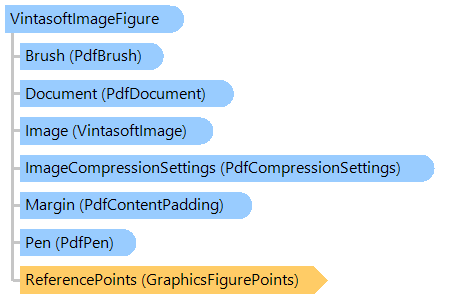

    Object Model
    VintasoftImageFigure ClassPdfBrush ClassVintasoftImage ClassPdfCompressionSettings ClassPdfContentPadding StructurePdfPen ClassGraphicsFigurePoints Class
    Syntax
    'Declaration

    Public Class VintasoftImageFigure
       Inherits RectangleFigure
    public class VintasoftImageFigure : RectangleFigure
    public __gc class VintasoftImageFigure : public RectangleFigure
    public ref class VintasoftImageFigure : public RectangleFigure
    Remarks
    Figure does the following steps:
    • Creates PDF image resource, based on figure image, if figure image represented by image file (BMP, GIF, JPEG, PNG, TIFF, etc).
    • Creates PDF form resource, based on figure image, if figure image represented by PDF page.
    • Draws created PDF image resource on PdfGraphics object.
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Drawing.GraphicsFigures.GraphicsFigure
          Vintasoft.Imaging.Pdf.Drawing.GraphicsFigures.RectangleFigure
             Vintasoft.Imaging.Pdf.Drawing.GraphicsFigures.VintasoftImageFigure

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
