    CannyEdgeDetectorCommand Class
    In This Topic
    Applies the Canny edge detector filter to an image.

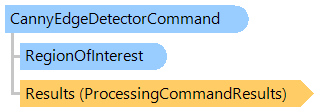

    Object Model
    RegionOfInterest ProcessingCommandResults CannyEdgeDetectorCommand
    Syntax
    'Declaration

    Public Class CannyEdgeDetectorCommand
       Inherits Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion


    public class CannyEdgeDetectorCommand : Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion


    public __gc class CannyEdgeDetectorCommand : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion*


    public ref class CannyEdgeDetectorCommand : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion^


    Example

    This C#/VB.NET code shows how to load an image from disk, apply the Canny edge detector filter to the image and save the result to a new image file.


    Class CannyEdgeDetectorCommandExample
        Public Sub ProcessImage()
            ' [ do not forget to set your image file path here! ]
            ' create an image collection
            Using images As New Vintasoft.Imaging.ImageCollection()
                ' add image to the image collection
                images.Add("Flower.jpg")
                Try
                    ' create the image processing command
                    Dim command As New Vintasoft.Imaging.ImageProcessing.Filters.CannyEdgeDetectorCommand()

                    ' subscribe to progress event of image processing command
                    AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

                    Try
                        ' for each image in image collection
                        For Each image As Vintasoft.Imaging.VintasoftImage In images
                            ' apply the image processing command to the image
                            command.ExecuteInPlace(image)
                        Next
                    Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                        ' show error message
                        System.Windows.Forms.MessageBox.Show(ex.Message)
                        Return
                    End Try

                    ' save the processed image collection to a new TIFF file
                    images.SaveSync("processed-image.tif")
                Finally
                    images.ClearAndDisposeItems()
                End Try
            End Using
        End Sub

        Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
            ' update progress info using e.Progress property
            ' ...

            ' cancel execution of command using e.Cancel property if necessary
            ' ...
        End Sub
    End Class



    class CannyEdgeDetectorCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // create an image collection
            using (Vintasoft.Imaging.ImageCollection images = new Vintasoft.Imaging.ImageCollection())
            {
                // add image to the image collection
                images.Add("Flower.jpg");
                try
                {
                    // create the image processing command
                    Vintasoft.Imaging.ImageProcessing.Filters.CannyEdgeDetectorCommand command =
                        new Vintasoft.Imaging.ImageProcessing.Filters.CannyEdgeDetectorCommand();

                    // subscribe to progress event of image processing command
                    command.Progress +=
                        new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

                    try
                    {
                        // for each image in image collection
                        foreach (Vintasoft.Imaging.VintasoftImage image in images)
                        {
                            // apply the image processing command to the image
                            command.ExecuteInPlace(image);
                        }
                    }
                    catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
                    {
                        // show error message
                        System.Windows.Forms.MessageBox.Show(ex.Message);
                        return;
                    }

                    // save the processed image collection to a new TIFF file
                    images.SaveSync("processed-image.tif");
                }
                finally
                {
                    images.ClearAndDisposeItems();
                }
            }
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.Filters.CannyEdgeDetectorCommand

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
