    Generate barcode image in ASP.NET WebForms application
    In This Topic
    This tutorial shows how to create a blank ASP.NET WebForms application in Visual Studio .NET 2019 and
    generate barcode image in ASP.NET WebForms application.

    Here are steps, which must be done:
    1. Create a blank ASP.NET WebForms application.

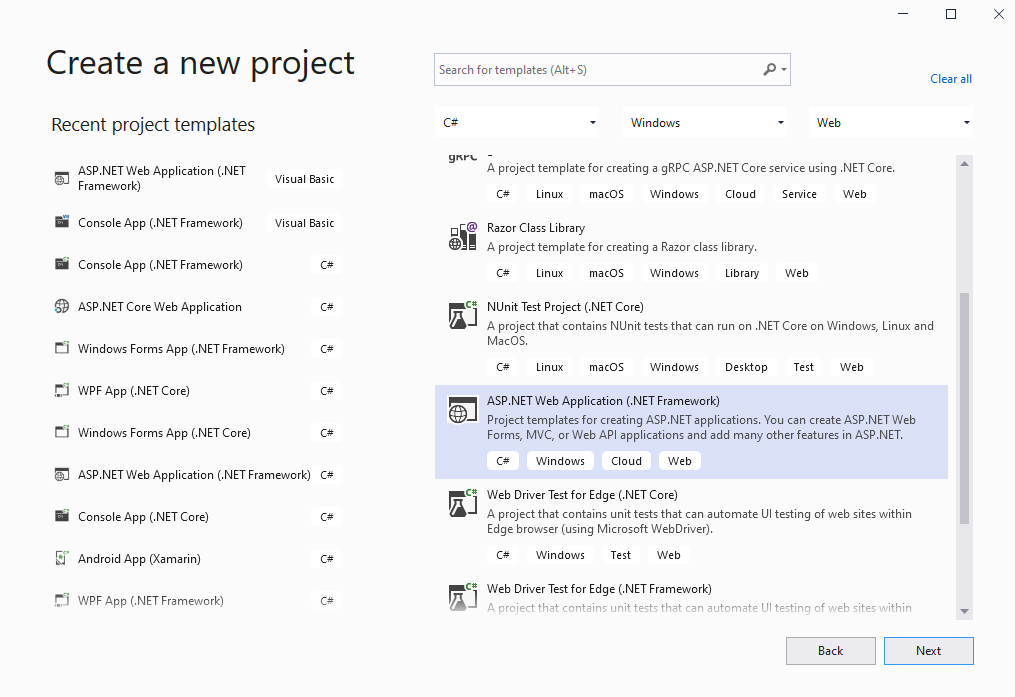

      Open Visual Studio .NET 2019 and create a new project, of ASP.NET Web application type, and configure the project to use .NET Framework 4.7.2:
      Open Visual Studio .NET 2019 and create a new project, of ASP.NET Web Application type, and configure the project to use .NET Framework 4.7.2

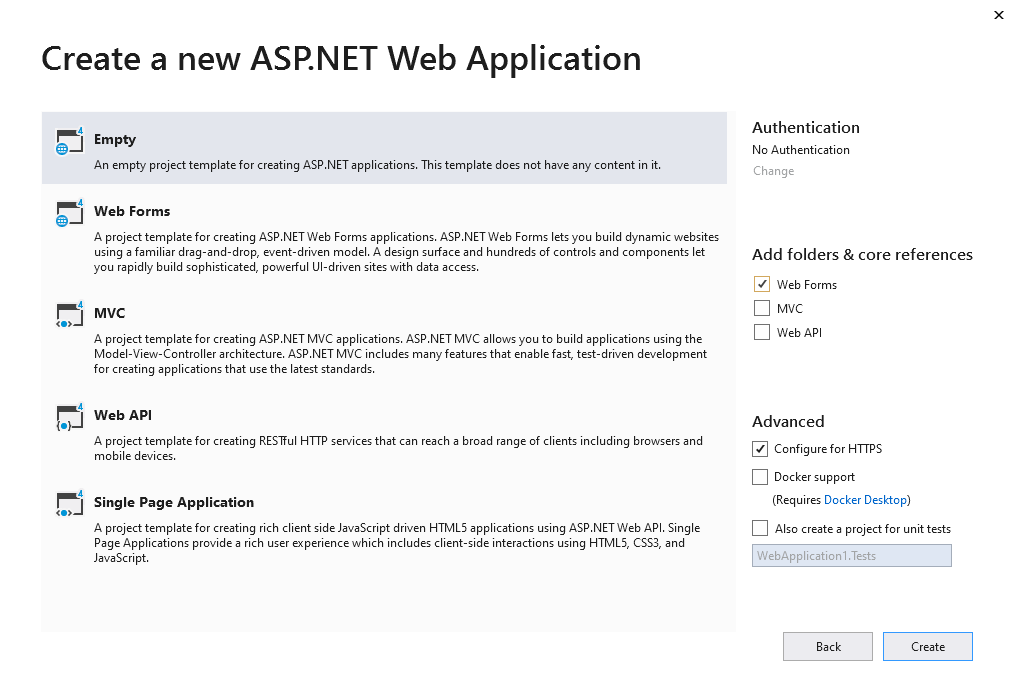

      Select the "Empty" template for ASP.NET Web application and configure the project to use WebForms:
      Select the Empty template for ASP.NET Web Application and configure to use WebForms
    2. Server side: Add references to the Vintasoft assemblies to ASP.NET WebForms application.

      Add references to the Vintasoft.Barcode.dll, Vintasoft.Shared.dll, Vintasoft.Shared.Web.dll, Vintasoft.Barcode.Web.Services.dll and Vintasoft.Barcode.Web.HttpHandlers.dll assemblies from "<InstallPath>\VintaSoft Barcode .NET v12.5\Bin\DotNet4\AnyCPU\" folder in ASP.NET WebForms application.

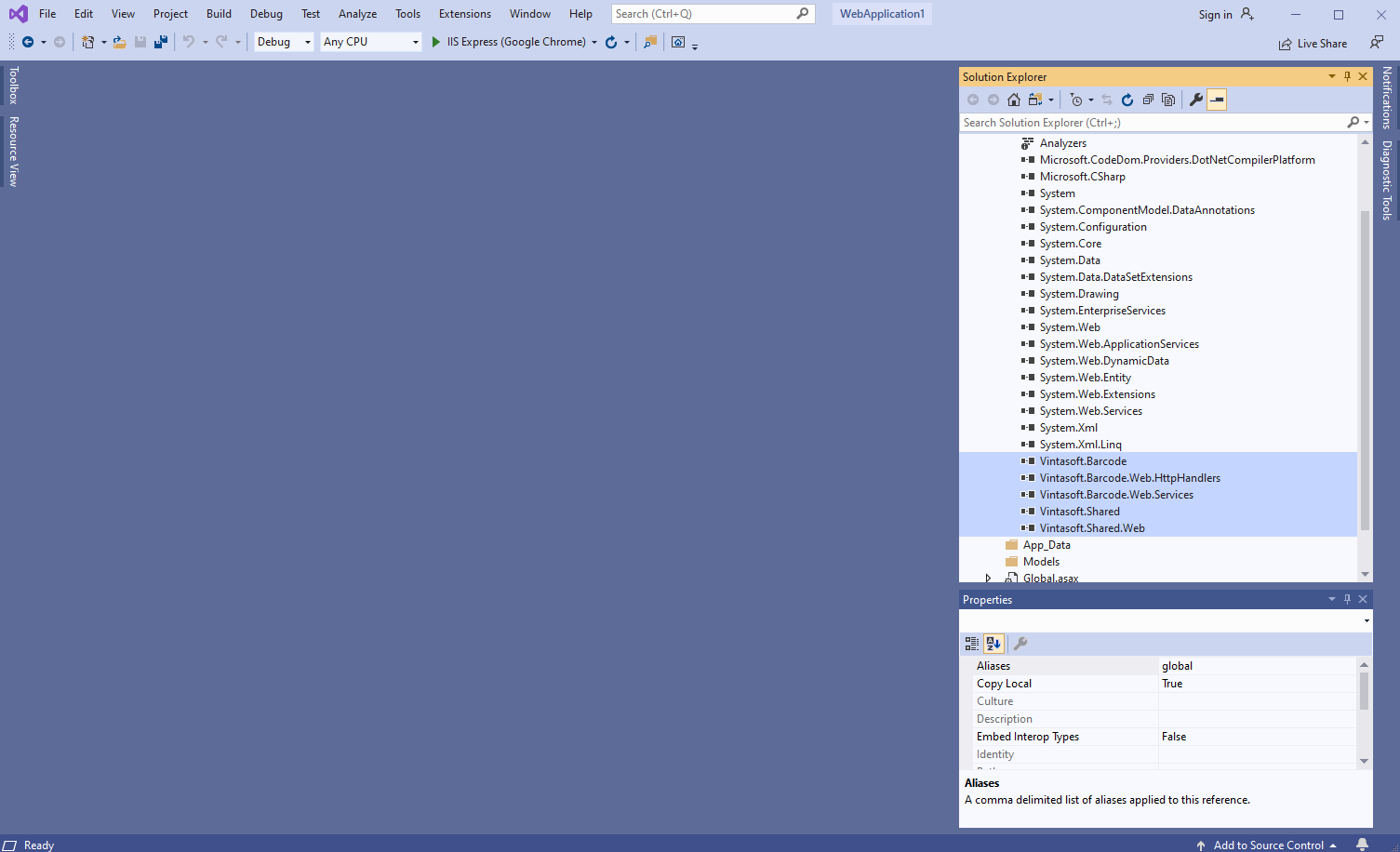

      Add references to the Vintasoft assemblies
    3. Server side: Add generic handler, which allows to generate barcode, to ASP.NET WebForms application.

      • Add the "Handlers" folder to ASP.NET WebForms application.
      • Press the right mouse button on the "Handlers" folder and select the "Add => New Item..." menu from context menu

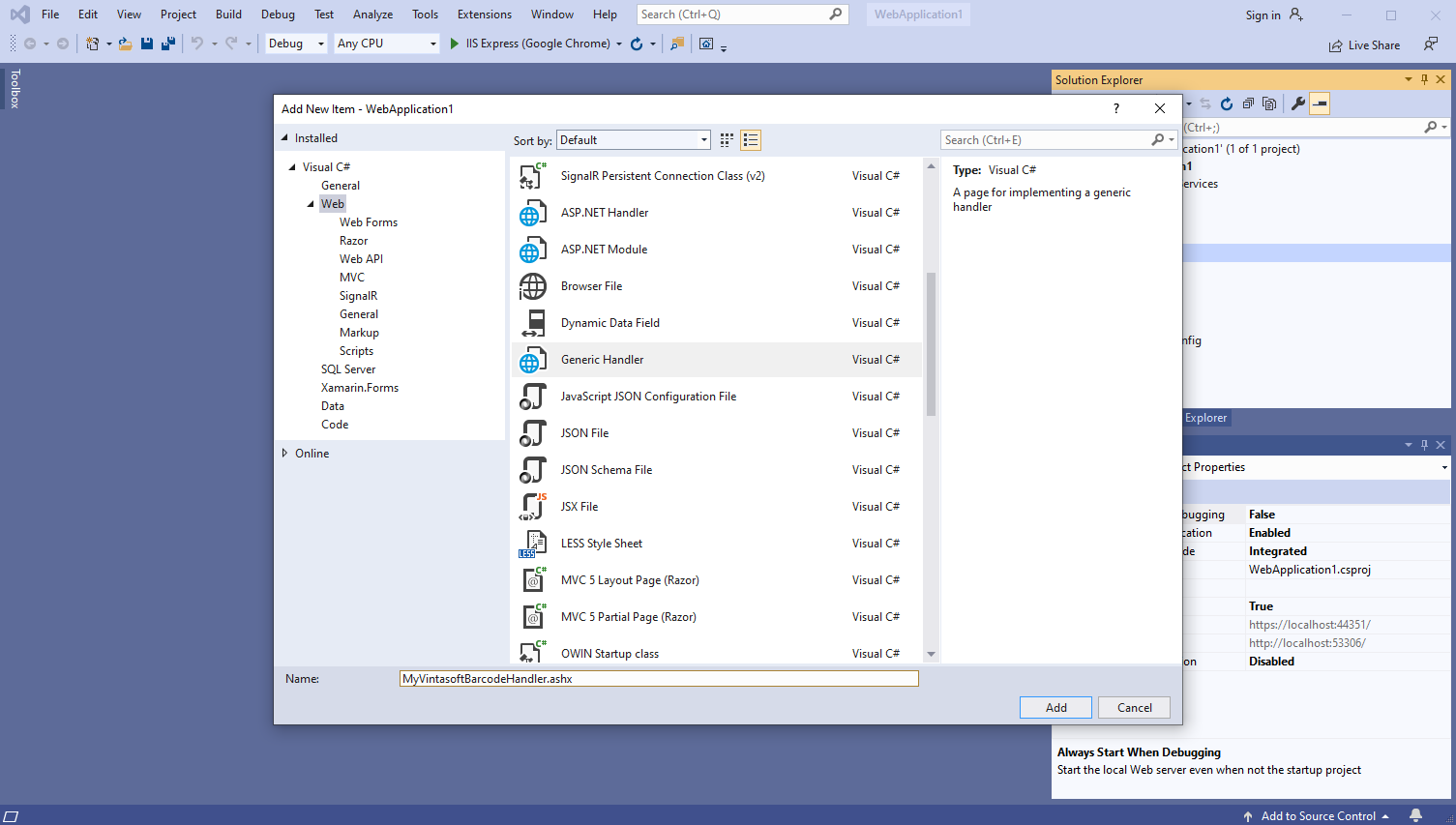

      • Select "Generic Handler" template, set the handler name to the "MyVintasoftBarcodeHandler" and press the "Add" button
        Generic handler settings
      • Specify that MyVintasoftBarcodeHandler class is derived from Vintasoft.Barcode.Web.HttpHandlers.VintasoftBarcodeHandler class

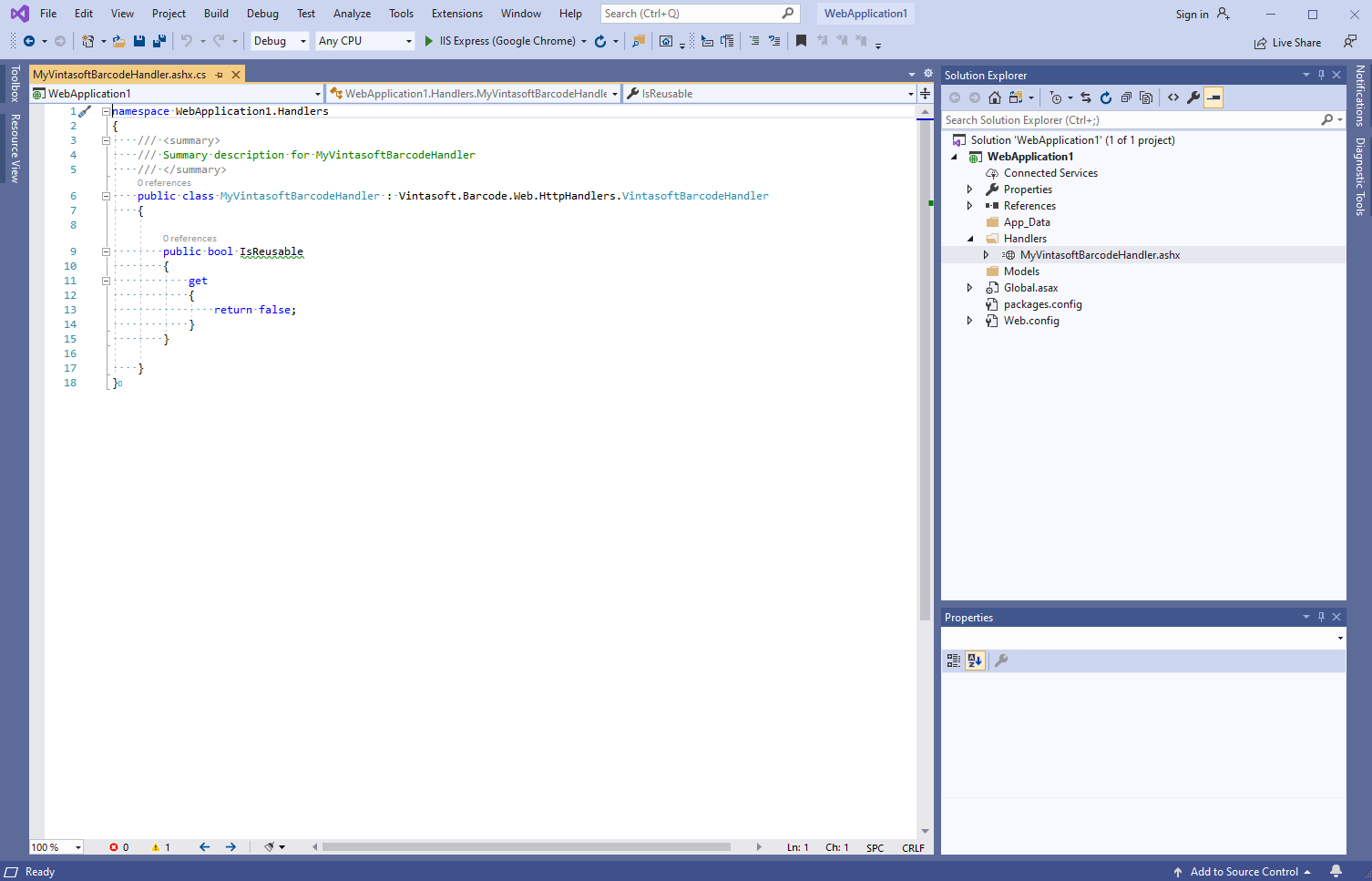

        C# source codes of MyVintasoftBarcodeHandler class
        Here are C# source codes of MyVintasoftBarcodeHandler class:
        namespace WebApplication1.Handlers
        {
            /// <summary>
            /// Summary description for MyVintasoftBarcodeHandler
            /// </summary>
            public class MyVintasoftBarcodeHandler : Vintasoft.Barcode.Web.HttpHandlers.VintasoftBarcodeHandler
            {

                public bool IsReusable
                {
                    get
                    {
                        return false;
                    }
                }

            }
        }

    4. Client side: Add Vintasoft JavaScript files to the project.

      • Add the "Scripts" folder to ASP.NET WebForms Web application.

      • Copy jQuery (version 3 or higher) file into "Scripts" folder.
        You can use jquery-3.3.1.min.js file from "<InstallPath>\VintaSoft Barcode .NET v12.5\Examples\ASP.NET WebForms\CSharp\AspNetBarcodeDemo\Scripts\External\" folder or jQuery (version 3 or higher) file from any other source.

      • Copy Vintasoft.Shared.js and Vintasoft.Barcode.js files from "<InstallPath>\VintaSoft Barcode .NET v12.5\Bin\JavaScript\" folder into "Scripts" folder.

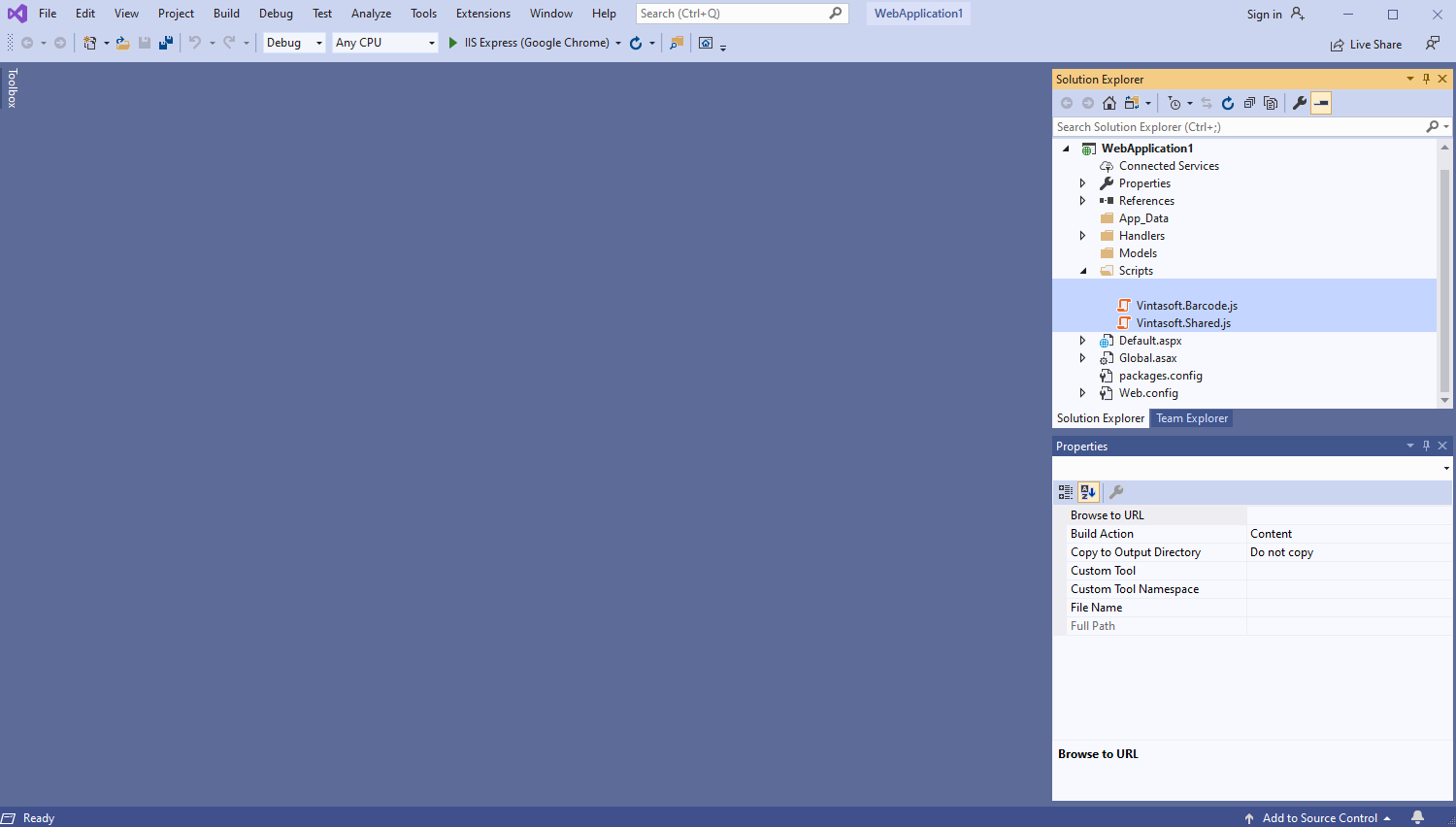

        Add references to Vintasoft JavaScript files
    5. Client side: Add JavaScript code, which generates and displays barcode image, to the Default web form.

      • Create the Default web form - file "Default.aspx".

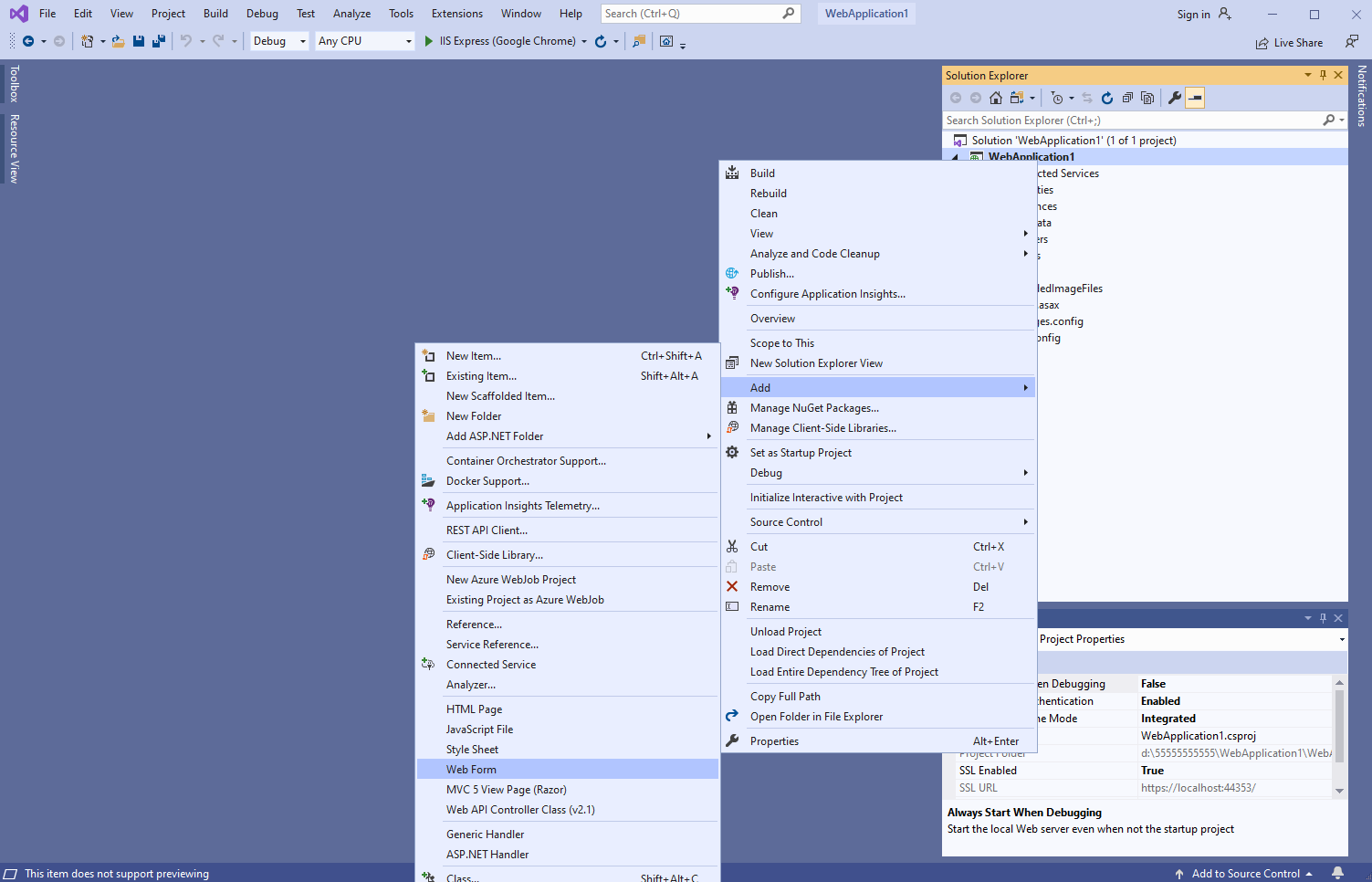

        • Press the right mouse button on the project and select the "Add => WebForm" menu from context menu:
          Add default web view

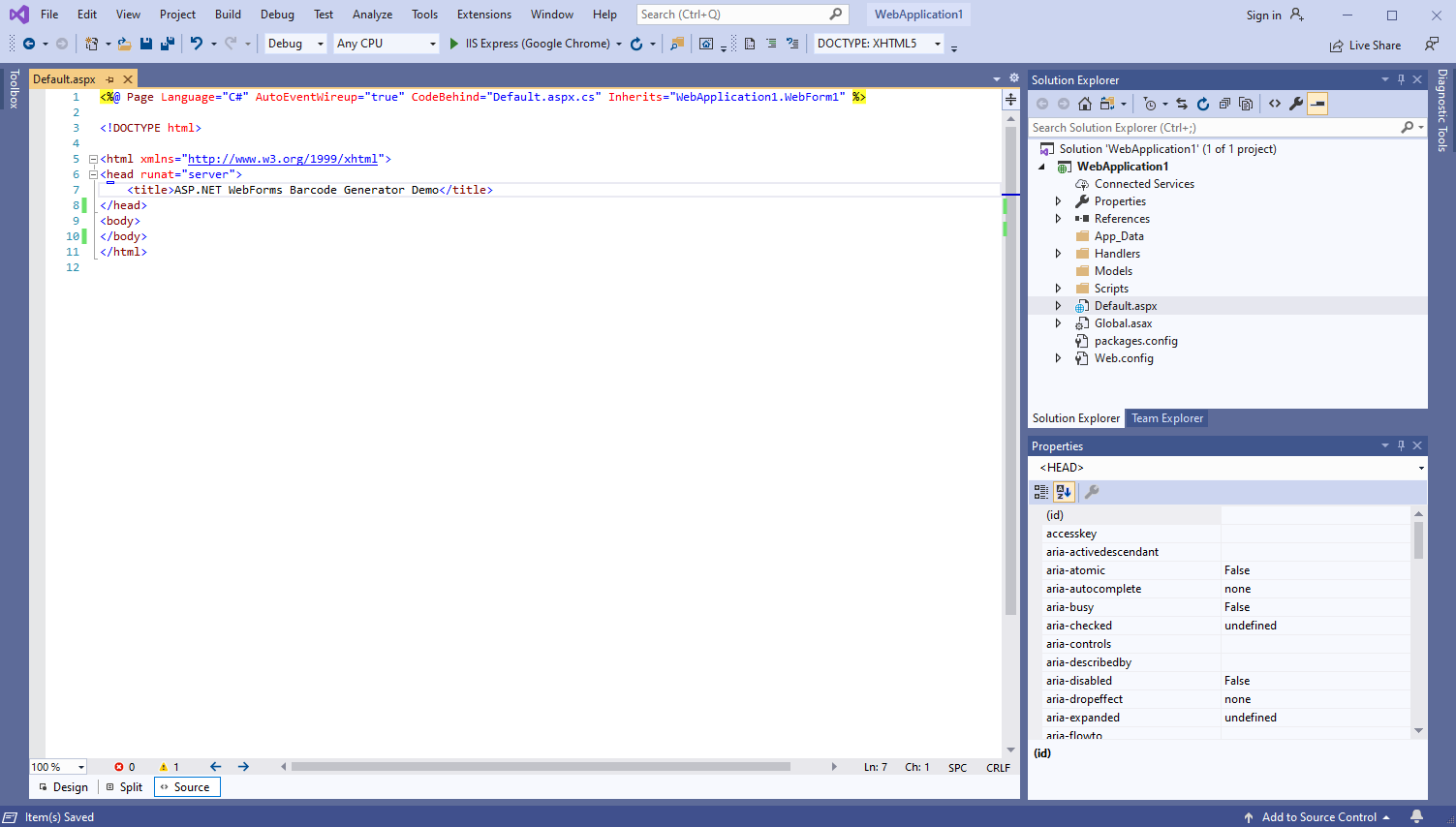

        • Specify "Default" as web form name => created web form will be opened:
          Default web view

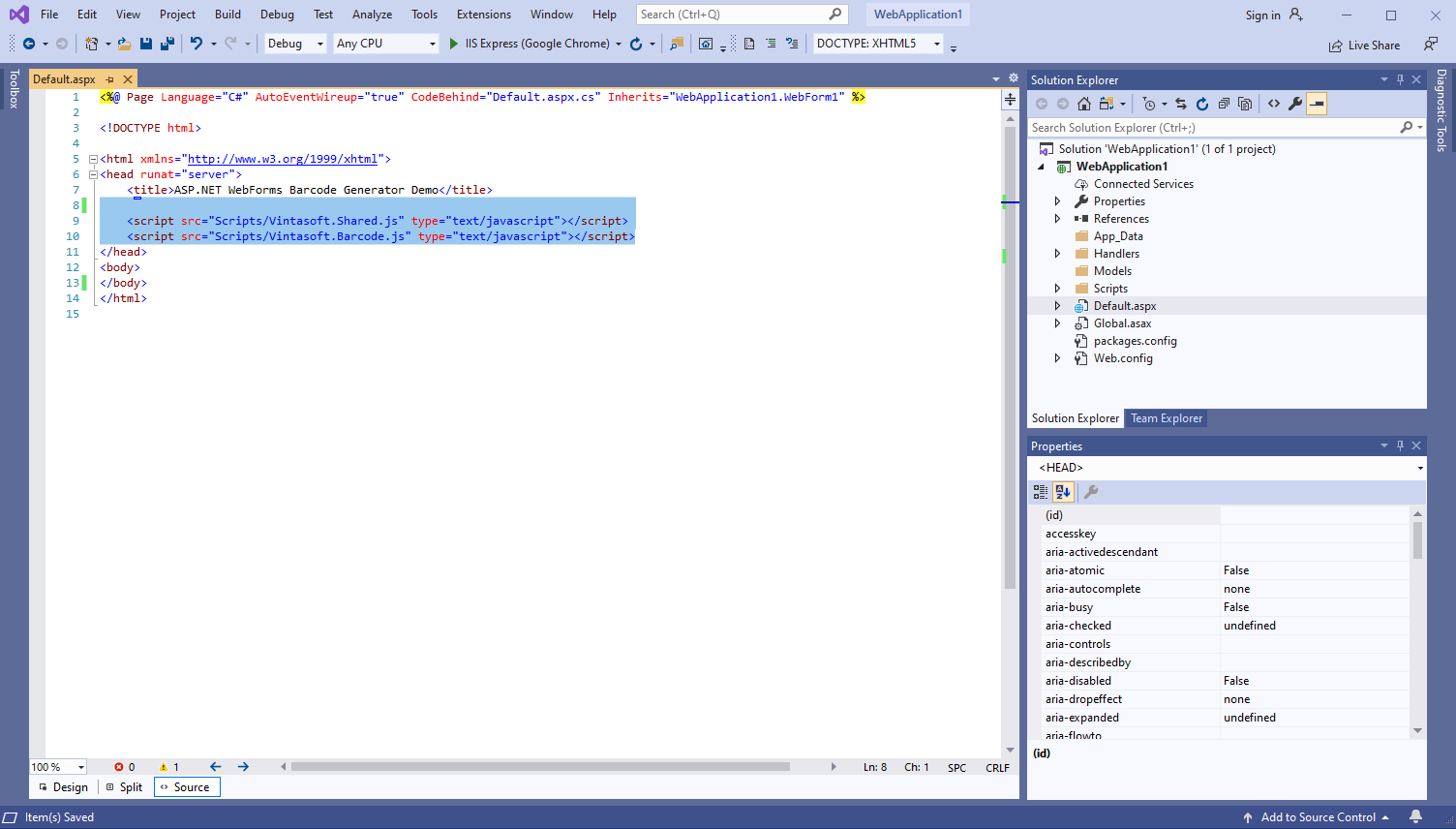

      • Add references to Vintasoft JavaScript files:
        References to Vintasoft JavaScript files
        Here is HTML code that adds references to jQuery and Vintasoft JavaScript files:
        <script src="~/Scripts/jquery-3.3.1.min.js" type="text/javascript"></script>
        <script src="~/Scripts/Vintasoft.Shared.js" type="text/javascript"></script>
        <script src="~/Scripts/Vintasoft.Barcode.js" type="text/javascript"></script>

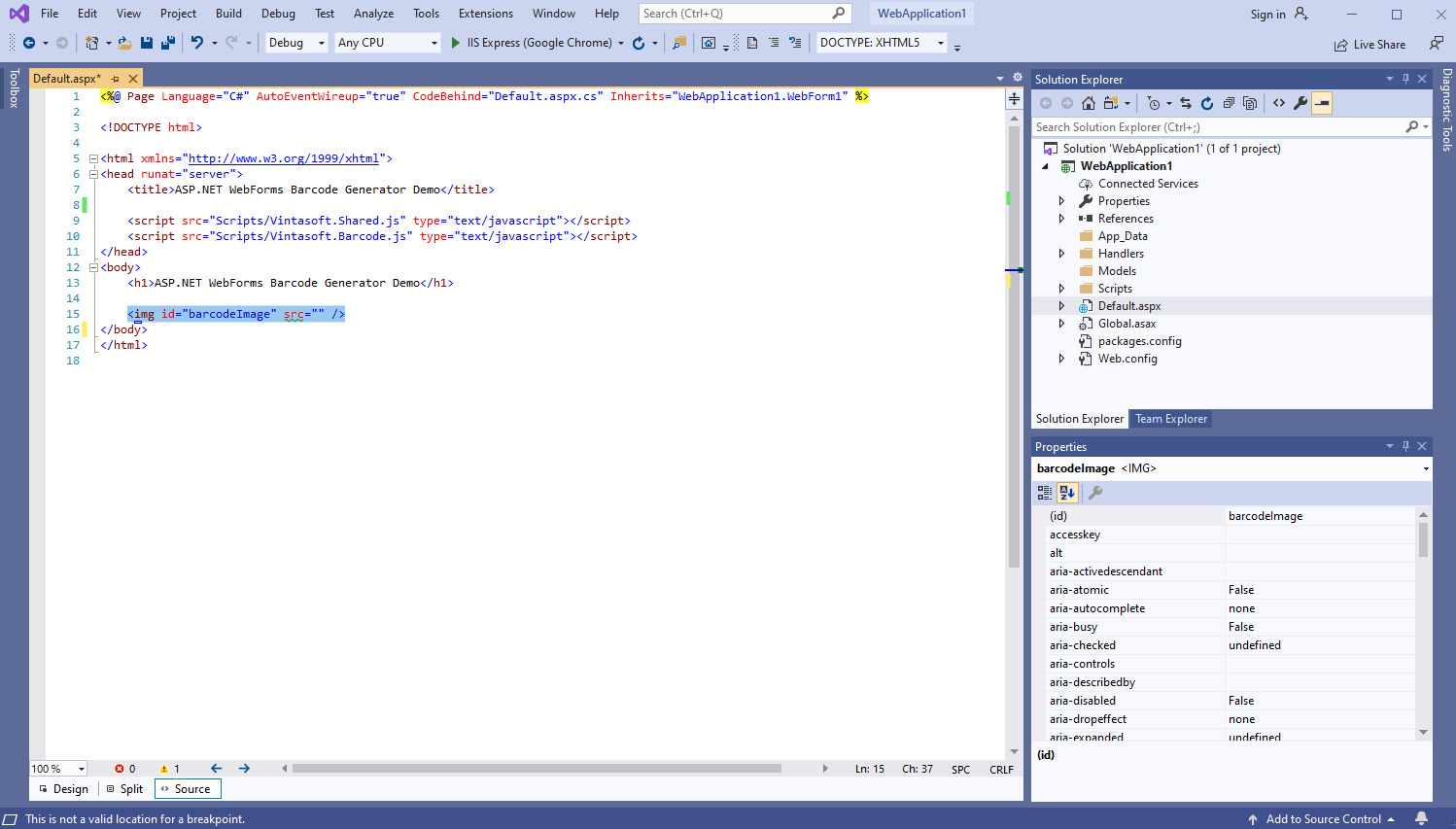

      • Add HTML markup (an image element that will display generated barcode image) to the web view:
        HTML markup (an image element that will display generated barcode image)
        Here is HTML markup code:
        <img id="barcodeImage" src="" />


      • Add JavaScript code that generates and displays barcode image:

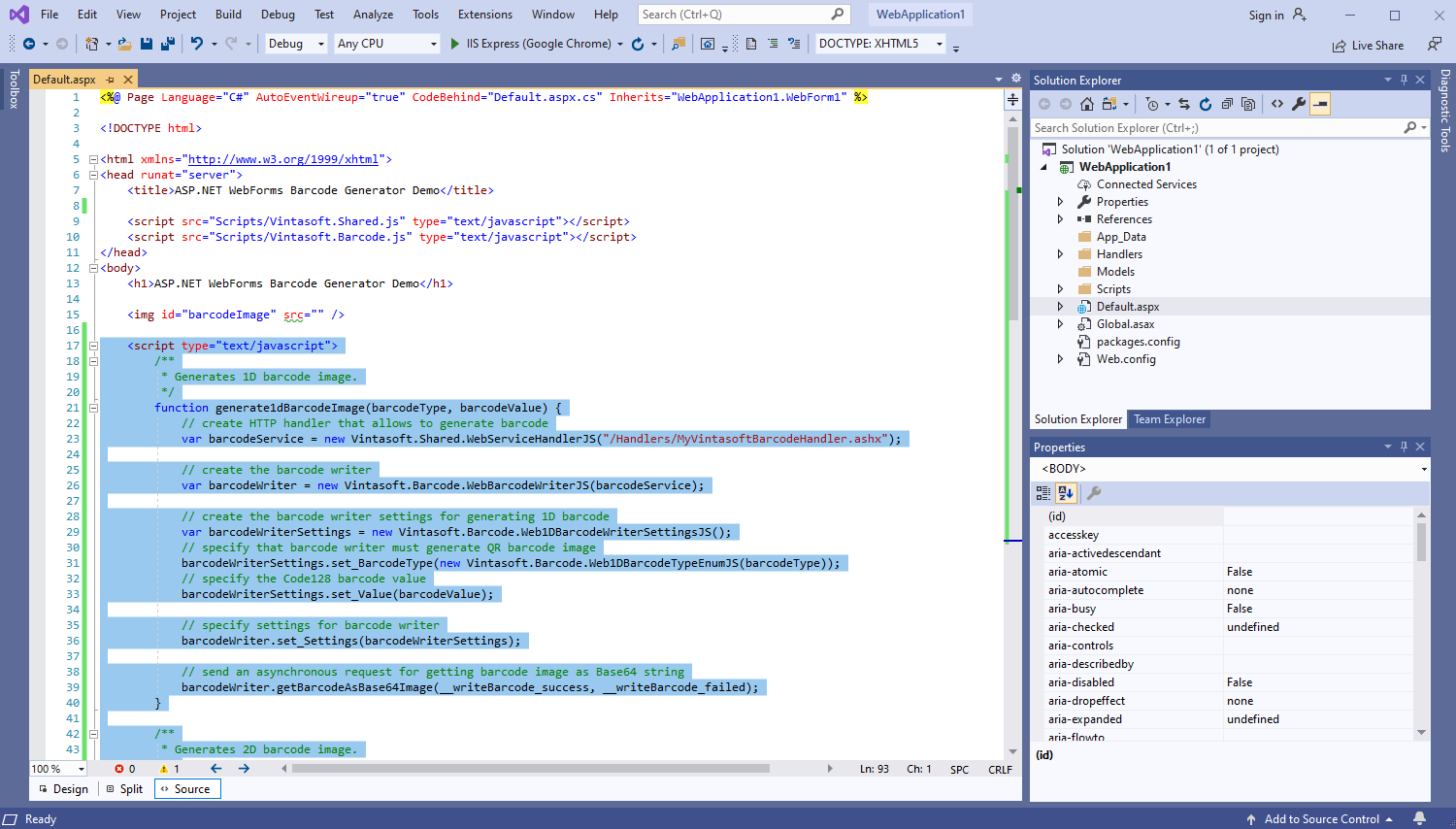

        JavaScript code that generates and displays barcode image
        Here is JavaScript code that generates and displays barcode image:
        <script type="text/javascript">
            /**
             * Generates 1D barcode image.
             */
            function generate1dBarcodeImage(barcodeType, barcodeValue) {
                // create HTTP handler that allows to generate barcode
                var barcodeService = new Vintasoft.Shared.WebServiceHandlerJS("/Handlers/MyVintasoftBarcodeHandler.ashx");

                // create the barcode writer
                var barcodeWriter = new Vintasoft.Barcode.WebBarcodeWriterJS(barcodeService);

                // create the barcode writer settings for generating 1D barcode
                var barcodeWriterSettings = new Vintasoft.Barcode.Web1DBarcodeWriterSettingsJS();
                // specify that barcode writer must generate QR barcode image
                barcodeWriterSettings.set_BarcodeType(new Vintasoft.Barcode.Web1DBarcodeTypeEnumJS(barcodeType));
                // specify the Code128 barcode value
                barcodeWriterSettings.set_Value(barcodeValue);

                // specify settings for barcode writer
                barcodeWriter.set_Settings(barcodeWriterSettings);

                // send an asynchronous request for getting barcode image as Base64 string
                barcodeWriter.getBarcodeAsBase64Image(__writeBarcode_success, __writeBarcode_failed);
            }

            /**
             * Generates 2D barcode image.
             */
            function generate2dBarcodeImage(barcodeType, barcodeValue) {
                // create HTTP handler that allows to generate barcode
                var barcodeService = new Vintasoft.Shared.WebServiceHandlerJS("/Handlers/MyVintasoftBarcodeHandler.ashx");

                // create the barcode writer
                var barcodeWriter = new Vintasoft.Barcode.WebBarcodeWriterJS(barcodeService);

                // create the barcode writer settings for generating 2D barcode
                var barcodeWriterSettings = new Vintasoft.Barcode.Web2DBarcodeWriterSettingsJS();
                // specify that barcode writer must generate QR barcode image
                barcodeWriterSettings.set_BarcodeType(new Vintasoft.Barcode.Web2DBarcodeTypeEnumJS(barcodeType));
                // specify the QR barcode value
                barcodeWriterSettings.set_Value(barcodeValue);

                // specify settings for barcode writer
                barcodeWriter.set_Settings(barcodeWriterSettings);

                // send an asynchronous request for getting barcode image as Base64 string
                barcodeWriter.getBarcodeAsBase64Image(__writeBarcode_success, __writeBarcode_failed);
            }

            /**
             * Barcode is generated successfully.
             */
            function __writeBarcode_success(data) {
                if (data.success) {
                    var barcodeImage = data.barcodeImage;
                    document.getElementById("barcodeImage").src = barcodeImage;
                }
                else {
                    alert(data.errorMessage);
                }
            }

            /**
             * Barcode generation is failed.
             */
            function __writeBarcode_failed(data) {
                // show information about error
                alert(data.errorMessage);
            }


            // set the session identifier
            Vintasoft.Shared.WebImagingEnviromentJS.set_SessionId("SessionID");
            // generate image of QR barcode with value "12345"
            generate2dBarcodeImage("QR", "12345");
        </script>

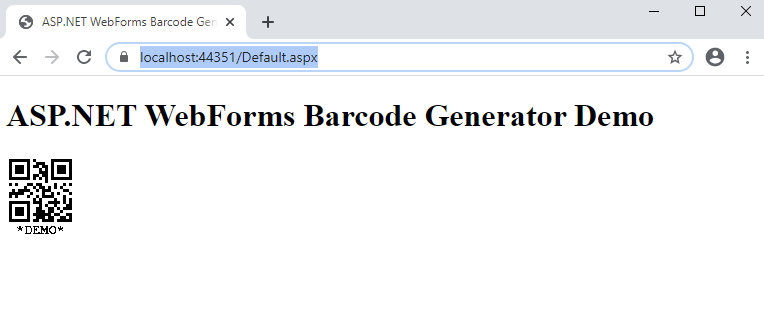

    6. Run the ASP.NET WebForms application and see the result.

      Barcode generation result in ASP.NET WebForms application
