VintaSoft Imaging .NET SDK 15.0: Documentation for Web developer
In This Topic
    Create button with color picker for Web Document Viewer UI
    In This Topic
    Here is JavaScript code that shows how to create button with color picker and add created button to the "Tools" menu in VintaSoft web document viewer:
    /**
     Initializes main menu of Vintasoft web document viewer.
     @param {object} docViewerSettings Settings of Vintasoft web document viewer.
    */
    function __initMenu(docViewerSettings) {
        // get items of document viewer
        var items = docViewerSettings.get_Items();

        // get the main menu of document viewer
        var mainMenu = items.getItemByRegisteredId("mainMenu");
        // if main menu is found
        if (mainMenu != null) {
            // get items of main menu
            var mainMenuItems = mainMenu.get_Items();

            // get "Tools" menu in web document viewer
            var toolsToolbarPanel = mainMenuItems.getItemByRegisteredId("toolsMenuPanel");
            // get items of "Tools" menu
            var toolsToolbarPanelItems = toolsToolbarPanel.get_Items();

            // create button with color picker
            var buttonWithColorPicker1 = new Vintasoft.Imaging.UI.UIElements.WebUiButtonWithColorPickerJS({
                cssClass: "vsui-button vsdv-imageViewerSettingsButton",
                title: "Select the text color",
                localizationId: "selectTextColorButton",
                initialColor: '#FF0000',
                showColorOnButton: false
            });
            // subscribe to the "colorChanged" event of button
            Vintasoft.Shared.subscribeToEvent(buttonWithColorPicker1, "colorChanged", function (event, eventArgs) {
                function argbIntToColor(argbInt) {
                    // ensure the number is treated as an unsigned 32-bit integer
                    argbInt >>>= 0;

                    // extract the components using bitwise shifts and masks
                    const b = argbInt & 0xFF; // Blue component
                    const g = (argbInt & 0xFF00) >>> 8; // Green component
                    const r = (argbInt & 0xFF0000) >>> 16; // Red component
                    const a = ((argbInt & 0xFF000000) >>> 24) / 255; // Alpha component (normalized to 0-1)

                    // return the color in the CSS rgba() string format
                    return "rgba(" + r + ", " + g + ", " + b + ", " + a.toFixed(2) + ")";
                }


                // get integer ARGB value
                var argbIntValue = eventArgs.color;
                // convert integer ARGB value to a color value
                var colorValue = argbIntToColor(argbIntValue);
                alert("Color is selected: " + colorValue);
            });

            // add button with color picker to the "Tools" menu in web document viewer
            toolsToolbarPanelItems.addItem(buttonWithColorPicker1);
        }
    }

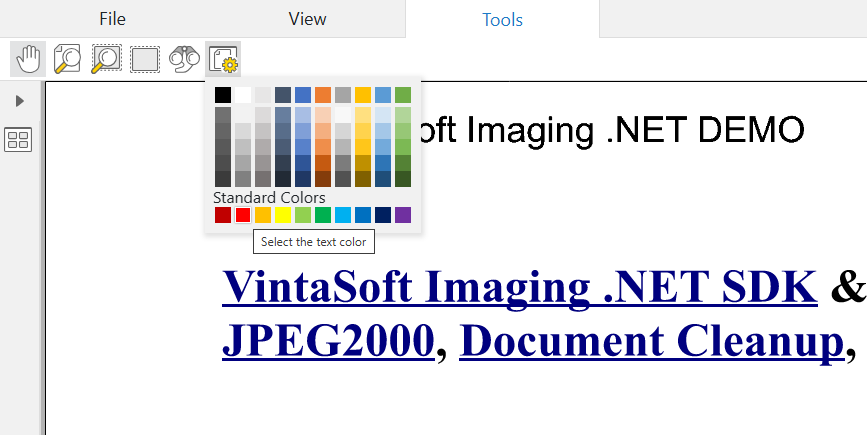

    Here is screenshot of VintaSoft web document viewer with button with color picker, which was created using JS-code above:
