    Add web document viewer to a React and ASP.NET Core application
    In This Topic
    This tutorial shows how to create a blank React and ASP.NET Core application in Visual Studio .NET 2022 and add document viewer (with ability to open images and documents (PDF, DOCX, XLSX), extract/search text, annotate documents) to a React and ASP.NET Core application.


    Here are steps, which must be done:
    1. Create a blank React and ASP.NET Core application.

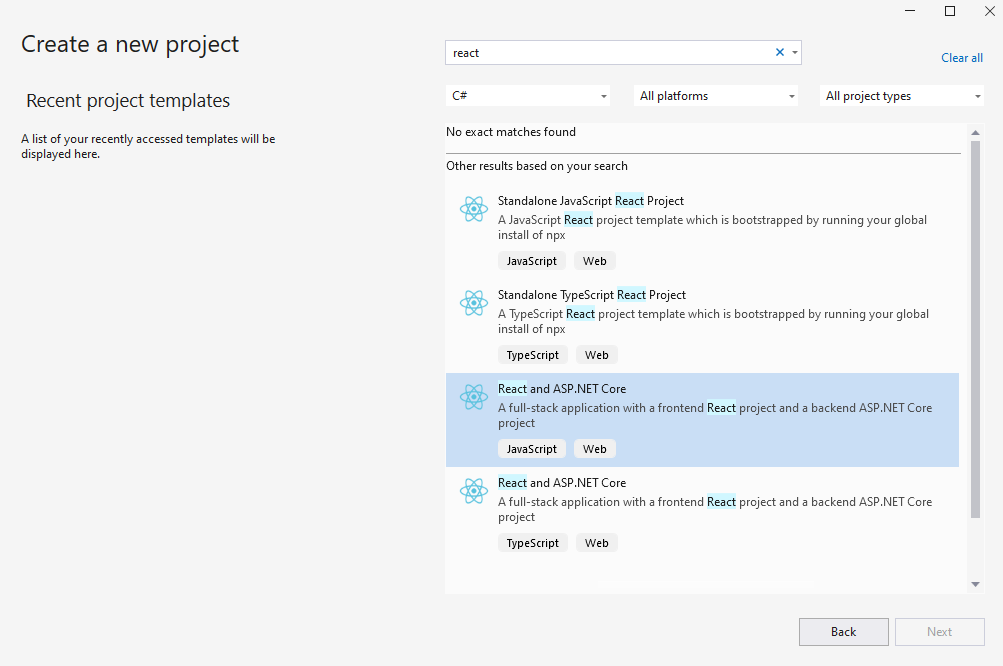

      • Open Visual Studio .NET 2022 and create a new application of "React and ASP.NET Core" type:

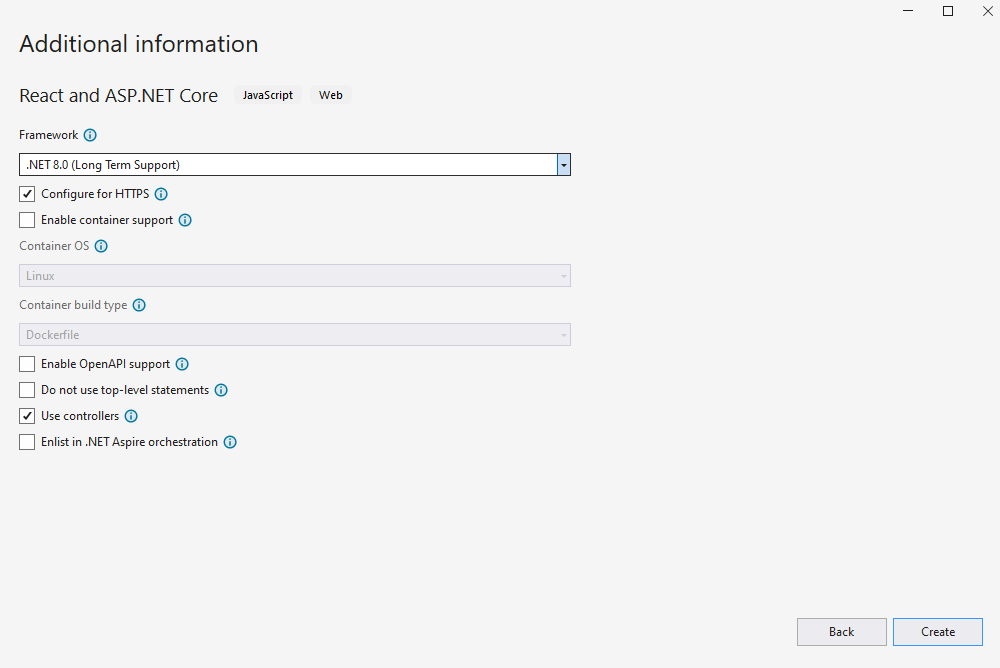

      • Configure the application to use .NET 8.0:

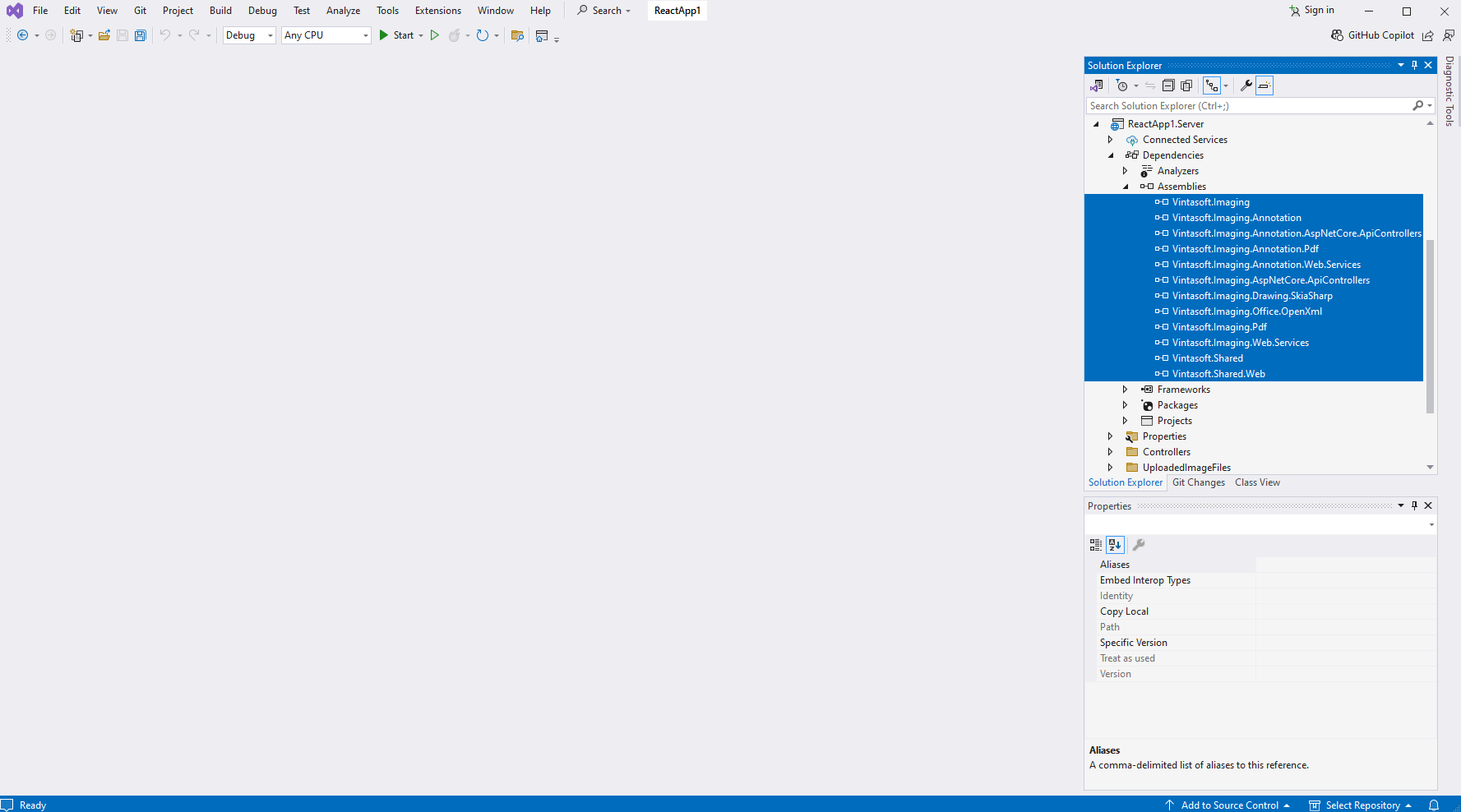

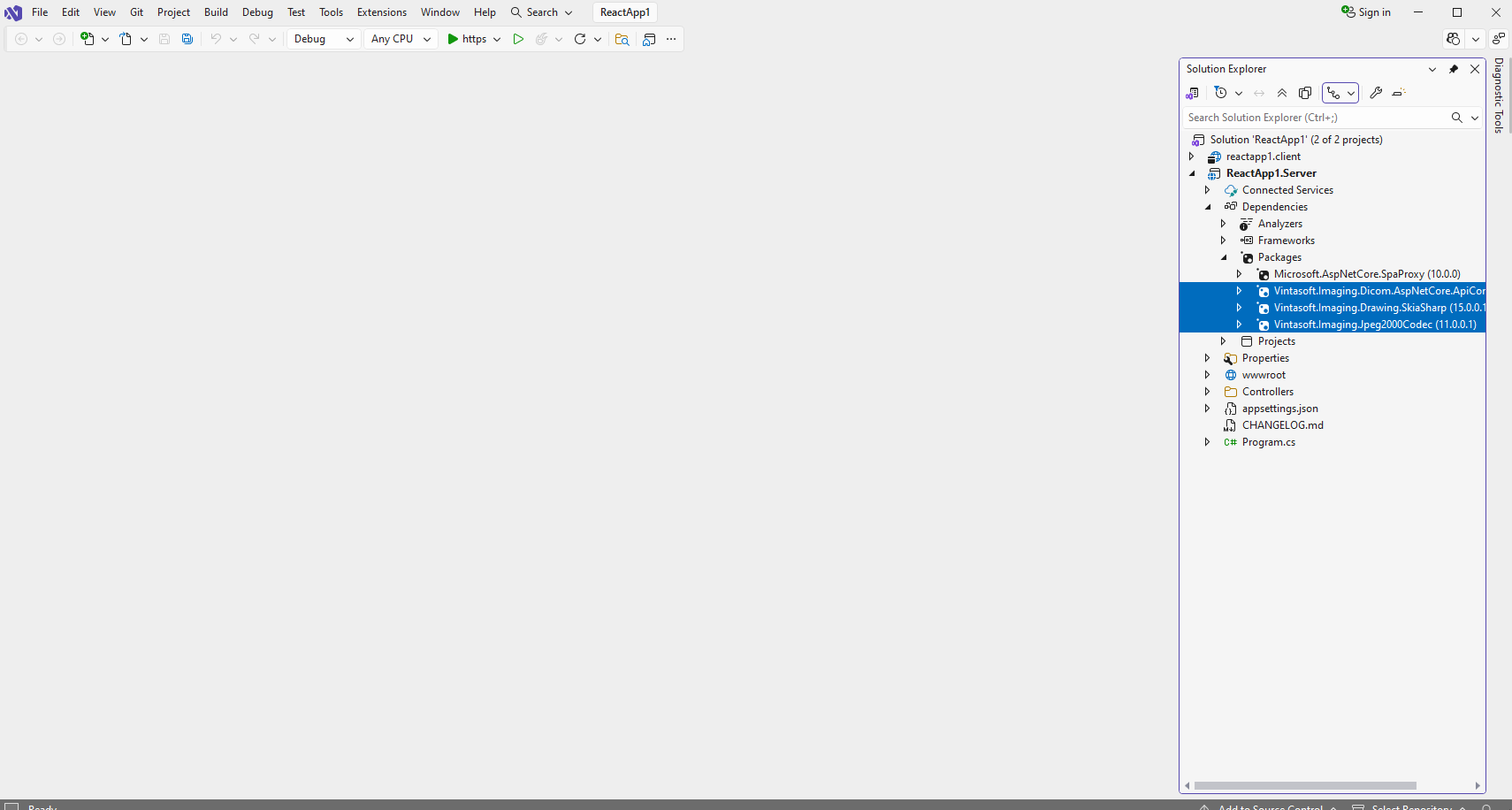

    2. Server side: Add references to the Vintasoft assemblies to "ReactApp1.Server" project.

      Copy Vintasoft.Shared.dll, Vintasoft.Imaging.dll, Vintasoft.Imaging.Pdf.dll, Vintasoft.Imaging.Annotation.dll, Vintasoft.Imaging.Annotation.Pdf.dll, Vintasoft.Imaging.Office.OpenXml, Vintasoft.Shared.Web.dll, Vintasoft.Imaging.Web.Services.dll, Vintasoft.Imaging.Annotation.Web.Services.dll, Vintasoft.Imaging.AspNetCore.ApiControllers.dll and Vintasoft.Imaging.Annotation.AspNetCore.ApiControllers.dll assemblies from "<SdkInstallPath>\VintaSoft Imaging .NET v12.4\Bin\DotNet8\AnyCPU\" directory to the "Bin" directory of "ReactApp1.Server" project and add references to assemblies in "ReactApp1.Server" project.



    3. Server side: Specify drawing engine, which should be used by VintaSoft Imaging .NET SDK for drawing of 2D graphics.

      If "ReactApp1.Server" project must be used in Windows or Linux, SkiaSharp drawing engine should be used.
      If "ReactApp1.Server" project must be used in Windows only, System.Drawing or SkiaSharp drawing engine should be used.

      Here are steps, which should be made for using SkiaSharp engine:
      • Add reference to the Vintasoft.Imaging.Drawing.SkiaSharp.dll assembly.
      • Add reference to the SkiaSharp nuget-package version 2.88.6.
      • Open "Program.cs" file in "ReactApp1.Server" project, add code line "Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();" at the beginning of file - added code specifies that VintaSoft Imaging .NET SDK should use SkiaSharp library for drawing of 2D graphics.

      Here are steps, which should be made for using System.Drawing engine:
      • Add reference to the Vintasoft.Imaging.Gdi.dll assembly.
      • Open "Program.cs" file in "ReactApp1.Server" project, add code line "Vintasoft.Imaging.Drawing.Gdi.GdiGraphicsFactory.SetAsDefault();" at the beginning of file - added code specifies that VintaSoft Imaging .NET SDK should use System.Drawing library for drawing of 2D graphics.

    4. Server side: Create web services, which allow to upload/download file, manage image collection, get information about images, get thumbnails, render image tiles, extract/search text and annotate document.

      • Create web service that allows to upload/download file

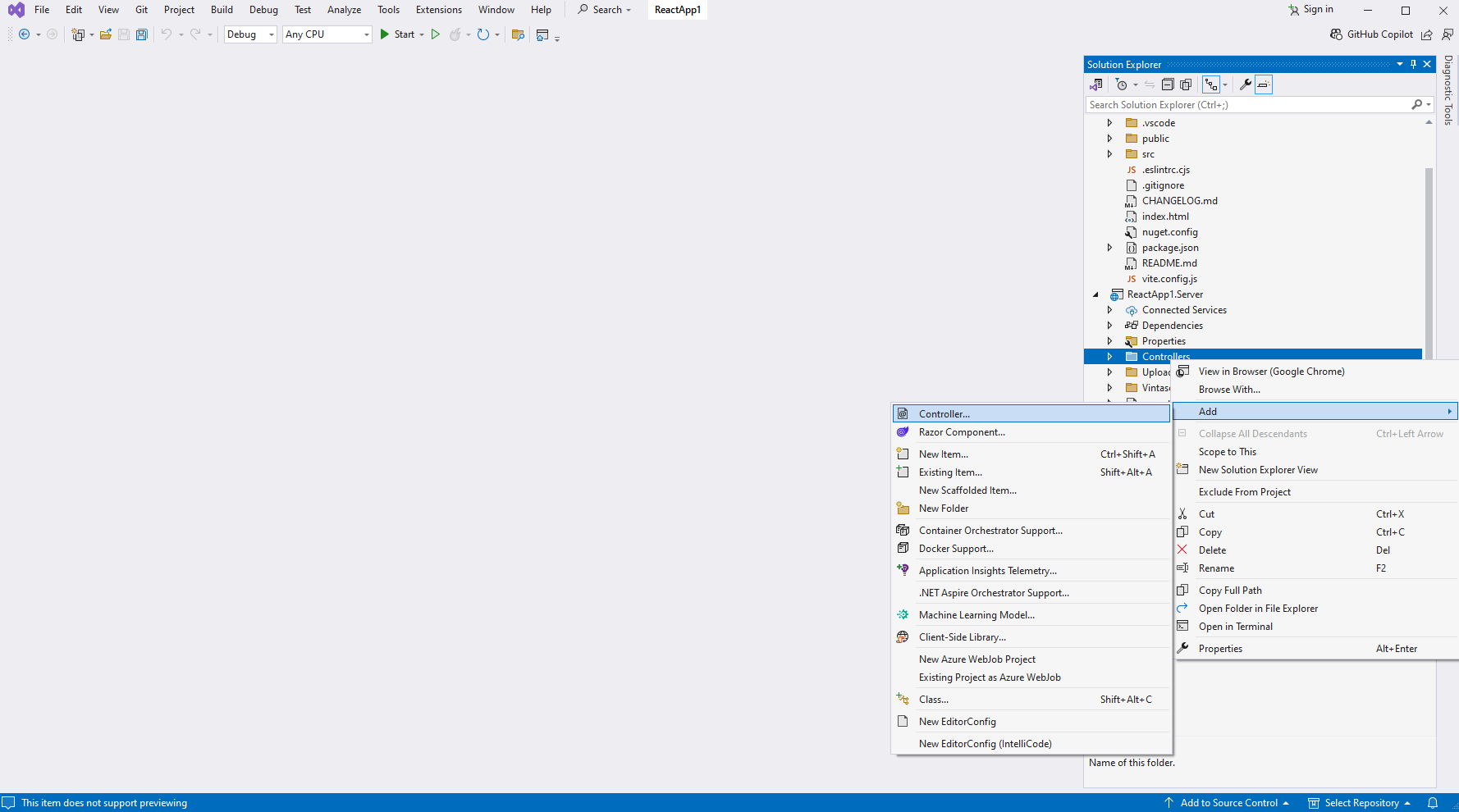

        • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

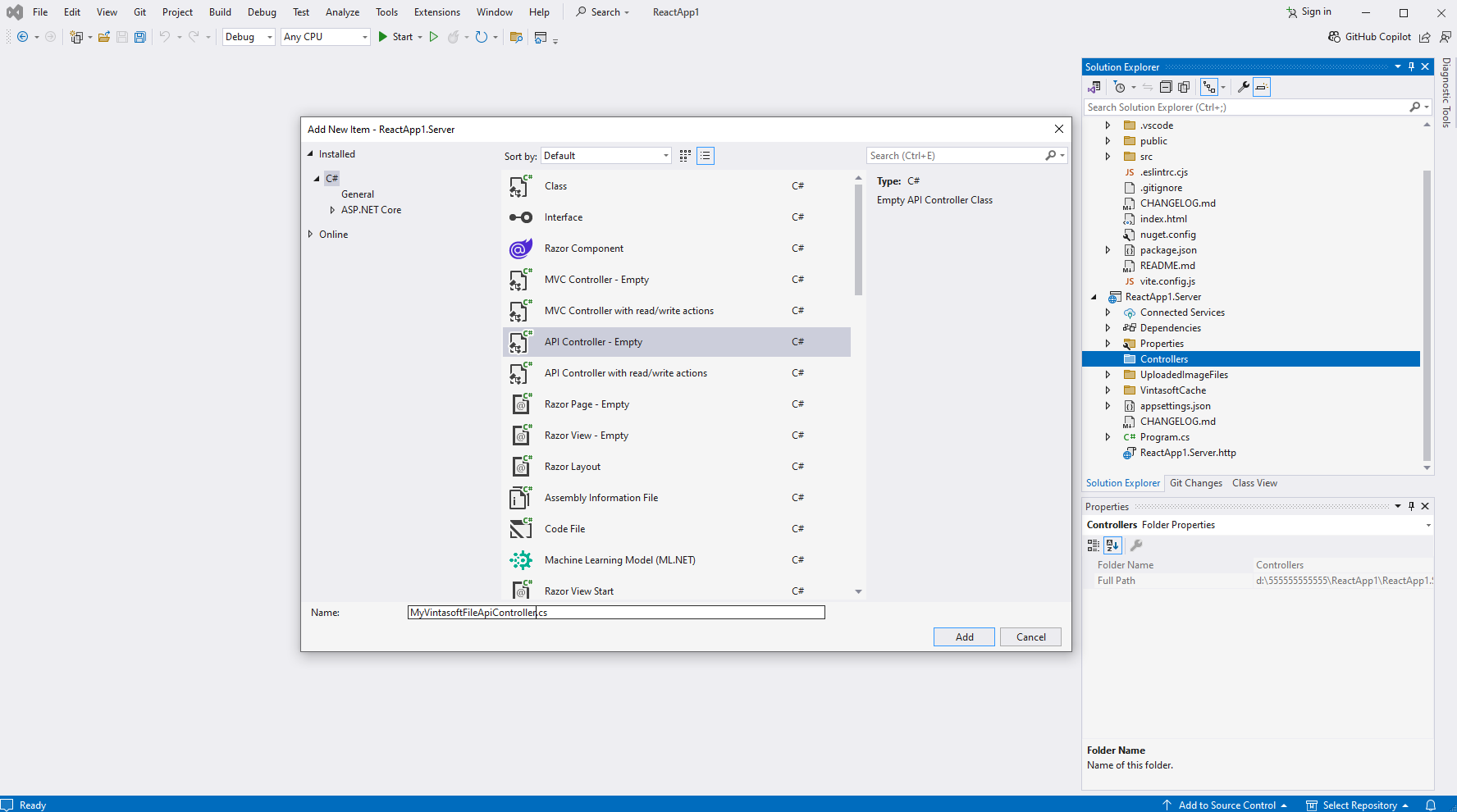

        • Select Empty API controller template, set the controller name to the "MyVintasoftFileApiController" and press the "Add" button
        • Specify that MyVintasoftFileApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController class

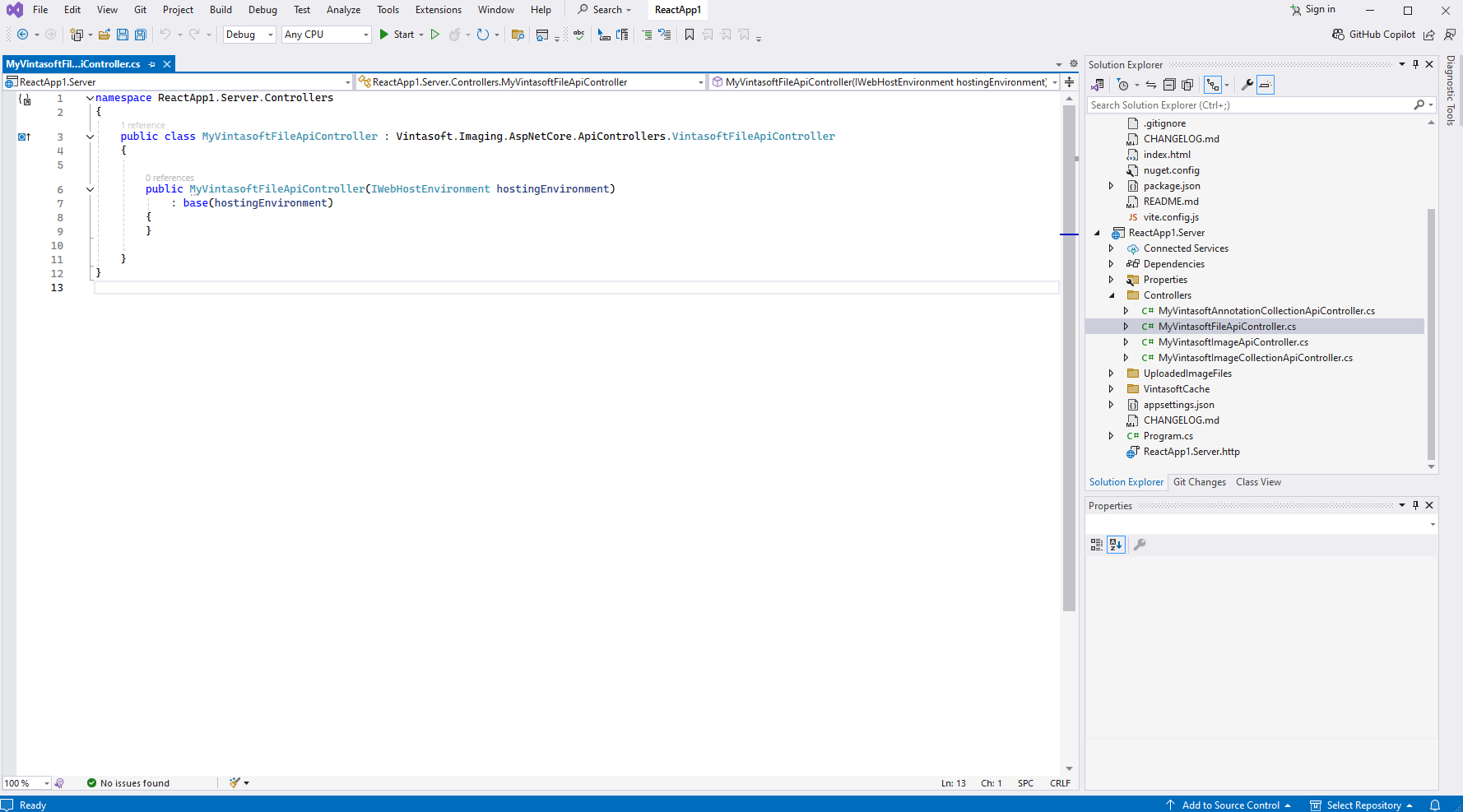

          Here are source codes of MyVintasoftFileApiController class:
          namespace ReactApp1.Server.Controllers
          {
              public class MyVintasoftFileApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController
              {

                  public MyVintasoftFileApiController(IWebHostEnvironment hostingEnvironment)
                      : base(hostingEnvironment)
                  {
                  }

              }
          }

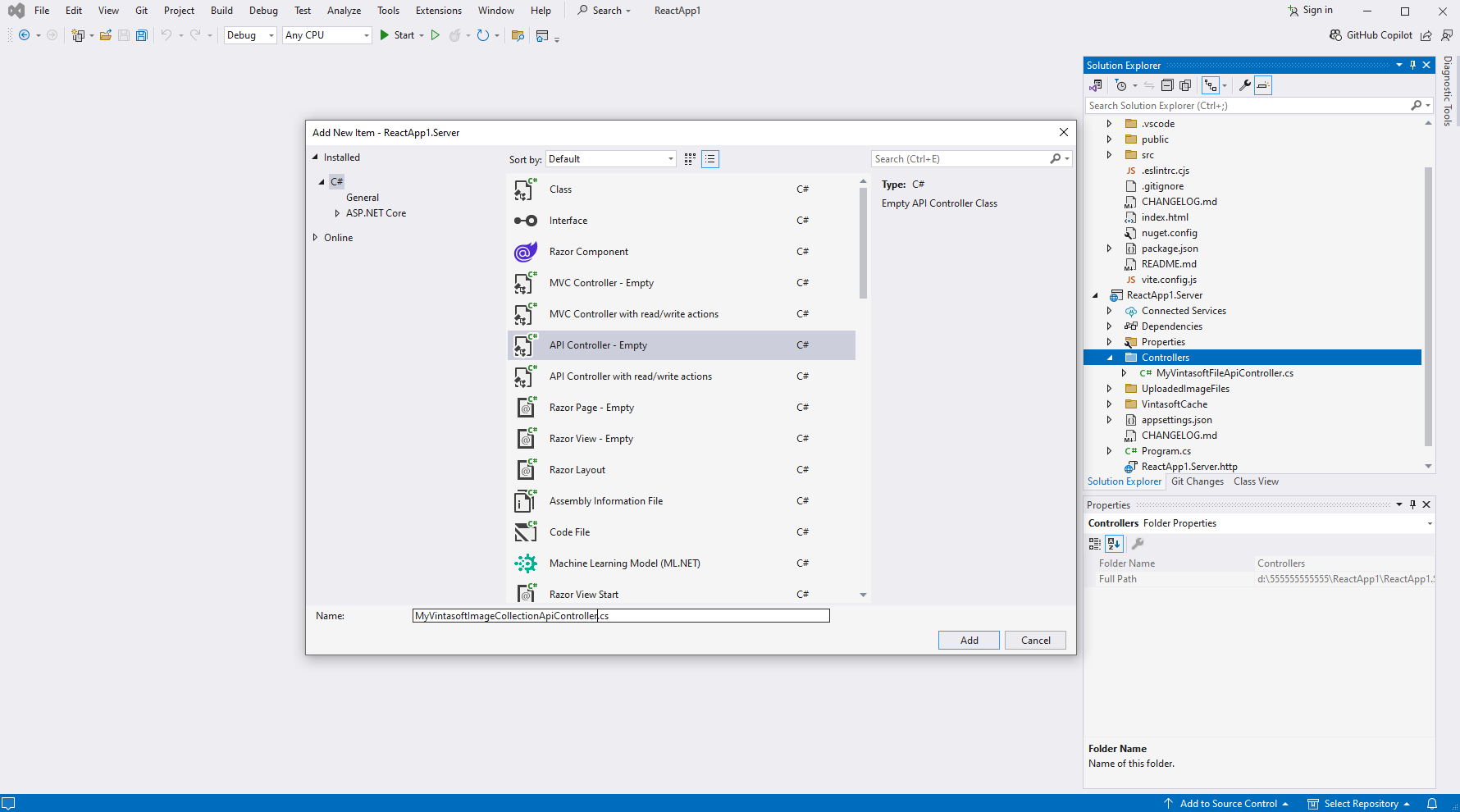

      • Create web service that allows to manage image collection

        • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu
        • Select Empty API controller template, set the controller name to the "MyVintasoftImageCollectionApiController" and press the "Add" button
        • Specify that MyVintasoftImageCollectionApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageCollectionApiController class

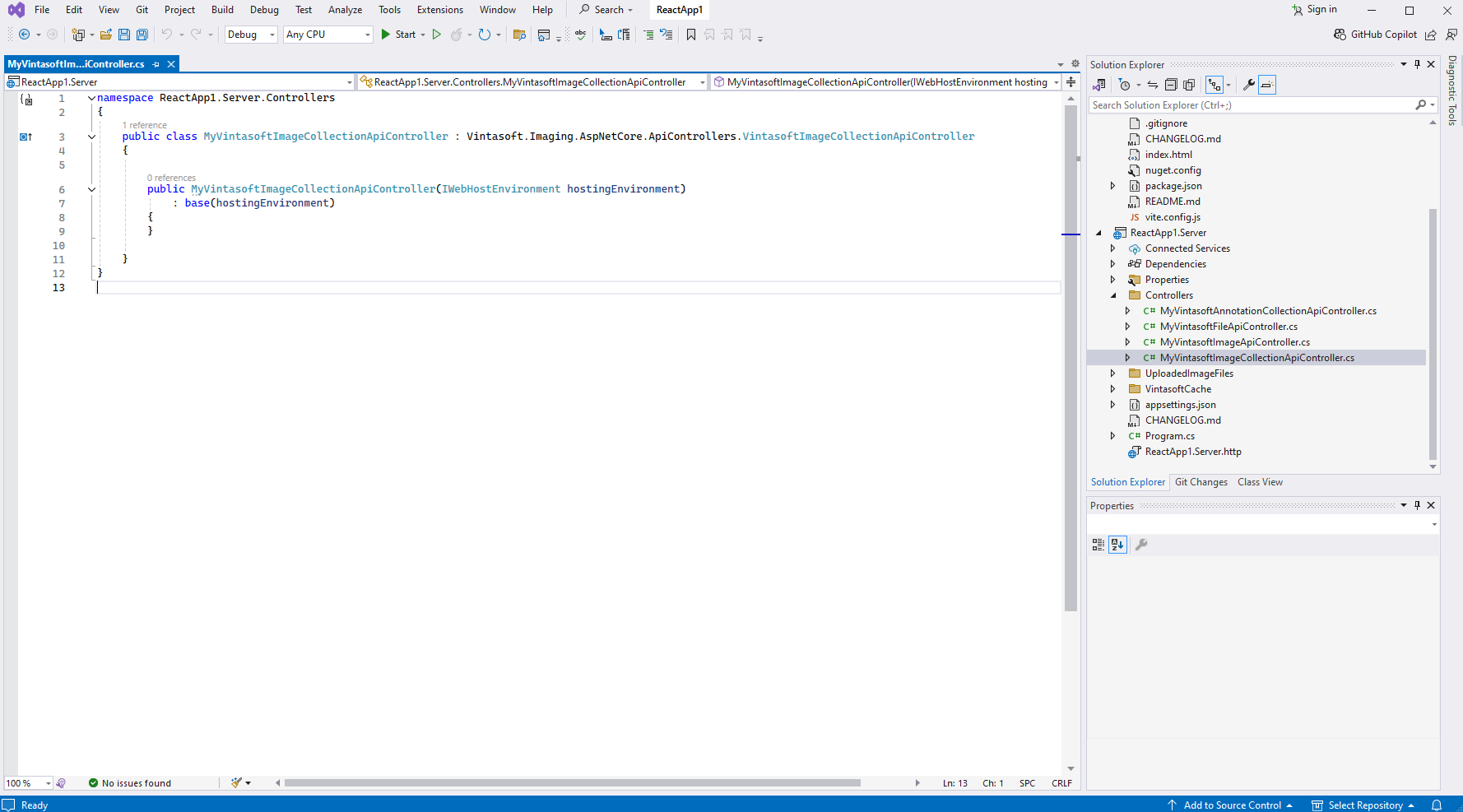

          Here are source codes of MyVintasoftImageCollectionApiController class:
          namespace ReactApp1.Server.Controllers
          {
              public class MyVintasoftImageCollectionApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageCollectionApiController
              {

                  public MyVintasoftImageCollectionApiController(IWebHostEnvironment hostingEnvironment)
                      : base(hostingEnvironment)
                  {
                  }

              }
          }


      • Create web service that allows to get information about images, get thumbnails, render image tiles, extract/search text

        • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

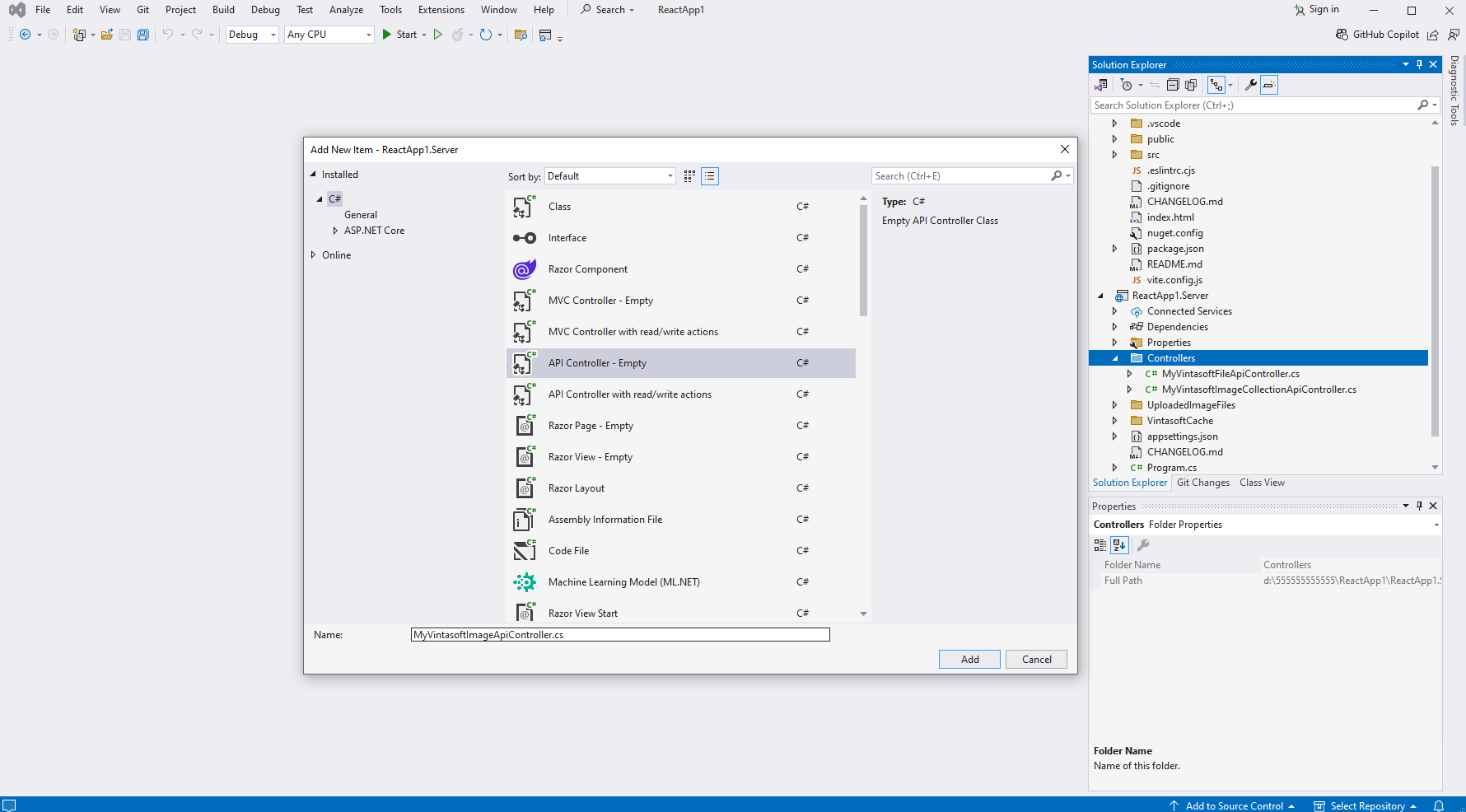

        • Select Empty API controller template, set the controller name to the "MyVintasoftImageApiController" and press the "Add" button
        • Specify that MyVintasoftImageApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageApiController class

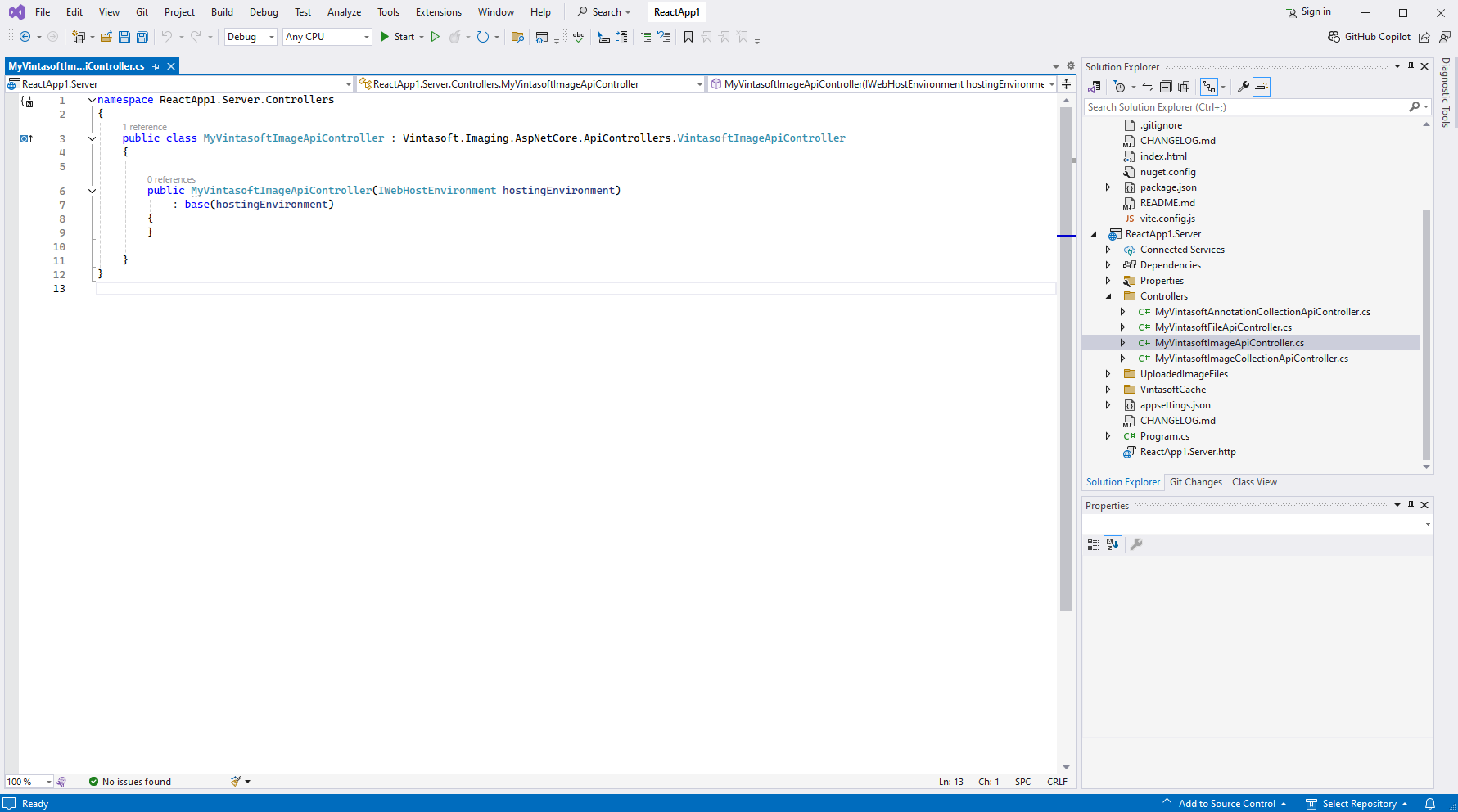

          Here are source codes of MyVintasoftImageApiController class:
          namespace ReactApp1.Server.Controllers
          {
              public class MyVintasoftImageApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageApiController
              {

                  public MyVintasoftImageApiController(IWebHostEnvironment hostingEnvironment)
                      : base(hostingEnvironment)
                  {
                  }

              }
          }

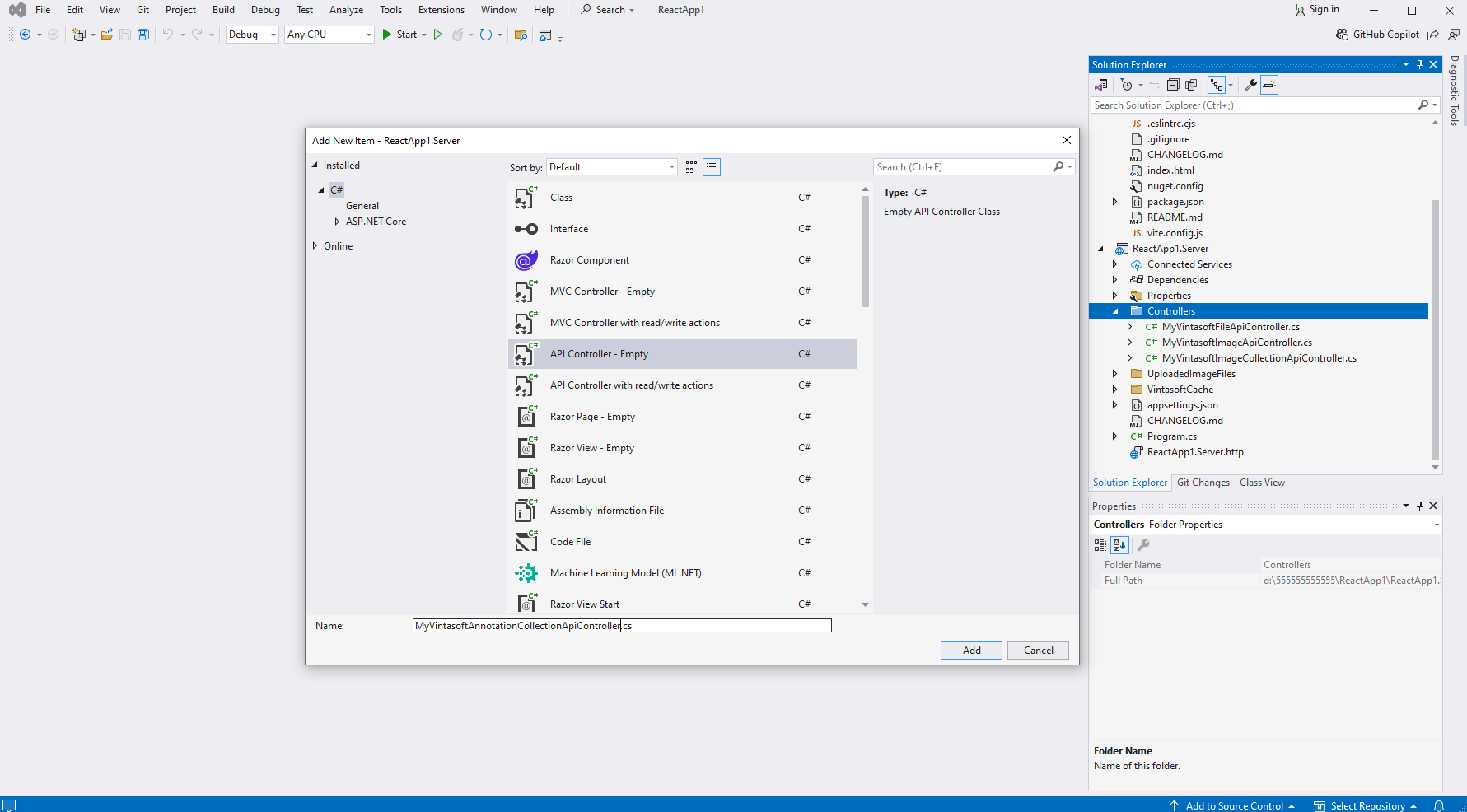

      • Create web service that allows to annotate images and documents

        • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu
        • Select Empty API controller template, set the controller name to the "MyVintasoftAnnotationCollectionApiController" and press the "Add" button
        • Specify that MyVintasoftAnnotationCollectionApiController class is derived from Vintasoft.Imaging.Annotation.AspNetCore.ApiControllers.VintasoftAnnotationCollectionApiController class

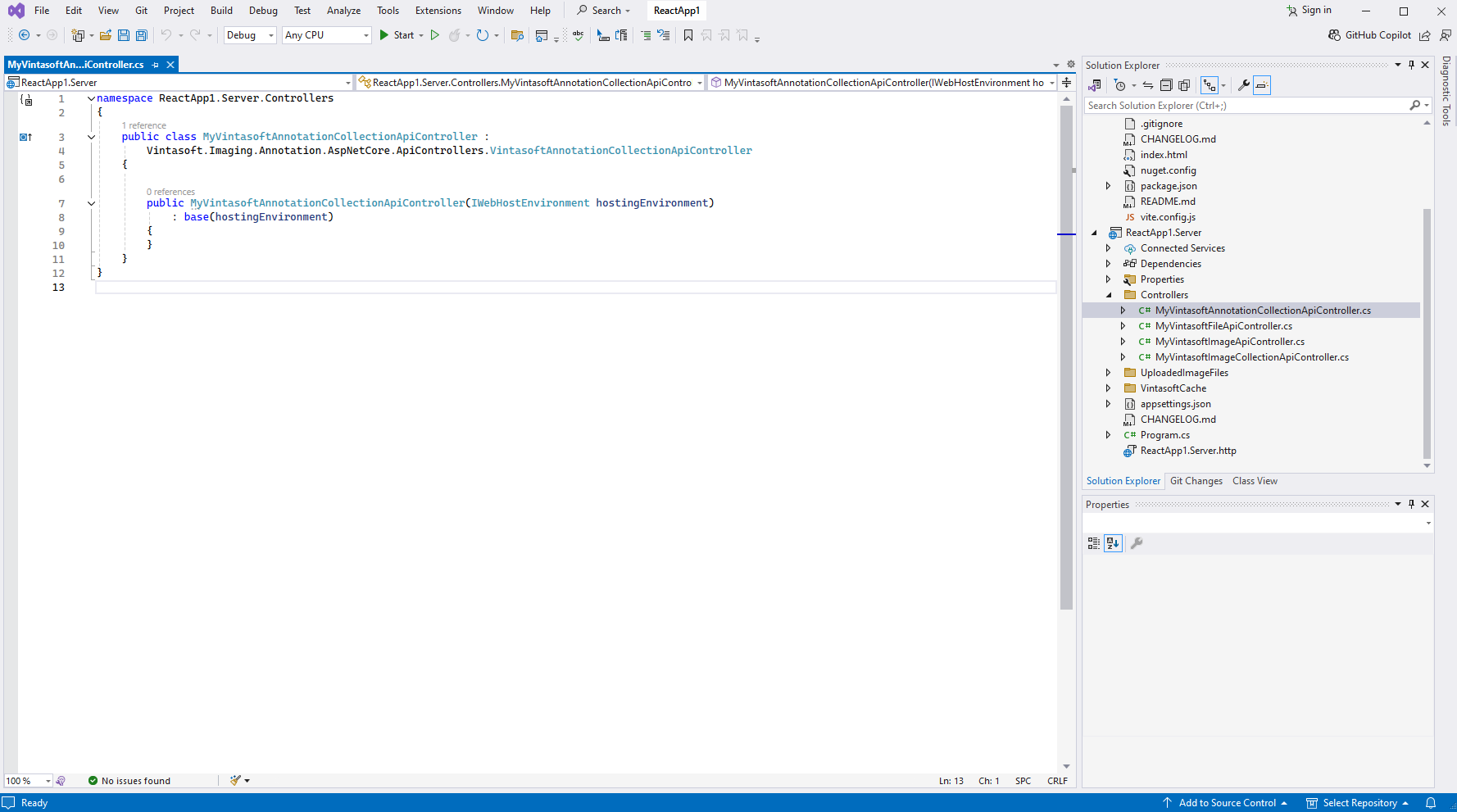

          Here are source codes of MyVintasoftAnnotationCollectionApiController class:
          namespace ReactApp1.Server.Controllers
          {
              public class MyVintasoftAnnotationCollectionApiController :
                  Vintasoft.Imaging.Annotation.AspNetCore.ApiControllers.VintasoftAnnotationCollectionApiController
              {

                  public MyVintasoftAnnotationCollectionApiController(IWebHostEnvironment hostingEnvironment)
                      : base(hostingEnvironment)
                  {
                  }
              }
          }


    5. Server side: Create CORS-policy that allows to access web services from client side.

      • Open the "Program.cs" file in "ReactApp1.Server" project and add code that:
        • Creates CORS-policy that allows to access web services from "localhost"
        • Enables CORS usage in "ReactApp1.Server" project

        Here are source codes of "Program.cs" file after update:
        Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();

        var builder = WebApplication.CreateBuilder(args);

        // Add services to the container.

        builder.Services.AddControllers();

        builder.Services.AddCors(options =>
        {
            options.AddPolicy(name: "CorsPolicy1", policy =>
            {
                policy.SetIsOriginAllowed(origin => new Uri(origin).Host == "localhost").AllowAnyHeader().AllowAnyMethod();
            });
        });

        var app = builder.Build();

        app.UseDefaultFiles();
        app.UseStaticFiles();

        // Configure the HTTP request pipeline.

        app.UseHttpsRedirection();

        app.UseAuthorization();

        app.UseCors("CorsPolicy1");

        app.MapControllers();

        app.MapFallbackToFile("/index.html");

        app.Run();

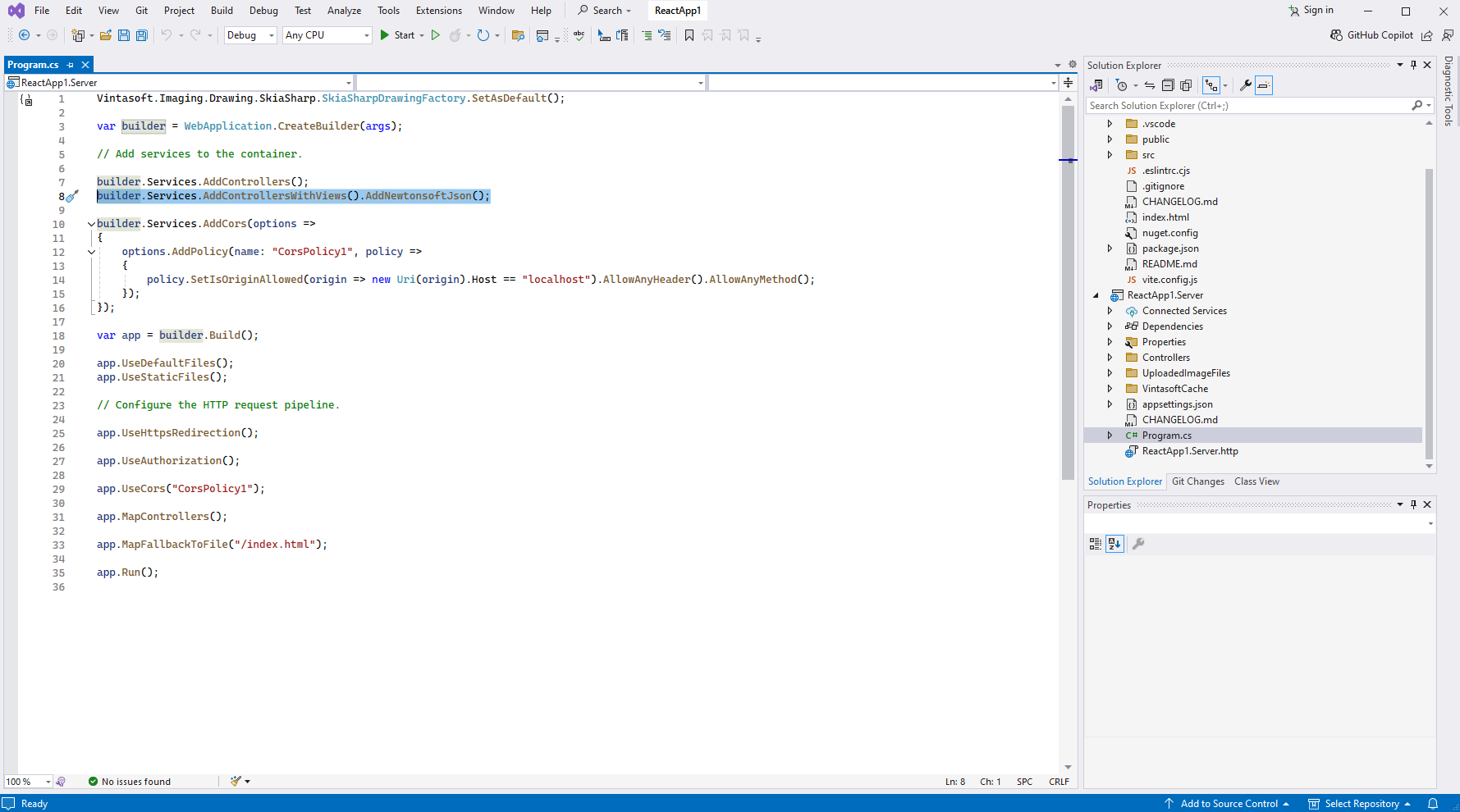

    6. Server side: Add Newtonsoft JSON for deserialization of JSON annotations.

      • Add reference to the Microsoft.AspNetCore.Mvc.NewtonsoftJson nuget-package.

      • Open the "Program.cs" file in "ReactApp1.Server" project and add code line "builder.Services.AddControllersWithViews().AddNewtonsoftJson();" after line "builder.Services.AddControllers();". This is necessary for correct deserialization of JSON annotations.


        Here are source codes of "Program.cs" file after update:
        Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();

        var builder = WebApplication.CreateBuilder(args);

        // Add services to the container.

        builder.Services.AddControllers();
        builder.Services.AddControllersWithViews().AddNewtonsoftJson();

        builder.Services.AddCors(options =>
        {
            options.AddPolicy(name: "CorsPolicy1", policy =>
            {
                policy.SetIsOriginAllowed(origin => new Uri(origin).Host == "localhost").AllowAnyHeader().AllowAnyMethod();
            });
        });

        var app = builder.Build();

        app.UseDefaultFiles();
        app.UseStaticFiles();

        // Configure the HTTP request pipeline.

        app.UseHttpsRedirection();

        app.UseAuthorization();

        app.UseCors("CorsPolicy1");

        app.MapControllers();

        app.MapFallbackToFile("/index.html");

        app.Run();

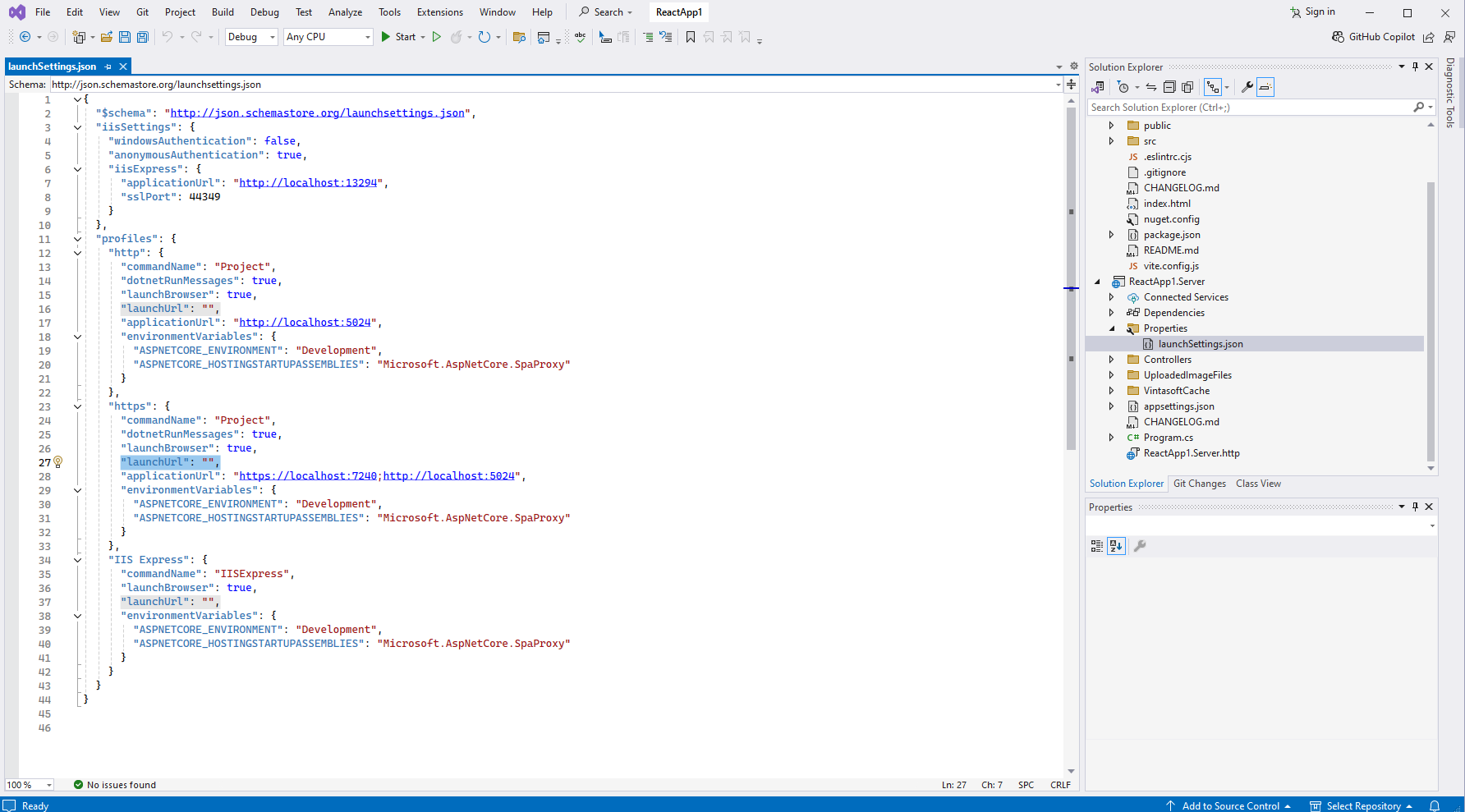

    7. Server side: Update launch URL in 'launchSettings.json' file.

      • Open file "Properties\launchSettings.json" in "ReactApp1.Server" and clear launch URL:
    8. Server side: Copy the default test PDF document to a server side.

      • Create folder "UploadedImageFiles\SessionID" in "ReactApp1.Server" project and copy test PDF document "<SdkInstallPath>\VintaSoft\Imaging .NET v12.4\Examples\ASP.NET Core\CSharp\AspNetCoreImagingDemo\wwwroot\UploadedImageFiles\VintasoftImagingDemo.pdf" to the folder. This document will be displayed in document viewer.
    9. Compile the project for restoring dependencies using 'npm'.

    10. Delete files, which are not necessary in this tutorial.

      • Delete files "WeatherForecast.cs" and "Controllers\WeatherForecastController.cs" in "ReactApp1.Server" project - the WeatherForecast Web API controller is not necessary in this tutorial.

      • Delete files "src\App.css" and "src\App.jsx" - the WeatherForecast Web API controller is not necessary in this tutorial.
    11. Client side: Add JavaScript files to the "reactapp1.client" project.

      • Copy Vintasoft.Shared.js, Vintasoft.Imaging.js, Vintasoft.Imaging.Annotation.js and Vintasoft.Imaging.DocumentViewer.js files from "<InstallPath>\VintaSoft Imaging .NET v12.4\Bin\JavaScript\" folder into "public\" folder.

      • Specify, which "standard" dialogs (password dialog, print dialog, etc) should be used by web document viewer
        • If web document viewer should use ready-to-use "standard" Bootstrap dialogs:
          • Add "bootstrap" Node-module to the "package.json" file. Rebuild the project for refreshing Node-modules.
            Here are source codes of "package.json" file after update:
            {
              "name": "reactapp1.client",
              "private": true,
              "version": "0.0.0",
              "type": "module",
              "scripts": {
                "dev": "vite",
                "build": "vite build",
                "lint": "eslint . --ext js,jsx --report-unused-disable-directives --max-warnings 0",
                "preview": "vite preview"
              },
              "dependencies": {
                "react": "^18.2.0",
                "react-dom": "^18.2.0",
                "bootstrap": "5.3.3"
              },
              "devDependencies": {
                "@types/react": "^18.2.66",
                "@types/react-dom": "^18.2.22",
                "@vitejs/plugin-react": "^4.2.1",
                "eslint": "^8.57.0",
                "eslint-plugin-react": "^7.34.1",
                "eslint-plugin-react-hooks": "^4.6.0",
                "eslint-plugin-react-refresh": "^0.4.6",
                "vite": "^5.2.0"
              }
            }


          • Copy Vintasoft.Imaging.Dialogs.Bootstrap.js and Vintasoft.Imaging.DocumentViewer.Dialogs.Bootstrap.js files from "<InstallPath>\VintaSoft Imaging .NET v12.4\Bin\JavaScript\" folder into "public\" folder.

        • If web document viewer should use ready-to-use "standard" jQuery UI dialogs:
          • Add "jquery-ui-dist" Node-module to the "package.json" file. Rebuild the project for refreshing Node-modules.
          • Copy Vintasoft.Imaging.Dialogs.jQueryUI.js, Vintasoft.Imaging.Dialogs.jQueryUI.d.ts, Vintasoft.Imaging.DocumentViewer.Dialogs.jQueryUI.js and Vintasoft.Imaging.DocumentViewer.Dialogs.jQueryUI.d.ts files from "<InstallPath>\VintaSoft Imaging .NET v12.4\Bin\JavaScript\" folder into "src\app\assets\" folder.

        • If web document viewer should use custom "standard" dialogs,please read how to create custom "standard" dialogs here.

      • Copy files Vintasoft.Imaging.css and Vintasoft.Imaging.DocumentViewer.css with CSS-styles of Vintasoft web document viewer from "<SdkInstallPath>\VintaSoft\Imaging .NET v12.4\Bin\JavaScript\" folder to the "public\" folder.

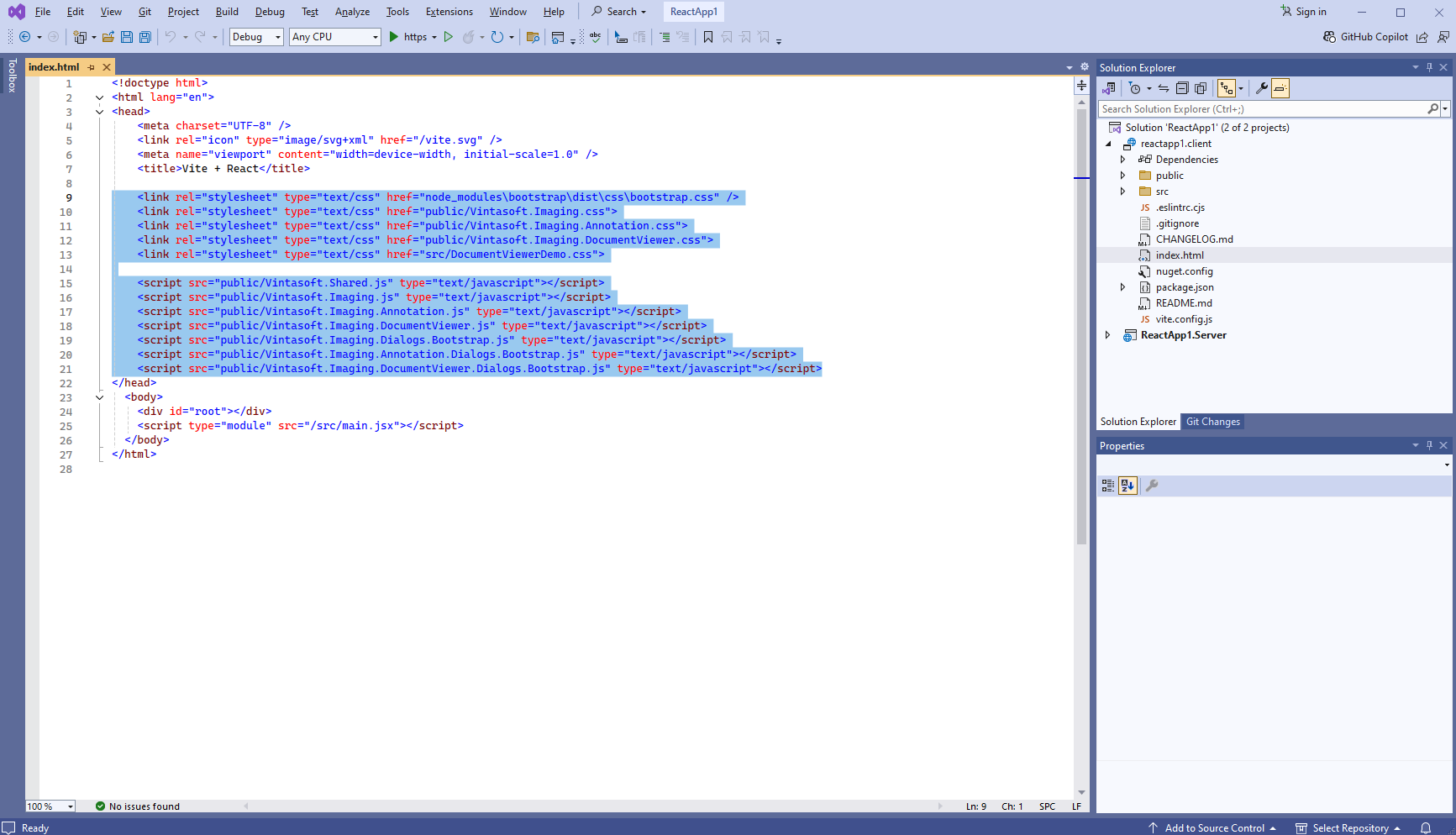

      • Add links to Bootstrap .css-file and Vintasoft .css-files to the "index.html" file, add references to Vintasoft JavaScript files to the header of "index.html" file:


        Here are source codes of "index.html" file:
        <!doctype html>
        <html lang="en">
        <head>
            <meta charset="UTF-8" />
            <link rel="icon" type="image/svg+xml" href="/vite.svg" />
            <meta name="viewport" content="width=device-width, initial-scale=1.0" />
            <title>Vite + React</title>

            <link rel="stylesheet" type="text/css" href="node_modules/bootstrap/dist/css/bootstrap.css" />
            <link rel="stylesheet" type="text/css" href="public/Vintasoft.Imaging.css">
            <link rel="stylesheet" type="text/css" href="public/Vintasoft.Imaging.DocumentViewer.css">
            <link rel="stylesheet" type="text/css" href="src/DocumentViewerDemo.css">

            <script src="public/Vintasoft.Shared.js" type="text/javascript"></script>
            <script src="public/Vintasoft.Imaging.js" type="text/javascript"></script>
            <script src="public/Vintasoft.Imaging.Annotation.js" type="text/javascript"></script>
            <script src="public/Vintasoft.Imaging.DocumentViewer.js" type="text/javascript"></script>
            <script src="public/Vintasoft.Imaging.Dialogs.Bootstrap.js" type="text/javascript"></script>
            <script src="public/Vintasoft.Imaging.DocumentViewer.Dialogs.Bootstrap.js" type="text/javascript"></script>
        </head>
          <body>
            <div id="root"></div>
            <script type="module" src="/src/main.jsx"></script>
          </body>
        </html>

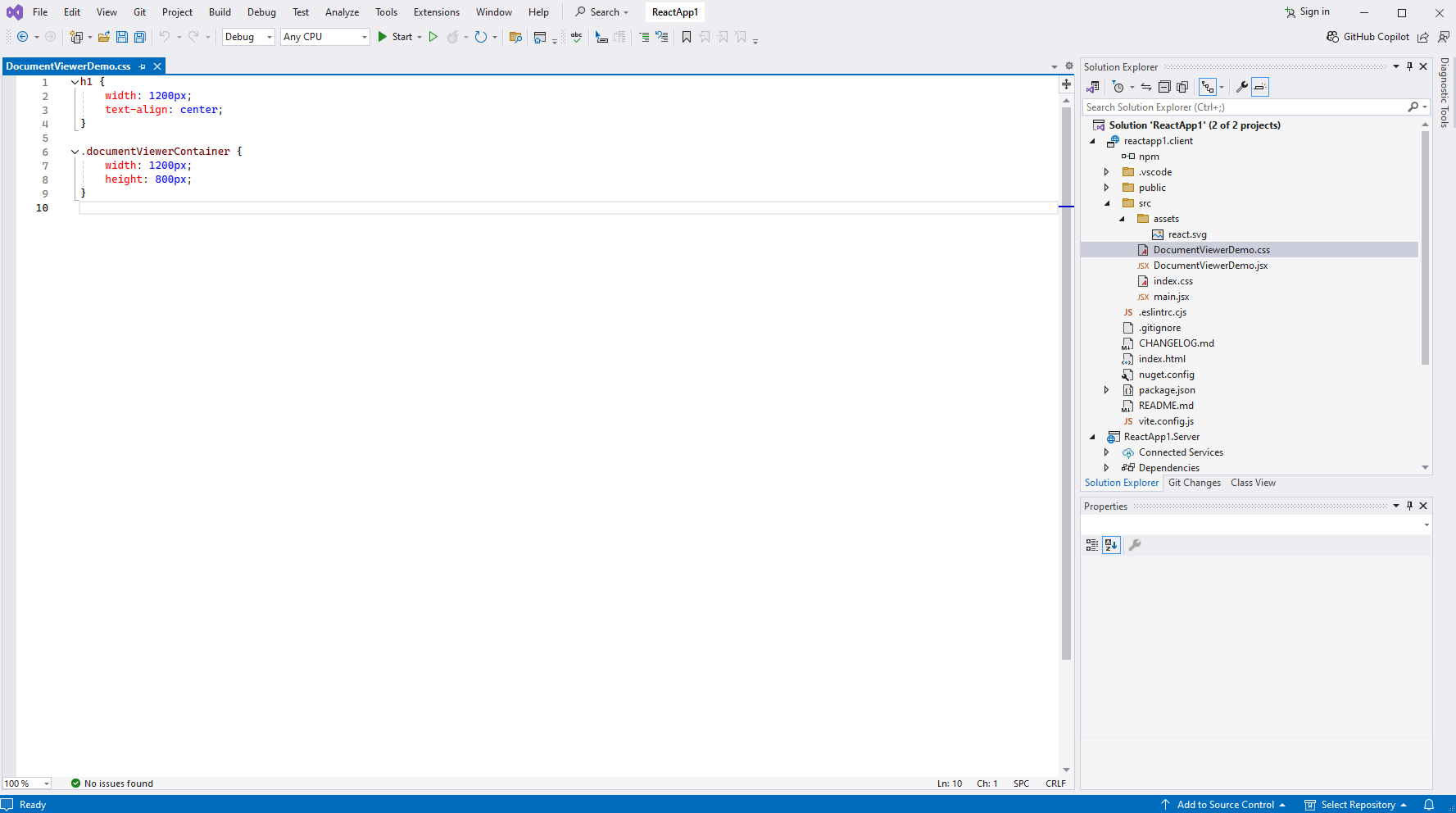

      • Add CSS-style "documentViewerContainer", which defines size of document viewer container, to the "src\DocumentViewerDemo.css" file:


        Here are source codes of "DocumentViewerDemo.css" file:
        h1 {
            width: 1200px;
            text-align: center;
        }

        .documentViewerContainer {
            width: 1200px;
            height: 800px;
        }


    12. Client side: Create React-component that allows to display document, search and extract text from document, annotate document.

      • Create "DocumentViewerDemo.jsx" file that will contain source codes of React component (DocumentViewerDemo class):
        • Select "Add => New Item..." context menu for folder "src\" => "Add new item" dialog will appear
        • Select "JSX File" type for new item
        • Set "DocumentViewerDemo.jsx" as element name
        • Click the "Add" button => dialog will be closed and file "DocumentViewerDemo.jsx" will be added into folder "src\"

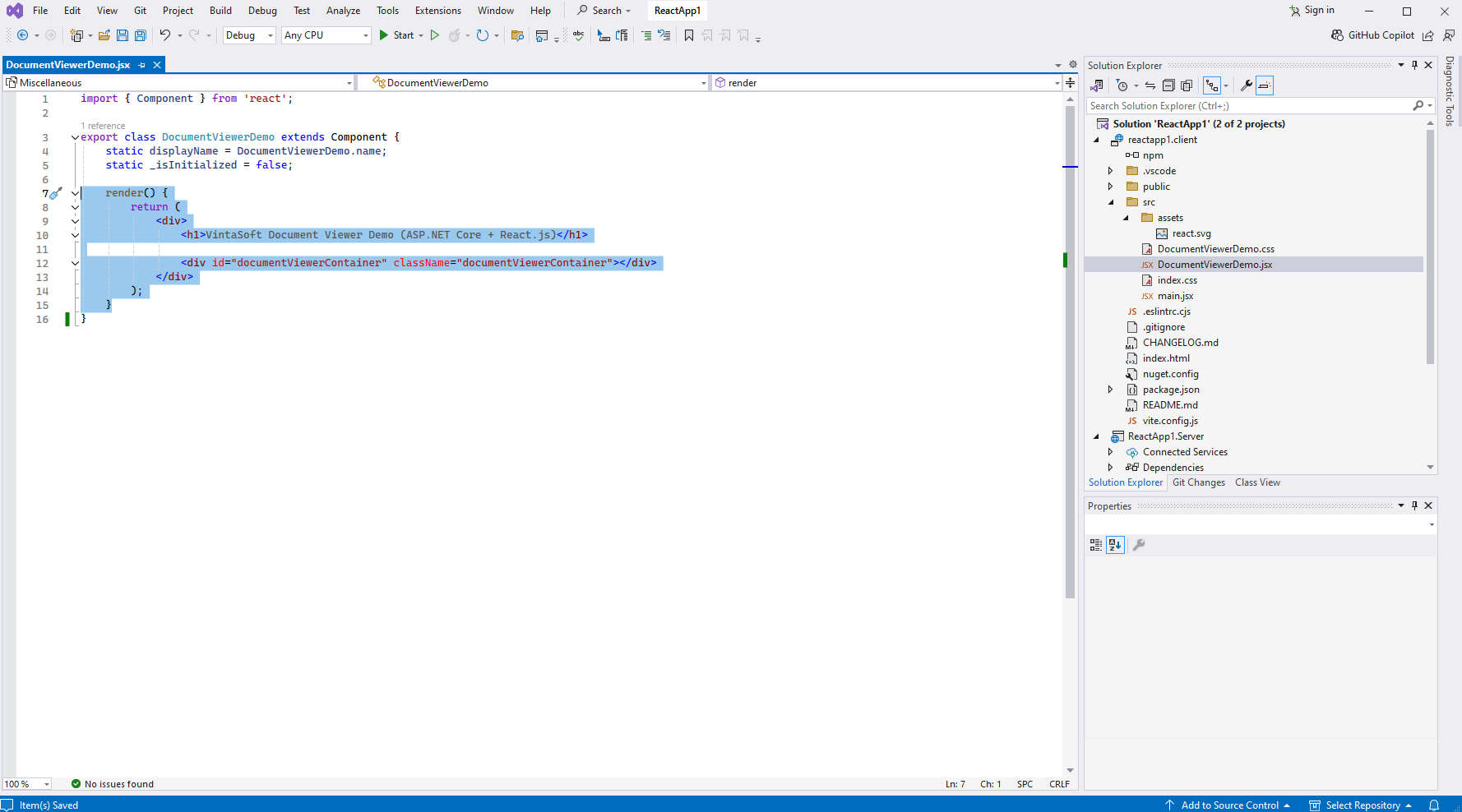

        Add DocumentViewerDemo class declaration with 'render' function (renders demo header and div element that will display document viewer) to the "DocumentViewerDemo.jsx" file:

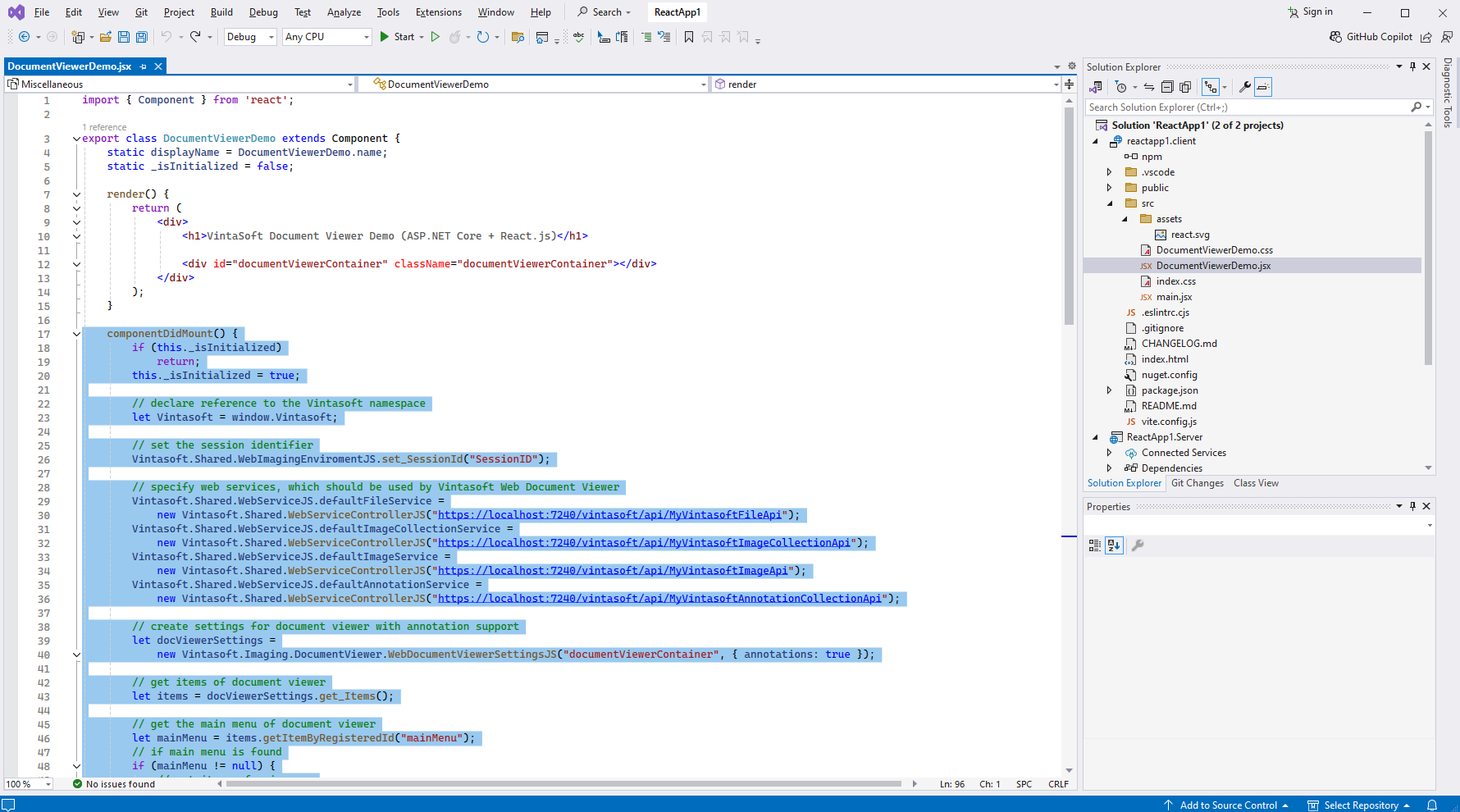

        Add 'componentDidMount' function (contains JavaScript code that initializes and creates document viewer) to the DocumentViewerDemo class:


        Important: Visual Studio uses randomized network port for ASP.NET Core API and you need to update JavaScript code and change web services URL from "https://localhost:7240/" to URL in your application.

        Here is JavaScript code of "DocumentViewerDemo.jsx" file:
        import { Component } from 'react';

        export class DocumentViewerDemo extends Component {
            static displayName = DocumentViewerDemo.name;
            static _isInitialized = false;

            render() {
                return (
                    <div>
                        <h1>VintaSoft Document Viewer Demo (ASP.NET Core + React.js)</h1>

                        <div id="documentViewerContainer" className="documentViewerContainer"></div>
                    </div>
                );
            }

            componentDidMount() {
                if (this._isInitialized)
                    return;
                this._isInitialized = true;

                // declare reference to the Vintasoft namespace
                let Vintasoft = window.Vintasoft;

                // set the session identifier
                Vintasoft.Shared.WebImagingEnviromentJS.set_SessionId("SessionID");

                // specify web services, which should be used by Vintasoft Web Document Viewer
                Vintasoft.Shared.WebServiceJS.defaultFileService =
                    new Vintasoft.Shared.WebServiceControllerJS("https://localhost:7240/vintasoft/api/MyVintasoftFileApi");
                Vintasoft.Shared.WebServiceJS.defaultImageCollectionService =
                    new Vintasoft.Shared.WebServiceControllerJS("https://localhost:7240/vintasoft/api/MyVintasoftImageCollectionApi");
                Vintasoft.Shared.WebServiceJS.defaultImageService =
                    new Vintasoft.Shared.WebServiceControllerJS("https://localhost:7240/vintasoft/api/MyVintasoftImageApi");
                Vintasoft.Shared.WebServiceJS.defaultAnnotationService =
                    new Vintasoft.Shared.WebServiceControllerJS("https://localhost:7240/vintasoft/api/MyVintasoftAnnotationCollectionApi");

                // create settings for document viewer with annotation support
                let docViewerSettings =
                    new Vintasoft.Imaging.DocumentViewer.WebDocumentViewerSettingsJS("documentViewerContainer", { annotations: true });

                // get items of document viewer
                let items = docViewerSettings.get_Items();

                // get the main menu of document viewer
                let mainMenu = items.getItemByRegisteredId("mainMenu");
                // if main menu is found
                if (mainMenu != null) {
                    // get items of main menu
                    let mainMenuItems = mainMenu.get_Items();

                    // add "Annotation" menu panel to the main menu
                    mainMenuItems.addItem("annotationsMenuPanel");
                }

                // get side panel of document viewer
                let sidePanel = items.getItemByRegisteredId("sidePanel");
                // if side panel is found
                if (sidePanel != null) {
                    // get items of side panel
                    let sidePanelItems = sidePanel.get_PanelsCollection();

                    // add "Annotations" panel to the side panel
                    sidePanelItems.addItem("annotationsPanel");

                    // add "Text selection" panel to the side panel
                    sidePanelItems.addItem("textSelectionPanel");

                    // add "Text searh" panel to the side panel
                    sidePanelItems.addItem("textSearchPanel");
                }

                // create the document viewer
                let docViewer = new Vintasoft.Imaging.DocumentViewer.WebDocumentViewerJS(docViewerSettings);

                // create visual tool that allows to work with annotations, navigate document and select text
                let annotationNavigationTextSelectionTool =
                    docViewer.getVisualToolById("AnnotationVisualTool,DocumentNavigationTool,TextSelectionTool");
                // specify visual tool as mandatory visual tool of document viewer
                docViewer.set_MandatoryVisualTool(annotationNavigationTextSelectionTool);
                // specify visual tool as current visual tool of document viewer
                docViewer.set_CurrentVisualTool(annotationNavigationTextSelectionTool);

                // get thumbnail viewer of document viewer
                let thumbnailViewer = docViewer.get_ThumbnailViewer();
                // specify that thumbnail viewer should not cache thumbnails on server side
                thumbnailViewer.set_UseCache(false);

                // get image viewer of document viewer
                let imageViewer = docViewer.get_ImageViewer();
                // specify that image viewer should not cache image tiles on server side
                imageViewer.set_UseCache(false);
                // open file from session folder and add images from file to the image viewer
                imageViewer.get_Images().openFile("VintasoftImagingDemo.pdf");
            }

        }

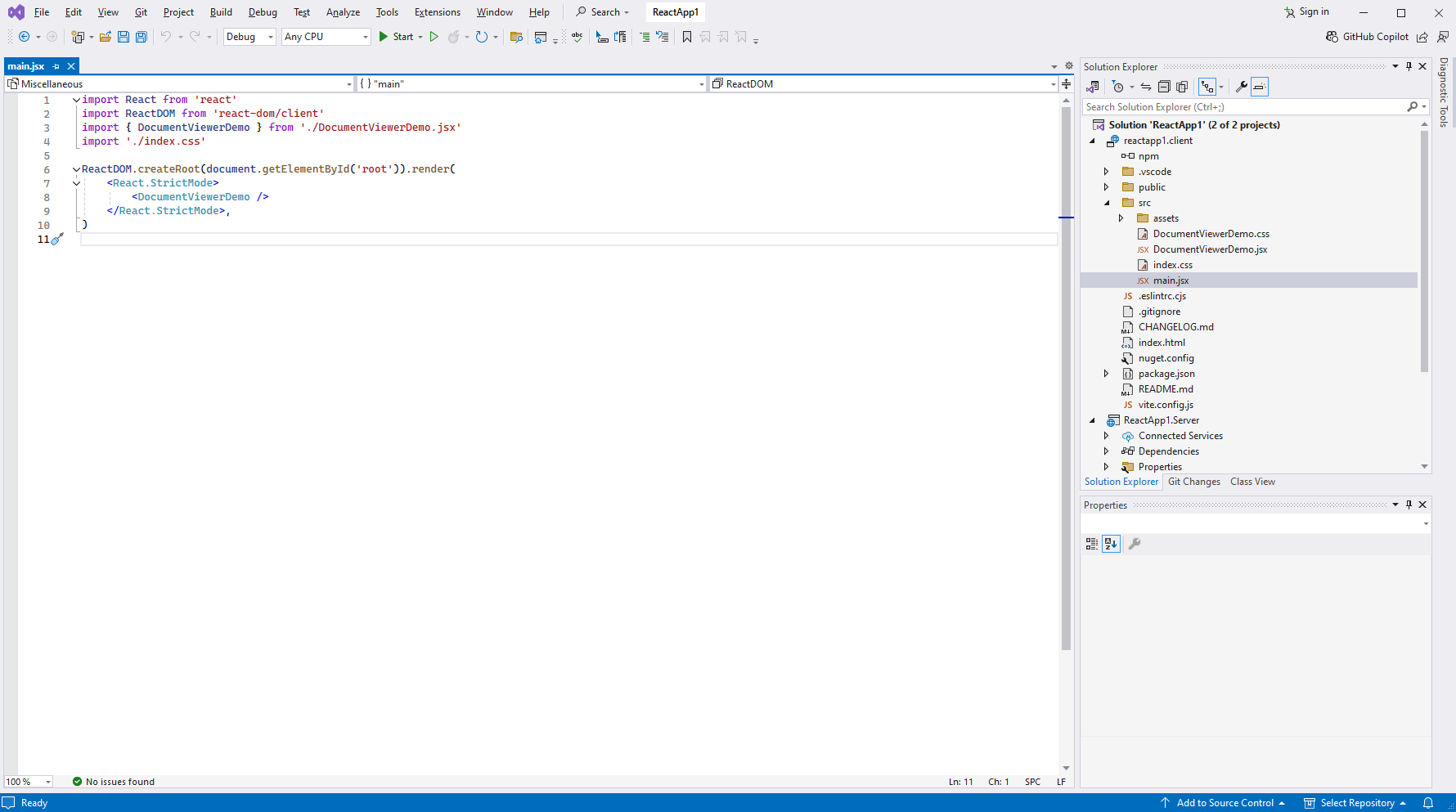

      • Add created React-component to the React-application code - "src\main.jsx" file:


        Here are source codes of "main.jsx" file after update:
        import React from 'react'
        import ReactDOM from 'react-dom/client'
        import { DocumentViewerDemo } from './DocumentViewerDemo.jsx'
        import './index.css'

        ReactDOM.createRoot(document.getElementById('root')).render(
            <React.StrictMode>
                <DocumentViewerDemo />
            </React.StrictMode>,
        )

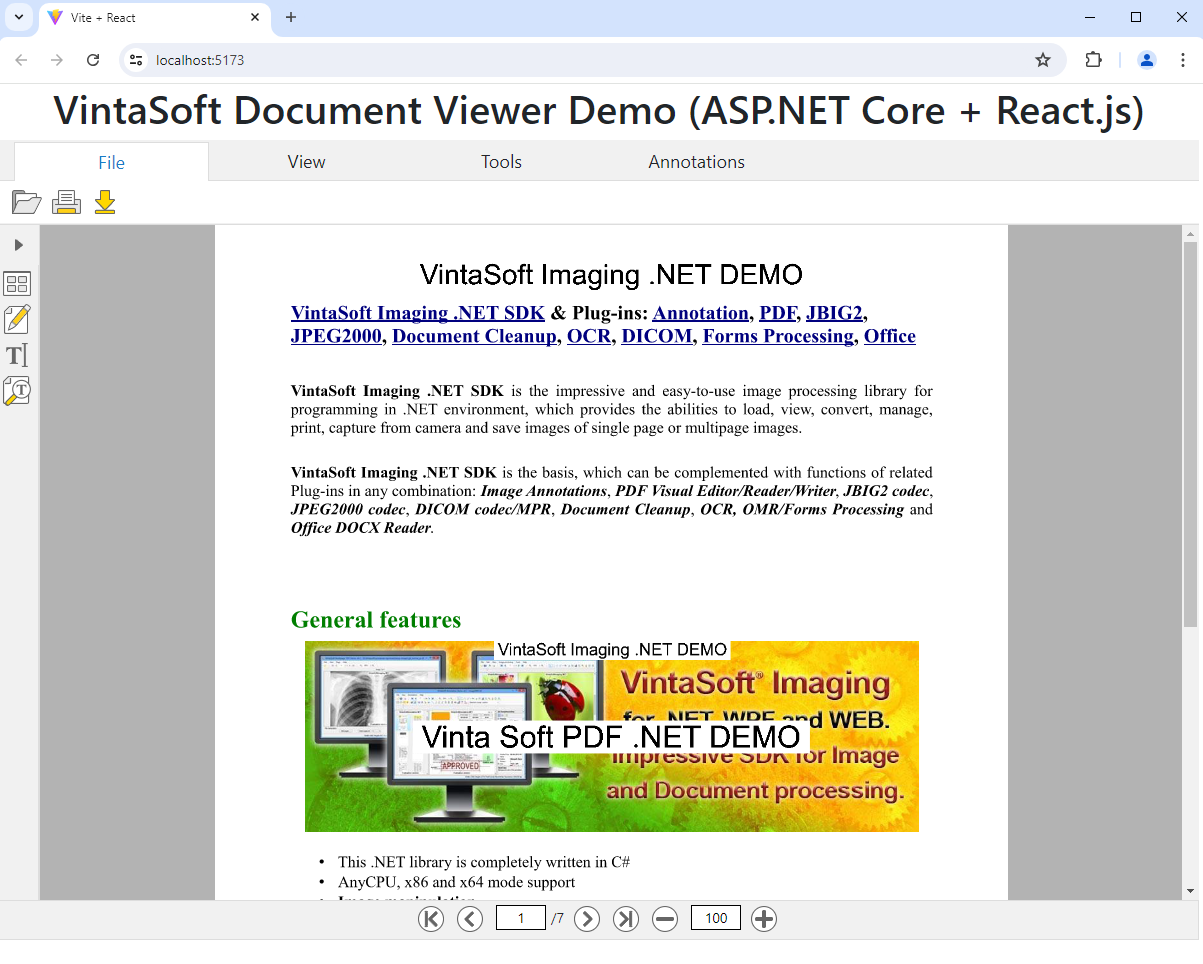

    13. Run React and ASP.NET Core application and see the result.
