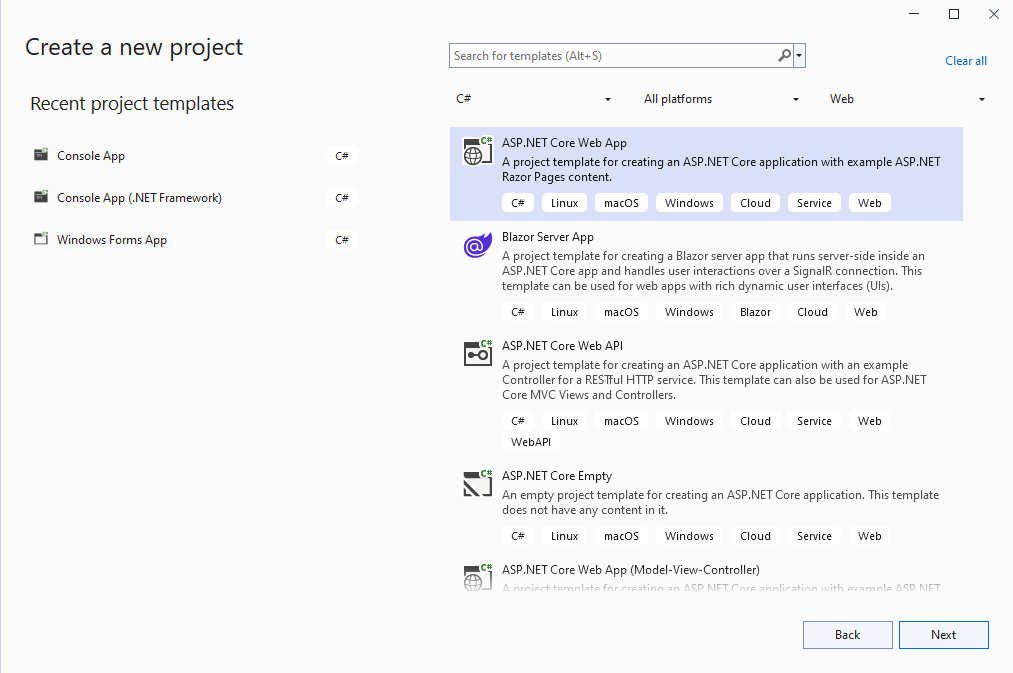

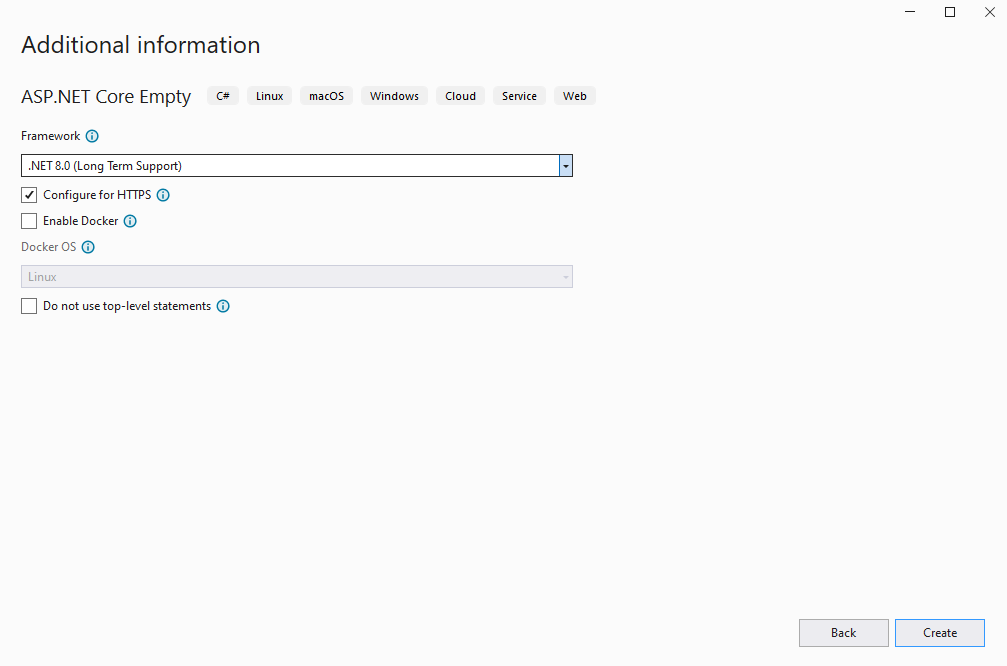

Create a blank ASP.NET Core Web application.

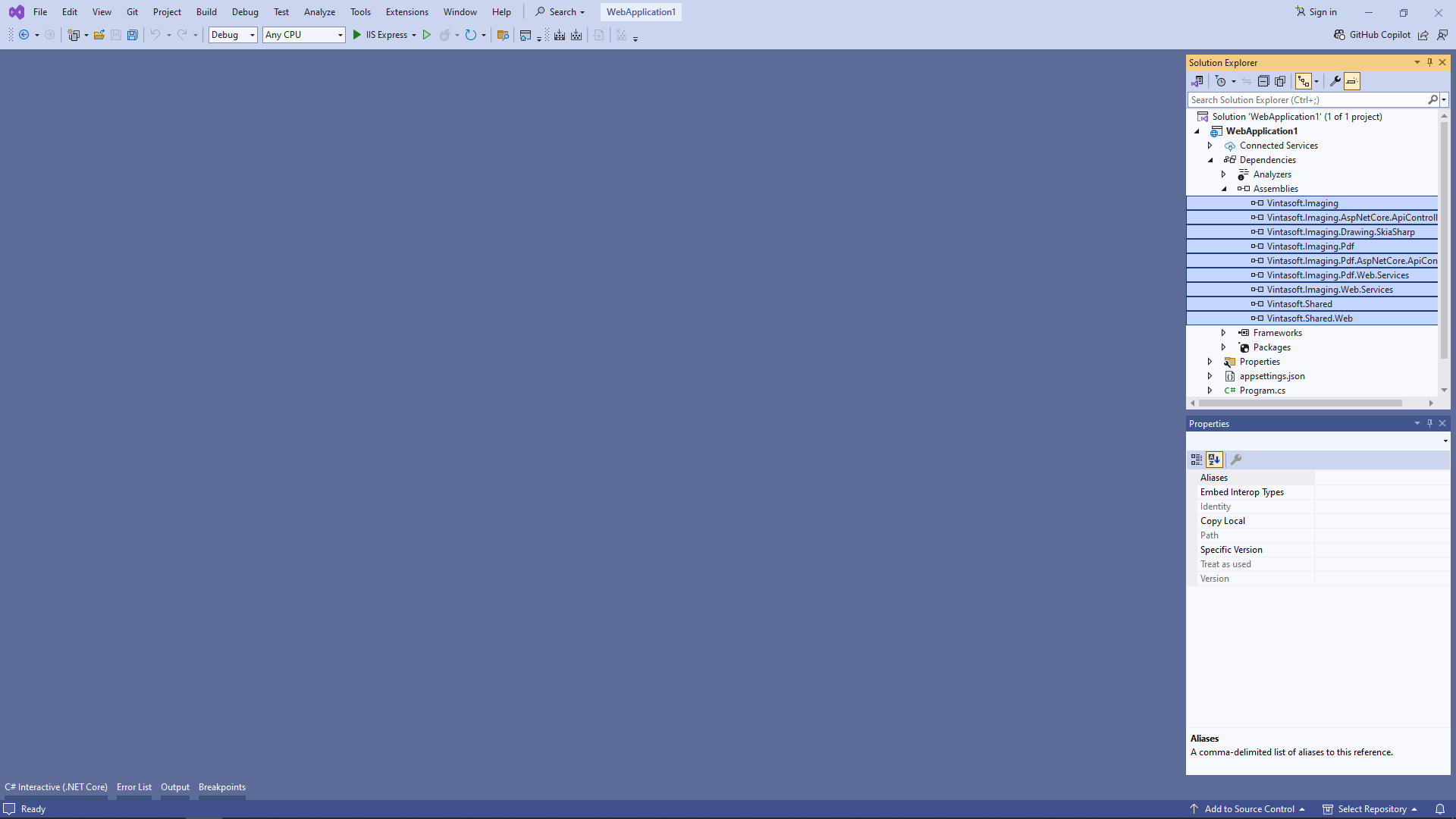

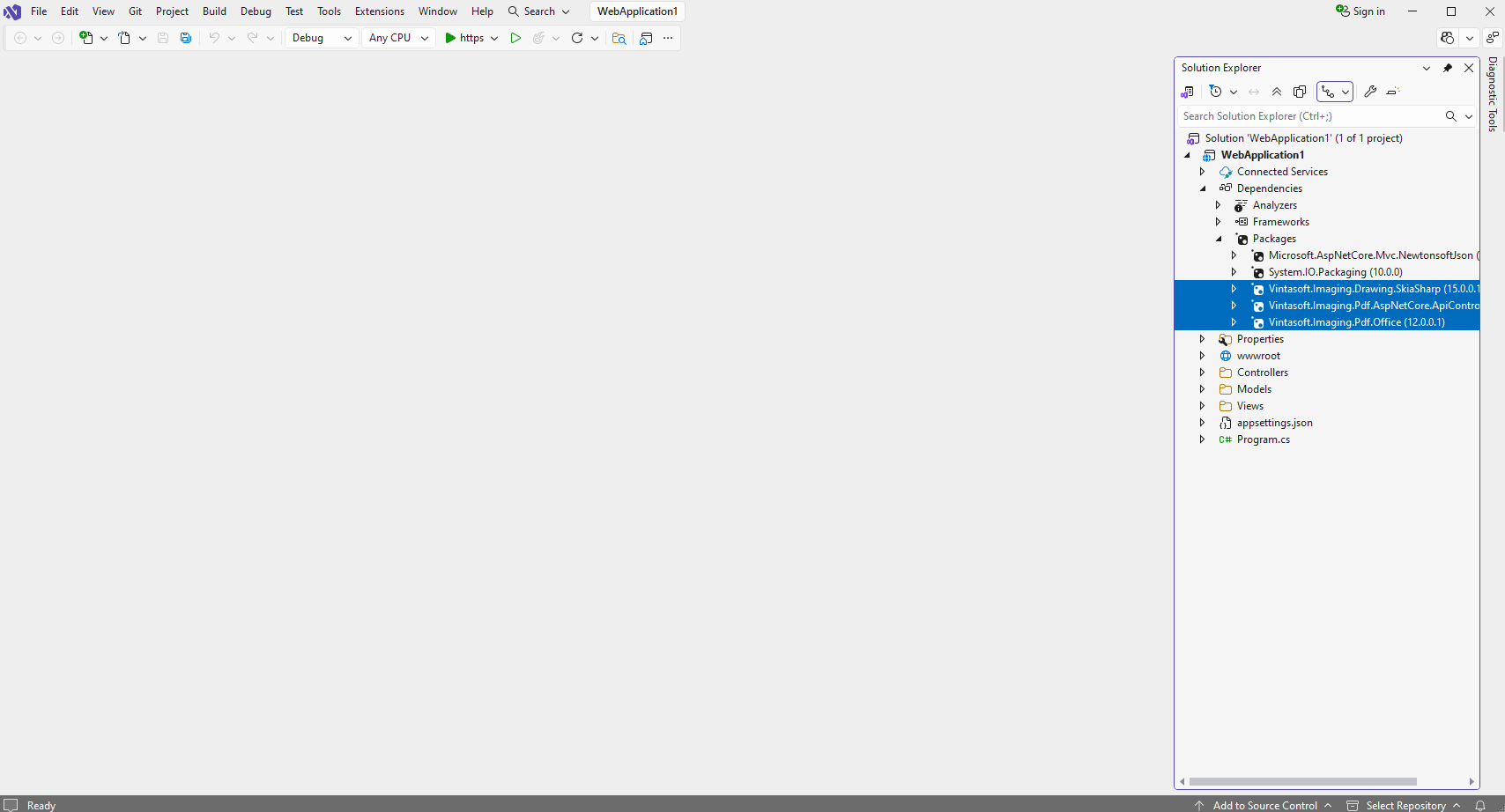

Server side: Add references to the Vintasoft assemblies to your ASP.NET Core Web application.

Server side: Specify drawing engine, which should be used by VintaSoft Imaging .NET SDK for drawing of 2D graphics.

• Add reference to the Vintasoft.Imaging.Drawing.SkiaSharp.dll assembly.

• Add reference to the SkiaSharp nuget-package version 2.88.9.
• Open "Startup.cs" file, add code line "Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();" at the beginning of ConfigureServices method - added code specifies that VintaSoft Imaging .NET SDK should use SkiaSharp library for drawing of 2D graphics.

• Add reference to the Vintasoft.Imaging.Gdi.dll assembly.

• Open "Startup.cs" file, add code line "Vintasoft.Imaging.Drawing.Gdi.GdiGraphicsFactory.SetAsDefault();" at the beginning of ConfigureServices method - added code specifies that VintaSoft Imaging .NET SDK should use System.Drawing library for drawing of 2D graphics.

Server side: Create web services, which allow to upload/download file, manage image collection, get information about images, get thumbnails, render image tiles, work with PDF document.

• Add the "Controllers" folder to the project.

• Create web service that allows to upload/download file

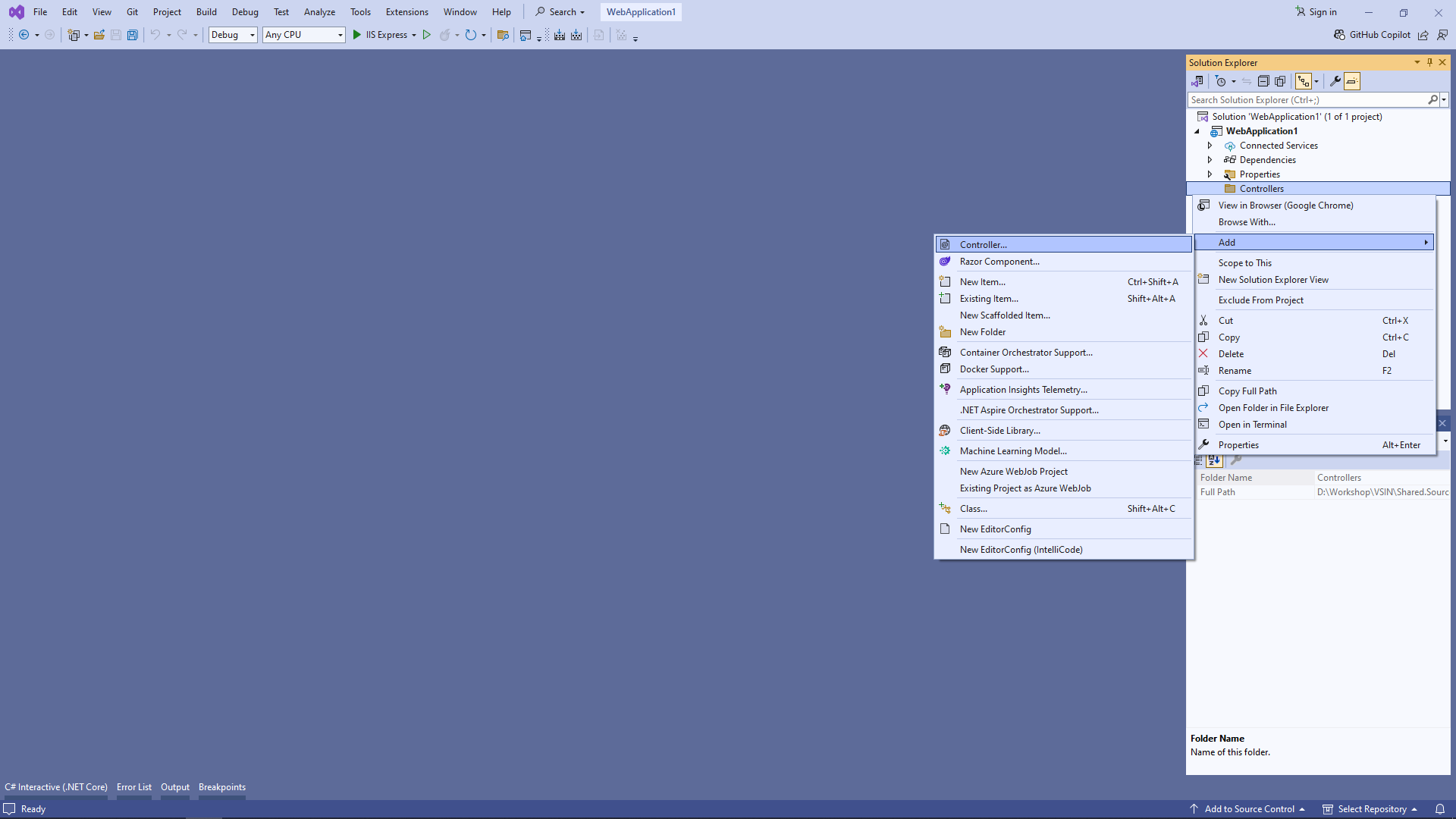

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

  • Select "API Controller - Empty" template, press the "Add" button, set the controller name to the "MyVintasoftFileApiController" and press the "Add" button

  • Specify that MyVintasoftFileApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController class

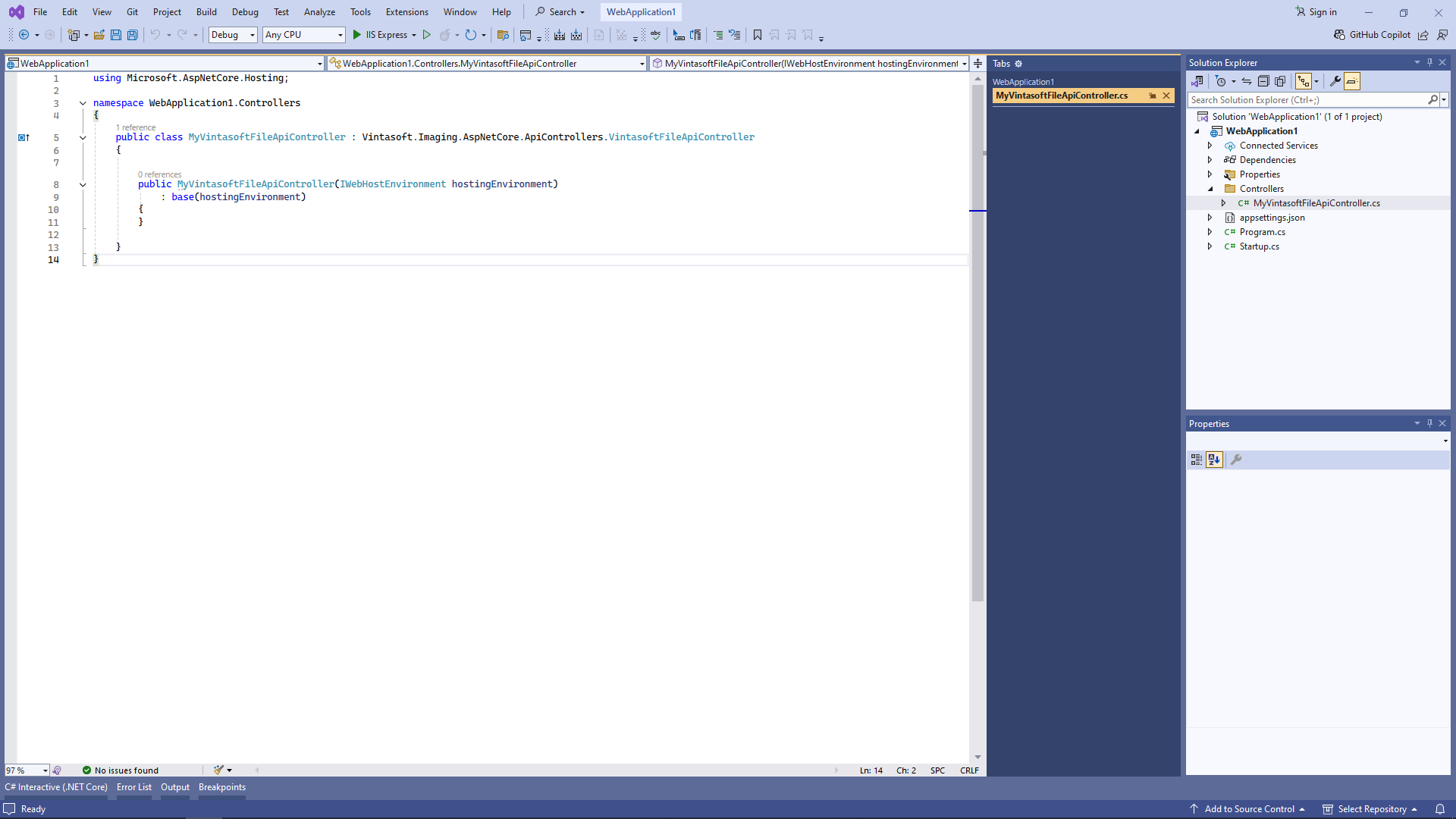

    Here are source codes of MyVintasoftFileApiController class:

    • C#

    using Microsoft.AspNetCore.Hosting;

    namespace WebApplication1.Controllers
    {
        public class MyVintasoftFileApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController
        {

            public MyVintasoftFileApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }

        }
    }



• Create web service that allows to manage image collection

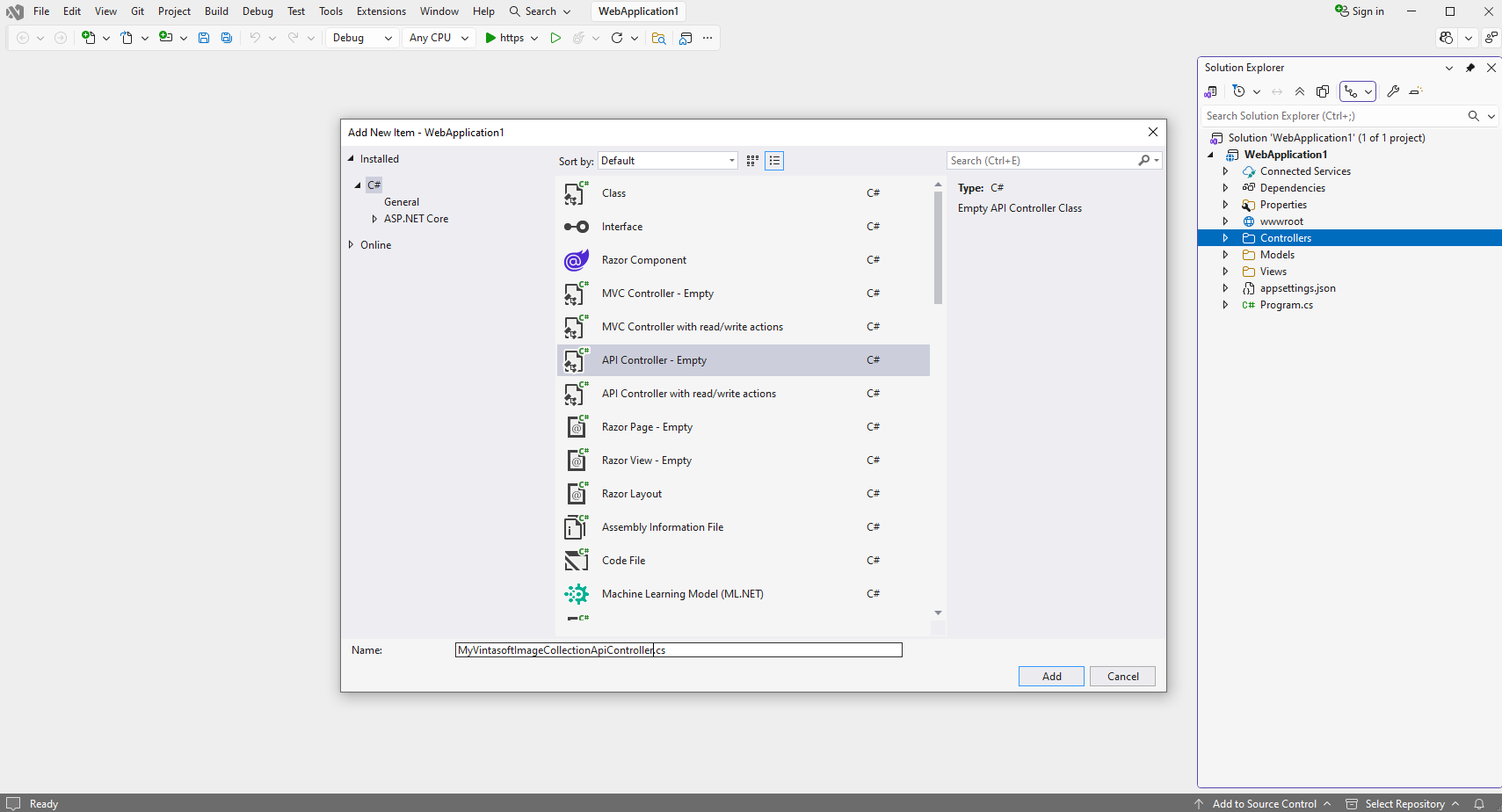

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

  • Select "API Controller - Empty" template, press the "Add" button, set the controller name to the "MyVintasoftImageCollectionApiController" and press the "Add" button

  • Specify that MyVintasoftImageCollectionApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageCollectionApiController class

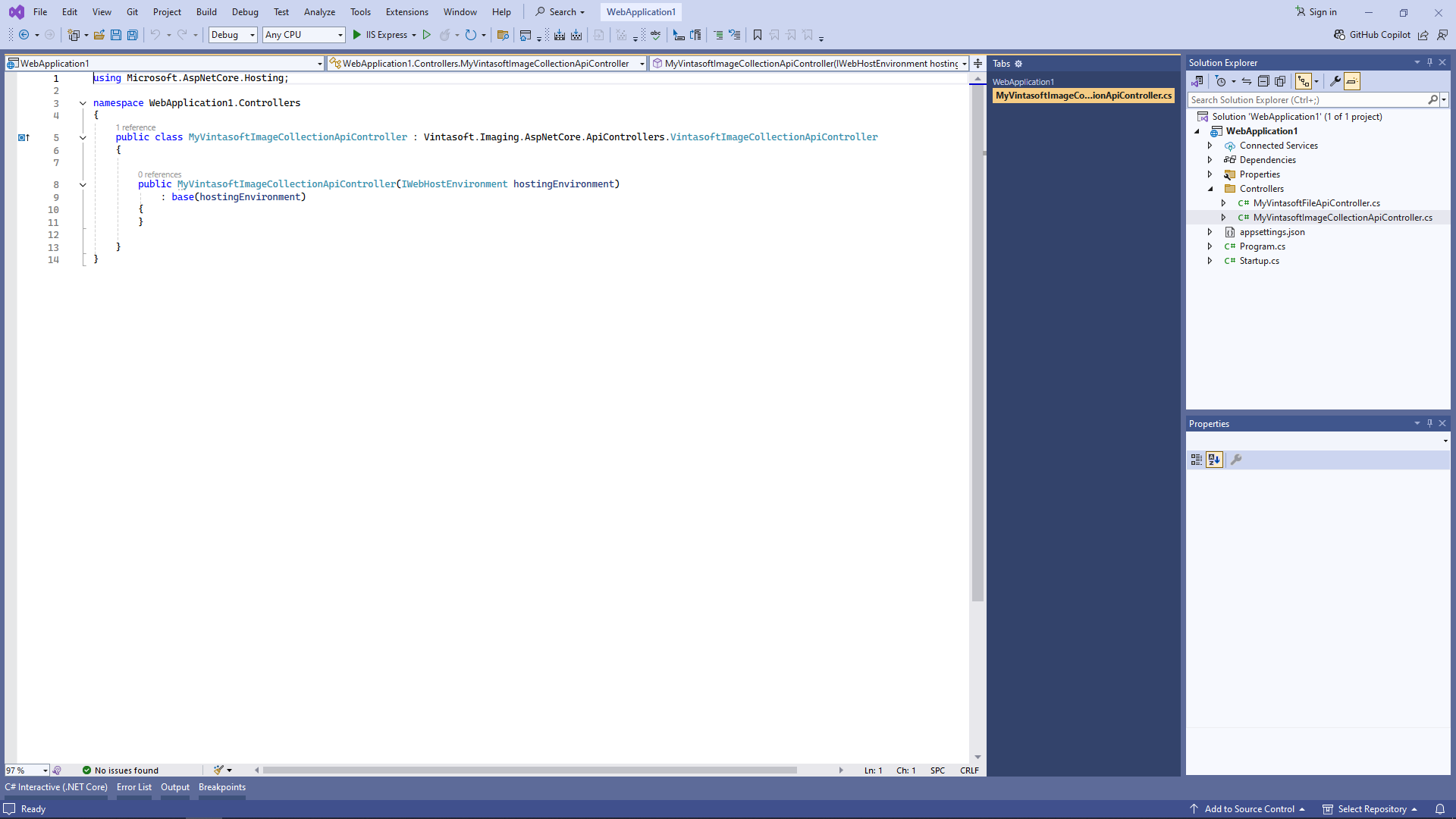

    Here are source codes of MyVintasoftImageCollectionApiController class:

    • C#

    using Microsoft.AspNetCore.Hosting;

    namespace WebApplication1.Controllers
    {
        public class MyVintasoftImageCollectionApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageCollectionApiController
        {

            public MyVintasoftImageCollectionApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }

        }
    }



• Create web service that allows to get information about images, get thumbnails, render image tiles, extract/search text

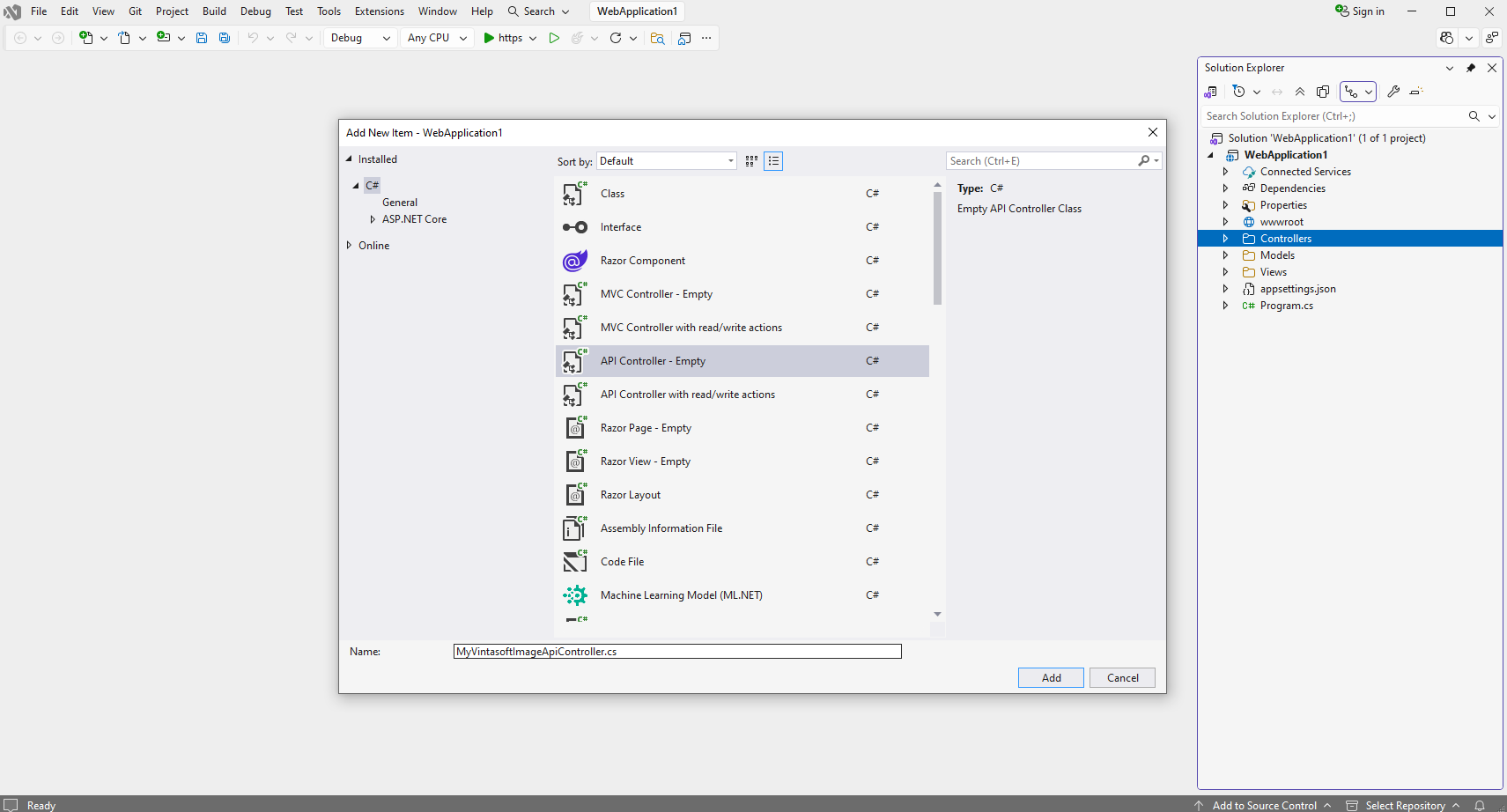

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

  • Select "API Controller - Empty" template, press the "Add" button, set the controller name to the "MyVintasoftImageApiController" and press the "Add" button

  • Specify that MyVintasoftImageApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageApiController class

    Here are source codes of MyVintasoftImageApiController class:

    • C#

    using Microsoft.AspNetCore.Hosting;

    namespace WebApplication1.Controllers
    {
        public class MyVintasoftImageApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftImageApiController
        {

            public MyVintasoftImageApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }

        }
    }



• Create web service that allows to work with PDF document

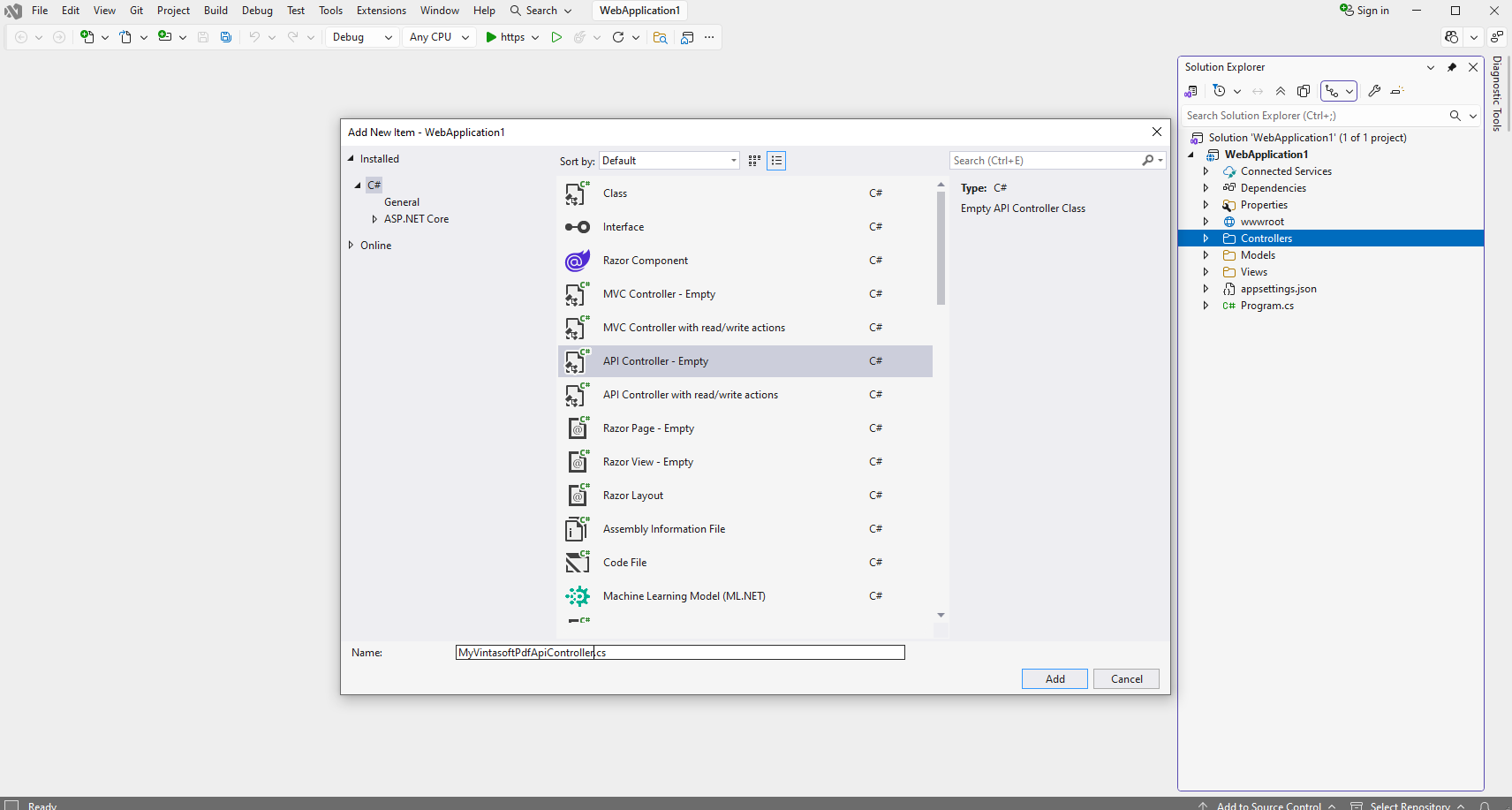

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

  • Select "API Controller - Empty" template, press the "Add" button, set the controller name to the "MyVintasoftPdfApiController" and press the "Add" button

  • Specify that MyVintasoftPdfApiController class is derived from Vintasoft.Imaging.Pdf.AspNetCore.ApiControllers.VintasoftPdfApiController class

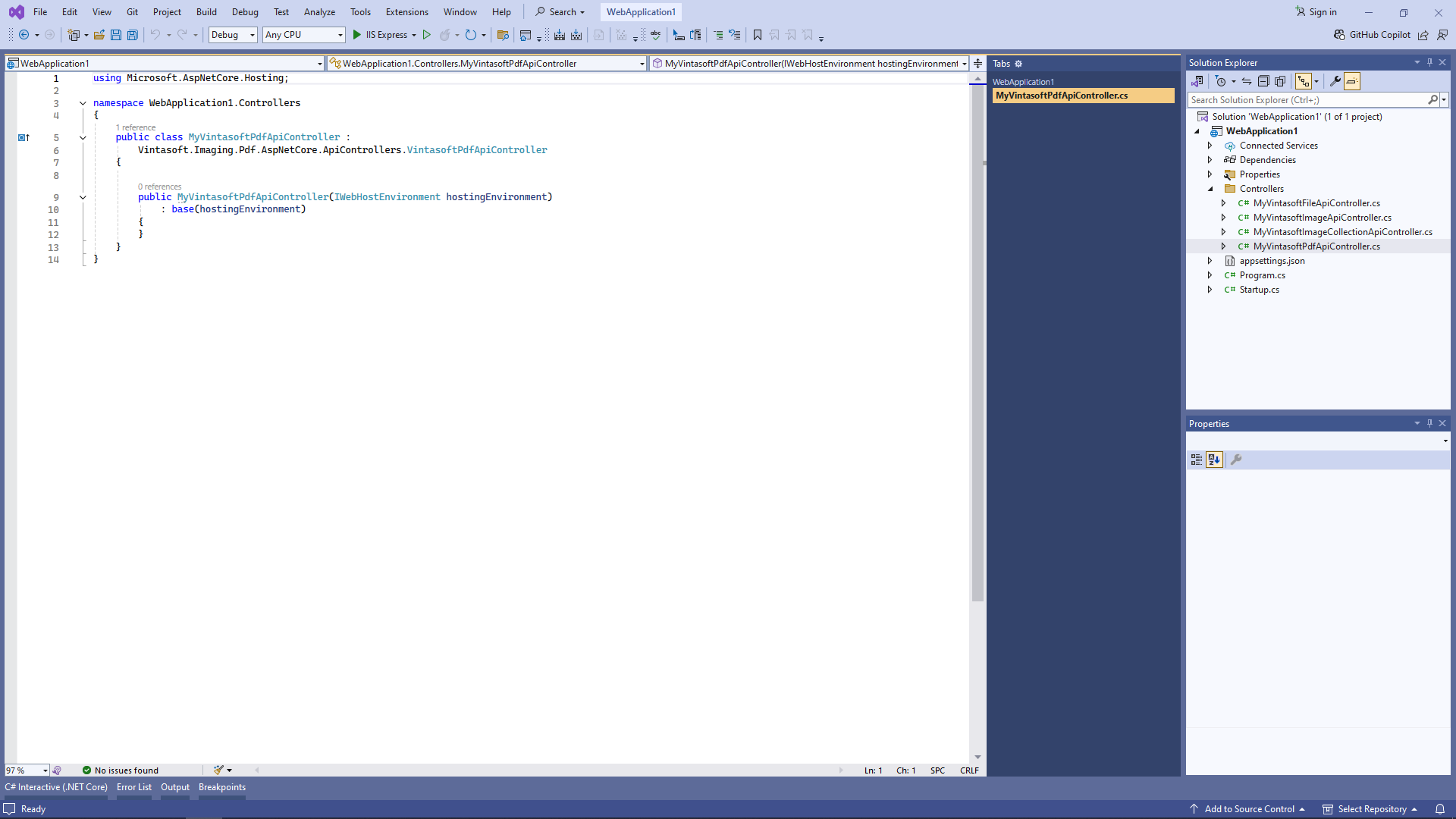

    Here are source codes of MyVintasoftPdfApiController class:

    • C#

    using Microsoft.AspNetCore.Hosting;

    namespace WebApplication1.Controllers
    {
        public class MyVintasoftPdfApiController :
            Vintasoft.Imaging.Pdf.AspNetCore.ApiControllers.VintasoftPdfApiController
        {

            public MyVintasoftPdfApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }
        }
    }


Server side: Create MVC controller for web view that will display PDF document editor.

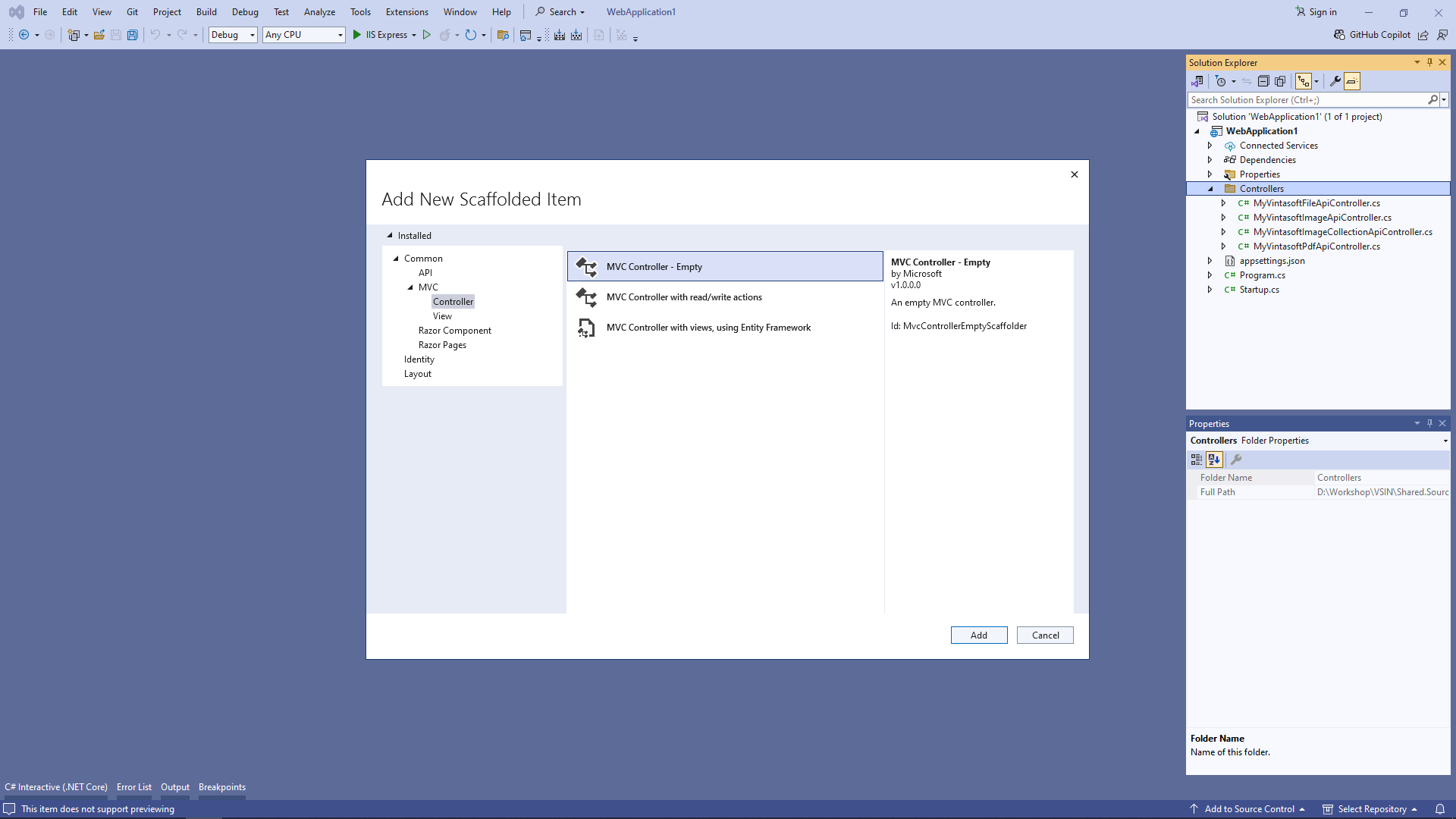

• Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

• Select "MVC Controller - Empty" template, press the "Add" button, set the controller name to the "DefaultController" and press the "Add" button

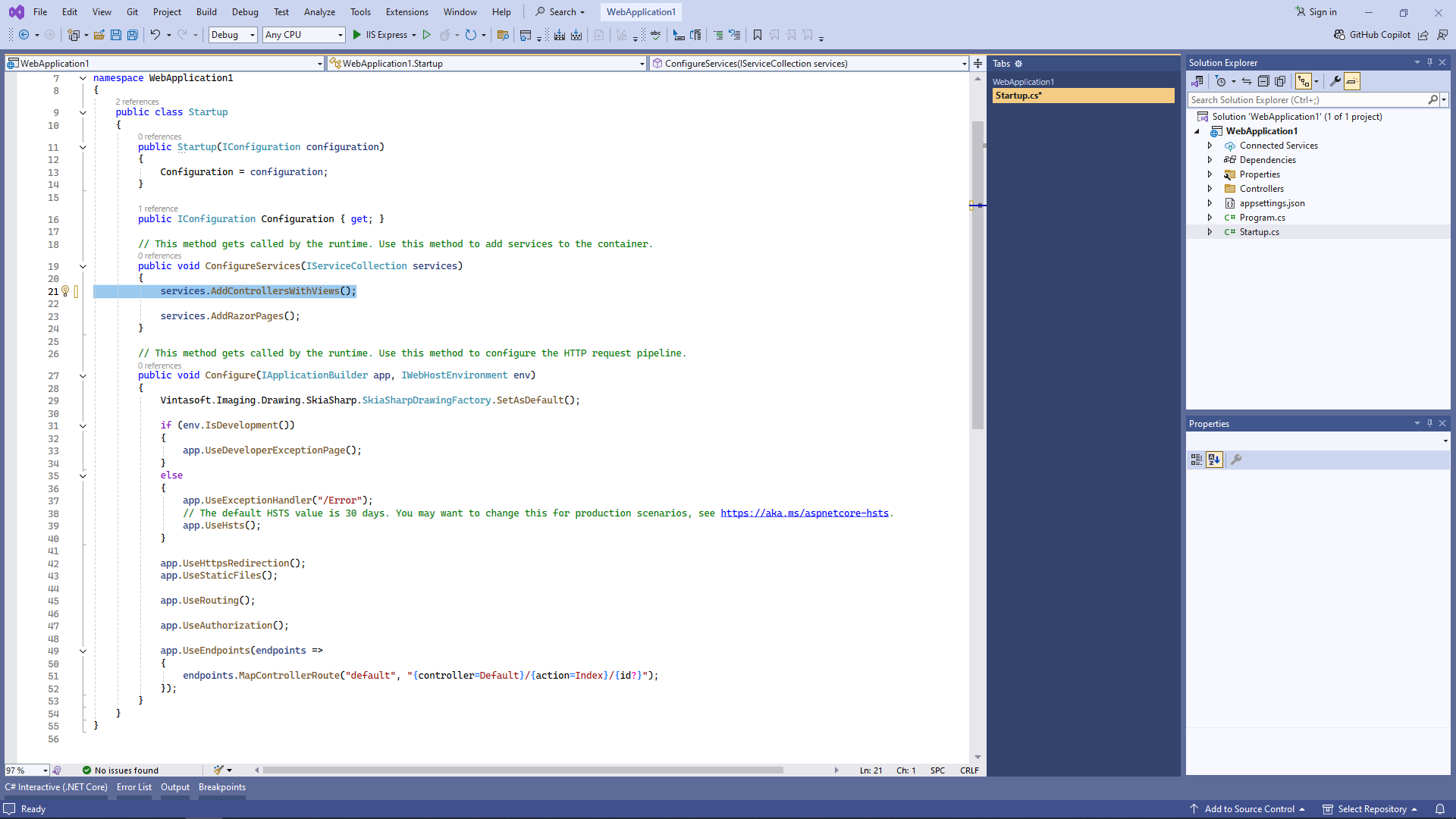

• Open "Startup.cs" file, add controllers with views to the services of ASP.NET Core application:

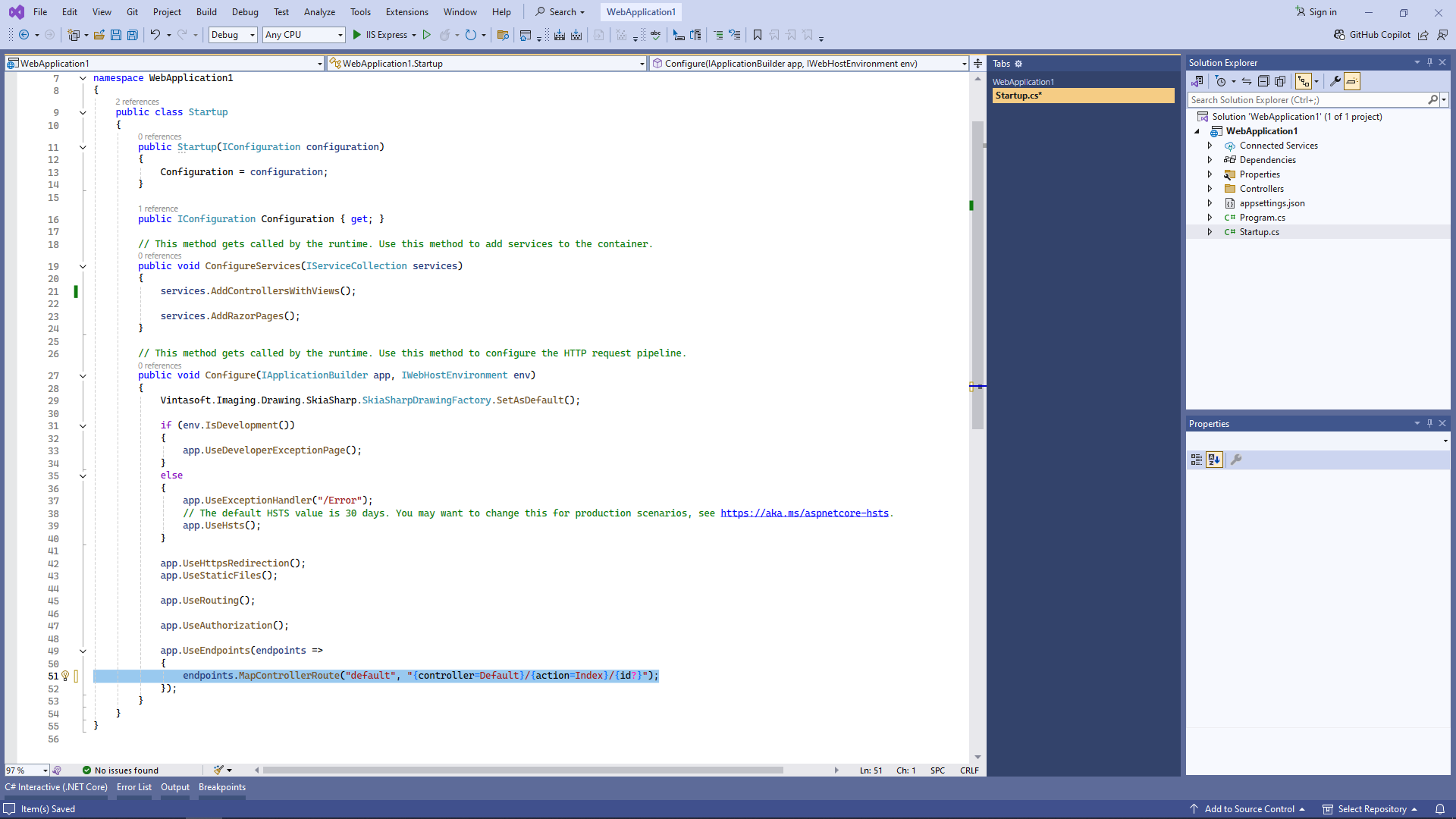

  Add created MVC controller to the endpoints of ASP.NET Core application:

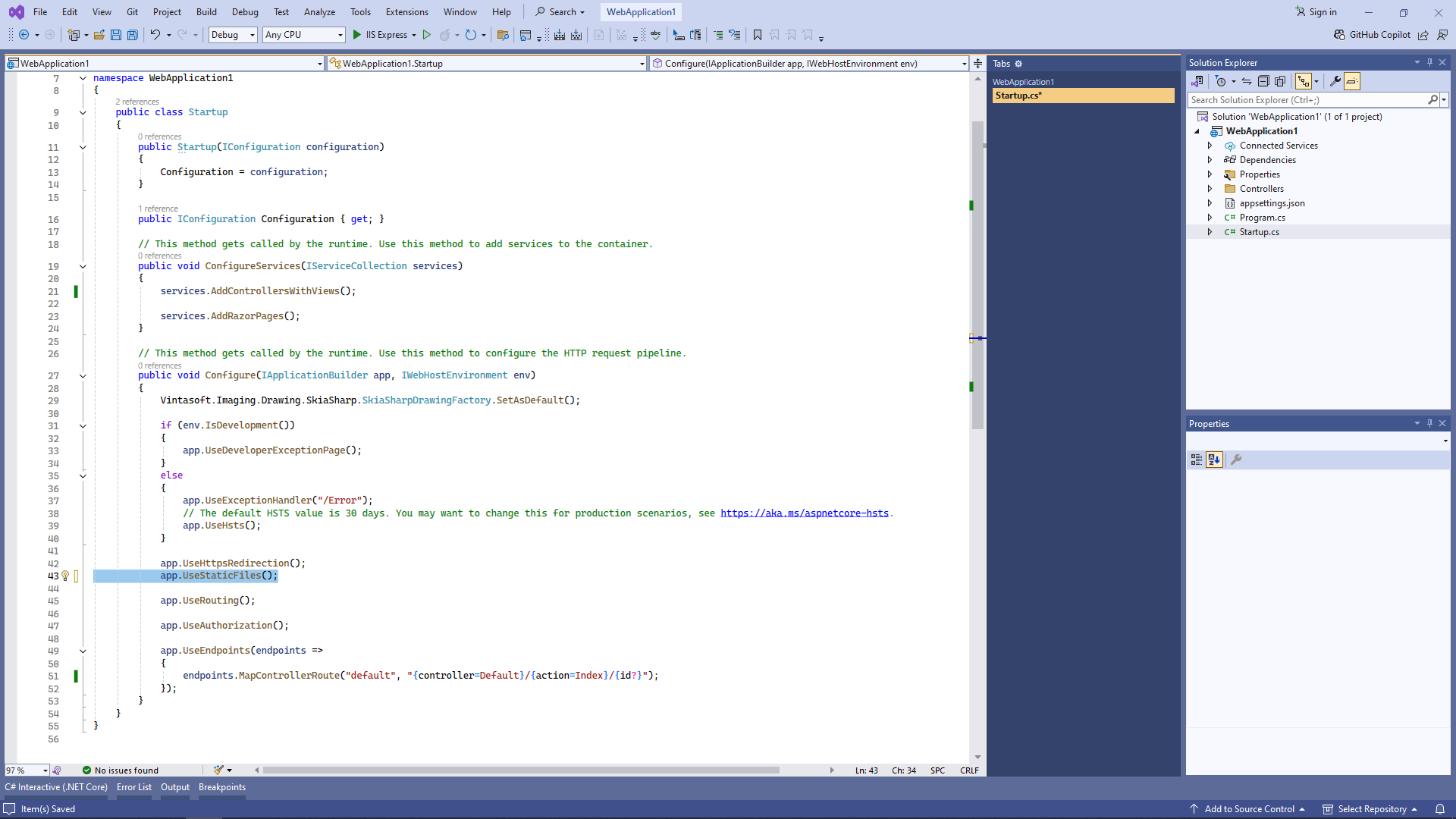

  Enable static file serving for the current request path of ASP.NET Core application:


  Here are C# source codes of Startup.cs file:

  • C#

  using Microsoft.AspNetCore.Builder;
  using Microsoft.AspNetCore.Hosting;
  using Microsoft.Extensions.Configuration;
  using Microsoft.Extensions.DependencyInjection;
  using Microsoft.Extensions.Hosting;

  namespace WebApplication1
  {
      public class Startup
      {
          public Startup(IConfiguration configuration)
          {
              Configuration = configuration;
          }

          public IConfiguration Configuration { get; }

          // This method gets called by the runtime. Use this method to add services to the container.
          public void ConfigureServices(IServiceCollection services)
          {
              // specify that VintaSoft Imaging .NET SDK should use SkiaSharp library for drawing of 2D graphics
              Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();

              // add Newtonsoft JSON for deserialization of JSON annotations
              services.AddControllersWithViews().AddNewtonsoftJson();

              services.AddRazorPages();
          }

          // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
          public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
          {
              if (env.IsDevelopment())
              {
                  app.UseDeveloperExceptionPage();
              }
              else
              {
                  app.UseExceptionHandler("/Error");
                  // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
                  app.UseHsts();
              }

              app.UseHttpsRedirection();
              app.UseStaticFiles();

              app.UseRouting();

              app.UseAuthorization();

              app.UseEndpoints(endpoints =>
              {
                  endpoints.MapControllerRoute("default", "{controller=Default}/{action=Index}/{id?}");
              });
          }
      }
  }



Client side: Create web view for displaying PDF document editor.

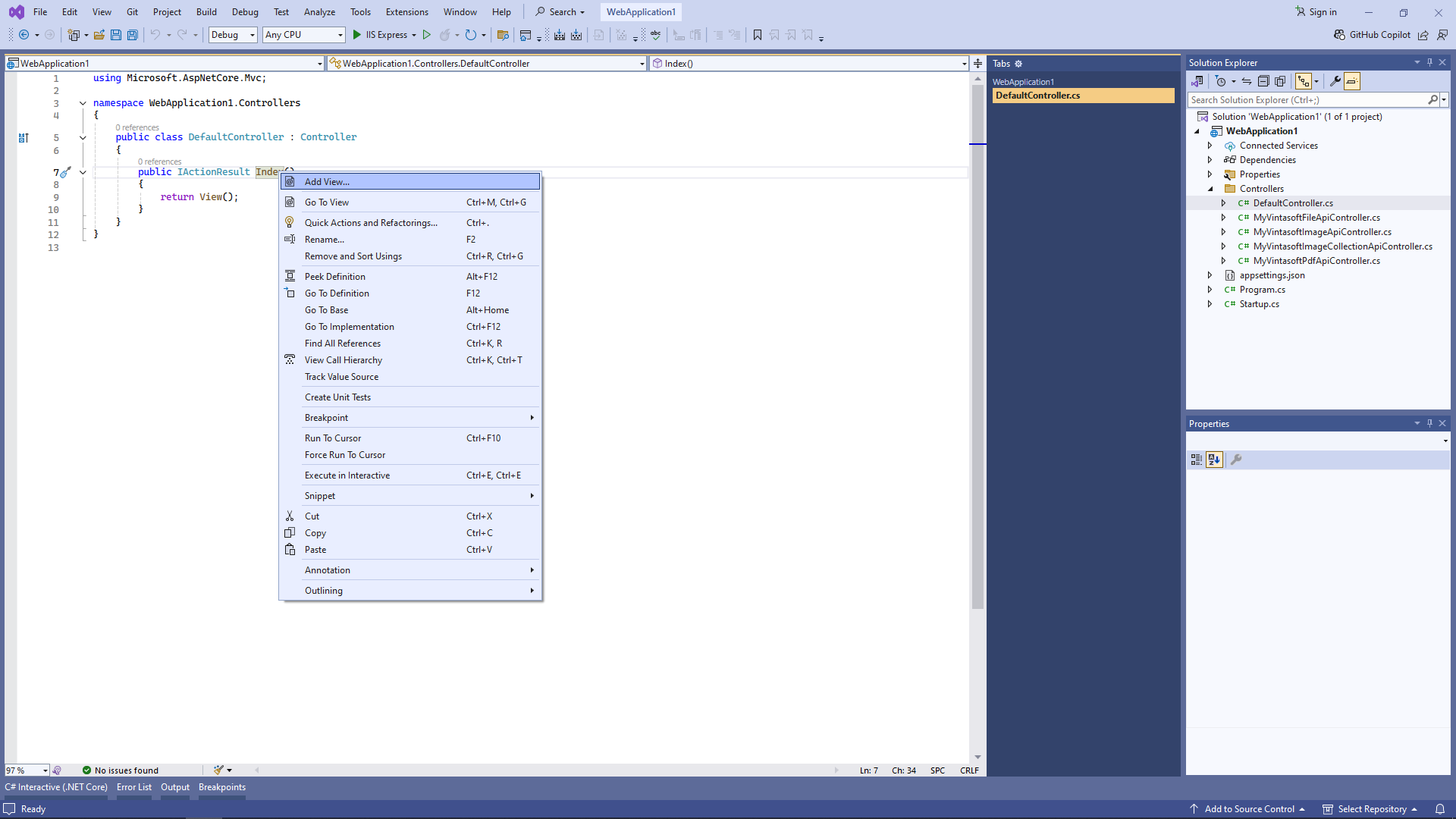

• Open "DefaultController.cs" file, press the right mouse button on the "Index" method of DefaultController class and select the "Add View..." menu from context menu

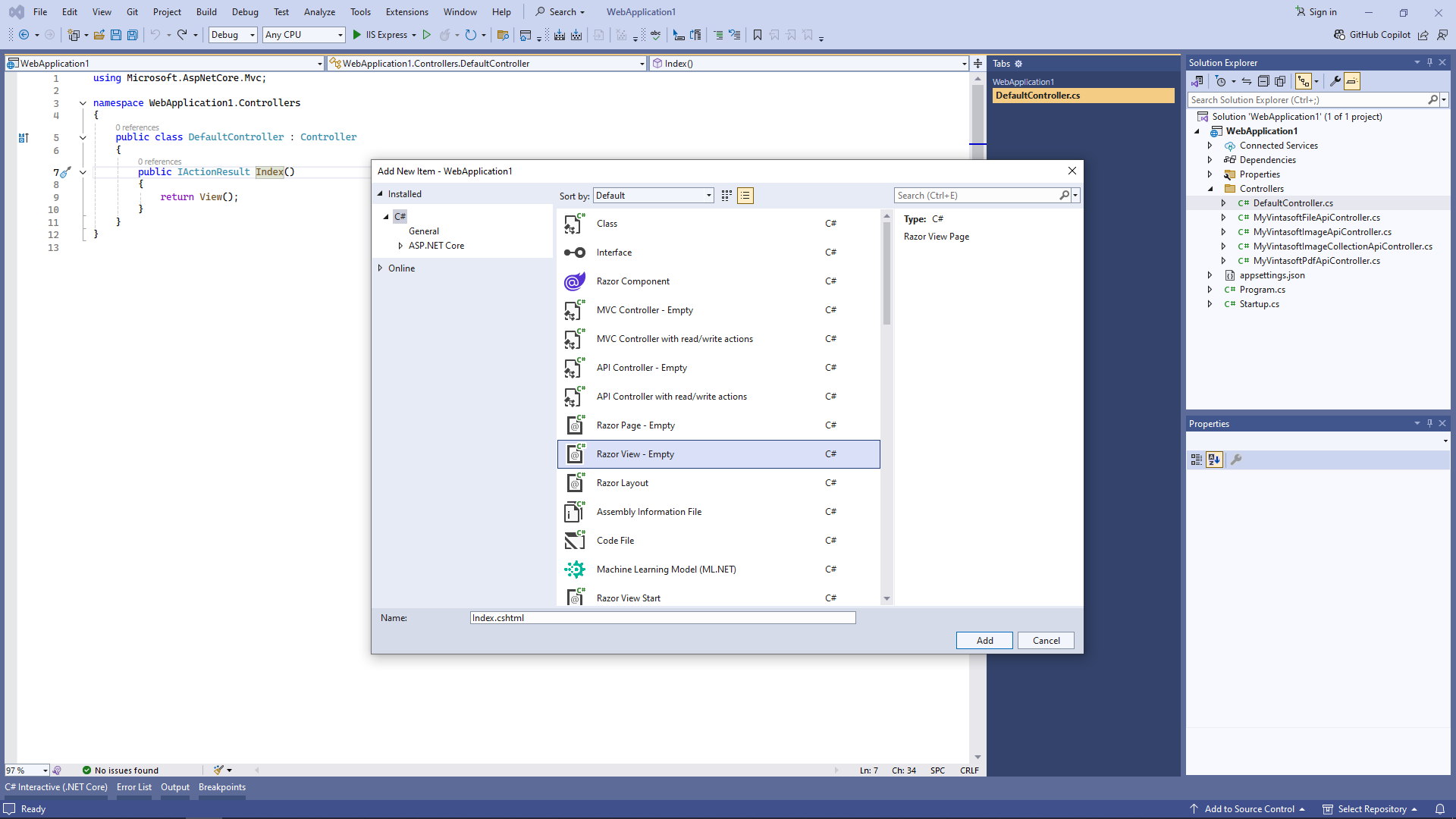

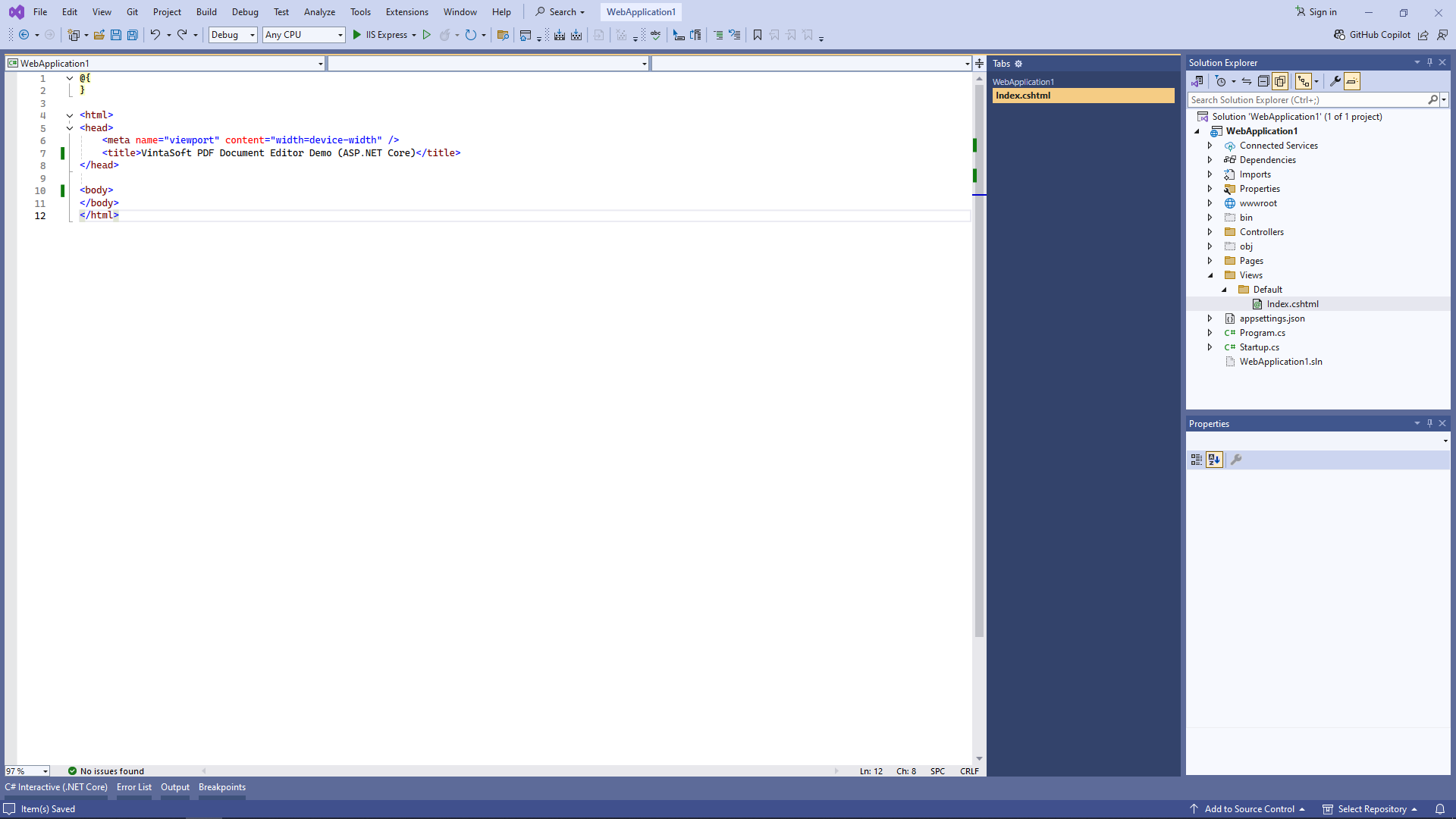

• Select "Razor View - Empty" template, click "Add" button, set view name to "Index" and press the "Add" button => "Views\Default\Index.cshtml" file will be created


Client side: Add JavaScript libraries to the project.

• Add the "wwwroot\js\" folder to ASP.NET Core application if folder does not exist.


• Copy Vintasoft.Shared.js, Vintasoft.Imaging.js, Vintasoft.Imaging.Pdf.js, Vintasoft.Imaging.css and Vintasoft.Imaging.Pdf.css files from "<InstallPath>\VintaSoft Imaging .NET 14.0\Bin\JavaScript\" folder into "wwwroot\js\" folder.
• Specify, which "standard" dialogs (password dialog, print dialog, etc) should be used by web PDF document editor
  • If web PDF document editor should use ready-to-use "standard" Bootstrap dialogs:
    • Add Bootstrap and jQuery libraries to the project.
    • Copy Vintasoft.Imaging.Dialogs.Bootstrap.js and Vintasoft.Imaging.Pdf.Dialogs.Bootstrap.js files from "<InstallPath>\VintaSoft Imaging .NET 14.0\Bin\JavaScript\" folder into "wwwroot\js\" folder.
  • If web PDF document editor should use ready-to-use "standard" jQuery UI dialogs:
    • Add jQuery and jQuery UI libraries to the project.
    • Copy Vintasoft.Imaging.Dialogs.jQueryUI.js and Vintasoft.Imaging.Pdf.Dialogs.jQueryUI.js files from "<InstallPath>\VintaSoft Imaging .NET 14.0\Bin\JavaScript\" folder into "wwwroot\js\" folder.
  • If web PDF document editor should use custom "standard" dialogs, please read how to create custom "standard" dialogs here.

Client side: Add JavaScript code that allows to view, print, redact, verify, convert, save PDF document.

• Create folder "wwwroot\UploadedImageFiles\SessionID" and copy test PDF document "<SdkInstallPath>\VintaSoft\Imaging .NET 14.0\Images\VintasoftImagingDemo.pdf" to the folder. This document will be displayed in PDF document editor.


• Open web view - file "Views\Default\Index.cshtml".

• Add references to used JavaScript libraries:
  • If Bootstrap dialogs are used, add references to the Bootstrap files and Vintasoft JavaScript files.
    Here is HTML code that adds references to the Bootstrap and Vintasoft JavaScript files:

    • HTML

    <link rel="stylesheet" type="text/css" href="~/lib/bootstrap/dist/css/bootstrap.min.css">
    <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.css">
    <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.Pdf.css">

    <script src="~/lib/bootstrap/dist/js/bootstrap.bundle.min.js" type="text/javascript"></script>

    <script src="~/js/Vintasoft.Shared.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Dialogs.Bootstrap.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Pdf.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Pdf.Dialogs.Bootstrap.js" type="text/javascript"></script>




  • If jQuery UI dialogs are used, add references to the jQuery files and Vintasoft JavaScript files.
    Here is HTML code that adds references to the jQuery and Vintasoft JavaScript files:

    • HTML

    <link rel="stylesheet" type="text/css" href="~/js/jquery-ui-css/jquery-ui.min.css">
    <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.css">
    <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.Pdf.css">

    <script src="~/js/jquery-3.3.1.min.js" type="text/javascript"></script>
    <script src="~/js/jquery-ui.min.js" type="text/javascript"></script>

    <script src="~/js/Vintasoft.Shared.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Dialogs.jQueryUI.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Pdf.js" type="text/javascript"></script>
    <script src="~/js/Vintasoft.Imaging.Pdf.Dialogs.jQueryUI.js" type="text/javascript"></script>

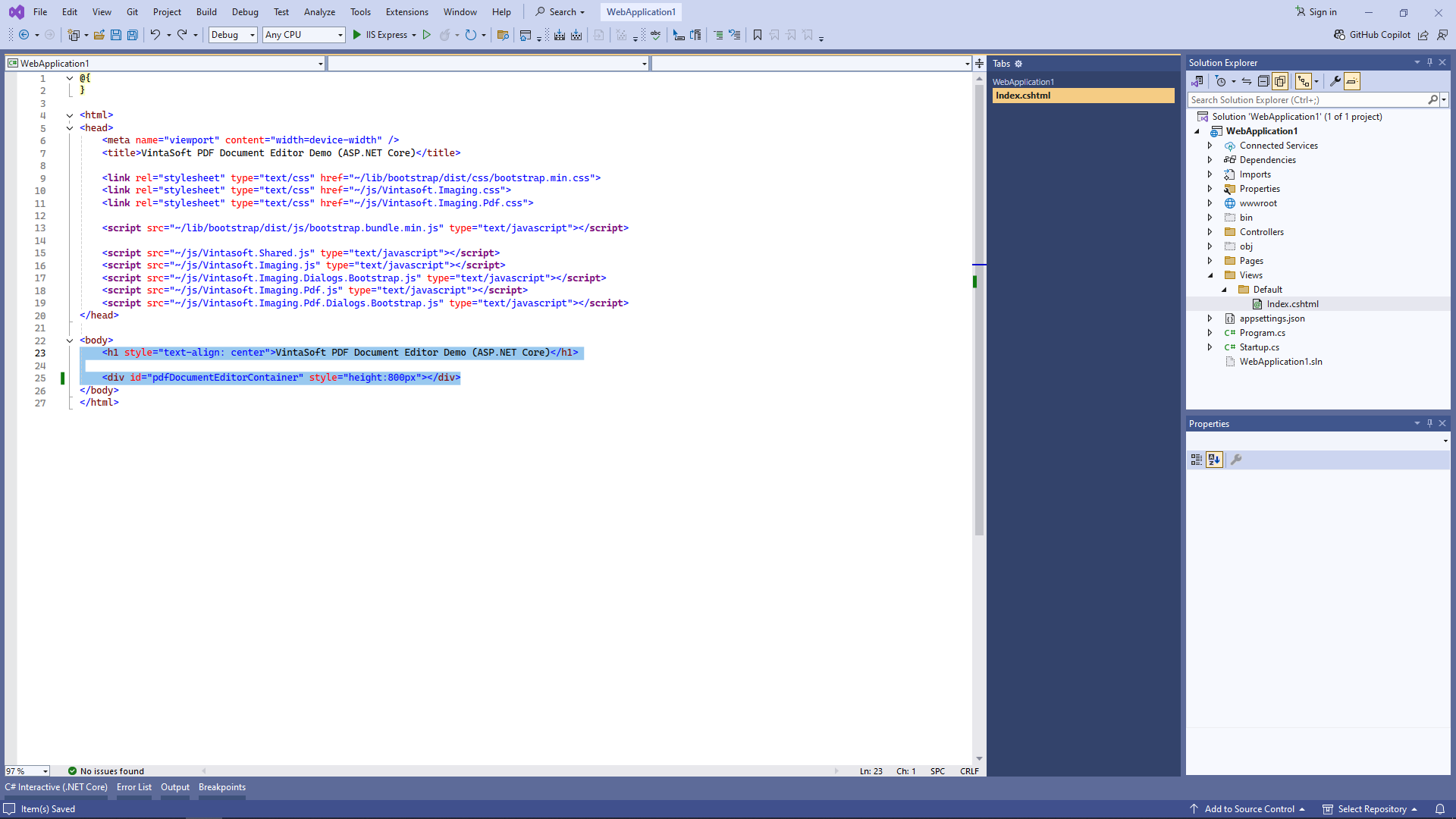

• Add HTML markup (a div-element that will display PDF document editor) to the web view:

  Here is HTML markup code:

  • HTML

  <h1 style="text-align: center">VintaSoft PDF Document Editor Demo (ASP.NET Core)</h1>

  <div id="pdfDocumentEditorContainer" style="height:800px"></div>

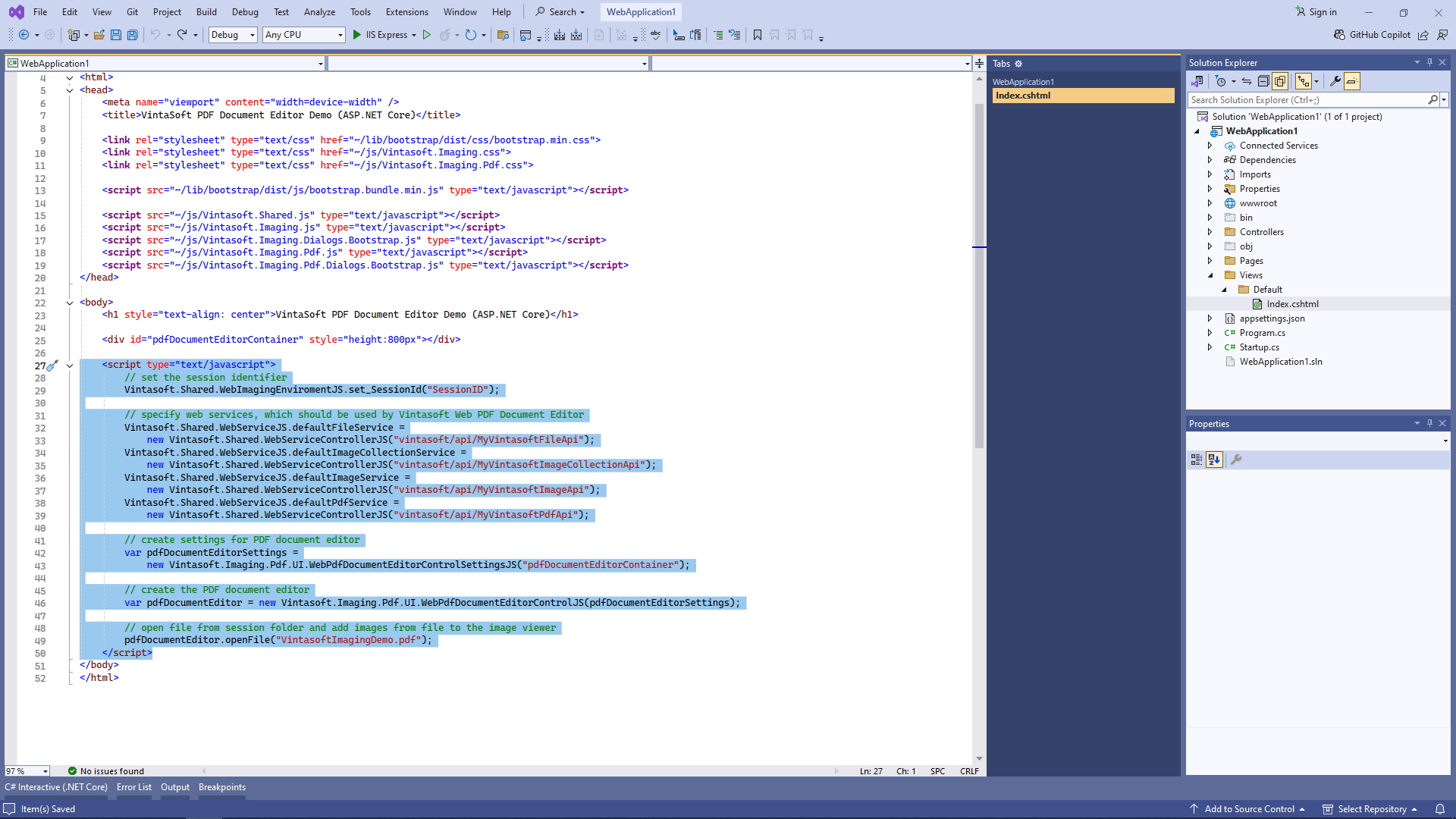

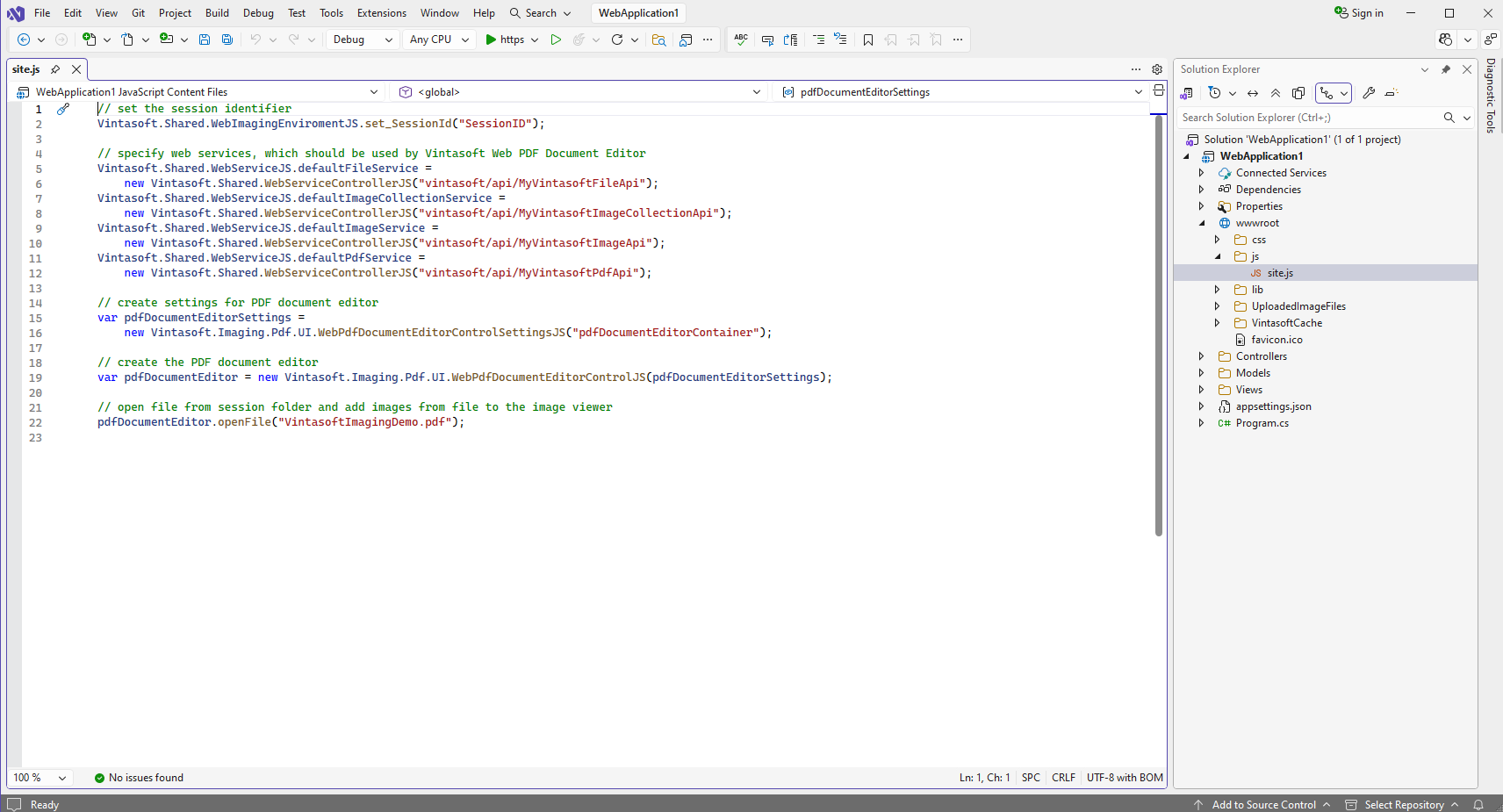

• Add JavaScript code that initializes and creates PDF document editor:

  Here is JavaScript code that initializes and displays PDF document editor:

  • JavaScript

  @{
  }

  <html>
  <head>
      <meta name="viewport" content="width=device-width" />
      <title>VintaSoft PDF Document Editor Demo (ASP.NET Core)</title>

      <link rel="stylesheet" type="text/css" href="~/lib/bootstrap/dist/css/bootstrap.min.css">
      <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.css">
      <link rel="stylesheet" type="text/css" href="~/js/Vintasoft.Imaging.Pdf.css">

      <script src="~/lib/bootstrap/dist/js/bootstrap.bundle.min.js" type="text/javascript"></script>

      <script src="~/js/Vintasoft.Shared.js" type="text/javascript"></script>
      <script src="~/js/Vintasoft.Imaging.js" type="text/javascript"></script>
      <script src="~/js/Vintasoft.Imaging.Dialogs.Bootstrap.js" type="text/javascript"></script>
      <script src="~/js/Vintasoft.Imaging.Pdf.js" type="text/javascript"></script>
      <script src="~/js/Vintasoft.Imaging.Pdf.Dialogs.Bootstrap.js" type="text/javascript"></script>
  </head>

  <body>
      <h1 style="text-align: center">VintaSoft PDF Document Editor Demo (ASP.NET Core)</h1>

      <div id="pdfDocumentEditorContainer" style="height:800px"></div>

      <script type="text/javascript">
          // set the session identifier
          Vintasoft.Shared.WebImagingEnviromentJS.set_SessionId("SessionID");

          // specify web services, which should be used by Vintasoft Web PDF Document Editor
          Vintasoft.Shared.WebServiceJS.defaultFileService =
              new Vintasoft.Shared.WebServiceControllerJS("vintasoft/api/MyVintasoftFileApi");
          Vintasoft.Shared.WebServiceJS.defaultImageCollectionService =
              new Vintasoft.Shared.WebServiceControllerJS("vintasoft/api/MyVintasoftImageCollectionApi");
          Vintasoft.Shared.WebServiceJS.defaultImageService =
              new Vintasoft.Shared.WebServiceControllerJS("vintasoft/api/MyVintasoftImageApi");
          Vintasoft.Shared.WebServiceJS.defaultPdfService =
              new Vintasoft.Shared.WebServiceControllerJS("vintasoft/api/MyVintasoftPdfApi");

          // create settings for PDF document editor
          var pdfDocumentEditorSettings =
              new Vintasoft.Imaging.Pdf.UI.WebPdfDocumentEditorControlSettingsJS("pdfDocumentEditorContainer");

          // create the PDF document editor
          var pdfDocumentEditor = new Vintasoft.Imaging.Pdf.UI.WebPdfDocumentEditorControlJS(pdfDocumentEditorSettings);

          // open file from session folder and add images from file to the image viewer
          pdfDocumentEditor.openFile("VintasoftImagingDemo.pdf");
      </script>
  </body>
  </html>

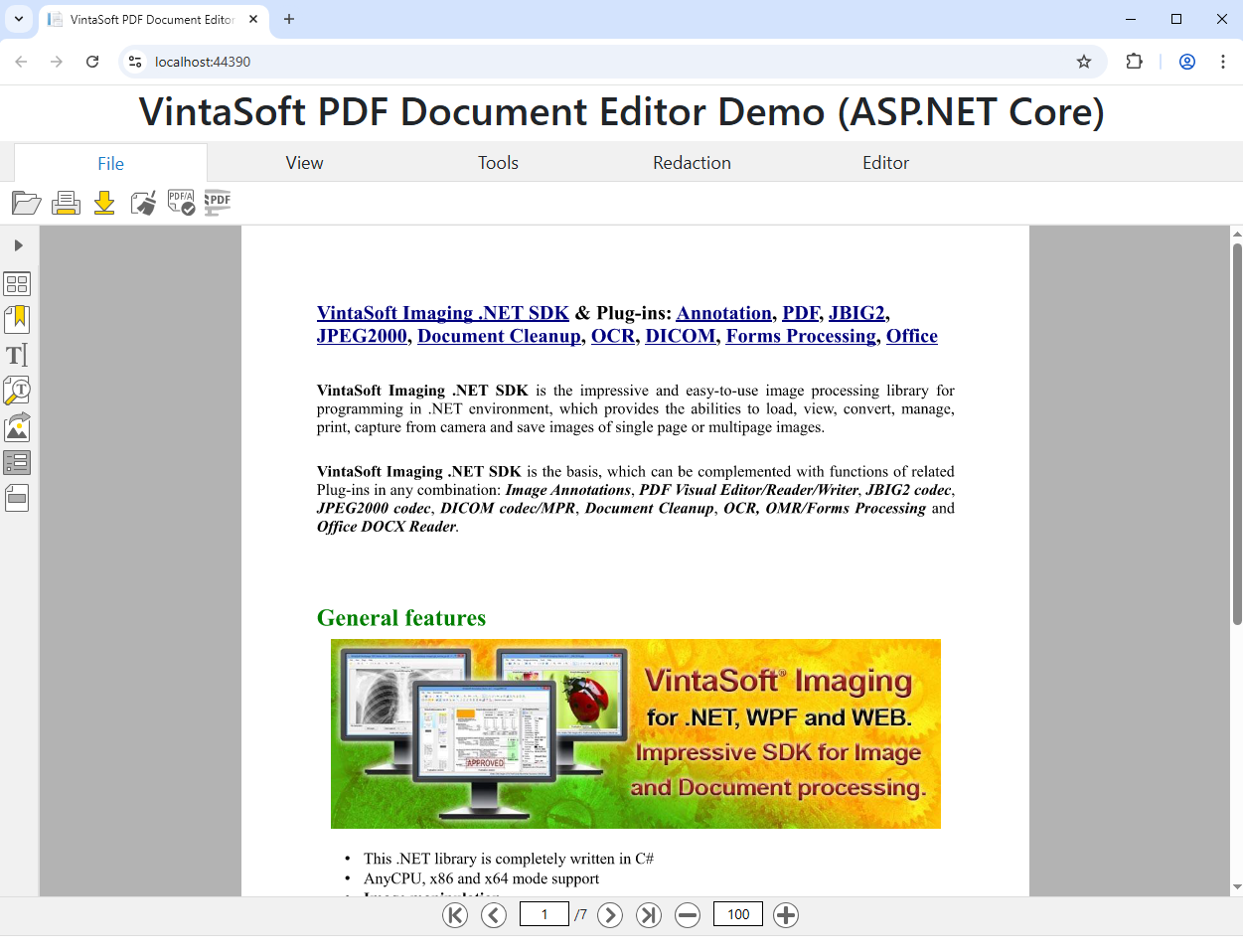

Run the ASP.NET Core Web application and see the result.
