    How to rotate image with annotations?
    In This Topic

    1. JavaScript API for rotating image with annotations in HTML5 web browser

    Here is JavaScript code that shows how to rotate image with annotations in web annotation viewer:
    // create an annotation viewer
    var annotationViewer = new Vintasoft.Imaging.Annotation.UI.WebAnnotationViewerJS("WebAnnotationViewer1");
    ...

    // get image that is focused in annotation viewer
    var image = annotationViewer.get_FocusedImage();
    // if annotation viewer has focused image
    if (image != null) {
        // get annotation controller that is associated with annotation viewer
        var annotationController = annotationViewer.get_AnnotationController();
        // rotate image with annotations in annotation viewer
        annotationController.rotateImageWithAnnotation(
            image,
            45,                                                             // rotation angle in degrees
            "rgb(255,255,255)",                                             // border color
            new Vintasoft.Imaging.WebBorderColorTypeEnumJS("Custom"),       // specify that border color, which is specified by previous parameter, must be used
            true,                                                           // specify that changes must be saved to a source file
            __annotationController_rotateImageWithAnnotation_success,
            __annotationController_rotateImageWithAnnotation_error);
    }


    /*
     * Image with annotations is successfully rotated.
     */
    function __annotationController_rotateImageWithAnnotation_success(data) {
        alert('Image with annotations is successfully rotated.');
    }

    /*
     * Image with annotations is not rotated.
     */
    function __annotationController_rotateImageWithAnnotation_error(data) {
        alert('Image with annotations is not rotated.');
    }




    2. Web Document Viewer UI for rotating image with annotations in HTML5 web browser

    By default annotation toolbar contains "annotationActionsToolbarPanel" panel that contains "rotateImageWithAnnotationsButton" button. "RotateImageWithAnnotationsButton" button display dialog that allows to rotate image with annotations in annotation viewer.

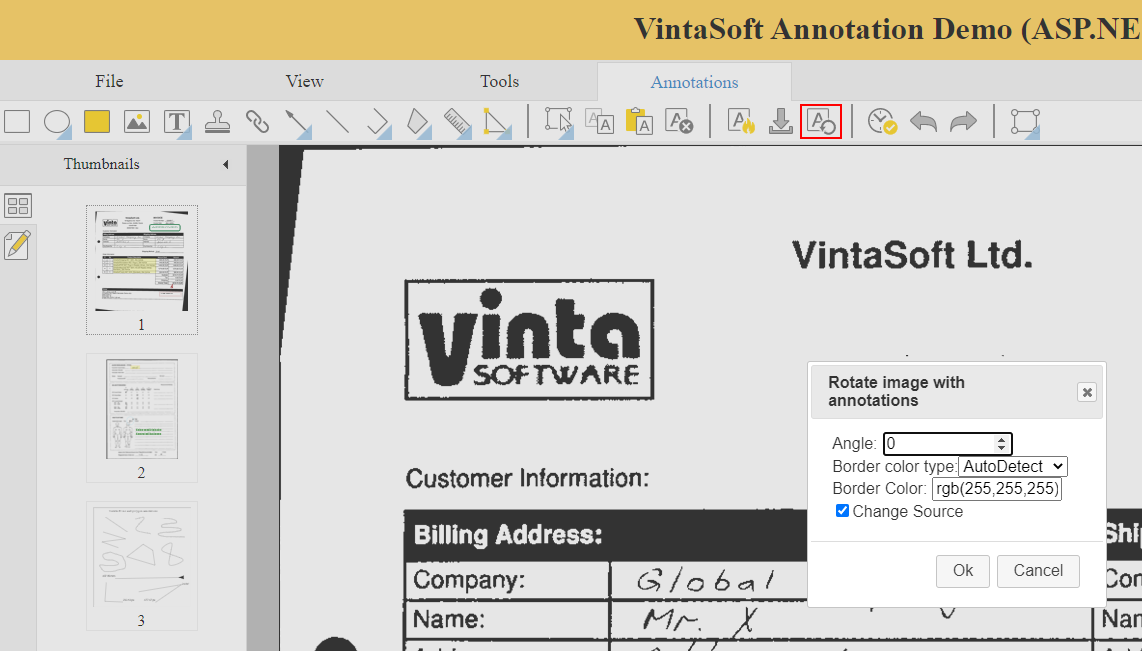

    Here is screenshot of annotation toolbar in web application ("rotateImageWithAnnotationsButton" button is marked with red rectangle):
