DICOM: View DICOM images in WinForms

In This Topic

VintaSoft DICOM .NET Plug-in contains WinForms UI-control DicomSeriesManagerControl that allows to display information about DICOM series grouped by patient and study, navigate by DICOM series, asynchronously add DICOM files.

Also VintaSoft DICOM .NET Plug-in contains 2 visual tools for DICOM images in WinForms image viewer: DicomViewerTool, EcgVisualTool.

DicomSeriesManagerControl UI-control

The DicomSeriesManagerControl allows to:

display information about DICOM series grouped by patient and study
asynchronously add DICOM files and folders: DicomSeriesManagerControl.AddDirectory, DicomSeriesManagerControl.AddFiles, DicomSeriesManagerControl.CloseAllSeries, DicomSeriesManagerControl.AddedFileCountChanged
setup the format of displayed information about patient, study and series: DicomSeriesManagerControl.PatientTextBlockFormat, DicomSeriesManagerControl.StudyTextBlockFormat, DicomSeriesManagerControl.SeriesTextBlockFormat
navigate by series of DICOM images: DicomSeriesManagerControl.FocusedSeriesIdentifier, DicomSeriesManagerControl.FocusedSeriesIdentifierChanged, DicomSeriesManagerControl.DicomViewer

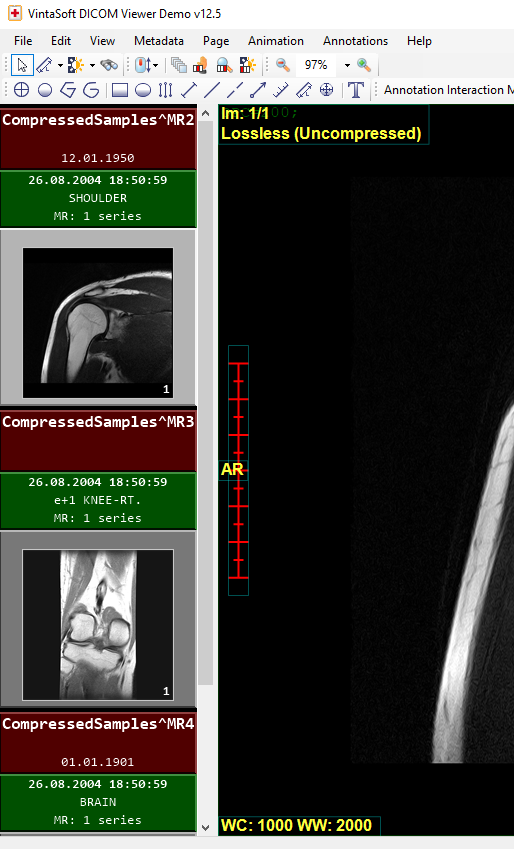

Here is screenshot of DicomSeriesManagerControl UI-control in VintaSoft DICOM Viewer Demo:

DicomViewerTool class

The DicomViewerTool class allows to to zoom and slide DICOM frames in WinForms image viewer. Also tool allows to apply VOI LUT to a DICOM frame in WinForms image viewer. Also tool allows to display metadata of DICOM frame in WinForms image viewer.

Here is C#/VB.NET code that demonstrates how to view a DICOM image and display the DICOM image metadata in WinForms image viewer:

/// <summary>
/// A visual tool that allows to show name and age of patient.
/// </summary>
public class CustomDicomViewerTool : Vintasoft.Imaging.Dicom.UI.VisualTools.DicomViewerTool
{

    /// <summary>
    /// Initializes a new instance of the <see cref="CustomDicomViewerTool"/> class.
    /// </summary>
    public CustomDicomViewerTool()
        : this(true)
    {
    }

    /// <summary>
    /// Initializes a new instance of the <see cref="CustomDicomViewerTool" /> class.
    /// </summary>
    /// <param name="needUpdateViewerAfterApplyingVoiLut">
    /// Determines that the image viewer must be updated after applying VOI lookup table to a DICOM image.
    /// </param>
    public CustomDicomViewerTool(bool needUpdateViewerAfterApplyingVoiLut)
        : base(needUpdateViewerAfterApplyingVoiLut)
    {
        // clear the default text overlay
        TextOverlay.Clear();


        // create text overlay of VOI LUT
        Vintasoft.Imaging.Dicom.UI.VisualTools.DicomImageVoiLutTextOverlay voiLutTextOverlay =
            new Vintasoft.Imaging.Dicom.UI.VisualTools.DicomImageVoiLutTextOverlay();
        // set the anchor of text
        voiLutTextOverlay.Anchor = Vintasoft.Imaging.AnchorType.Left | Vintasoft.Imaging.AnchorType.Bottom;
        // add text overlay to visual tool
        TextOverlay.Add(voiLutTextOverlay);


        // the text anchor
        Vintasoft.Imaging.AnchorType textAnchor =
            Vintasoft.Imaging.AnchorType.Bottom | Vintasoft.Imaging.AnchorType.Right;
        // the text color
        System.Drawing.Brush textBrush = System.Drawing.Brushes.Blue;


        // create text overlay
        Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay patientNameTextOverlay =
            new Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay(
                Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomDataElementId.PatientName);
        // set the anchor of text
        patientNameTextOverlay.Anchor = textAnchor;
        // set the color of text
        patientNameTextOverlay.TextBrush = textBrush;
        // set text format of text
        patientNameTextOverlay.TextFormat = "Name: {0}";
        // add text overlay to visual tool
        TextOverlay.Add(patientNameTextOverlay);


        // create text overlay
        Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay patientAgeTextOverlay =
            new Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay(
                 Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomDataElementId.PatientAge);
        // set the anchor of text
        patientAgeTextOverlay.Anchor = textAnchor;
        // set the color of text
        patientAgeTextOverlay.TextBrush = textBrush;
        // set text format of text
        patientAgeTextOverlay.TextFormat = "Age: {0}";
        // add text overlay to he visual tool
        TextOverlay.Add(patientAgeTextOverlay);
    }
}

VB.NET

''' <summary>
''' A visual tool that allows to show name and age of patient.
''' </summary>
Public Class CustomDicomViewerTool
    Inherits Vintasoft.Imaging.Dicom.UI.VisualTools.DicomViewerTool

    ''' <summary>
    ''' Initializes a new instance of the <see cref="CustomDicomViewerTool"/> class.
    ''' </summary>
    Public Sub New()
        Me.New(True)
    End Sub

    ''' <summary>
    ''' Initializes a new instance of the <see cref="CustomDicomViewerTool" /> class.
    ''' </summary>
    ''' <param name="needUpdateViewerAfterApplyingVoiLut">
    ''' Determines that the image viewer must be updated after applying VOI lookup table to a DICOM image.
    ''' </param>
    Public Sub New(needUpdateViewerAfterApplyingVoiLut As Boolean)
        MyBase.New(needUpdateViewerAfterApplyingVoiLut)
        ' clear the default text overlay
        TextOverlay.Clear()


        ' create text overlay of VOI LUT
        Dim voiLutTextOverlay As New Vintasoft.Imaging.Dicom.UI.VisualTools.DicomImageVoiLutTextOverlay()
        ' set the anchor of text
        voiLutTextOverlay.Anchor = Vintasoft.Imaging.AnchorType.Left Or Vintasoft.Imaging.AnchorType.Bottom
        ' add text overlay to visual tool
        TextOverlay.Add(voiLutTextOverlay)


        ' the text anchor
        Dim textAnchor As Vintasoft.Imaging.AnchorType = Vintasoft.Imaging.AnchorType.Bottom Or Vintasoft.Imaging.AnchorType.Right
        ' the text color
        Dim textBrush As System.Drawing.Brush = System.Drawing.Brushes.Blue


        ' create text overlay
        Dim patientNameTextOverlay As New Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay(Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomDataElementId.PatientName)
        ' set the anchor of text
        patientNameTextOverlay.Anchor = textAnchor
        ' set the color of text
        patientNameTextOverlay.TextBrush = textBrush
        ' set text format of text
        patientNameTextOverlay.TextFormat = "Name: {0}"
        ' add text overlay to visual tool
        TextOverlay.Add(patientNameTextOverlay)


        ' create text overlay
        Dim patientAgeTextOverlay As New Vintasoft.Imaging.Dicom.UI.VisualTools.StandardDicomDataElementTextOverlay(Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomDataElementId.PatientAge)
        ' set the anchor of text
        patientAgeTextOverlay.Anchor = textAnchor
        ' set the color of text
        patientAgeTextOverlay.TextBrush = textBrush
        ' set text format of text
        patientAgeTextOverlay.TextFormat = "Age: {0}"
        ' add text overlay to he visual tool
        TextOverlay.Add(patientAgeTextOverlay)
    End Sub
End Class

EcgVisualTool class

The EcgVisualTool class allows to measure electrocardiogram in image viewer.

Here is C#/VB.NET code that demonstrates how to display information about selection in ECG visual tool:

/// <summary>
/// Helps to display information about selection in <see cref="Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool"/>.
/// </summary>
public class EcgVisualToolHelper : System.IDisposable
{

    #region Fields

    /// <summary>
    /// The image viewer.
    /// </summary>
    Vintasoft.Imaging.UI.ImageViewer _viewer;

    /// <summary>
    /// The label.
    /// </summary>
    System.Windows.Forms.Label _label;

    #endregion



    #region Constructors

    /// <summary>
    /// Initializes a new instance of the <see cref="EcgVisualToolHelper"/> class.
    /// </summary>
    /// <param name="viewer">The image viewer.</param>
    /// <param name="label">The label.</param>
    public EcgVisualToolHelper(Vintasoft.Imaging.UI.ImageViewer viewer, System.Windows.Forms.Label label)
    {
        _viewer = viewer;
        _label = label;

        // create visual tool
        Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool visualTool = new Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool();
        visualTool.SelectionChanged += EcgVisualTool_SelectionChanged;

        // set the visual tool
        _viewer.VisualTool = visualTool;
    }

    #endregion



    #region Methods

    /// <summary>
    /// Performs application-defined tasks associated with freeing, releasing, or resetting unmanaged resources.
    /// </summary>
    public void Dispose()
    {
        if (_viewer.VisualTool is Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool)
            _viewer.VisualTool = null;
    }

    /// <summary>
    /// Handles the SelectionChanged event of the EcgVisualTool control.
    /// </summary>
    /// <param name="sender">The source of the event.</param>
    /// <param name="e">The <see cref="Vintasoft.Imaging.PropertyChangedEventArgs{Vintasoft.Primitives.VintasoftRect}"/> instance containing the event data.</param>
    private void EcgVisualTool_SelectionChanged(object sender, Vintasoft.Imaging.PropertyChangedEventArgs<Vintasoft.Primitives.VintasoftRect> e)
    {
        // if value is specified
        if (e.NewValue.Width != 0 || e.NewValue.Height != 0)
        {
            System.Text.StringBuilder stringBuilder = new System.Text.StringBuilder();

            // add time information
            stringBuilder.AppendFormat("{0:F0} ms", e.NewValue.Width * 1000);

            if (e.NewValue.Height != 0)
                // add voltage information
                stringBuilder.AppendFormat(", {0:F0} μV", e.NewValue.Height * 1000);

            // update text
            _label.Text = stringBuilder.ToString();
        }
        else
        {
            // remove text
            _label.Text = string.Empty;
        }
    }

    #endregion

}

VB.NET

''' <summary>
''' Helps to display information about selection in <see cref="Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool"/>.
''' </summary>
Public Class EcgVisualToolHelper
    Implements System.IDisposable

    #Region "Fields"

    ''' <summary>
    ''' The image viewer.
    ''' </summary>
    Private _viewer As Vintasoft.Imaging.UI.ImageViewer

    ''' <summary>
    ''' The label.
    ''' </summary>
    Private _label As System.Windows.Forms.Label

    #End Region



    #Region "Constructors"

    ''' <summary>
    ''' Initializes a new instance of the <see cref="EcgVisualToolHelper"/> class.
    ''' </summary>
    ''' <param name="viewer">The image viewer.</param>
    ''' <param name="label">The label.</param>
    Public Sub New(viewer As Vintasoft.Imaging.UI.ImageViewer, label As System.Windows.Forms.Label)
        _viewer = viewer
        _label = label

        ' create visual tool
        Dim visualTool As New Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool()
        AddHandler visualTool.SelectionChanged, AddressOf EcgVisualTool_SelectionChanged

        ' set the visual tool
        _viewer.VisualTool = visualTool
    End Sub

    #End Region



    #Region "Methods"

    ''' <summary>
    ''' Performs application-defined tasks associated with freeing, releasing, or resetting unmanaged resources.
    ''' </summary>
    Public Sub Dispose() Implements System.IDisposable.Dispose
        If TypeOf _viewer.VisualTool Is Vintasoft.Imaging.Dicom.UI.VisualTools.EcgVisualTool Then
            _viewer.VisualTool = Nothing
        End If
    End Sub

    ''' <summary>
    ''' Handles the SelectionChanged event of the EcgVisualTool control.
    ''' </summary>
    ''' <param name="sender">The source of the event.</param>
    ''' <param name="e">The <see cref="Vintasoft.Imaging.PropertyChangedEventArgs{Vintasoft.Primitives.VintasoftRect}"/> instance containing the event data.</param>
    Private Sub EcgVisualTool_SelectionChanged(sender As Object, e As Vintasoft.Imaging.PropertyChangedEventArgs(Of Vintasoft.Primitives.VintasoftRect))
        ' if value is specified
        If e.NewValue.Width <> 0 OrElse e.NewValue.Height <> 0 Then
            Dim stringBuilder As New System.Text.StringBuilder()

            ' add time information
            stringBuilder.AppendFormat("{0:F0} ms", e.NewValue.Width * 1000)

            If e.NewValue.Height <> 0 Then
                ' add voltage information
                stringBuilder.AppendFormat(", {0:F0} ?V", e.NewValue.Height * 1000)
            End If

            ' update text
            _label.Text = stringBuilder.ToString()
        Else
            ' remove text
            _label.Text = String.Empty
        End If
    End Sub

    #End Region

End Class
