    WpfCommentVisualTool Class
    In This Topic
    Represents a visual tool that allows to comment images in WPF image viewer.

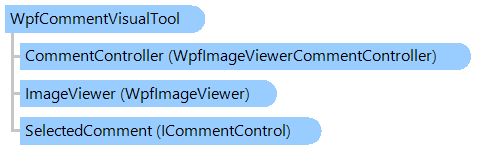

    Object Model
    WpfCommentVisualTool ClassWpfImageViewerCommentController ClassWpfImageViewer ClassICommentControl Interface
    Syntax
    'Declaration

    <DefaultPropertyAttribute("Content")>
    <ContentPropertyAttribute("Content")>
    <LocalizabilityAttribute(LocalizationCategory.None, Readability=Readability.Unreadable)>
    <StyleTypedPropertyAttribute(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)>
    <XmlLangPropertyAttribute("Language")>
    <UsableDuringInitializationAttribute(True)>
    <RuntimeNamePropertyAttribute("Name")>
    <UidPropertyAttribute("Uid")>
    <TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>
    <NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>
    Public Class WpfCommentVisualTool
       Inherits Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public class WpfCommentVisualTool : Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public __gc class WpfCommentVisualTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public ref class WpfCommentVisualTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
    Example
    This example shows how to initialize WPF image viewer for displaying the annotation comments.
    ''' <summary>
    ''' Initializes WPF image viewer for displaying PDF annotation comments.
    ''' </summary>
    ''' <param name="imageViewer">WPF image viewer, which must be initialized for displaying PDF annotation comments.</param>
    Public Shared Sub InitViewerToDisplayPdfAnnotationComments(imageViewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer)
        ' create new PDF annotation comment controller
        Dim annotationCommentController As New Vintasoft.Imaging.Annotation.Comments.Pdf.ImageCollectionPdfAnnotationCommentController()
        ' create the comment visual tool, which is associated with PDF annotation comment controller
        Dim commentVisualTool As Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool = CreateCommentTool(annotationCommentController)
        ' specify that comment visual tool must be used in WPF image viewer
        imageViewer.VisualTool = New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfCompositeVisualTool(commentVisualTool, imageViewer.VisualTool)
    End Sub

    ''' <summary>
    ''' Initializes WPF annotation viewer for displaying Vintasoft annotation comments.
    ''' </summary>
    ''' <param name="annotationViewer">WPF annotation viewer, which must be initialized for displaying Vintasoft annotation comments.</param>
    Public Shared Sub InitViewerToDisplayVintasoftAnnotationComments(annotationViewer As Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewer)
        ' create the annotation comment controller, which is associated with annotation data controller
        Dim annotationCommentController As New Vintasoft.Imaging.Annotation.Comments.AnnotationCommentController(annotationViewer.AnnotationDataController)
        ' create the comment visual tool, which is associated with annotation comment controller
        Dim commentVisualTool As Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool = CreateCommentTool(annotationCommentController)
        ' specify that comment visual tool must be used in WinForms annotation viewer
        annotationViewer.VisualTool = New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfCompositeVisualTool(commentVisualTool, annotationViewer.VisualTool)
    End Sub

    ''' <summary>
    ''' Creates the comment visual tool using the specified comment controller.
    ''' </summary>
    ''' <param name="imageCollectionCommentController">The image collection comment controller.</param>
    ''' <returns>The comment visual tool.</returns>
    Public Shared Function CreateCommentTool(imageCollectionCommentController As Vintasoft.Imaging.Annotation.Comments.ImageCollectionCommentController) As Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool
        ' create the comment controller for WPF image viewer
        Dim commentController As New Vintasoft.Imaging.Annotation.Wpf.UI.Comments.WpfImageViewerCommentController(imageCollectionCommentController)
        ' create the comment visual tool, which uses the CommentControlFactory class for creating the comment controls
        Return New Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool(commentController, New CommentControlFactory())
    End Function



    ''' <summary>
    ''' Represents a factory that allows to create comment controls.
    ''' </summary>
    Public Class CommentControlFactory
        Implements Vintasoft.Imaging.Annotation.UI.Comments.ICommentControlFactory

        ''' <summary>
        ''' Creates the comment control that displays specified comment.
        ''' </summary>
        ''' <param name="comment">The comment.</param>
        ''' <returns>Comment control that displays specified comment.</returns>
        Public Function Create(comment As Vintasoft.Imaging.Annotation.Comments.Comment) As Vintasoft.Imaging.Annotation.UI.Comments.ICommentControl Implements Vintasoft.Imaging.Annotation.UI.Comments.ICommentControlFactory.Create
            ' create a comment control that displays comment in WPF image viewer
            Return New CommentControl(comment)
        End Function

    End Class



    ' see code of CommentControl class for PDF annotation comment in file
    ' "INSTALL_PATH\Examples\WPF\CSharp\WpfPdfEditorDemo\DemosCommonCode.Annotation\Comments\CommentControl.xaml"
    '
    ' see code of CommentControl class for Vintasoft annotation comment in file
    ' "INSTALL_PATH\Examples\WPF\CSharp\WpfAnnotationDemo\DemosCommonCode.Annotation\Comments\CommentControl.xaml"
    /// <summary>
    /// Initializes WPF image viewer for displaying PDF annotation comments.
    /// </summary>
    /// <param name="imageViewer">WPF image viewer, which must be initialized for displaying PDF annotation comments.</param>
    public static void InitViewerToDisplayPdfAnnotationComments(Vintasoft.Imaging.Wpf.UI.WpfImageViewer imageViewer)
    {
        // create new PDF annotation comment controller
        Vintasoft.Imaging.Annotation.Comments.Pdf.ImageCollectionPdfAnnotationCommentController annotationCommentController =
            new Vintasoft.Imaging.Annotation.Comments.Pdf.ImageCollectionPdfAnnotationCommentController();
        // create the comment visual tool, which is associated with PDF annotation comment controller
        Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool commentVisualTool = CreateCommentTool(annotationCommentController);
        // specify that comment visual tool must be used in WPF image viewer
        imageViewer.VisualTool = new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfCompositeVisualTool(commentVisualTool, imageViewer.VisualTool);
    }

    /// <summary>
    /// Initializes WPF annotation viewer for displaying Vintasoft annotation comments.
    /// </summary>
    /// <param name="annotationViewer">WPF annotation viewer, which must be initialized for displaying Vintasoft annotation comments.</param>
    public static void InitViewerToDisplayVintasoftAnnotationComments(Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationViewer annotationViewer)
    {
        // create the annotation comment controller, which is associated with annotation data controller
        Vintasoft.Imaging.Annotation.Comments.AnnotationCommentController annotationCommentController =
            new Vintasoft.Imaging.Annotation.Comments.AnnotationCommentController(annotationViewer.AnnotationDataController);
        // create the comment visual tool, which is associated with annotation comment controller
        Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool commentVisualTool = CreateCommentTool(annotationCommentController);
        // specify that comment visual tool must be used in WinForms annotation viewer
        annotationViewer.VisualTool = new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfCompositeVisualTool(commentVisualTool, annotationViewer.VisualTool);
    }

    /// <summary>
    /// Creates the comment visual tool using the specified comment controller.
    /// </summary>
    /// <param name="imageCollectionCommentController">The image collection comment controller.</param>
    /// <returns>The comment visual tool.</returns>
    public static Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool CreateCommentTool(
        Vintasoft.Imaging.Annotation.Comments.ImageCollectionCommentController imageCollectionCommentController)
    {
        // create the comment controller for WPF image viewer
        Vintasoft.Imaging.Annotation.Wpf.UI.Comments.WpfImageViewerCommentController commentController =
            new Vintasoft.Imaging.Annotation.Wpf.UI.Comments.WpfImageViewerCommentController(imageCollectionCommentController);
        // create the comment visual tool, which uses the CommentControlFactory class for creating the comment controls
        return new Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool(commentController, new CommentControlFactory());
    }



    /// <summary>
    /// Represents a factory that allows to create comment controls.
    /// </summary>
    public class CommentControlFactory : Vintasoft.Imaging.Annotation.UI.Comments.ICommentControlFactory
    {

        /// <summary>
        /// Creates the comment control that displays specified comment.
        /// </summary>
        /// <param name="comment">The comment.</param>
        /// <returns>Comment control that displays specified comment.</returns>
        public Vintasoft.Imaging.Annotation.UI.Comments.ICommentControl Create(Vintasoft.Imaging.Annotation.Comments.Comment comment)
        {
            // create a comment control that displays comment in WPF image viewer
            return new CommentControl(comment);
        }

    }



    // see code of CommentControl class for PDF annotation comment in file
    // "INSTALL_PATH\Examples\WPF\CSharp\WpfPdfEditorDemo\DemosCommonCode.Annotation\Comments\CommentControl.xaml"
    //
    // see code of CommentControl class for Vintasoft annotation comment in file
    // "INSTALL_PATH\Examples\WPF\CSharp\WpfAnnotationDemo\DemosCommonCode.Annotation\Comments\CommentControl.xaml"
    Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Control
                         System.Windows.Controls.ContentControl
                            Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                               Vintasoft.Imaging.Annotation.Wpf.UI.VisualTools.WpfCommentVisualTool

    Requirements

    Target Platforms: .NET 6; .NET 5; .NET Core 3.1; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
