    AnnotationVintasoftXmpFormatter Class
    In This Topic
    Serializes annotations to and from Vintasoft's XMP format.

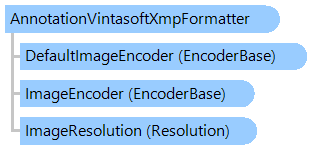

    Object Model
    AnnotationVintasoftXmpFormatter ClassResolution Structure
    Syntax
    'Declaration

    Public Class AnnotationVintasoftXmpFormatter
       Inherits AnnotationFormatter
    public class AnnotationVintasoftXmpFormatter : AnnotationFormatter
    public __gc class AnnotationVintasoftXmpFormatter : public AnnotationFormatter
    public ref class AnnotationVintasoftXmpFormatter : public AnnotationFormatter
    Example
    This example shows how to save an annotation collection of image to the file using VintaSoft XMP formatter.
    ' Create the image collection and add images to collection.
    Dim imageCollection As New Vintasoft.Imaging.ImageCollection()
    imageCollection.Add("D:\Images\AutoContrast.jpg")
    imageCollection.Add("D:\Images\AutoColors.jpg")

    ' Create annotation controller associated with image collection.
    Dim annotationDataController As New Vintasoft.Imaging.Annotation.AnnotationDataController(imageCollection)

    ' Create a rectangle annotation.
    Dim rectangleAnnotationData As New Vintasoft.Imaging.Annotation.RectangleAnnotationData()
    rectangleAnnotationData.Location = New System.Drawing.PointF(32, 27)
    rectangleAnnotationData.Size = New System.Drawing.SizeF(38, 35)
    ' Add the rectangle annotation to the annotation collection of first image.
    annotationDataController(0).Add(rectangleAnnotationData)

    ' Create a line annotation.
    Dim lineAnnotationData As New Vintasoft.Imaging.Annotation.LineAnnotationData()
    lineAnnotationData.Location = New System.Drawing.PointF(17, 66)
    lineAnnotationData.EndPoint = New System.Drawing.PointF(51, 50)
    ' Add the line annotation to the annotation collection of first image.
    annotationDataController(0).Add(lineAnnotationData)

    ' Create an ellipse annotation.
    Dim ellipseAnnotationData As New Vintasoft.Imaging.Annotation.EllipseAnnotationData()
    ellipseAnnotationData.Location = New System.Drawing.PointF(115, 45)
    ellipseAnnotationData.Size = New System.Drawing.SizeF(66, 64)
    ' Add the ellipse annotation to the annotation collection of first image.
    annotationDataController(0).Add(ellipseAnnotationData)

    ' Create a VintaSoft Binary formmater.
    Dim binaryFormatter As New Vintasoft.Imaging.Annotation.Formatters.AnnotationVintasoftBinaryFormatter()
    ' Create a file where VintaSoft Binary packet will be saved.
    Using file As New System.IO.FileStream("D:\Annotations.vsab", System.IO.FileMode.Create, System.IO.FileAccess.ReadWrite)
        ' Get a reference to the annotation collection of first image.
        Dim annotationDataCollection As Vintasoft.Imaging.Annotation.AnnotationDataCollection = annotationDataController(0)
        ' Save annotation collection to the file using VintaSoft Binary formatter.
        binaryFormatter.Serialize(file, annotationDataCollection)
    End Using
    // Create the image collection and add images to collection.
    Vintasoft.Imaging.ImageCollection imageCollection = new Vintasoft.Imaging.ImageCollection();
    imageCollection.Add(@"D:\Images\AutoContrast.jpg");
    imageCollection.Add(@"D:\Images\AutoColors.jpg");

    // Create annotation controller associated with image collection.
    Vintasoft.Imaging.Annotation.AnnotationDataController annotationDataController =
        new Vintasoft.Imaging.Annotation.AnnotationDataController(imageCollection);

    // Create a rectangle annotation.
    Vintasoft.Imaging.Annotation.RectangleAnnotationData rectangleAnnotationData =
        new Vintasoft.Imaging.Annotation.RectangleAnnotationData();
    rectangleAnnotationData.Location = new System.Drawing.PointF(32, 27);
    rectangleAnnotationData.Size = new System.Drawing.SizeF(38, 35);
    // Add the rectangle annotation to the annotation collection of first image.
    annotationDataController[0].Add(rectangleAnnotationData);

    // Create a line annotation.
    Vintasoft.Imaging.Annotation.LineAnnotationData lineAnnotationData =
        new Vintasoft.Imaging.Annotation.LineAnnotationData();
    lineAnnotationData.Location = new System.Drawing.PointF(17, 66);
    lineAnnotationData.EndPoint = new System.Drawing.PointF(51, 50);
    // Add the line annotation to the annotation collection of first image.
    annotationDataController[0].Add(lineAnnotationData);

    // Create an ellipse annotation.
    Vintasoft.Imaging.Annotation.EllipseAnnotationData ellipseAnnotationData =
        new Vintasoft.Imaging.Annotation.EllipseAnnotationData();
    ellipseAnnotationData.Location = new System.Drawing.PointF(115, 45);
    ellipseAnnotationData.Size = new System.Drawing.SizeF(66, 64);
    // Add the ellipse annotation to the annotation collection of first image.
    annotationDataController[0].Add(ellipseAnnotationData);

    // Create a VintaSoft Binary formmater.
    Vintasoft.Imaging.Annotation.Formatters.AnnotationVintasoftBinaryFormatter binaryFormatter =
        new Vintasoft.Imaging.Annotation.Formatters.AnnotationVintasoftBinaryFormatter();
    // Create a file where VintaSoft Binary packet will be saved.
    using (System.IO.FileStream file = new System.IO.FileStream(@"D:\Annotations.vsab",
        System.IO.FileMode.Create, System.IO.FileAccess.ReadWrite))
    {
        // Get a reference to the annotation collection of first image.
        Vintasoft.Imaging.Annotation.AnnotationDataCollection annotationDataCollection = annotationDataController[0];
        // Save annotation collection to the file using VintaSoft Binary formatter.
        binaryFormatter.Serialize(file, annotationDataCollection);
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Annotation.Formatters.AnnotationFormatter
          Vintasoft.Imaging.Annotation.Formatters.AnnotationVintasoftXmpFormatter

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
