DicomMprTool Class

In This Topic

Represents a visual tool, which allows to

view DICOM MPR slice in WinForms image viewer
move DICOM MPR slice along the horizontal, vertical and perpendicular axis in WinForms image viewer
rotate DICOM MPR slice in 2D and 3D space in WinForms image viewer
zoom DICOM MPR slice in WinForms image viewer
change the window level of DICOM MPR slice in WinForms image viewer
measure objects on DICOM MPR slice in WinForms image viewer
display the text overlay on DICOM MPR slice in WinForms image viewer.

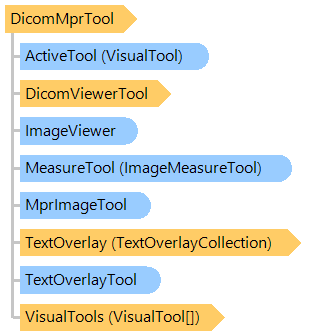

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

Public Class DicomMprTool
   Inherits Vintasoft.Imaging.UI.VisualTools.CompositeVisualTool

public class DicomMprTool : Vintasoft.Imaging.UI.VisualTools.CompositeVisualTool

public __gc class DicomMprTool : public Vintasoft.Imaging.UI.VisualTools.CompositeVisualTool*

public ref class DicomMprTool : public Vintasoft.Imaging.UI.VisualTools.CompositeVisualTool^

Remarks

By default this visual tool uses the left mouse button and mouse wheel for browsing of MPR slices (moving of MPR slice along the perpendicular axis) and uses the right mouse button for zooming of MPR slice.

Example

This C#/VB.NET code shows how to display a coronal DICOM MPR slice with metadata in image viewer.

VB.NET


''' <summary>
''' Displays the coronal slice with metadata in viewer.
''' </summary>
''' <param name="viewer">The image viewer.</param>
''' <param name="mprImage">The MPR image.</param>
Public Shared Sub DisplayCoronalSliceWithMetadataInViewer(viewer As Vintasoft.Imaging.UI.ImageViewer, mprImage As Vintasoft.Imaging.Dicom.Mpr.MprImage)
    ' create the MPR visualization controller
    Dim controller As New Vintasoft.Imaging.Dicom.Mpr.UI.MprVisualizationController(mprImage, viewer)

    ' create the coronal slice
    Dim coronalSlice As Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice = mprImage.CreateCoronalSlice(mprImage.YLength / 2.0)

    ' add slice to the MPR visualization controller
    controller.AddSliceVisualization(coronalSlice, System.Drawing.Color.Yellow)

    ' specify that the slice must be shown in viewer
    controller.ShowSliceInViewer(viewer, coronalSlice)
End Sub


/// <summary>
/// Displays the coronal slice with metadata in viewer.
/// </summary>
/// <param name="viewer">The image viewer.</param>
/// <param name="mprImage">The MPR image.</param>
public static void DisplayCoronalSliceWithMetadataInViewer(
    Vintasoft.Imaging.UI.ImageViewer viewer,
    Vintasoft.Imaging.Dicom.Mpr.MprImage mprImage)
{
    // create the MPR visualization controller
    Vintasoft.Imaging.Dicom.Mpr.UI.MprVisualizationController controller =
        new Vintasoft.Imaging.Dicom.Mpr.UI.MprVisualizationController(mprImage, viewer);

    // create the coronal slice
    Vintasoft.Imaging.Dicom.Mpr.MprPlanarSlice coronalSlice =
        mprImage.CreateCoronalSlice(mprImage.YLength / 2.0);

    // add slice to the MPR visualization controller
    controller.AddSliceVisualization(coronalSlice, System.Drawing.Color.Yellow);

    // specify that the slice must be shown in viewer
    controller.ShowSliceInViewer(viewer, coronalSlice);
}

Inheritance Hierarchy

System.Object
   Vintasoft.Imaging.UI.VisualTools.VisualTool
      Vintasoft.Imaging.UI.VisualTools.CompositeVisualTool
         Vintasoft.Imaging.Dicom.Mpr.UI.VisualTools.DicomMprTool

Requirements

Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
