    DicomFile Class
    In This Topic
    Allows to manipulate DICOM file.

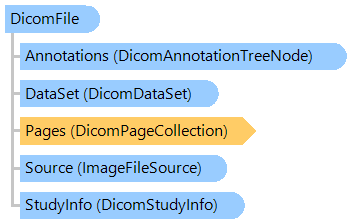

    Object Model
    DicomFrameCollection DicomDataSet DicomAnnotationTreeNode DicomStudyInfo ImageFileSource DicomFile
    Syntax
    Example

    This C#/VB.NET code shows how to get patient information (metadata) from DICOM file.


    ''' <summary>
    ''' Gets and prints information about DICOM file.
    ''' </summary>
    ''' <param name="filePath">Path to a DICOm file.</param>
    Public Sub GetDicomFileInfo(filePath As String)
        ' open DICOM file
        Using file As New Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile(filePath)
            ' show file name and page count
            System.Console.WriteLine("File: {0} Page count: {1}", System.IO.Path.GetFileName(filePath), file.Pages.Count)
            System.Console.WriteLine()

            ' get DICOM file metadata
            Dim fileMetadata As New Vintasoft.Imaging.Metadata.DicomFrameMetadata(file)

            ' for each metadata node
            For Each children As Vintasoft.Imaging.Metadata.DicomDataElementMetadata In fileMetadata
                ' print information about metadata node
                PrintMetadataNodeInfo(children)
                System.Console.WriteLine()
            Next
        End Using
    End Sub

    ''' <summary>
    ''' Prints information about metadata node.
    ''' </summary>
    ''' <param name="node">Metadata node.</param>
    Public Sub PrintMetadataNodeInfo(node As Vintasoft.Imaging.Metadata.MetadataNode)
        ' if node is DicomDataElementMetadata
        If TypeOf node Is Vintasoft.Imaging.Metadata.DicomDataElementMetadata Then
            Dim dataElementMetadata As Vintasoft.Imaging.Metadata.DicomDataElementMetadata = DirectCast(node, Vintasoft.Imaging.Metadata.DicomDataElementMetadata)
            ' show data element info
            System.Console.Write("(0x{0},0x{1}) {2,-40} {3}", dataElementMetadata.GroupNumber.ToString("X").PadLeft(4, "0"C), dataElementMetadata.ElementNumber.ToString("X").PadLeft(4, "0"C), dataElementMetadata.Name, GetValueAsString(dataElementMetadata))
        End If

        ' show children info
        For Each children As Vintasoft.Imaging.Metadata.MetadataNode In node
            PrintMetadataNodeInfo(children)
        Next
    End Sub

    ''' <summary>
    ''' Returns the metadata value as a string.
    ''' </summary>
    ''' <param name="node">The metadata node.</param>
    Private Function GetValueAsString(node As Vintasoft.Imaging.Metadata.DicomDataElementMetadata) As String
        Dim value As Object = node.Value

        ' if node value is empty
        If value Is Nothing Then
            Return "NULL"
        End If

        ' if node value is array
        If TypeOf value Is System.Array Then
            Dim array As System.Array = DirectCast(value, System.Array)

            ' if array is empty
            If array.Length = 0 Then
                Return "Empty Array"
            End If

            ' get array length
            Dim length As Integer = System.Math.Min(50, array.Length)

            ' convert array to a string
            Dim result As String = "{"
            For i As Integer = 0 To length - 2
                result += String.Format("{0}, ", ConvertToString(array.GetValue(i)))
            Next
            result += String.Format("{0}", ConvertToString(array.GetValue(length - 1)))
            If array.Length <> length Then
                result += " ..."
            End If
            result += "}"

            Return result
        ' if node contains UID
        ElseIf TypeOf value Is Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomUidBase Then
            ' return UID value
            Return ConvertToString(DirectCast(value, Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomUidBase).Value)
        Else
            Return ConvertToString(value)
        End If
    End Function

    ''' <summary>
    ''' Converts the specified data to a string.
    ''' </summary>
    ''' <param name="data">The data.</param>
    Private Function ConvertToString(data As Object) As String
        Return System.Convert.ToString(data, System.Globalization.CultureInfo.CurrentCulture)
    End Function

    ' This code example produces the following output:

      File: brain_005.dcm Pages count: 1
    '
      (0x0002,0x0001) File Meta Information Version            {0, 1}
      (0x0002,0x0002) Media Storage SOP Class UID              1.2.840.10008.5.1.4.1.1.4
      (0x0002,0x0003) Media Storage SOP Instance UID           0.0.0.0.1.8811.2.5.20010413115754.12432
      (0x0002,0x0010) Transfer Syntax UID                      1.2.840.10008.1.2.1
      (0x0002,0x0012) Implementation Class UID                 0.0.0.0
      (0x0002,0x0013) Implementation Version Name              NOTSPECIFIED
      (0x0002,0x0016) Source Application Entity Title          NOTSPECIFIED
      (0x0008,0x0008) Image Type                               {ORIGINAL, PRIMARY, MPR}
      (0x0008,0x0016) SOP Class UID                            1.2.840.10008.5.1.4.1.1.4
      (0x0008,0x0018) SOP Instance UID                         0.0.0.0.1.8811.2.5.20010413115754.12432
      (0x0008,0x0020) Study Date                               16.03.2001 0:00:00
      (0x0008,0x0021) Series Date                              16.03.2001 0:00:00
      (0x0008,0x0022) Acquisition Date                         16.03.2001 0:00:00
      (0x0008,0x0023) Content Date                             23.03.2001 0:00:00
      (0x0008,0x0030) Study Time                               14:30:08
      (0x0008,0x0031) Series Time                              14:34:14
      (0x0008,0x0032) Acquisition Time                         14:34:15
      (0x0008,0x0033) Content Time                             14:30:10
      (0x0008,0x0050) Accession Number                         NULL
      (0x0008,0x0060) Modality                                 MR
      (0x0008,0x0070) Manufacturer                             GE Medical Systems
      (0x0008,0x0080) Institution Name
      (0x0008,0x0090) Referring Physician's Name
      (0x0008,0x1010) Station Name                             MRS1
      (0x0008,0x1030) Study Description                        BRAIN
      (0x0008,0x103E) Series Description                       FSE PD AXIAL OBL
      (0x0008,0x1050) Performing Physician's Name
      (0x0008,0x1070) Operators' Name                          EC
      (0x0008,0x1090) Manufacturer's Model Name                SIGNA
      (0x0010,0x0010) Patient's Name
      (0x0010,0x0020) Patient ID                               123565
      (0x0010,0x0030) Patient's Birth Date                     NULL
      (0x0010,0x0040) Patient's Sex                            F
      (0x0010,0x1010) Patient's Age                            028Y
      (0x0010,0x1030) Patient's Weight                         61,235
      (0x0010,0x21B0) Additional Patient History               NULL
      (0x0018,0x0020) Scanning Sequence                        SE
      (0x0018,0x0021) Sequence Variant                         SK
      (0x0018,0x0022) Scan Options                             SP
      (0x0018,0x0023) MR Acquisition Type                      2D
      (0x0018,0x0024) Sequence Name                            fse
      (0x0018,0x0050) Slice Thickness                          5
      (0x0018,0x0080) Repetition Time                          2300
      (0x0018,0x0081) Echo Time                                22
      (0x0018,0x0083) Number of Averages                       1
      (0x0018,0x0084) Imaging Frequency                        63,8615
      (0x0018,0x0086) Echo Number(s)                           1
      (0x0018,0x0087) Magnetic Field Strength                  1,5
      (0x0018,0x0088) Spacing Between Slices                   2
      (0x0018,0x0089) Number of Phase Encoding Steps           256
      (0x0018,0x0091) Echo Train Length                        8
      (0x0018,0x0095) Pixel Bandwidth                          31,25
      (0x0018,0x1020) Software Version(s)                      3
      (0x0018,0x1030) Protocol Name                            CLINICAL BRAIN
      (0x0018,0x1088) Heart Rate                               0
      (0x0018,0x1090) Cardiac Number of Images                 0
      (0x0018,0x1094) Trigger Window                           0
      (0x0018,0x1100) Reconstruction Diameter                  220
      (0x0018,0x1250) Receive Coil Name                        HEAD
      (0x0018,0x1310) Acquisition Matrix                       {0, 256, 256, 0}
      (0x0018,0x1312) In-plane Phase Encoding Direction        ROW
      (0x0018,0x1314) Flip Angle                               90
      (0x0018,0x1316) SAR                                      0,0313309
      (0x0018,0x5100) Patient Position                         HFS
      (0x0020,0x000D) Study Instance UID                       0.0.0.0.2.8811.20010413115754.12432
      (0x0020,0x000E) Series Instance UID                      0.0.0.0.3.8811.2.20010413115754.12432
      (0x0020,0x0010) Study ID                                 8811
      (0x0020,0x0011) Series Number                            2
      (0x0020,0x0012) Acquisition Number                       31748
      (0x0020,0x0013) Instance Number                          5
      (0x0020,0x0020) Patient Orientation                      {L, PH}
      (0x0020,0x0030) Image Position                           {-110,5, -82,1063, -44,9575}
      (0x0020,0x0032) Image Position (Patient)                 {-110,5, -82,1063, -44,9575}
      (0x0020,0x0035) Image Orientation                        {1, 0, 0, 0, 0,99096, 0,134158}
      (0x0020,0x0037) Image Orientation (Patient)              {1, 0, 0, 0, 0,99096, 0,134158}
      (0x0020,0x0052) Frame of Reference UID                   0.0.0.0.4.8811.2.20010413115754.12432
      (0x0020,0x1002) Images in Acquisition                    1
      (0x0020,0x1040) Position Reference Indicator             NA
      (0x0020,0x1041) Slice Location                           -30,2
      (0x0028,0x0002) Samples per Pixel                        1
      (0x0028,0x0004) Photometric Interpretation               MONOCHROME2
      (0x0028,0x0010) Rows                                     256
      (0x0028,0x0011) Columns                                  256
      (0x0028,0x0030) Pixel Spacing                            {0,859375, 0,859375}
      (0x0028,0x0100) Bits Allocated                           16
      (0x0028,0x0101) Bits Stored                              16
      (0x0028,0x0102) High Bit                                 15
      (0x0028,0x0103) Pixel Representation                     1
      (0x0028,0x0106) Smallest Image Pixel Value               0
      (0x0028,0x0107) Largest Image Pixel Value                932
      (0x0028,0x0120) Pixel Padding Value                      0
      (0x0028,0x1050) Window Center                            0
      (0x0028,0x1051) Window Width                             0
      (0x0028,0x1052) Rescale Intercept                        0
      (0x0028,0x1053) Rescale Slope                            1
      (0x0028,0x1054) Rescale Type                             SIGNAL INTENSITY (UNITLESS)
      (0x7FE0,0x0010) Pixel Data                               {0, 0, 0, 0, 0, 0, 0, 0, 0 ...}





    /// <summary>
    /// Gets and prints information about DICOM file.
    /// </summary>
    /// <param name="filePath">Path to a DICOm file.</param>
    public void GetDicomFileInfo(string filePath)
    {
        // open DICOM file
        using (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile file =
            new Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile(filePath))
        {
            // show file name and page count
            System.Console.WriteLine("File: {0} Page count: {1}",
                System.IO.Path.GetFileName(filePath), file.Pages.Count);
            System.Console.WriteLine();

            // get DICOM file metadata
            Vintasoft.Imaging.Metadata.DicomFrameMetadata fileMetadata =
                new Vintasoft.Imaging.Metadata.DicomFrameMetadata(file);

            // for each metadata node
            foreach (Vintasoft.Imaging.Metadata.DicomDataElementMetadata children in fileMetadata)
            {
                // print information about metadata node
                PrintMetadataNodeInfo(children);
                System.Console.WriteLine();
            }
        }
    }

    /// <summary>
    /// Prints information about metadata node.
    /// </summary>
    /// <param name="node">Metadata node.</param>
    public void PrintMetadataNodeInfo(Vintasoft.Imaging.Metadata.MetadataNode node)
    {
        // if node is DicomDataElementMetadata
        if (node is Vintasoft.Imaging.Metadata.DicomDataElementMetadata)
        {
            Vintasoft.Imaging.Metadata.DicomDataElementMetadata dataElementMetadata =
                (Vintasoft.Imaging.Metadata.DicomDataElementMetadata)node;
            // show data element info
            System.Console.Write("(0x{0},0x{1}) {2,-40} {3}",
                dataElementMetadata.GroupNumber.ToString("X").PadLeft(4, '0'),
                dataElementMetadata.ElementNumber.ToString("X").PadLeft(4, '0'),
                dataElementMetadata.Name,
                GetValueAsString(dataElementMetadata));
        }

        // show children info
        foreach (Vintasoft.Imaging.Metadata.MetadataNode children in node)
            PrintMetadataNodeInfo(children);
    }

    /// <summary>
    /// Returns the metadata value as a string.
    /// </summary>
    /// <param name="node">The metadata node.</param>
    private string GetValueAsString(Vintasoft.Imaging.Metadata.DicomDataElementMetadata node)
    {
        object value = node.Value;

        // if node value is empty
        if (value == null)
            return "NULL";

        // if node value is array
        if (value is System.Array)
        {
            System.Array array = (System.Array)value;

            // if array is empty
            if (array.Length == 0)
                return "Empty Array";

            // get array length
            int length = System.Math.Min(50, array.Length);

            // convert array to a string
            string result = "{";
            for (int i = 0; i < length - 1; i++)
                result += string.Format("{0}, ", ConvertToString(array.GetValue(i)));
            result += string.Format("{0}", ConvertToString(array.GetValue(length - 1)));
            if (array.Length != length)
                result += " ...";
            result += "}";

            return result;
        }
        // if node contains UID
        else if (value is Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomUidBase)
        {
            // return UID value
            return ConvertToString(((Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomUidBase)value).Value);
        }
        else
        {
            return ConvertToString(value);
        }
    }

    /// <summary>
    /// Converts the specified data to a string.
    /// </summary>
    /// <param name="data">The data.</param>
    private string ConvertToString(object data)
    {
        return System.Convert.ToString(data, System.Globalization.CultureInfo.CurrentCulture);
    }

    /* This code example produces the following output:

    File: brain_005.dcm Pages count: 1

    (0x0002,0x0001) File Meta Information Version            {0, 1}
    (0x0002,0x0002) Media Storage SOP Class UID              1.2.840.10008.5.1.4.1.1.4
    (0x0002,0x0003) Media Storage SOP Instance UID           0.0.0.0.1.8811.2.5.20010413115754.12432
    (0x0002,0x0010) Transfer Syntax UID                      1.2.840.10008.1.2.1
    (0x0002,0x0012) Implementation Class UID                 0.0.0.0
    (0x0002,0x0013) Implementation Version Name              NOTSPECIFIED
    (0x0002,0x0016) Source Application Entity Title          NOTSPECIFIED
    (0x0008,0x0008) Image Type                               {ORIGINAL, PRIMARY, MPR}
    (0x0008,0x0016) SOP Class UID                            1.2.840.10008.5.1.4.1.1.4
    (0x0008,0x0018) SOP Instance UID                         0.0.0.0.1.8811.2.5.20010413115754.12432
    (0x0008,0x0020) Study Date                               16.03.2001 0:00:00
    (0x0008,0x0021) Series Date                              16.03.2001 0:00:00
    (0x0008,0x0022) Acquisition Date                         16.03.2001 0:00:00
    (0x0008,0x0023) Content Date                             23.03.2001 0:00:00
    (0x0008,0x0030) Study Time                               14:30:08
    (0x0008,0x0031) Series Time                              14:34:14
    (0x0008,0x0032) Acquisition Time                         14:34:15
    (0x0008,0x0033) Content Time                             14:30:10
    (0x0008,0x0050) Accession Number                         NULL
    (0x0008,0x0060) Modality                                 MR
    (0x0008,0x0070) Manufacturer                             GE Medical Systems
    (0x0008,0x0080) Institution Name
    (0x0008,0x0090) Referring Physician's Name
    (0x0008,0x1010) Station Name                             MRS1
    (0x0008,0x1030) Study Description                        BRAIN
    (0x0008,0x103E) Series Description                       FSE PD AXIAL OBL
    (0x0008,0x1050) Performing Physician's Name
    (0x0008,0x1070) Operators' Name                          EC
    (0x0008,0x1090) Manufacturer's Model Name                SIGNA
    (0x0010,0x0010) Patient's Name
    (0x0010,0x0020) Patient ID                               123565
    (0x0010,0x0030) Patient's Birth Date                     NULL
    (0x0010,0x0040) Patient's Sex                            F
    (0x0010,0x1010) Patient's Age                            028Y
    (0x0010,0x1030) Patient's Weight                         61,235
    (0x0010,0x21B0) Additional Patient History               NULL
    (0x0018,0x0020) Scanning Sequence                        SE
    (0x0018,0x0021) Sequence Variant                         SK
    (0x0018,0x0022) Scan Options                             SP
    (0x0018,0x0023) MR Acquisition Type                      2D
    (0x0018,0x0024) Sequence Name                            fse
    (0x0018,0x0050) Slice Thickness                          5
    (0x0018,0x0080) Repetition Time                          2300
    (0x0018,0x0081) Echo Time                                22
    (0x0018,0x0083) Number of Averages                       1
    (0x0018,0x0084) Imaging Frequency                        63,8615
    (0x0018,0x0086) Echo Number(s)                           1
    (0x0018,0x0087) Magnetic Field Strength                  1,5
    (0x0018,0x0088) Spacing Between Slices                   2
    (0x0018,0x0089) Number of Phase Encoding Steps           256
    (0x0018,0x0091) Echo Train Length                        8
    (0x0018,0x0095) Pixel Bandwidth                          31,25
    (0x0018,0x1020) Software Version(s)                      3
    (0x0018,0x1030) Protocol Name                            CLINICAL BRAIN
    (0x0018,0x1088) Heart Rate                               0
    (0x0018,0x1090) Cardiac Number of Images                 0
    (0x0018,0x1094) Trigger Window                           0
    (0x0018,0x1100) Reconstruction Diameter                  220
    (0x0018,0x1250) Receive Coil Name                        HEAD
    (0x0018,0x1310) Acquisition Matrix                       {0, 256, 256, 0}
    (0x0018,0x1312) In-plane Phase Encoding Direction        ROW
    (0x0018,0x1314) Flip Angle                               90
    (0x0018,0x1316) SAR                                      0,0313309
    (0x0018,0x5100) Patient Position                         HFS
    (0x0020,0x000D) Study Instance UID                       0.0.0.0.2.8811.20010413115754.12432
    (0x0020,0x000E) Series Instance UID                      0.0.0.0.3.8811.2.20010413115754.12432
    (0x0020,0x0010) Study ID                                 8811
    (0x0020,0x0011) Series Number                            2
    (0x0020,0x0012) Acquisition Number                       31748
    (0x0020,0x0013) Instance Number                          5
    (0x0020,0x0020) Patient Orientation                      {L, PH}
    (0x0020,0x0030) Image Position                           {-110,5, -82,1063, -44,9575}
    (0x0020,0x0032) Image Position (Patient)                 {-110,5, -82,1063, -44,9575}
    (0x0020,0x0035) Image Orientation                        {1, 0, 0, 0, 0,99096, 0,134158}
    (0x0020,0x0037) Image Orientation (Patient)              {1, 0, 0, 0, 0,99096, 0,134158}
    (0x0020,0x0052) Frame of Reference UID                   0.0.0.0.4.8811.2.20010413115754.12432
    (0x0020,0x1002) Images in Acquisition                    1
    (0x0020,0x1040) Position Reference Indicator             NA
    (0x0020,0x1041) Slice Location                           -30,2
    (0x0028,0x0002) Samples per Pixel                        1
    (0x0028,0x0004) Photometric Interpretation               MONOCHROME2
    (0x0028,0x0010) Rows                                     256
    (0x0028,0x0011) Columns                                  256
    (0x0028,0x0030) Pixel Spacing                            {0,859375, 0,859375}
    (0x0028,0x0100) Bits Allocated                           16
    (0x0028,0x0101) Bits Stored                              16
    (0x0028,0x0102) High Bit                                 15
    (0x0028,0x0103) Pixel Representation                     1
    (0x0028,0x0106) Smallest Image Pixel Value               0
    (0x0028,0x0107) Largest Image Pixel Value                932
    (0x0028,0x0120) Pixel Padding Value                      0
    (0x0028,0x1050) Window Center                            0
    (0x0028,0x1051) Window Width                             0
    (0x0028,0x1052) Rescale Intercept                        0
    (0x0028,0x1053) Rescale Slope                            1
    (0x0028,0x1054) Rescale Type                             SIGNAL INTENSITY (UNITLESS)
    (0x7FE0,0x0010) Pixel Data                               {0, 0, 0, 0, 0, 0, 0, 0, 0 ...}
    */



    Inheritance Hierarchy
    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    See Also
