    ApplyDicomOverlaysCommand Class
    In This Topic
    Applies the overlays to a DICOM image.

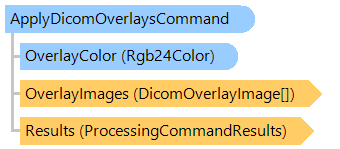

    Object Model
    ApplyDicomOverlaysCommand ClassRgb24Color ClassDicomOverlayImage ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    'Declaration

    Public Class ApplyDicomOverlaysCommand
       Inherits ProcessingCommandBase
    public class ApplyDicomOverlaysCommand : ProcessingCommandBase
    public __gc class ApplyDicomOverlaysCommand : public ProcessingCommandBase
    public ref class ApplyDicomOverlaysCommand : public ProcessingCommandBase
    Example
    This example demonstrates how to get raw DICOM image, apply VOI LUT to DICOM image, add overlays to DICOM image and save DICOM image as PNG file.
    ''' <summary>
    ''' Gets raw DICOM image, applies a VOI LUT to the DICOM image,
    ''' draws the overlay objects to the DICOM image, saves DICOM image to a PNG file.
    ''' </summary>
    ''' <param name="filePath">Path to DICOM file.</param>
    ''' <param name="pageIndex">Index of DICOM page.</param>
    Public Sub GetAndSaveDicomImageWithOverlaysAndAdjustImageWindow(filePath As String, pageIndex As Integer)
        ' open DICOM file
        Using dicomFile As New Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile(filePath)
            ' get DICOM page
            Dim page As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame = dicomFile.Pages(pageIndex)


            ' get raw DICOM image

            ' create settings for decoding DICOM image
            Dim decodingSettings As New Vintasoft.Imaging.Codecs.Decoders.DicomDecodingSettings()
            ' specify that Modality LUT should not be applied to a DICOM image
            decodingSettings.ApplyModalityLut = False
            ' specify that VOI LUT should not be applied to a DICOM image
            decodingSettings.ApplyValueOfInterestLut = False
            ' specify that overlay objects should not be drawn on DICOM image
            decodingSettings.ShowOverlayImages = False
            ' get raw DICOM image
            Dim image As Vintasoft.Imaging.VintasoftImage = page.GetImage(decodingSettings, Nothing)


            ' apply VOI LUT to the DICOM image

            Dim applyDicomImageVoiLutCommand As New Vintasoft.Imaging.ImageProcessing.ApplyDicomImageVoiLutCommand()
            applyDicomImageVoiLutCommand.DataSets = dicomFile.DataSets
            applyDicomImageVoiLutCommand.VoiLut = New Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomImageVoiLut(128, 50)
            applyDicomImageVoiLutCommand.ExecuteInPlace(image)


            ' draw overlay objects on DICOM image

            Dim applyDicomOverlaysCommand As New Vintasoft.Imaging.ImageProcessing.ApplyDicomOverlaysCommand()
            applyDicomOverlaysCommand.OverlayImages = page.OverlayImages
            applyDicomOverlaysCommand.OverlayColor = New Vintasoft.Imaging.ImageColors.Rgb24Color(180, 180, 180)
            applyDicomOverlaysCommand.ExecuteInPlace(image)


            ' save image to a PNG file
            image.Save("E:\DicomImage.png")
        End Using
    End Sub
    /// <summary>
    /// Gets raw DICOM image, applies a VOI LUT to the DICOM image,
    /// draws the overlay objects to the DICOM image, saves DICOM image to a PNG file.
    /// </summary>
    /// <param name="filePath">Path to DICOM file.</param>
    /// <param name="pageIndex">Index of DICOM page.</param>
    public void GetAndSaveDicomImageWithOverlaysAndAdjustImageWindow(string filePath, int pageIndex)
    {
        // open DICOM file
        using (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile dicomFile =
            new Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile(filePath))
        {
            // get DICOM page
            Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame page = dicomFile.Pages[pageIndex];


            // get raw DICOM image

            // create settings for decoding DICOM image
            Vintasoft.Imaging.Codecs.Decoders.DicomDecodingSettings decodingSettings =
                new Vintasoft.Imaging.Codecs.Decoders.DicomDecodingSettings();
            // specify that Modality LUT should not be applied to a DICOM image
            decodingSettings.ApplyModalityLut = false;
            // specify that VOI LUT should not be applied to a DICOM image
            decodingSettings.ApplyValueOfInterestLut = false;
            // specify that overlay objects should not be drawn on DICOM image
            decodingSettings.ShowOverlayImages = false;
            // get raw DICOM image
            Vintasoft.Imaging.VintasoftImage image = page.GetImage(decodingSettings, null);


            // apply VOI LUT to the DICOM image

            Vintasoft.Imaging.ImageProcessing.ApplyDicomImageVoiLutCommand applyDicomImageVoiLutCommand =
                new Vintasoft.Imaging.ImageProcessing.ApplyDicomImageVoiLutCommand();
            applyDicomImageVoiLutCommand.DataSets = dicomFile.DataSets;
            applyDicomImageVoiLutCommand.VoiLut = new Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomImageVoiLut(128, 50);
            applyDicomImageVoiLutCommand.ExecuteInPlace(image);


            // draw overlay objects on DICOM image

            Vintasoft.Imaging.ImageProcessing.ApplyDicomOverlaysCommand applyDicomOverlaysCommand =
                new Vintasoft.Imaging.ImageProcessing.ApplyDicomOverlaysCommand();
            applyDicomOverlaysCommand.OverlayImages = page.OverlayImages;
            applyDicomOverlaysCommand.OverlayColor = new Vintasoft.Imaging.ImageColors.Rgb24Color(180, 180, 180);
            applyDicomOverlaysCommand.ExecuteInPlace(image);


            // save image to a PNG file
            image.Save(@"E:\DicomImage.png");
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ApplyDicomOverlaysCommand

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
