    FormFieldViewerTool Class
    In This Topic
    Visual tool that allows to display and interact with recognized form fields on an image.

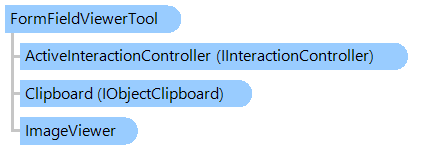

    Object Model
    IObjectClipboard IInteractionController ImageViewer FormFieldViewerTool
    Syntax
    Example

    This C#/VB.NET code shows how to recognize a form and display the results in WinForms image viewer.


    ''' <summary>
    ''' Recognizes the current image of specified viewer
    ''' and shows recognition results in viewer.
    ''' </summary>
    ''' <param name="viewer">The viewer.</param>
    ''' <param name="formRecognitionManager">The form recognition manager.</param>
    Public Shared Function RecognizeAndShowInViewer(viewer As Vintasoft.Imaging.UI.ImageViewer, formRecognitionManager As Vintasoft.Imaging.FormsProcessing.FormRecognitionManager) As Boolean
        ' recognize the image
        Dim recognitionResult As Vintasoft.Imaging.FormsProcessing.FormRecognitionResult = formRecognitionManager.Recognize(viewer.Image)

        ' get the result of image comparison
        Dim imageCompareResult As Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintCompareResult = recognitionResult.TemplateMatchingResult.ImageCompareResult
        ' if image is recognized
        If imageCompareResult.IsReliable Then
            ' create a visual tool
            Dim formFieldViewerTool As New Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.VisualTools.FormFieldViewerTool()
            ' create a view for the recognized page
            Dim pageView As Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.FormFieldView = Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.FormFieldViewFactory.CreateView(recognitionResult.RecognizedPage)
            ' add the view to the collection of the visual tool
            formFieldViewerTool.FieldViewCollection.Add(pageView)
            ' set the visual tool as current tool of the viewer
            viewer.VisualTool = formFieldViewerTool
            Return True
        Else
            Return False
        End If
    End Function



    /// <summary>
    /// Recognizes the current image of specified viewer
    /// and shows recognition results in viewer.
    /// </summary>
    /// <param name="viewer">The viewer.</param>
    /// <param name="formRecognitionManager">The form recognition manager.</param>
    public static bool RecognizeAndShowInViewer(
        Vintasoft.Imaging.UI.ImageViewer viewer,
        Vintasoft.Imaging.FormsProcessing.FormRecognitionManager formRecognitionManager)
    {
        // recognize the image
        Vintasoft.Imaging.FormsProcessing.FormRecognitionResult recognitionResult =
            formRecognitionManager.Recognize(viewer.Image);

        // get the result of image comparison
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintCompareResult imageCompareResult =
            recognitionResult.TemplateMatchingResult.ImageCompareResult;
        // if image is recognized
        if (imageCompareResult.IsReliable)
        {
            // create a visual tool
            Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.VisualTools.FormFieldViewerTool formFieldViewerTool =
                new Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.VisualTools.FormFieldViewerTool();
            // create a view for the recognized page
            Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.FormFieldView pageView =
                Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.FormFieldViewFactory.CreateView(recognitionResult.RecognizedPage);
            // add the view to the collection of the visual tool
            formFieldViewerTool.FieldViewCollection.Add(pageView);
            // set the visual tool as current tool of the viewer
            viewer.VisualTool = formFieldViewerTool;
            return true;
        }
        else
        {
            return false;
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.UI.VisualTools.VisualTool
          Vintasoft.Imaging.UI.VisualTools.UserInteraction.UserInteractionVisualTool
             Vintasoft.Imaging.FormsProcessing.FormRecognition.UI.VisualTools.FormFieldViewerTool
