    FormRecognitionManager Class
    In This Topic
    Provides the synchronous and asynchronous forms recognition.

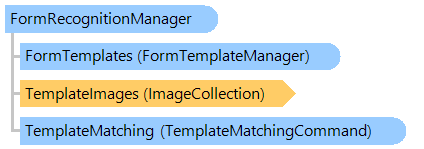

    Object Model
    FormRecognitionManager ClassFormTemplateManager ClassImageCollection ClassVintasoftImage ClassTemplateMatchingCommand Class
    Syntax
    'Declaration

    Public Class FormRecognitionManager
    public class FormRecognitionManager
    public __gc class FormRecognitionManager
    public ref class FormRecognitionManager
    Example
    This example shows how to identify and recognize a form asynchronously.
    ''' <summary>
    ''' Recognizes single image asynchronously.
    ''' </summary>
    ''' <param name="templateManager">The template manager.</param>
    ''' <param name="image">The image.</param>
    Public Shared Sub RecognizeSingleImageAsync(templateManager As Vintasoft.Imaging.FormsProcessing.FormRecognition.FormTemplateManager, image As Vintasoft.Imaging.VintasoftImage)
        ' create template matching command
        Dim templateMatching As New Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand()
        ' set minimal confidence
        templateMatching.MinConfidence = 0.6F
        ' set template images
        templateMatching.TemplateImages = templateManager.TemplateImages
        ' create recognition manager
        Dim recognitionManager As New Vintasoft.Imaging.FormsProcessing.FormRecognitionManager(templateMatching, templateManager)

        ' if your form template contains OCR fields,
        ' make sure OCR engine manager is initialized before recognition
        ' (otherwise recognition will return null (Nothing)),
        ' see OCR field recognition examples

        ' create recognition task
        Dim singleImageRecognitionTask As New Vintasoft.Imaging.FormsProcessing.FormRecognitionTask(image)
        ' subscribe to Finished event
        AddHandler singleImageRecognitionTask.Finished, New System.EventHandler(AddressOf singleImageRecognitionTask_Finished)
        ' subscribe to ImageRecognitionError event to output recognition errors
        AddHandler singleImageRecognitionTask.ImageRecognitionError, AddressOf singleImageRecognitionTask_ImageRecognitionError
        ' start recognition of the image
        recognitionManager.RecognizeAsync(singleImageRecognitionTask)
    End Sub

    ''' <summary>
    ''' Handles the Finished event of the recognition task
    ''' and outputs the recognition results.
    ''' </summary>
    ''' <param name="sender">The source of the event.</param>
    ''' <param name="e">The <see cref="System.EventArgs"/> instance containing the event data.</param>
    Private Shared Sub singleImageRecognitionTask_Finished(sender As Object, e As System.EventArgs)
        ' get the recognition task
        Dim task As Vintasoft.Imaging.FormsProcessing.FormRecognitionTask = DirectCast(sender, Vintasoft.Imaging.FormsProcessing.FormRecognitionTask)
        ' get the result of recognition
        Dim recognitionResult As Vintasoft.Imaging.FormsProcessing.FormRecognitionResult = task.Results(0)

        ' if recognition failed with error (see ImageRecognitionError event handler output)
        If recognitionResult Is Nothing Then
            Return
        End If

        ' get the result of image comparison
        Dim imageCompareResult As Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintCompareResult = recognitionResult.TemplateMatchingResult.ImageCompareResult
        ' if result is not reliable
        If Not imageCompareResult.IsReliable Then
            ' matching template is not found
            System.Console.WriteLine("Matching template is not found.")
        Else
            ' get recognized page
            Dim recognizedPage As Vintasoft.Imaging.FormsProcessing.FormRecognition.FormPage = recognitionResult.RecognizedPage
            ' write page info
            System.Console.WriteLine(String.Format("Matching template: {0}; confidence: {1:F1}%.", recognizedPage.Name, imageCompareResult.Confidence * 100))

            ' get form field count
            If recognizedPage.Items.Count = 0 Then
                System.Console.WriteLine("No form fields were recognized.")
            Else
                System.Console.WriteLine(String.Format("Recognized form field count: {0}", recognizedPage.Items.Count))
                ' for each recognized form field
                For Each recognizedField As Vintasoft.Imaging.FormsProcessing.FormRecognition.FormField In recognizedPage.Items
                    ' write field info
                    System.Console.WriteLine(String.Format("  Name: {0}; value: {1}; confidence: {2:F1}%", recognizedField.Name, recognizedField.Value, recognizedField.Confidence * 100))
                Next
            End If
        End If
    End Sub

    ''' <summary>
    ''' Handles the ImageRecognitionError event of the FormRecognitionTask.
    ''' </summary>
    Private Shared Sub singleImageRecognitionTask_ImageRecognitionError(sender As Object, e As Vintasoft.Imaging.FormsProcessing.FormRecognitionErrorEventArgs)
        System.Console.WriteLine(e.Exception.Message)
    End Sub
    /// <summary>
    /// Recognizes single image asynchronously.
    /// </summary>
    /// <param name="templateManager">The template manager.</param>
    /// <param name="image">The image.</param>
    public static void RecognizeSingleImageAsync(
        Vintasoft.Imaging.FormsProcessing.FormRecognition.FormTemplateManager templateManager,
        Vintasoft.Imaging.VintasoftImage image)
    {
        // create template matching command
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand templateMatching =
            new Vintasoft.Imaging.FormsProcessing.TemplateMatching.TemplateMatchingCommand();
        // set minimal confidence
        templateMatching.MinConfidence = 0.6f;
        // set template images
        templateMatching.TemplateImages = templateManager.TemplateImages;
        // create recognition manager
        Vintasoft.Imaging.FormsProcessing.FormRecognitionManager recognitionManager =
            new Vintasoft.Imaging.FormsProcessing.FormRecognitionManager(
                templateMatching, templateManager);

        // if your form template contains OCR fields,
        // make sure OCR engine manager is initialized before recognition
        // (otherwise recognition will return null (Nothing)),
        // see OCR field recognition examples

        // create recognition task
        Vintasoft.Imaging.FormsProcessing.FormRecognitionTask singleImageRecognitionTask =
            new Vintasoft.Imaging.FormsProcessing.FormRecognitionTask(image);
        // subscribe to Finished event
        singleImageRecognitionTask.Finished +=
            new System.EventHandler(singleImageRecognitionTask_Finished);
        // subscribe to ImageRecognitionError event to output recognition errors
        singleImageRecognitionTask.ImageRecognitionError += singleImageRecognitionTask_ImageRecognitionError;
        // start recognition of the image
        recognitionManager.RecognizeAsync(singleImageRecognitionTask);
    }

    /// <summary>
    /// Handles the Finished event of the recognition task
    /// and outputs the recognition results.
    /// </summary>
    /// <param name="sender">The source of the event.</param>
    /// <param name="e">The <see cref="System.EventArgs"/> instance containing the event data.</param>
    private static void singleImageRecognitionTask_Finished(object sender, System.EventArgs e)
    {
        // get the recognition task
        Vintasoft.Imaging.FormsProcessing.FormRecognitionTask task =
            (Vintasoft.Imaging.FormsProcessing.FormRecognitionTask)sender;
        // get the result of recognition
        Vintasoft.Imaging.FormsProcessing.FormRecognitionResult recognitionResult = task.Results[0];

        // if recognition failed with error (see ImageRecognitionError event handler output)
        if (recognitionResult == null)
            return;

        // get the result of image comparison
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.ImageImprintCompareResult imageCompareResult =
            recognitionResult.TemplateMatchingResult.ImageCompareResult;
        // if result is not reliable
        if (!imageCompareResult.IsReliable)
        {
            // matching template is not found
            System.Console.WriteLine("Matching template is not found.");
        }
        else
        {
            // get recognized page
            Vintasoft.Imaging.FormsProcessing.FormRecognition.FormPage recognizedPage = recognitionResult.RecognizedPage;
            // write page info
            System.Console.WriteLine(string.Format(
                "Matching template: {0}; confidence: {1:F1}%.",
                recognizedPage.Name,
                imageCompareResult.Confidence * 100));

            // get form field count
            if (recognizedPage.Items.Count == 0)
            {
                System.Console.WriteLine("No form fields were recognized.");
            }
            else
            {
                System.Console.WriteLine(string.Format(
                    "Recognized form field count: {0}",
                    recognizedPage.Items.Count));
                // for each recognized form field
                foreach (Vintasoft.Imaging.FormsProcessing.FormRecognition.FormField recognizedField in recognizedPage.Items)
                {
                    // write field info
                    System.Console.WriteLine(string.Format(
                        "  Name: {0}; value: {1}; confidence: {2:F1}%",
                        recognizedField.Name,
                        recognizedField.Value,
                        recognizedField.Confidence * 100));
                }
            }
        }
    }

    /// <summary>
    /// Handles the ImageRecognitionError event of the FormRecognitionTask.
    /// </summary>
    static void singleImageRecognitionTask_ImageRecognitionError(object sender,
        Vintasoft.Imaging.FormsProcessing.FormRecognitionErrorEventArgs e)
    {
        System.Console.WriteLine(e.Exception.Message);
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.FormsProcessing.FormRecognitionManager

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
