    DirectShowImageQualityProperties Class
    In This Topic
    Provides access to the image quality properties of camera.

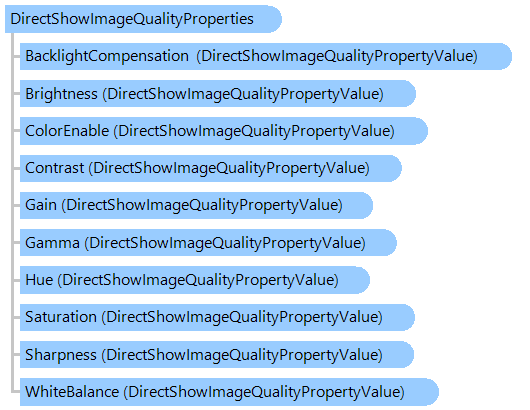

    Object Model
    DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityPropertyValue DirectShowImageQualityProperties
    Syntax
    'Declaration

    Public Class DirectShowImageQualityProperties


    public class DirectShowImageQualityProperties


    public __gc class DirectShowImageQualityProperties


    public ref class DirectShowImageQualityProperties


    Example

    This C#/VB.NET code shows how to get and set the image quality properties of DirectShow camera:


    ''' <summary>
    ''' Gets and sets the image quality properties of DirectShow camera.
    ''' </summary>
    Public Shared Sub GetAndSetImageQualityProperties()
        ' get a list of installed cameras
        Dim captureDevices As System.Collections.ObjectModel.ReadOnlyCollection(Of Vintasoft.Imaging.Media.ImageCaptureDevice) = Vintasoft.Imaging.Media.ImageCaptureDeviceConfiguration.GetCaptureDevices()

        ' if cameras are not found
        If captureDevices.Count = 0 Then
            System.Console.WriteLine("No connected devices.")
            Return
        End If

        ' get the first available camera
        Dim camera As Vintasoft.Imaging.Media.DirectShowCamera = DirectCast(captureDevices(0), Vintasoft.Imaging.Media.DirectShowCamera)
        ' output camera name
        System.Console.WriteLine(camera.FriendlyName)


        Dim propertyValue As Vintasoft.Imaging.Media.DirectShowImageQualityPropertyValue
        Dim minValue As Integer, maxValue As Integer, [step] As Integer, defaultValue As Integer

        System.Console.WriteLine(" - BacklightCompensation")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedBacklightCompensationValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.BacklightCompensation
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.BacklightCompensation = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Brightness")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedBrightnessValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Brightness
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Brightness = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - ColorEnable")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedColorEnableValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.ColorEnable
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.ColorEnable = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Contrast")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedContrastValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Contrast
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Contrast = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Gain")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedGainValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Gain
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Gain = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Gamma")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedGammaValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Gamma
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Gamma = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Hue")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedHueValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Hue
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Hue = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Saturation")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedSaturationValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Saturation
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Saturation = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - Sharpness")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedSharpnessValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.Sharpness
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.Sharpness = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try

        System.Console.WriteLine(" - WhiteBalance")
        Try
            ' get supported values
            camera.ImageQuality.GetSupportedWhiteBalanceValues(minValue, maxValue, [step], defaultValue)
            System.Console.WriteLine(String.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}", minValue, maxValue, [step], defaultValue))

            ' get current value
            propertyValue = camera.ImageQuality.WhiteBalance
            System.Console.WriteLine(String.Format("   - Current value: {0}", propertyValue.Value))

            ' set current value
            camera.ImageQuality.WhiteBalance = propertyValue
        Catch ex As System.Exception
            System.Console.WriteLine("    {0}", ex.Message)
        End Try
    End Sub



    /// <summary>
    /// Gets and sets the image quality properties of DirectShow camera.
    /// </summary>
    public static void GetAndSetImageQualityProperties()
    {
        // get a list of installed cameras
        System.Collections.ObjectModel.ReadOnlyCollection<Vintasoft.Imaging.Media.ImageCaptureDevice> captureDevices =
            Vintasoft.Imaging.Media.ImageCaptureDeviceConfiguration.GetCaptureDevices();

        // if cameras are not found
        if (captureDevices.Count == 0)
        {
            System.Console.WriteLine("No connected devices.");
            return;
        }

        // get the first available camera
        Vintasoft.Imaging.Media.DirectShowCamera camera =
            (Vintasoft.Imaging.Media.DirectShowCamera)captureDevices[0];
        // output camera name
        System.Console.WriteLine(camera.FriendlyName);


        Vintasoft.Imaging.Media.DirectShowImageQualityPropertyValue propertyValue;
        int minValue, maxValue, step, defaultValue;

        System.Console.WriteLine(" - BacklightCompensation");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedBacklightCompensationValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.BacklightCompensation;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.BacklightCompensation = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Brightness");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedBrightnessValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Brightness;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Brightness = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - ColorEnable");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedColorEnableValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.ColorEnable;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.ColorEnable = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Contrast");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedContrastValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Contrast;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Contrast = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Gain");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedGainValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Gain;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Gain = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Gamma");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedGammaValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Gamma;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Gamma = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Hue");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedHueValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Hue;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Hue = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Saturation");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedSaturationValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Saturation;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Saturation = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - Sharpness");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedSharpnessValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.Sharpness;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.Sharpness = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }

        System.Console.WriteLine(" - WhiteBalance");
        try
        {
            // get supported values
            camera.ImageQuality.GetSupportedWhiteBalanceValues(out minValue, out maxValue, out step, out defaultValue);
            System.Console.WriteLine(string.Format("   - Supported values: Min={0}, Max={1}, Step={2}, Default={3}",
                minValue, maxValue, step, defaultValue));

            // get current value
            propertyValue = camera.ImageQuality.WhiteBalance;
            System.Console.WriteLine(string.Format("   - Current value: {0}", propertyValue.Value));

            // set current value
            camera.ImageQuality.WhiteBalance = propertyValue;
        }
        catch (System.Exception ex)
        {
            System.Console.WriteLine("    {0}", ex.Message);
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Media.DirectShowImageQualityProperties

    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    See Also
