    XlsxDocumentSheetCell Class
    In This Topic
    Represents the worksheet cell of XLSX document.

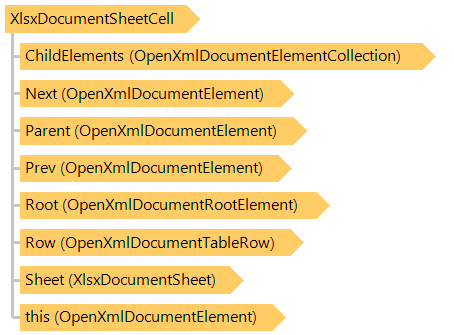

    Object Model
    XlsxDocumentSheet OpenXmlDocumentTableRow OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElementCollection OpenXmlDocumentRootElement XlsxDocumentSheetCell
    Syntax
    'Declaration

    <DefaultMemberAttribute("Item")>
    Public Class XlsxDocumentSheetCell
       Inherits Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableCell


    [DefaultMember("Item")]
    public __gc class XlsxDocumentSheetCell : public Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableCell*


    [DefaultMember("Item")]
    public ref class XlsxDocumentSheetCell : public Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableCell^


    Example

    This C#/VB.NET code shows how to find cell by reference and set cell formula (example uses template document XlsxCell_template.xlsx):


    Public Shared Sub XlsxCellExample()
        Dim templateFilename As String = "XlsxCell_template.xlsx"
        Dim outFilename As String = "XlsxCell.xlsx"
        Dim outPdfFilename As String = "XlsxCell.pdf"

        ' create XlsxDocumentEditor that allows to edit file "SetBarcodeImage_template.xlsx"
        Using editor As New Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor(templateFilename)
            ' get first sheet in XLSX document
            Dim sheet As Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet = editor.Sheets(0)

            ' find cell by reference (A1 format) and set cell fill color
            sheet.FindCellByName("B3").SetFillColor(System.Drawing.Color.Red)
            sheet.FindCellByName("D3").SetFillColor(System.Drawing.Color.Yellow)
            sheet.FindCellByName("C4").SetFillColor(System.Drawing.Color.Green)
            sheet.FindCellByName("D5").SetFillColor(System.Drawing.Color.Blue)
            sheet.FindCellByName("B5").SetFillColor(System.Drawing.Color.Pink)

            ' set cell formula
            Dim cellD16 As Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheetCell = sheet.FindCellByName("D8")
            cellD16.Formula = "SUM(B8,C8)"
            cellD16.Number = sheet.FindCellByName("B8").Number + sheet.FindCellByName("C8").Number

            ' find cell that contains text "[cell_name]"
            Dim cell As Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheetCell = sheet.FindCell("[cell_name]")
            ' set cell text to cell name in A1 format
            cell.Text = cell.Name

            ' save changed document to a XLSX file
            editor.Save(outFilename)

            ' export changed document to a PDF document
            editor.Export(outPdfFilename)
        End Using
    End Sub



    public static void XlsxCellExample()
    {
        string templateFilename = "XlsxCell_template.xlsx";
        string outFilename = "XlsxCell.xlsx";
        string outPdfFilename = "XlsxCell.pdf";

        // create XlsxDocumentEditor that allows to edit file "SetBarcodeImage_template.xlsx"
        using (Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor editor =
            new Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor(templateFilename))
        {
            // get first sheet in XLSX document
            Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet sheet = editor.Sheets[0];

            // find cell by reference (A1 format) and set cell fill color
            sheet.FindCellByName("B3").SetFillColor(System.Drawing.Color.Red);
            sheet.FindCellByName("D3").SetFillColor(System.Drawing.Color.Yellow);
            sheet.FindCellByName("C4").SetFillColor(System.Drawing.Color.Green);
            sheet.FindCellByName("D5").SetFillColor(System.Drawing.Color.Blue);
            sheet.FindCellByName("B5").SetFillColor(System.Drawing.Color.Pink);

            // set cell formula
            Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheetCell cellD16 = sheet.FindCellByName("D8");
            cellD16.Formula = "SUM(B8,C8)";
            cellD16.Number = sheet.FindCellByName("B8").Number + sheet.FindCellByName("C8").Number;

            // find cell that contains text "[cell_name]"
            Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheetCell cell = sheet.FindCell("[cell_name]");
            // set cell text to cell name in A1 format
            cell.Text = cell.Name;

            // save changed document to a XLSX file
            editor.Save(outFilename);

            // export changed document to a PDF document
            editor.Export(outPdfFilename);
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentElement
          Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableCell
             Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheetCell

    Requirements

    Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
