    PdfContentXObjectTool Class
    In This Topic
    Visual tool that allows to extract, select or remove images or forms on PDF page.

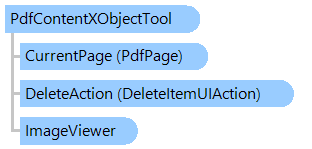

    Object Model
    PdfContentXObjectTool ClassPdfPage ClassDeleteItemUIAction ClassImageViewer Class
    Syntax
    'Declaration

    Public Class PdfContentXObjectTool
       Inherits PdfVisualTool
       Implements Vintasoft.Imaging.UIActions.ISupportUIActions
    public class PdfContentXObjectTool : PdfVisualTool, Vintasoft.Imaging.UIActions.ISupportUIActions
    public __gc class PdfContentXObjectTool : public PdfVisualTool, Vintasoft.Imaging.UIActions.ISupportUIActions
    public ref class PdfContentXObjectTool : public PdfVisualTool, Vintasoft.Imaging.UIActions.ISupportUIActions
    Example
    This example shows how to highlight focused XObject in PDF document loaded into image viewer.
    ''' <summary>
    ''' A form that allows to load PDF document into image viewer and
    ''' highlight focused XObject in PDF document.
    ''' </summary>
    Public Partial Class PdfContentXObjectToolExamples
    	Inherits System.Windows.Forms.Form

    	'...
    	Private _imageViewer As Vintasoft.Imaging.UI.ImageViewer
    	Private _contentXObjectTool As Vintasoft.Imaging.Pdf.UI.PdfContentXObjectTool



    	Public Sub New()
    		'...

    		' create an instance of the PdfContentXObjectTool
    		_contentXObjectTool = New Vintasoft.Imaging.Pdf.UI.PdfContentXObjectTool()

    		' set a pen and brush for image selection
    		_contentXObjectTool.SelectionImagesBrush = New System.Drawing.SolidBrush(System.Drawing.Color.FromArgb(32, System.Drawing.Color.Blue))
    		_contentXObjectTool.SelectionImagesPen = System.Drawing.Pens.Red
    		' set a pen and brush for form selection
    		_contentXObjectTool.SelectionFormsBrush = New System.Drawing.SolidBrush(System.Drawing.Color.FromArgb(32, System.Drawing.Color.Lime))
    		_contentXObjectTool.SelectionFormsPen = System.Drawing.Pens.Blue

    		' subscribe to content XObject tool events
    		AddHandler _contentXObjectTool.ContentXObjectMouseEnter, New System.EventHandler(Of Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs)(AddressOf ContentXObjectTool_ContentXObjectMouseEnter)
    		AddHandler _contentXObjectTool.ContentXObjectMouseLeave, New System.EventHandler(Of Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs)(AddressOf ContentXObjectTool_ContentXObjectMouseLeave)

    		' set the content XObject tool as current tool
    		_imageViewer.VisualTool = _contentXObjectTool
    	End Sub



    	''' <summary>
    	''' Occurs when the mouse pointer enters the XObject on PDF page.
    	''' </summary>
    	Private Sub ContentXObjectTool_ContentXObjectMouseEnter(sender As Object, e As Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs)
    		' add the focused XObject to a list of selected XObjects
    		_contentXObjectTool.SelectedXObjects.Add(e.ContentXObject)
    	End Sub

    	''' <summary>
    	''' Occurs when the mouse pointer leaves the the XObject on PDF page.
    	''' </summary>
    	Private Sub ContentXObjectTool_ContentXObjectMouseLeave(sender As Object, e As Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs)
    		' remove the focused XObject from a list of selected XObjects
    		_contentXObjectTool.SelectedXObjects.Remove(e.ContentXObject)
    	End Sub

    End Class
    /// <summary>
    /// A form that allows to load PDF document into image viewer and
    /// highlight focused XObject in PDF document.
    /// </summary>
    public partial class PdfContentXObjectToolExamples : System.Windows.Forms.Form
    {

        //...
        Vintasoft.Imaging.UI.ImageViewer _imageViewer;
        Vintasoft.Imaging.Pdf.UI.PdfContentXObjectTool _contentXObjectTool;



        public PdfContentXObjectToolExamples()
        {
            //...

            // create an instance of the PdfContentXObjectTool
            _contentXObjectTool = new Vintasoft.Imaging.Pdf.UI.PdfContentXObjectTool();

            // set a pen and brush for image selection
            _contentXObjectTool.SelectionImagesBrush =
                new System.Drawing.SolidBrush(
                    System.Drawing.Color.FromArgb(32, System.Drawing.Color.Blue));
            _contentXObjectTool.SelectionImagesPen = System.Drawing.Pens.Red;
            // set a pen and brush for form selection
            _contentXObjectTool.SelectionFormsBrush =
                new System.Drawing.SolidBrush(
                    System.Drawing.Color.FromArgb(32, System.Drawing.Color.Lime));
            _contentXObjectTool.SelectionFormsPen = System.Drawing.Pens.Blue;

            // subscribe to content XObject tool events
            _contentXObjectTool.ContentXObjectMouseEnter +=
                new System.EventHandler<Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs>(ContentXObjectTool_ContentXObjectMouseEnter);
            _contentXObjectTool.ContentXObjectMouseLeave +=
                new System.EventHandler<Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs>(ContentXObjectTool_ContentXObjectMouseLeave);

            // set the content XObject tool as current tool
            _imageViewer.VisualTool = _contentXObjectTool;
        }



        /// <summary>
        /// Occurs when the mouse pointer enters the XObject on PDF page.
        /// </summary>
        private void ContentXObjectTool_ContentXObjectMouseEnter(
            object sender,
            Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs e)
        {
            // add the focused XObject to a list of selected XObjects
            _contentXObjectTool.SelectedXObjects.Add(e.ContentXObject);
        }

        /// <summary>
        /// Occurs when the mouse pointer leaves the the XObject on PDF page.
        /// </summary>
        private void ContentXObjectTool_ContentXObjectMouseLeave(
            object sender,
            Vintasoft.Imaging.Pdf.UI.PdfContentXObjectEventArgs e)
        {
            // remove the focused XObject from a list of selected XObjects
            _contentXObjectTool.SelectedXObjects.Remove(e.ContentXObject);
        }

    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.UI.VisualTools.VisualTool
          Vintasoft.Imaging.Pdf.UI.PdfVisualTool
             Vintasoft.Imaging.Pdf.UI.PdfContentXObjectTool

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
