    PdfLinkAnnotation Class
    In This Topic
    Represents a PDF annotation that displays a link.

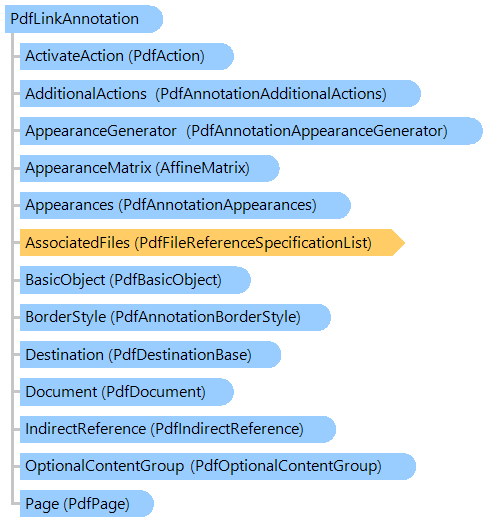

    Object Model
    PdfLinkAnnotation ClassPdfAction ClassPdfAction ClassPdfAnnotationAdditionalActions ClassPdfAnnotationAppearanceGenerator ClassPdfAnnotationAppearances ClassPdfFileReferenceSpecificationList ClassPdfFileReferenceSpecification ClassPdfBasicObject ClassPdfAnnotationBorderStyle ClassPdfDestinationBase ClassPdfDocument ClassPdfIndirectReference ClassPdfOptionalContentGroup ClassPdfPage Class
    Syntax
    'Declaration

    Public NotInheritable Class PdfLinkAnnotation
       Inherits PdfAnnotation
    public sealed class PdfLinkAnnotation : PdfAnnotation
    public __gc __sealed class PdfLinkAnnotation : public PdfAnnotation
    public ref class PdfLinkAnnotation sealed : public PdfAnnotation
    Example
    This example shows how to create a PDF link annotation.
    ''' <summary>
    ''' Creates the PDF documenet with link annotation.
    ''' </summary>
    ''' <param name="outputPdfFilename">The output PDF filename.</param>
    Public Shared Sub CreatePdfLinkAnnotation(outputPdfFilename As String)
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument(outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14)
            Dim page As Vintasoft.Imaging.Pdf.Tree.PdfPage

            ' Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4)
            page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
            Dim annotationRectangle As System.Drawing.RectangleF = page.MediaBox
            annotationRectangle.Inflate(-200, -300)

            ' Link annotation
            Dim link As New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfLinkAnnotation(page)
            link.Rectangle = System.Drawing.RectangleF.Inflate(annotationRectangle, 30, 30)
            link.BorderStyleType = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Solid
            link.BorderWidth = 2
            link.Color = System.Drawing.Color.Red
            link.HighlightingMode = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationHighlightingMode.Invert
            link.ActivateAction = New Vintasoft.Imaging.Pdf.Tree.PdfUriAction(document, "http://www.vintasoft.com")
            page.Annotations.Add(link)

            document.SaveChanges()
        End Using
    End Sub
    /// <summary>
    /// Creates the PDF documenet with link annotation.
    /// </summary>
    /// <param name="outputPdfFilename">The output PDF filename.</param>
    public static void CreatePdfLinkAnnotation(string outputPdfFilename)
    {
        using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument(
            outputPdfFilename, Vintasoft.Imaging.Pdf.PdfFormat.Pdf_14))
        {
            Vintasoft.Imaging.Pdf.Tree.PdfPage page;

            // Add new page
            page = document.Pages.Add(Vintasoft.Imaging.PaperSizeKind.A4);
            page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
            System.Drawing.RectangleF annotationRectangle = page.MediaBox;
            annotationRectangle.Inflate(-200, -300);

            // Link annotation
            Vintasoft.Imaging.Pdf.Tree.Annotations.PdfLinkAnnotation link =
                new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfLinkAnnotation(page);
            link.Rectangle = System.Drawing.RectangleF.Inflate(annotationRectangle, 30, 30);
            link.BorderStyleType = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Solid;
            link.BorderWidth = 2;
            link.Color = System.Drawing.Color.Red;
            link.HighlightingMode =
                Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationHighlightingMode.Invert;
            link.ActivateAction =
                new Vintasoft.Imaging.Pdf.Tree.PdfUriAction(document, "http://www.vintasoft.com");
            page.Annotations.Add(link);

            document.SaveChanges();
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotation
             Vintasoft.Imaging.Pdf.Tree.Annotations.PdfLinkAnnotation

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
