    PdfSignatureInformation Class
    In This Topic
    Contains information about a digital signature.

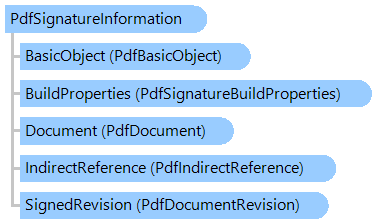

    Object Model
    PdfSignatureInformation ClassPdfBasicObject ClassPdfDocument ClassPdfIndirectReference ClassPdfDocumentRevision Class
    Syntax
    'Declaration

    Public Class PdfSignatureInformation
       Inherits Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public class PdfSignatureInformation : Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public __gc class PdfSignatureInformation : public Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public ref class PdfSignatureInformation : public Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    Remarks
    To verify signature need create PKCS signature object (GetSignature) and use PdfPkcsSignature.Verify method.
    Example
    This example shows how to display an information about the digital signatures and verify the digital signatures of PDF document.
    ''' <summary>
    ''' Displays and verifies signatures of PDF document.
    ''' </summary>
    ''' <param name="pdfFilename">The filename of PDF document.</param>
    Public Shared Sub VerifyDocumentSignatures(pdfFilename As String)
        ' open PDF document
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename)
            ' if document does not have interactive form
            If document.InteractiveForm Is Nothing Then
                System.Console.WriteLine("Signature fields are not found.")
                Return
            End If

            ' get an array of signature fields of document
            Dim signatureFields As Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormSignatureField() = document.InteractiveForm.GetSignatureFields()
            ' if document does not have signature fields
            If signatureFields.Length = 0 Then
                System.Console.WriteLine("Signture fields are not found.")
                Return
            End If

            ' for each signature field
            For i As Integer = 0 To signatureFields.Length - 1
                ' get reference to the signature field
                Dim signatureField As Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormSignatureField = signatureFields(i)
                ' print signature field name
                System.Console.WriteLine(String.Format("[{0}]Signaure field: {1}", i + 1, signatureField.FullyQualifiedName))

                ' get information about signature
                Dim signatureInfo As Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfSignatureInformation = signatureField.SignatureInfo
                ' if signature information is empty
                If signatureInfo Is Nothing Then
                    System.Console.WriteLine("Empty signature field.")
                Else
                    ' if signature information is NOT empty
                    ' print signature filter
                    System.Console.WriteLine(String.Format("Filter      : {0} ({1})", signatureInfo.Filter, signatureInfo.SubFilter))
                    ' print the signer name
                    If signatureInfo.SignerName IsNot Nothing Then
                        System.Console.WriteLine(String.Format("Signed by   : {0}", signatureInfo.SignerName))
                    End If
                    ' print the signature reason
                    If signatureInfo.Reason IsNot Nothing Then
                        System.Console.WriteLine(String.Format("Reason      : {0}", signatureInfo.Reason))
                    End If
                    ' print the signature location
                    If signatureInfo.Location IsNot Nothing Then
                        System.Console.WriteLine(String.Format("Location    : {0}", signatureInfo.Location))
                    End If
                    ' print the signer contact info
                    If signatureInfo.ContactInfo IsNot Nothing Then
                        System.Console.WriteLine(String.Format("Contact Info: {0}", signatureInfo.SignerName))
                    End If
                    ' print the signing date
                    If signatureInfo.SigningTime <> System.DateTime.MinValue Then
                        System.Console.WriteLine(String.Format("Signig Date : {0}", signatureInfo.SigningTime.ToString("f")))
                    End If

                    ' get PKCS signature
                    Dim [error] As Boolean = False
                    Dim signature As Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfPkcsSignature = Nothing
                    Try
                        signature = signatureInfo.GetSignature()
                    Catch e As System.Exception
                        [error] = True
                        System.Console.WriteLine("PKCS signature parsing error: {0}", e.Message)
                    End Try
                    If [error] Then
                        Continue For
                    End If

                    ' print name of signature algorithm
                    System.Console.WriteLine(String.Format("Algorithm   : {0}", signature.SignatureAlgorithmName))

                    ' print information about signature certificate chain
                    System.Console.WriteLine("Sign certificate chain:")
                    Dim signCertChain As System.Security.Cryptography.X509Certificates.X509Certificate2() = signature.SigningCertificateChain
                    Dim padding As String = ""
                    For Each cert As System.Security.Cryptography.X509Certificates.X509Certificate2 In signCertChain
                        padding += "    "
                        System.Console.WriteLine("{0}Serial number: {1}", padding, cert.SerialNumber)
                        System.Console.WriteLine("{0}Issuer       : {1}", padding, cert.GetNameInfo(System.Security.Cryptography.X509Certificates.X509NameType.SimpleName, True))
                        System.Console.WriteLine("{0}Subject      : {1}", padding, cert.GetNameInfo(System.Security.Cryptography.X509Certificates.X509NameType.SimpleName, False))
                    Next


                    ' verify digital signature
                    VerifyDigitalSignature(signatureInfo, signature)
                End If
                System.Console.WriteLine()
            Next
        End Using
    End Sub

    ''' <summary>
    ''' Verifies the digital signature.
    ''' </summary>
    ''' <param name="signature">The signature.</param>
    ''' <param name="signatureInfo">The signature information.</param>
    ''' <returns><b>true</b> if signature is valid; otherwise, <b>false</b>.</returns>
    Public Shared Function VerifyDigitalSignature(signatureInfo As Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfSignatureInformation, signature As Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfPkcsSignature) As Boolean
        System.Console.WriteLine("Verifying signature...")

        Dim signatureVerifyResult As Boolean = False
        Dim certificateVerifyResult As Boolean = False
        Dim signatureCoversWholeDocument As Boolean = False
        Dim chain As System.Security.Cryptography.X509Certificates.X509Chain = Nothing


        ' verify signature

        Try
            ' check that signature covers the whole document
            signatureCoversWholeDocument = signatureInfo.SignatureCoversWholeDocument()

            ' verify PKCS signature
            signatureVerifyResult = signature.Verify()

            ' build and verify certificate chain
            Dim certificate As System.Security.Cryptography.X509Certificates.X509Certificate2 = signature.SigningCertificate
            chain = New System.Security.Cryptography.X509Certificates.X509Chain()
            certificateVerifyResult = chain.Build(certificate)
        Catch verificationException As System.Exception
            System.Console.WriteLine("Verification failed: {0}", verificationException.Message)
            Return False
        End Try


        ' print signature verification result

        ' if PKCS signature verification is failed OR
        ' signature does not cover the whole document
        If Not signatureVerifyResult OrElse Not signatureCoversWholeDocument Then
            System.Console.WriteLine("Signature is INVALID.")
        ' if certificate verification is failed
        ElseIf Not certificateVerifyResult Then
            System.Console.WriteLine("Signature validity is UNKNOWN.")
        Else
            System.Console.WriteLine("Signature is VALID.")
        End If


        ' print signature verification details

        ' if signature verification is successful
        If signatureVerifyResult Then
            ' if signature covers the whole document
            If signatureCoversWholeDocument Then
                System.Console.WriteLine("    Signature verification: Document has not been modified since this signature was applied.")
            Else
                ' if signature does NOT cover the whole document
                System.Console.WriteLine("    Signature verification: The revision of the document that was covered by this signature has not been altered; however, there have been subsequent changes to the document.")
            End If
        Else
            ' if signature verification is NOT successful
            System.Console.WriteLine("    Signature verification: Document has been modified or corrupted since it was signed.")
        End If


        ' print certeficate verification details

        ' if certificate chain is present
        If chain IsNot Nothing Then
            ' if certificate verification is successful
            If certificateVerifyResult Then
                System.Console.WriteLine("    Certificate verification: Signer's certificate is valid.")
            Else
                ' if certificate verification is NOT successful
                ' print certificate verification status
                System.Console.WriteLine("    Certificate verification: Signer's certificate is invalid:")
                For Each status As System.Security.Cryptography.X509Certificates.X509ChainStatus In chain.ChainStatus
                    System.Console.Write(String.Format("        {0}: {1}", status.Status, status.StatusInformation))
                Next
            End If
        End If

        Return signatureVerifyResult AndAlso signatureCoversWholeDocument AndAlso certificateVerifyResult
    End Function
    /// <summary>
    /// Displays and verifies signatures of PDF document.
    /// </summary>
    /// <param name="pdfFilename">The filename of PDF document.</param>
    public static void VerifyDocumentSignatures(string pdfFilename)
    {
        // open PDF document
        using (Vintasoft.Imaging.Pdf.PdfDocument document =
            new Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename))
        {
            // if document does not have interactive form
            if (document.InteractiveForm == null)
            {
                System.Console.WriteLine("Signature fields are not found.");
                return;
            }

            // get an array of signature fields of document
            Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormSignatureField[] signatureFields =
                document.InteractiveForm.GetSignatureFields();
            // if document does not have signature fields
            if (signatureFields.Length == 0)
            {
                System.Console.WriteLine("Signture fields are not found.");
                return;
            }

            // for each signature field
            for (int i = 0; i < signatureFields.Length; i++)
            {
                // get reference to the signature field
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormSignatureField signatureField = signatureFields[i];
                // print signature field name
                System.Console.WriteLine(string.Format("[{0}]Signaure field: {1}", i + 1, signatureField.FullyQualifiedName));

                // get information about signature
                Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfSignatureInformation signatureInfo = signatureField.SignatureInfo;
                // if signature information is empty
                if (signatureInfo == null)
                {
                    System.Console.WriteLine("Empty signature field.");
                }
                // if signature information is NOT empty
                else
                {
                    // print signature filter
                    System.Console.WriteLine(string.Format("Filter      : {0} ({1})", signatureInfo.Filter, signatureInfo.SubFilter));
                    // print the signer name
                    if (signatureInfo.SignerName != null)
                        System.Console.WriteLine(string.Format("Signed by   : {0}", signatureInfo.SignerName));
                    // print the signature reason
                    if (signatureInfo.Reason != null)
                        System.Console.WriteLine(string.Format("Reason      : {0}", signatureInfo.Reason));
                    // print the signature location
                    if (signatureInfo.Location != null)
                        System.Console.WriteLine(string.Format("Location    : {0}", signatureInfo.Location));
                    // print the signer contact info
                    if (signatureInfo.ContactInfo != null)
                        System.Console.WriteLine(string.Format("Contact Info: {0}", signatureInfo.SignerName));
                    // print the signing date
                    if (signatureInfo.SigningTime != System.DateTime.MinValue)
                        System.Console.WriteLine(string.Format("Signig Date : {0}", signatureInfo.SigningTime.ToString("f")));

                    // get PKCS signature
                    bool error = false;
                    Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfPkcsSignature signature = null;
                    try
                    {
                        signature = signatureInfo.GetSignature();
                    }
                    catch (System.Exception e)
                    {
                        error = true;
                        System.Console.WriteLine("PKCS signature parsing error: {0}", e.Message);
                    }
                    if (error)
                        continue;

                    // print name of signature algorithm
                    System.Console.WriteLine(string.Format("Algorithm   : {0}", signature.SignatureAlgorithmName));

                    // print information about signature certificate chain
                    System.Console.WriteLine("Sign certificate chain:");
                    System.Security.Cryptography.X509Certificates.X509Certificate2[] signCertChain =
                        signature.SigningCertificateChain;
                    string padding = "";
                    foreach (System.Security.Cryptography.X509Certificates.X509Certificate2 cert in signCertChain)
                    {
                        padding += "    ";
                        System.Console.WriteLine("{0}Serial number: {1}", padding, cert.SerialNumber);
                        System.Console.WriteLine("{0}Issuer       : {1}", padding, cert.GetNameInfo(
                            System.Security.Cryptography.X509Certificates.X509NameType.SimpleName, true));
                        System.Console.WriteLine("{0}Subject      : {1}", padding, cert.GetNameInfo(
                            System.Security.Cryptography.X509Certificates.X509NameType.SimpleName, false));
                    }


                    // verify digital signature
                    VerifyDigitalSignature(signatureInfo, signature);
                }
                System.Console.WriteLine();
            }
        }
    }

    /// <summary>
    /// Verifies the digital signature.
    /// </summary>
    /// <param name="signature">The signature.</param>
    /// <param name="signatureInfo">The signature information.</param>
    /// <returns><b>true</b> if signature is valid; otherwise, <b>false</b>.</returns>
    public static bool VerifyDigitalSignature(
        Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfSignatureInformation signatureInfo,
        Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfPkcsSignature signature)
    {
        System.Console.WriteLine("Verifying signature...");

        bool signatureVerifyResult = false;
        bool certificateVerifyResult = false;
        bool signatureCoversWholeDocument = false;
        System.Security.Cryptography.X509Certificates.X509Chain chain = null;


        // verify signature

        try
        {
            // check that signature covers the whole document
            signatureCoversWholeDocument = signatureInfo.SignatureCoversWholeDocument();

            // verify PKCS signature
            signatureVerifyResult = signature.Verify();

            // build and verify certificate chain
            System.Security.Cryptography.X509Certificates.X509Certificate2 certificate = signature.SigningCertificate;
            chain = new System.Security.Cryptography.X509Certificates.X509Chain();
            certificateVerifyResult = chain.Build(certificate);
        }
        catch (System.Exception verificationException)
        {
            System.Console.WriteLine("Verification failed: {0}", verificationException.Message);
            return false;
        }


        // print signature verification result

        // if PKCS signature verification is failed OR
        // signature does not cover the whole document
        if (!signatureVerifyResult || !signatureCoversWholeDocument)
            System.Console.WriteLine("Signature is INVALID.");
        // if certificate verification is failed
        else if (!certificateVerifyResult)
            System.Console.WriteLine("Signature validity is UNKNOWN.");
        else
            System.Console.WriteLine("Signature is VALID.");


        // print signature verification details

        // if signature verification is successful
        if (signatureVerifyResult)
        {
            // if signature covers the whole document
            if (signatureCoversWholeDocument)
                System.Console.WriteLine("    Signature verification: Document has not been modified since this signature was applied.");
            // if signature does NOT cover the whole document
            else
                System.Console.WriteLine("    Signature verification: The revision of the document that was covered by this signature has not been altered; however, there have been subsequent changes to the document.");
        }
        // if signature verification is NOT successful
        else
        {
            System.Console.WriteLine("    Signature verification: Document has been modified or corrupted since it was signed.");
        }


        // print certeficate verification details

        // if certificate chain is present
        if (chain != null)
        {
            // if certificate verification is successful
            if (certificateVerifyResult)
            {
                System.Console.WriteLine("    Certificate verification: Signer's certificate is valid.");
            }
            // if certificate verification is NOT successful
            else
            {
                // print certificate verification status
                System.Console.WriteLine("    Certificate verification: Signer's certificate is invalid:");
                foreach (System.Security.Cryptography.X509Certificates.X509ChainStatus status in chain.ChainStatus)
                    System.Console.Write(string.Format("        {0}: {1}", status.Status, status.StatusInformation));
            }
        }

        return signatureVerifyResult && signatureCoversWholeDocument && certificateVerifyResult;
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.DigitalSignatures.PdfSignatureInformation

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003

    See Also
