    PdfAttachmentCollection Class
    In This Topic
    Represents a collections of file attachments, where the attachments are related in structure or content.

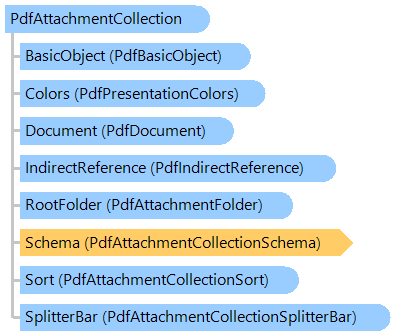

    Object Model
    PdfAttachmentCollection ClassPdfBasicObject ClassPdfPresentationColors ClassPdfDocument ClassPdfIndirectReference ClassPdfAttachmentFolder ClassPdfAttachmentCollectionSchema ClassPdfAttachmentCollectionSchemaField ClassPdfAttachmentCollectionSort ClassPdfAttachmentCollectionSplitterBar Class
    Syntax
    'Declaration

    Public Class PdfAttachmentCollection
       Inherits Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public class PdfAttachmentCollection : Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public __gc class PdfAttachmentCollection : public Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    public ref class PdfAttachmentCollection : public Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
    Remarks
    Beginning with PDF 1.7, PDF documents can specify how a viewer application's user interface presents collections of file attachments (Portfolio), where the attachments are related in structure or content. Such a presentation is called a portable collection. The intent of portable collections is to present, sort, and search collections of related documents, such as email archives, photo collections, and etc. If attachment is present in a PDF document, the user interface presents the document as an attachment collection.
    Beginning with PDF 1.7 ExtensionLevel 3, an attachment collection can contain a folders for the purpose of organizing files into a hierarchical structure. The structure is represented by a tree with a single root folder (RootFolder) acting as the common ancestor for all other folders and files in the collection.
    Example
    This example shows how to get information about attachments of PDF document.
    ''' <summary>
    ''' Prints the portfolio structure.
    ''' </summary>
    ''' <param name="pdfFilename">The PDF filename.</param>
    Public Shared Sub PrintPortfolioStructure(pdfFilename As String)
    	' open PDF document in read-only mode
    	Using document As New Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename, True)
    		' if PDF document does not contain portfolio
    		If document.Attachments Is Nothing Then
    			System.Console.WriteLine("Document does not have attachments (portfolio).")
    			Return
    		End If

    		' print initial view mode
    		System.Console.WriteLine(String.Format("Initial View Mode = {0}", document.Attachments.View))

    		' print colors information
    		If document.Attachments.Colors IsNot Nothing Then
    			PrintPortfolioColors(document.Attachments.Colors)
    		End If

    		' print portfolio schema
    		If document.Attachments.Schema IsNot Nothing Then
    			PrintPortfolioSchema(document.Attachments.Schema)
    		End If

    		' print portfolio sort settings
    		If document.Attachments.Sort IsNot Nothing Then
    			PrintPortfolioSort(document.Attachments.Sort)
    		End If

    		' print portfolio splitter bar settings
    		If document.Attachments.SplitterBar IsNot Nothing Then
    			PrintPortfolioSplitterBar(document.Attachments.SplitterBar)
    		End If

    		' print portfolio folders and files
    		If document.Attachments.RootFolder IsNot Nothing Then
    			System.Console.WriteLine("Folder structure:")
    			PrintFolderStructure(document.Attachments.RootFolder, "  ")
    		Else
    			System.Console.WriteLine("Files:")
    			PrintFileInfo(document.Attachments.GetFiles(""), "  ")
    		End If
    	End Using
    End Sub

    ''' <summary>
    ''' Prints the folder structure.
    ''' </summary>
    ''' <param name="folder">The PDF attachment folder.</param>
    ''' <param name="padding">Padding.</param>
    Private Shared Sub PrintFolderStructure(folder As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder, padding As String)
    	System.Console.WriteLine(String.Format("{0}Folder: {1}", padding, folder.Name))
    	padding += "  "
    	PrintFileInfo(folder.Files, padding)
    	Dim subFolders As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder() = folder.Folders
    	If subFolders IsNot Nothing Then
    		For Each subFolder As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder In subFolders
    			PrintFolderStructure(subFolder, padding)
    		Next
    	End If
    End Sub

    ''' <summary>
    ''' Prints the portfolio splitter bar information.
    ''' </summary>
    ''' <param name="splitterBar">The splitter bar.</param>
    Private Shared Sub PrintPortfolioSplitterBar(splitterBar As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSplitterBar)
    	System.Console.WriteLine("Splitter Bar:")
    	System.Console.WriteLine(String.Format("  Direction = {0}", splitterBar.Direction))
    	System.Console.WriteLine(String.Format("  Position  = {0}", splitterBar.Position))
    End Sub

    ''' <summary>
    ''' Prints an information for specified files.
    ''' </summary>
    ''' <param name="fileSpecs">The PDF embedded file specifications.</param>
    ''' <param name="padding">Padding.</param>
    Private Shared Sub PrintFileInfo(fileSpecs As Vintasoft.Imaging.Pdf.Tree.PdfEmbeddedFileSpecification(), padding As String)
    	For Each fileSpec As Vintasoft.Imaging.Pdf.Tree.PdfEmbeddedFileSpecification In fileSpecs
    		System.Console.WriteLine(String.Format("{0}File: {1}", padding, fileSpec.Filename))
    		System.Console.WriteLine(String.Format("{0}  CompressedSize   = {1}", padding, fileSpec.CompressedSize))
    		System.Console.WriteLine(String.Format("{0}  UncompressedSize = {1}", padding, fileSpec.UncompressedSize))
    		System.Console.WriteLine(String.Format("{0}  Compression      = {1}", padding, fileSpec.Compression))
    		System.Console.WriteLine(String.Format("{0}  CreationDate     = {1}", padding, fileSpec.CreationDate))
    		System.Console.WriteLine(String.Format("{0}  ModificationDate = {1}", padding, fileSpec.ModificationDate))
    		System.Console.WriteLine(String.Format("{0}  Description      = {1}", padding, fileSpec.Description))
    		System.Console.WriteLine(String.Format("{0}  HasThumbnail     = {1}", padding, fileSpec.Thumbnail IsNot Nothing))
    		If fileSpec.DataFields IsNot Nothing Then
    			System.Console.WriteLine("    DataFields:")
    			For Each name As String In fileSpec.DataFields.Keys
    				System.Console.WriteLine(String.Format("      {0}={1}", name, fileSpec.DataFields(name).DataAsString))
    			Next
    		End If
    	Next
    End Sub

    ''' <summary>
    ''' Prints the portfolio sort properties.
    ''' </summary>
    ''' <param name="sort">The PDF attachment collection sort properties.</param>
    Private Shared Sub PrintPortfolioSort(sort As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSort)
    	System.Console.WriteLine("Sort:")
    	System.Console.WriteLine("  Field names:")
    	Dim fieldNames As String() = sort.FieldNames
    	For i As Integer = 0 To fieldNames.Length - 1
    		System.Console.WriteLine("    {0}: {1}", i, fieldNames(i))
    	Next

    	System.Console.WriteLine("  Ascending orders:")
    	Dim ascendingOrders As Boolean() = sort.AscendingOrders
    	For i As Integer = 0 To ascendingOrders.Length - 1
    		System.Console.WriteLine("    {0}: {1}", i, ascendingOrders(i))
    	Next
    End Sub

    ''' <summary>
    ''' Prints the portfolio schema.
    ''' </summary>
    ''' <param name="schema">The PDF attachment collection schema.</param>
    Private Shared Sub PrintPortfolioSchema(schema As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSchema)
    	System.Console.WriteLine("Schema:")
    	For Each key As String In schema.Keys
    		System.Console.WriteLine(String.Format("  {0}:", key))
    		Dim field As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSchemaField = schema(key)
    		System.Console.WriteLine("    DataType          = {0}", field.DataType)
    		System.Console.WriteLine("    DisplayedName     = {0}", field.DisplayedName)
    		System.Console.WriteLine("    IsSupportsEditing = {0}", field.IsSupportsEditing)
    		System.Console.WriteLine("    IsVisible         = {0}", field.IsVisible)
    		System.Console.WriteLine("    Order             = {0}", field.Order)
    	Next
    End Sub

    ''' <summary>
    ''' Prints the portfolio colors information.
    ''' </summary>
    ''' <param name="presentationColors">The presentation colors.</param>
    Private Shared Sub PrintPortfolioColors(presentationColors As Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfPresentationColors)
    	System.Console.WriteLine("Colors:")
    	System.Console.WriteLine(String.Format("  Background     = {0}", presentationColors.Background))
    	System.Console.WriteLine(String.Format("  CardBackground = {0}", presentationColors.CardBackground))
    	System.Console.WriteLine(String.Format("  CardBorder     = {0}", presentationColors.CardBorder))
    	System.Console.WriteLine(String.Format("  PrimaryText    = {0}", presentationColors.PrimaryText))
    	System.Console.WriteLine(String.Format("  SecondaryText  = {0}", presentationColors.SecondaryText))
    End Sub
    /// <summary>
    /// Prints the portfolio structure.
    /// </summary>
    /// <param name="pdfFilename">The PDF filename.</param>
    public static void PrintPortfolioStructure(string pdfFilename)
    {
        // open PDF document in read-only mode
        using (Vintasoft.Imaging.Pdf.PdfDocument document =
            new Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename, true))
        {
            // if PDF document does not contain portfolio
            if (document.Attachments == null)
            {
                System.Console.WriteLine("Document does not have attachments (portfolio).");
                return;
            }

            // print initial view mode
            System.Console.WriteLine(string.Format("Initial View Mode = {0}", document.Attachments.View));

            // print colors information
            if (document.Attachments.Colors != null)
                PrintPortfolioColors(document.Attachments.Colors);

            // print portfolio schema
            if (document.Attachments.Schema != null)
                PrintPortfolioSchema(document.Attachments.Schema);

            // print portfolio sort settings
            if (document.Attachments.Sort != null)
                PrintPortfolioSort(document.Attachments.Sort);

            // print portfolio splitter bar settings
            if (document.Attachments.SplitterBar != null)
                PrintPortfolioSplitterBar(document.Attachments.SplitterBar);

            // print portfolio folders and files
            if (document.Attachments.RootFolder != null)
            {
                System.Console.WriteLine("Folder structure:");
                PrintFolderStructure(document.Attachments.RootFolder, "  ");
            }
            else
            {
                System.Console.WriteLine("Files:");
                PrintFileInfo(document.Attachments.GetFiles(""), "  ");
            }
        }
    }

    /// <summary>
    /// Prints the folder structure.
    /// </summary>
    /// <param name="folder">The PDF attachment folder.</param>
    /// <param name="padding">Padding.</param>
    private static void PrintFolderStructure(
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder folder, string padding)
    {
        System.Console.WriteLine(string.Format("{0}Folder: {1}", padding, folder.Name));
        padding += "  ";
        PrintFileInfo(folder.Files, padding);
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder[] subFolders = folder.Folders;
        if (subFolders != null)
        {
            foreach (Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentFolder subFolder in subFolders)
                PrintFolderStructure(subFolder, padding);
        }
    }

    /// <summary>
    /// Prints the portfolio splitter bar information.
    /// </summary>
    /// <param name="splitterBar">The splitter bar.</param>
    private static void PrintPortfolioSplitterBar(
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSplitterBar splitterBar)
    {
        System.Console.WriteLine("Splitter Bar:");
        System.Console.WriteLine(string.Format("  Direction = {0}", splitterBar.Direction));
        System.Console.WriteLine(string.Format("  Position  = {0}", splitterBar.Position));
    }

    /// <summary>
    /// Prints an information for specified files.
    /// </summary>
    /// <param name="fileSpecs">The PDF embedded file specifications.</param>
    /// <param name="padding">Padding.</param>
    private static void PrintFileInfo(
        Vintasoft.Imaging.Pdf.Tree.PdfEmbeddedFileSpecification[] fileSpecs, string padding)
    {
        foreach (Vintasoft.Imaging.Pdf.Tree.PdfEmbeddedFileSpecification fileSpec in fileSpecs)
        {
            System.Console.WriteLine(string.Format("{0}File: {1}", padding, fileSpec.Filename));
            System.Console.WriteLine(string.Format("{0}  CompressedSize   = {1}", padding, fileSpec.CompressedSize));
            System.Console.WriteLine(string.Format("{0}  UncompressedSize = {1}", padding, fileSpec.UncompressedSize));
            System.Console.WriteLine(string.Format("{0}  Compression      = {1}", padding, fileSpec.Compression));
            System.Console.WriteLine(string.Format("{0}  CreationDate     = {1}", padding, fileSpec.CreationDate));
            System.Console.WriteLine(string.Format("{0}  ModificationDate = {1}", padding, fileSpec.ModificationDate));
            System.Console.WriteLine(string.Format("{0}  Description      = {1}", padding, fileSpec.Description));
            System.Console.WriteLine(string.Format("{0}  HasThumbnail     = {1}", padding, fileSpec.Thumbnail != null));
            if (fileSpec.DataFields != null)
            {
                System.Console.WriteLine("    DataFields:");
                foreach (string name in fileSpec.DataFields.Keys)
                {
                    System.Console.WriteLine(string.Format("      {0}={1}", name,
                        fileSpec.DataFields[name].DataAsString));
                }
            }
        }
    }

    /// <summary>
    /// Prints the portfolio sort properties.
    /// </summary>
    /// <param name="sort">The PDF attachment collection sort properties.</param>
    private static void PrintPortfolioSort(
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSort sort)
    {
        System.Console.WriteLine("Sort:");
        System.Console.WriteLine("  Field names:");
        string[] fieldNames = sort.FieldNames;
        for (int i = 0; i < fieldNames.Length; i++)
            System.Console.WriteLine("    {0}: {1}", i, fieldNames[i]);

        System.Console.WriteLine("  Ascending orders:");
        bool[] ascendingOrders = sort.AscendingOrders;
        for (int i = 0; i < ascendingOrders.Length; i++)
            System.Console.WriteLine("    {0}: {1}", i, ascendingOrders[i]);
    }

    /// <summary>
    /// Prints the portfolio schema.
    /// </summary>
    /// <param name="schema">The PDF attachment collection schema.</param>
    private static void PrintPortfolioSchema(
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSchema schema)
    {
        System.Console.WriteLine("Schema:");
        foreach (string key in schema.Keys)
        {
            System.Console.WriteLine(string.Format("  {0}:", key));
            Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollectionSchemaField field = schema[key];
            System.Console.WriteLine("    DataType          = {0}", field.DataType);
            System.Console.WriteLine("    DisplayedName     = {0}", field.DisplayedName);
            System.Console.WriteLine("    IsSupportsEditing = {0}", field.IsSupportsEditing);
            System.Console.WriteLine("    IsVisible         = {0}", field.IsVisible);
            System.Console.WriteLine("    Order             = {0}", field.Order);
        }
    }

    /// <summary>
    /// Prints the portfolio colors information.
    /// </summary>
    /// <param name="presentationColors">The presentation colors.</param>
    private static void PrintPortfolioColors(
        Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfPresentationColors presentationColors)
    {
        System.Console.WriteLine("Colors:");
        System.Console.WriteLine(string.Format("  Background     = {0}", presentationColors.Background));
        System.Console.WriteLine(string.Format("  CardBackground = {0}", presentationColors.CardBackground));
        System.Console.WriteLine(string.Format("  CardBorder     = {0}", presentationColors.CardBorder));
        System.Console.WriteLine(string.Format("  PrimaryText    = {0}", presentationColors.PrimaryText));
        System.Console.WriteLine(string.Format("  SecondaryText  = {0}", presentationColors.SecondaryText));
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.FileAttachments.PdfAttachmentCollection

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003

    See Also
