VintaSoft Imaging .NET SDK v8.6
Vintasoft.Imaging.ImageProcessing.Effects Namespace / PixelateCommand Class
Members Example



In This Topic
    PixelateCommand Class
    In This Topic
    Applies the pixelate effect to an image.

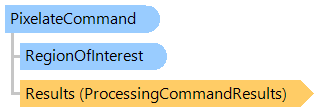

    Object Model
    PixelateCommand ClassRegionOfInterest ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    Example
    This example shows how to load an image from disk, apply the pixelate effect to the specified region of the image and save the result to a new image file.
    Class PixelateCommandExample
        Public Sub ProcessImage()
            ' [ do not forget to set your image file path here! ]
            ' open an existing image
            Dim image As New Vintasoft.Imaging.VintasoftImage("Flower.jpg")

            ' create the command with default parameters
            Dim command As New Vintasoft.Imaging.ImageProcessing.Effects.PixelateCommand()
            ' set the region-of-interest to the left part of the image
            command.RegionOfInterest = New Vintasoft.Imaging.RegionOfInterest(0, 0, image.Width \ 2, image.Height)
            ' subscribe to progress event
            AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

            Try
                ' execute the command
                command.ExecuteInPlace(image)
            Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                ' show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message)
                Return
            End Try

            ' save the processed image to the new file
            image.Save("processed-image.tif")
        End Sub

        Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
            ' update progress info using e.Progress property
            ' ...

            ' cancel execution of command using e.Cancel property if necessary
            ' ...
        End Sub
    End Class
    class PixelateCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // open an existing image
            Vintasoft.Imaging.VintasoftImage image = new Vintasoft.Imaging.VintasoftImage("Flower.jpg");

            // create the command with default parameters
            Vintasoft.Imaging.ImageProcessing.Effects.PixelateCommand command =
                new Vintasoft.Imaging.ImageProcessing.Effects.PixelateCommand();
            // set the region-of-interest to the left part of the image
            command.RegionOfInterest = new Vintasoft.Imaging.RegionOfInterest(0, 0, image.Width / 2, image.Height);
            // subscribe to progress event
            command.Progress +=
                new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

            try
            {
                // execute the command
                command.ExecuteInPlace(image);
            }
            catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
            {
                // show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message);
                return;
            }

            // save the processed image to the new file
            image.Save("processed-image.tif");
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.Effects.PixelateCommand

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003

    See Also
