GetUniqueColorCommand Class
In This Topic
Determines the color of image rectangular region if image region contains only one color.

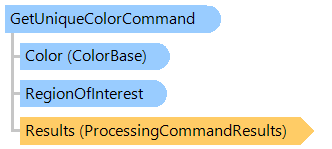

Object Model
ColorBase RegionOfInterest ProcessingCommandResults GetUniqueColorCommand
Syntax
'Declaration

Public Class GetUniqueColorCommand
   Inherits Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion

Example

This C#/VB.NET code shows how to load an image from disk and calculate the unique color in the image.


Class GetUniqueColorCommandExample
    Public Sub ProcessImage()
        ' [ do not forget to set your image file path here! ]
        ' create an image collection
        Using images As New Vintasoft.Imaging.ImageCollection()
            ' add image to the image collection
            images.Add("Deskew.tif")
            Try
                ' create the image processing command
                Dim command As New Vintasoft.Imaging.ImageProcessing.Info.GetUniqueColorCommand()

                ' subscribe to progress event of image processing command
                AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

                Try
                    ' for each image in image collection
                    For Each image As Vintasoft.Imaging.VintasoftImage In images
                        ' apply the image processing command to the image
                        command.ExecuteInPlace(image)

                        ' show result
                        If command.IsColorDetected Then
                            System.Windows.Forms.MessageBox.Show(String.Format("Image has unique color {0}.", command.Color))
                        Else
                            System.Windows.Forms.MessageBox.Show("Image does not have unique color.")
                        End If
                    Next
                Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                    ' show error message
                    System.Windows.Forms.MessageBox.Show(ex.Message)
                    Return
                End Try
            Finally
                images.ClearAndDisposeItems()
            End Try
        End Using
    End Sub

    Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
        ' update progress info using e.Progress property
        ' ...

        ' cancel execution of command using e.Cancel property if necessary
        ' ...
    End Sub

End Class


class GetUniqueColorCommandExample
{
    public void ProcessImage()
    {
        // [ do not forget to set your image file path here! ]
        // create an image collection
        using (Vintasoft.Imaging.ImageCollection images = new Vintasoft.Imaging.ImageCollection())
        {
            // add image to the image collection
            images.Add("Deskew.tif");
            try
            {
                // create the image processing command
                Vintasoft.Imaging.ImageProcessing.Info.GetUniqueColorCommand command =
                    new Vintasoft.Imaging.ImageProcessing.Info.GetUniqueColorCommand();

                // subscribe to progress event of image processing command
                command.Progress +=
                    new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

                try
                {
                    // for each image in image collection
                    foreach (Vintasoft.Imaging.VintasoftImage image in images)
                    {
                        // apply the image processing command to the image
                        command.ExecuteInPlace(image);

                        // show result
                        if (command.IsColorDetected)
                        {
                            System.Windows.Forms.MessageBox.Show(string.Format("Image has unique color {0}.", command.Color));
                        }
                        else
                        {
                            System.Windows.Forms.MessageBox.Show("Image does not have unique color.");
                        }
                    }
                }
                catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
                {
                    // show error message
                    System.Windows.Forms.MessageBox.Show(ex.Message);
                    return;
                }
            }
            finally
            {
                images.ClearAndDisposeItems();
            }
        }
    }

    void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
    {
        // update progress info using e.Progress property
        // ...

        // cancel execution of command using e.Cancel property if necessary
        // ...
    }

}

Inheritance Hierarchy

System.Object
   Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
      Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
         Vintasoft.Imaging.ImageProcessing.Info.GetUniqueColorCommand

Requirements

Target Platforms: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
