Create a blank "Vue and ASP.NET Core" application.

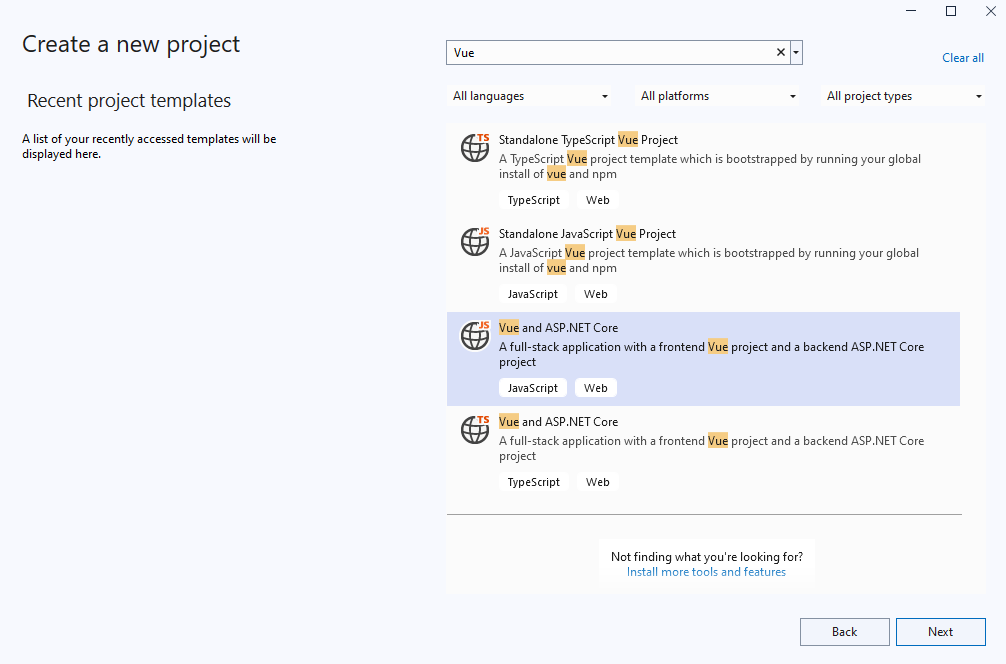

• Open Visual Studio .NET 2026 and create a new application of "Vue and ASP.NET Core" type:

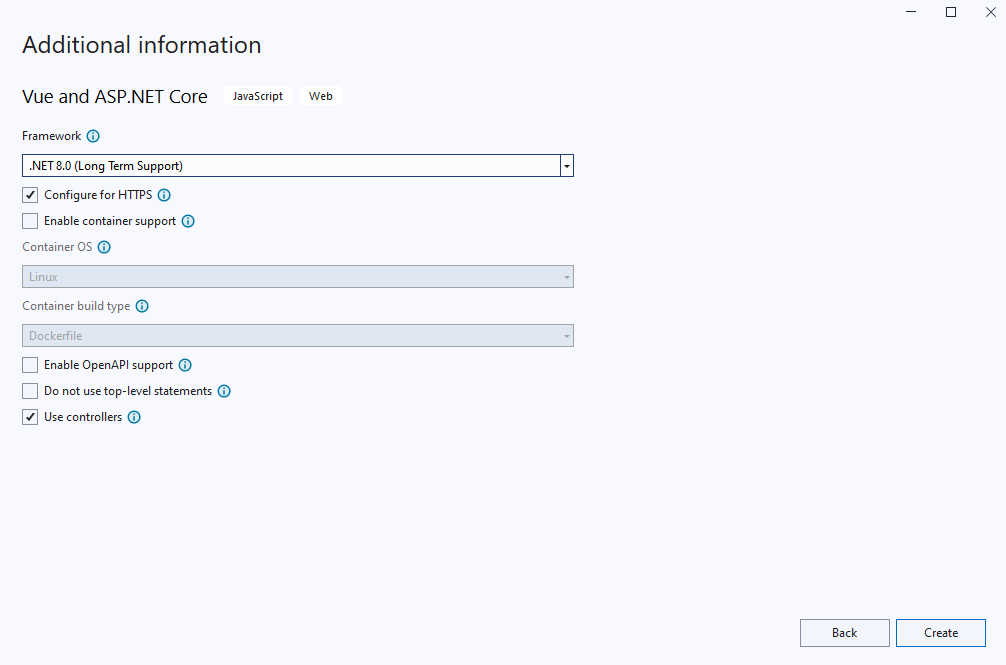

• Configure the application to use .NET 10.0:

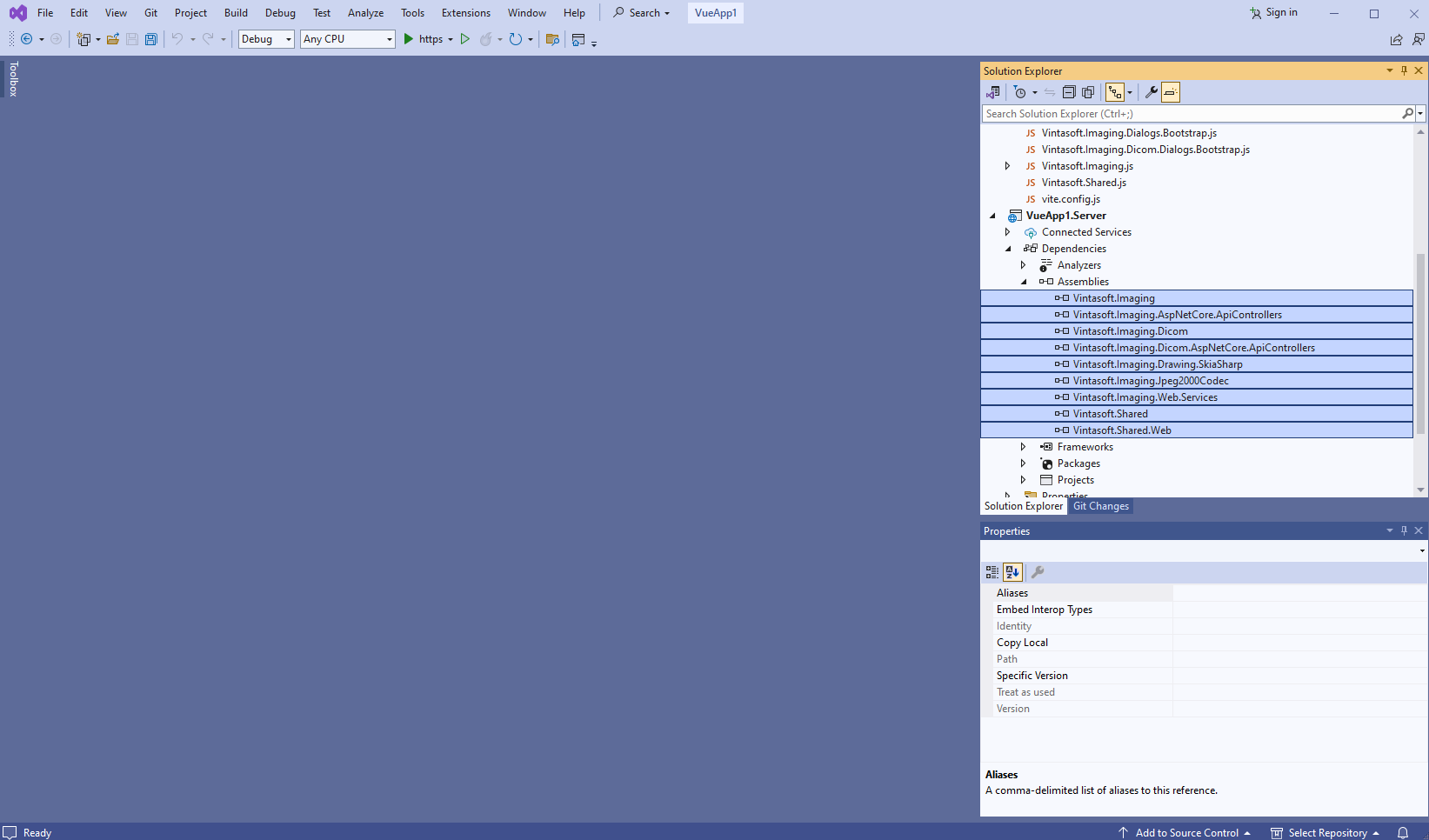

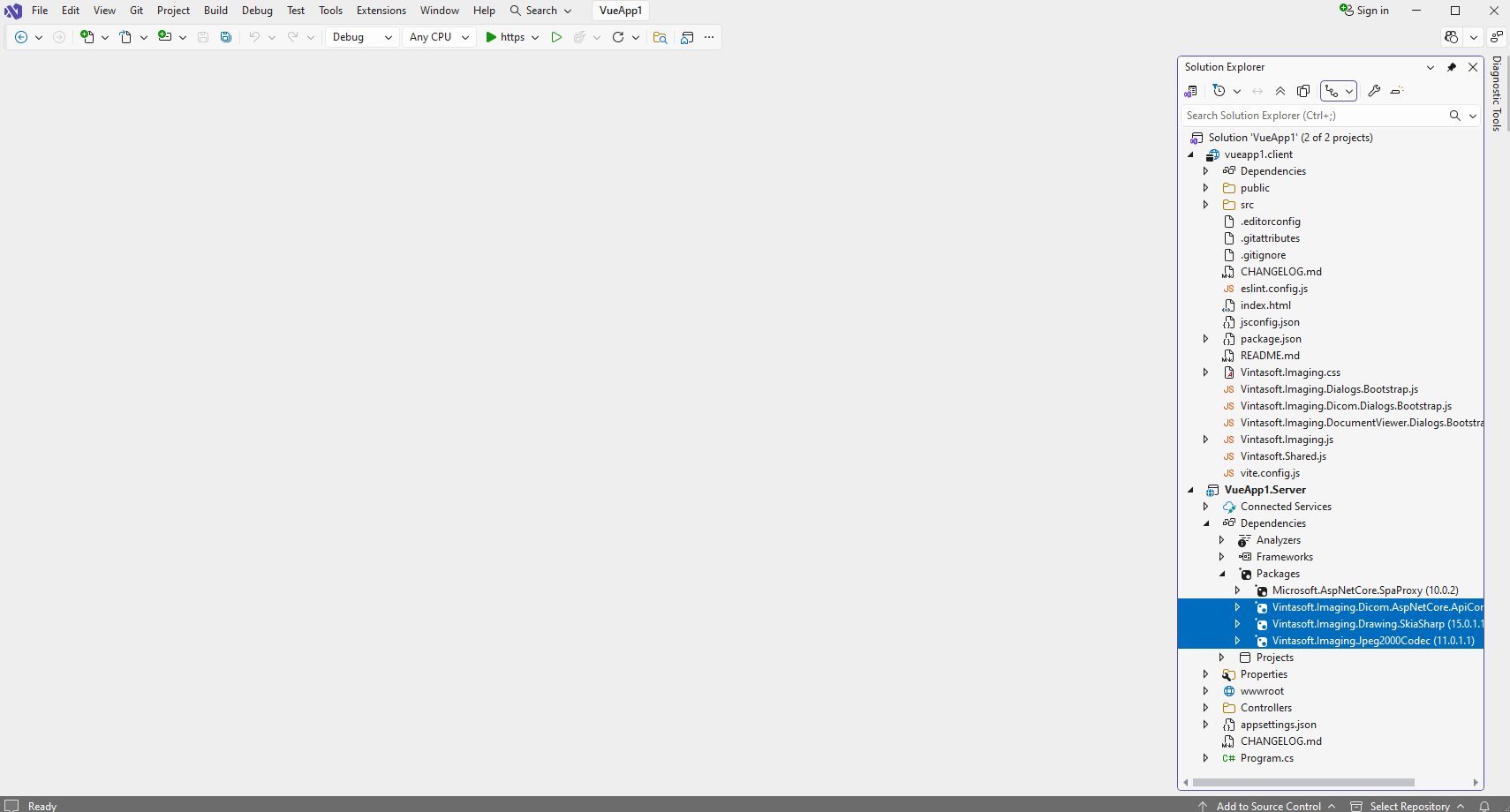

"VueApp1.Server" project: Add references to the Vintasoft nuget-packages to "VueApp1.Server" project.

"VueApp1.Server" project: Specify drawing engine, which should be used by VintaSoft Imaging .NET SDK for drawing of 2D graphics.

• Add reference to the "Vintasoft.Imaging.Drawing.SkiaSharp" nuget-package. Reference to the "SkiaSharp" nuget-package version 3.119.0 will be added automatically.

• Open "Program.cs" file in "VueApp1.Server" project, add code line "Vintasoft.Imaging.Drawing.SkiaSharp.SkiaSharpDrawingFactory.SetAsDefault();" at the beginning of file - added code specifies that VintaSoft Imaging .NET SDK should use SkiaSharp library for drawing of 2D graphics.

• Add reference to the "Vintasoft.Imaging.Gdi" nuget-package.

• Open "Program.cs" file in "VueApp1.Server" project, add code line "Vintasoft.Imaging.Drawing.Gdi.GdiGraphicsFactory.SetAsDefault();" at the beginning of file - added code specifies that VintaSoft Imaging .NET SDK should use System.Drawing library for drawing of 2D graphics.

"VueApp1.Server" project: Create web services, which allow to upload/download file, manage image collection, get information about images, get thumbnails, render image tiles, extract/search text and annotate document.

• Create web service that allows to upload/download file

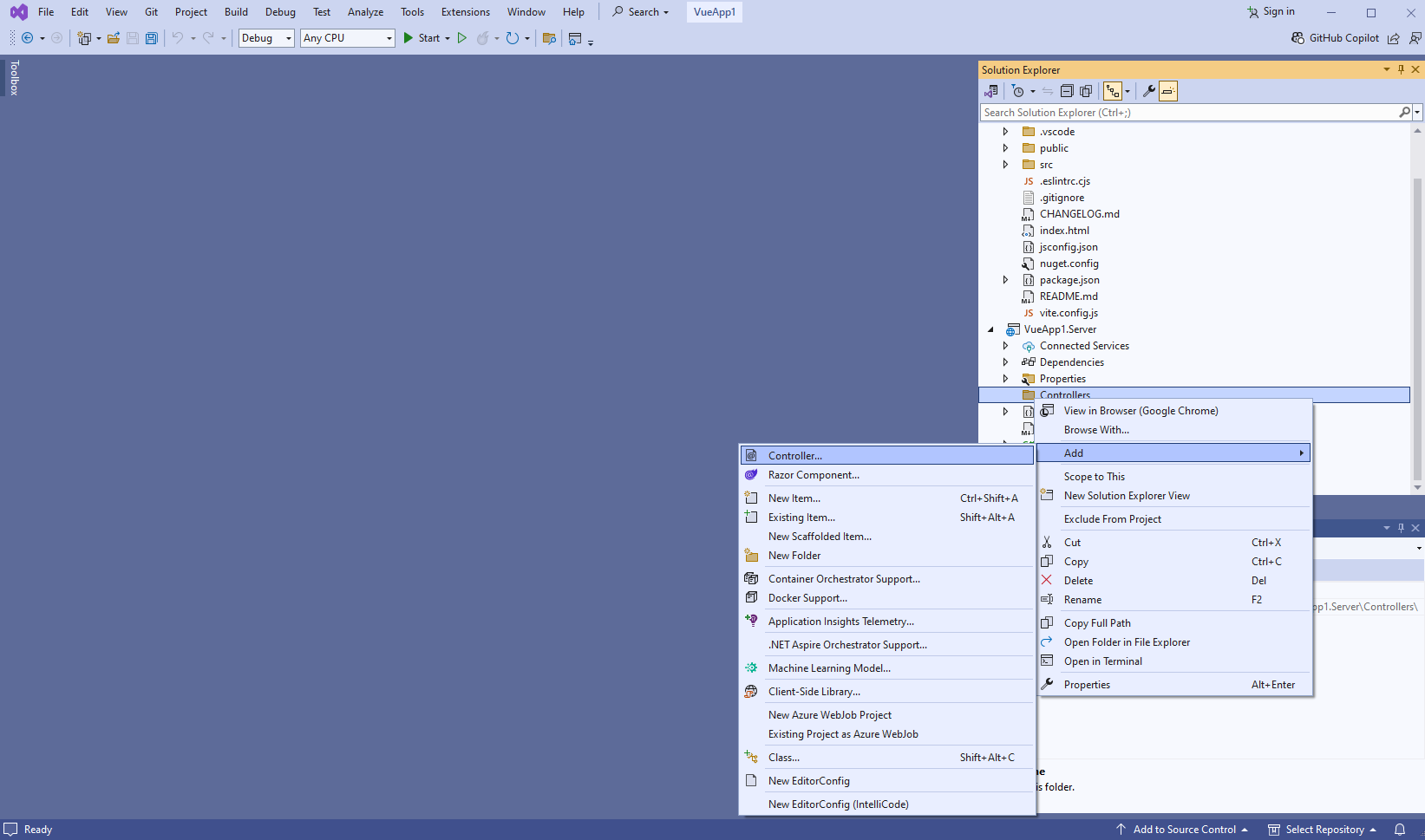

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

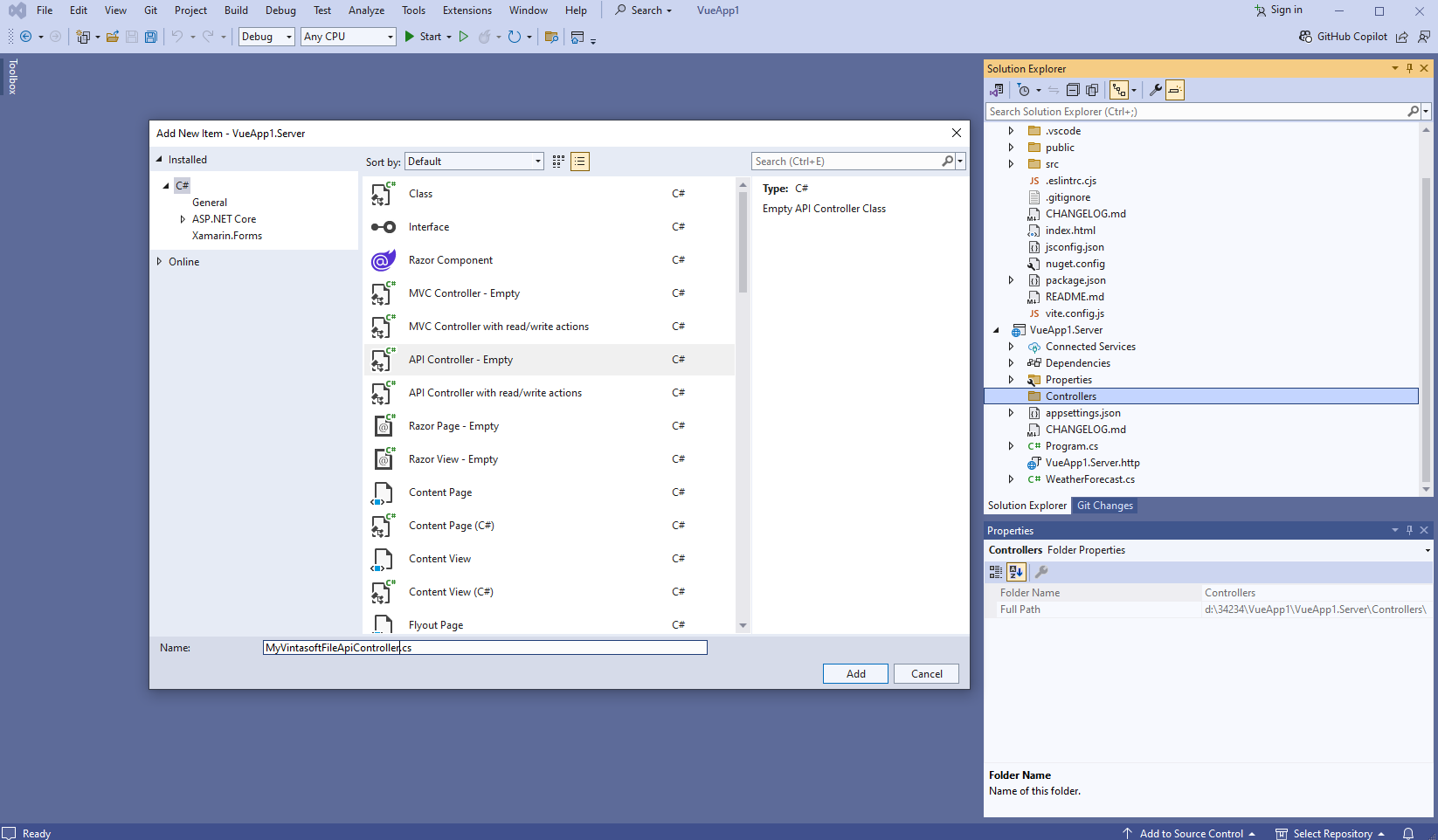

  • Select "Empty API controller" template, set the controller name to the "MyVintasoftFileApiController" and press the "Add" button

  • Specify that MyVintasoftFileApiController class is derived from Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController class

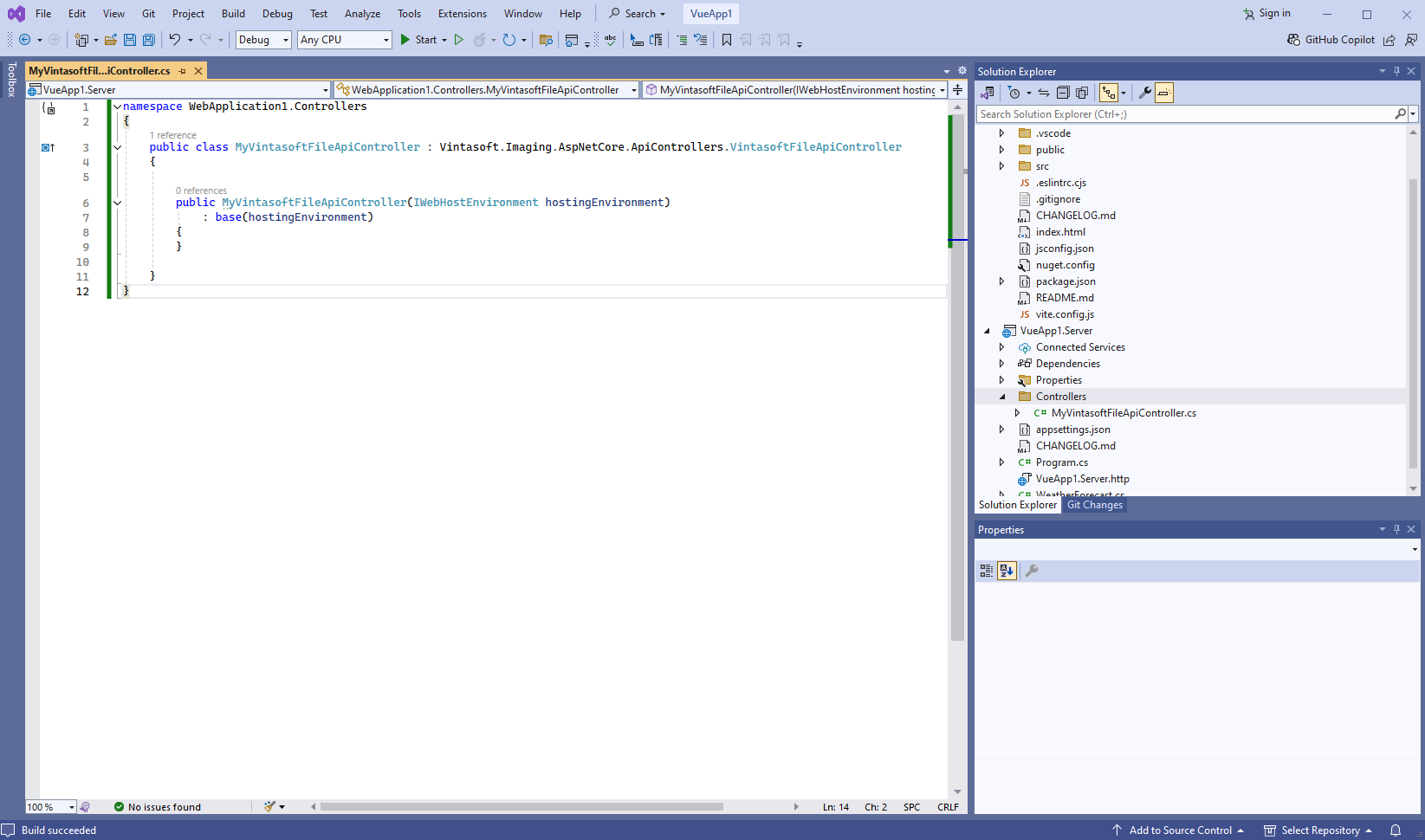

    Here are source codes of MyVintasoftFileApiController class:

    • C#

    namespace VueApp1.Server.Controllers
    {
        public class MyVintasoftFileApiController : Vintasoft.Imaging.AspNetCore.ApiControllers.VintasoftFileApiController
        {

            public MyVintasoftFileApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }

        }
    }


• Create web service that allows to work with DICOM images

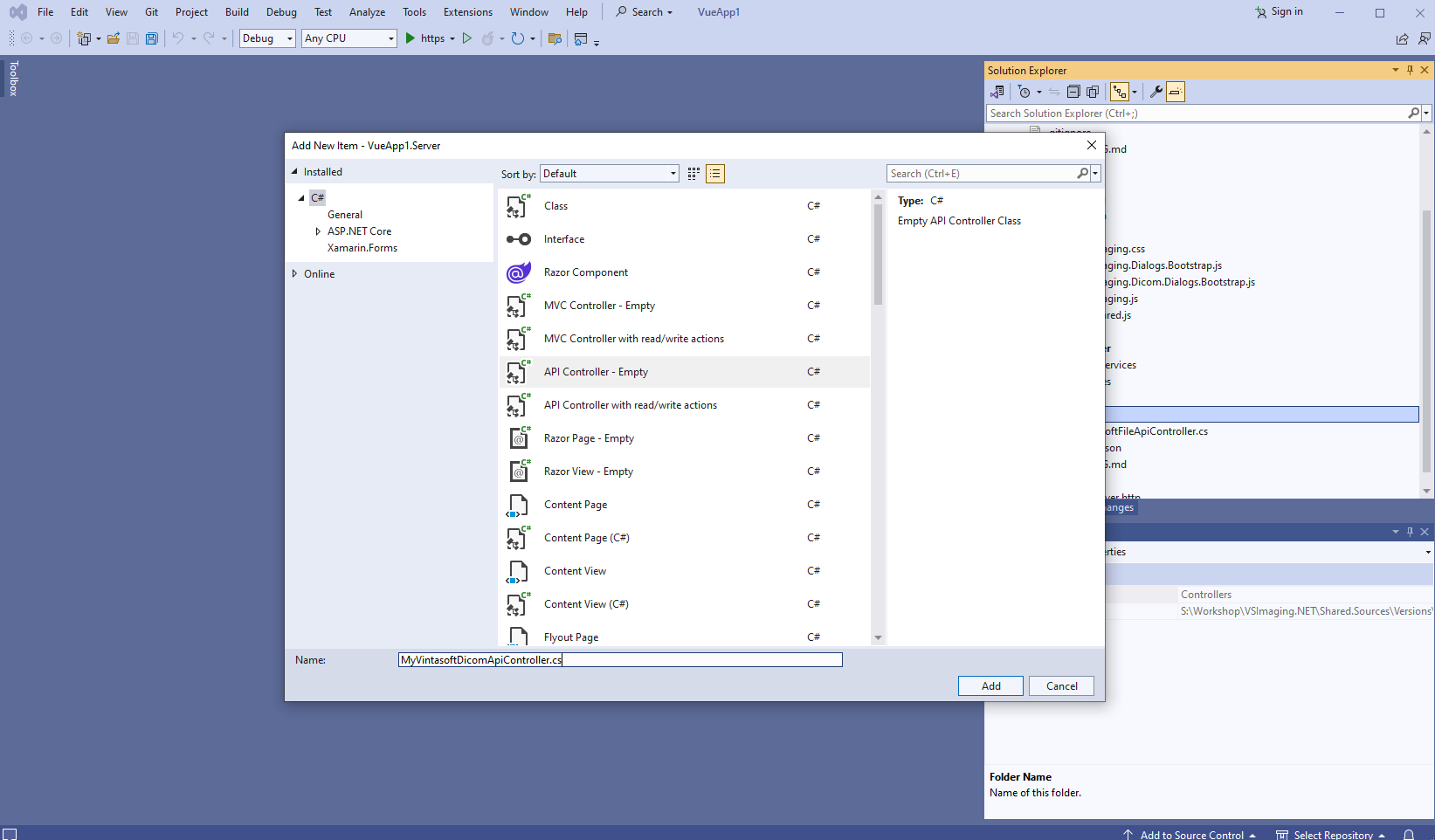

  • Press the right mouse button on the "Controllers" folder and select the "Add => Controller..." menu from context menu

  • Select "Empty API controller" template, set the controller name to the "MyVintasoftDicomApiController" and press the "Add" button

  • Specify that MyVintasoftDicomApiController class is derived from Vintasoft.Imaging.Dicom.AspNetCore.ApiControllers.VintasoftDicomApiController class

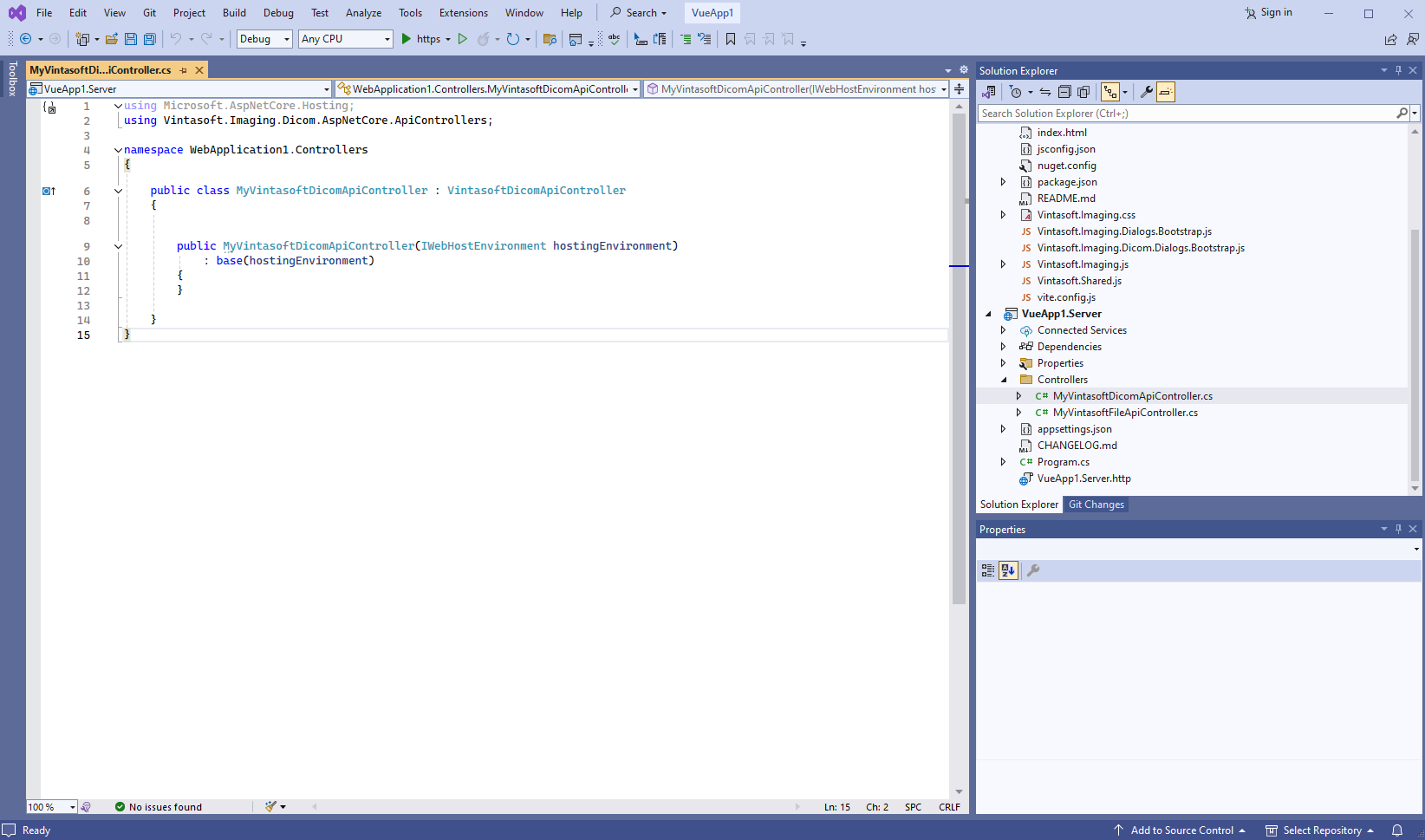

    Here are source codes of MyVintasoftDicomApiController class:

    • C#

    using Microsoft.AspNetCore.Hosting;
    using Vintasoft.Imaging.Dicom.AspNetCore.ApiControllers;

    namespace VueApp1.Server.Controllers
    {
        public class MyVintasoftDicomApiController : VintasoftDicomApiController
        {

            public MyVintasoftDicomApiController(IWebHostEnvironment hostingEnvironment)
                : base(hostingEnvironment)
            {
            }

        }
    }


"VueApp1.Server" project: Copy the default test PDF document to a server side.

• Create folder "UploadedImageFiles\SessionID" in "VueApp1.Server" project and copy test DICOM file "<SdkInstallPath>\VintaSoft\Imaging .NET 15.0\Examples\ASP.NET Core\CSharp\AspNetCoreImagingDemo\wwwroot\UploadedImageFiles\LossyJpeg_Monochrome2_000.0000.dcm" to the folder. This file will be displayed in DICOM viewer.

Delete files, which are not necessary in this tutorial.

• Delete files "WeatherForecast.cs" and "Controllers\WeatherForecastController.cs" in "VueApp1.Server" project - the WeatherForecast Web API controller is not necessary in this tutorial.


• Delete files "src\components\TheWelcome.vue", "src\components\WelcomeItem.vue" in "vueapp1.client" project - this Vue-component is not necessary in this tutorial.


• Open file "src\App.vue" in "vueapp1.client" project and delete code that uses the following Vue-components: HelloWorld, TheWelcome - these Vue-components are not necessary in this tutorial.
  Here are source codes of "App.vue" file after update:

  • JavaScript

  <script setup>
  </script>

  <template>
      <main>
      </main>
  </template>

  <style scoped>
  </style>



Compile the solution for restoring TypeScript-dependencies in "vueapp1.client" project.

"vueapp1.client" project: Add JavaScript files to the "vueapp1.client" project.

• Copy files Vintasoft.Shared.js, Vintasoft.Imaging.js and Vintasoft.Imaging.Dicom.js from "<InstallPath>\VintaSoft Imaging .NET 15.0\Bin\JavaScript\" folder to the root folder of "vueapp1.client" project.


• Copy files Vintasoft.Imaging.css and Vintasoft.Imaging.Dicom.css from "<InstallPath>\VintaSoft Imaging .NET 15.0\Bin\JavaScript\" folder to the root folder of "vueapp1.client" project.


• Specify, which "standard" dialogs should be used by web DICOM viewer
  • If web DICOM viewer should use ready-to-use "standard" Bootstrap dialogs:
    • Add "bootstrap" Node-module to the "package.json" file. Rebuild the project for refreshing Node-modules.
      Here are source codes of "package.json" file after update:

      • JSON

      {
        "name": "vueapp1.client",
        "version": "0.0.0",
        "private": true,
        "type": "module",
        "engines": {
          "node": "^20.19.0 || >=22.12.0"
        },
        "scripts": {
          "dev": "vite",
          "build": "vite build",
          "preview": "vite preview",
          "lint": "eslint . --fix --cache"
        },
        "dependencies": {
          "vue": "^3.5.26"
        },
        "devDependencies": {
          "@eslint/js": "^9.39.2",
          "@vitejs/plugin-vue": "^6.0.3",
          "bootstrap": "~5.3.8",
          "eslint": "^9.39.2",
          "eslint-plugin-vue": "~10.6.2",
          "globals": "^17.0.0",
          "vite": "^7.3.0",
          "vite-plugin-vue-devtools": "^8.0.5"
        }
      }



    • Copy Vintasoft.Imaging.Dialogs.Bootstrap.js and Vintasoft.Imaging.Dicom.Dialogs.Bootstrap.js files from "<InstallPath>\VintaSoft Imaging .NET 15.0\Bin\JavaScript\" folder to the root folder of "vueapp1.client" project.


  • If web DICOM viewer should use ready-to-use "standard" jQuery UI-dialogs:
    • Add "jquery-ui-dist" Node-module to the "package.json" file. Rebuild the project for refreshing Node-modules.
    • Copy Vintasoft.Imaging.Dialogs.jQueryUI.js and Vintasoft.Imaging.Dicom.Dialogs.jQueryUI.js files from "<InstallPath>\VintaSoft Imaging .NET 15.0\Bin\JavaScript\" folder into "src\app\assets\" folder.


  • If web DICOM viewer should use custom "standard" dialogs, please read how to create custom "standard" dialogs here.

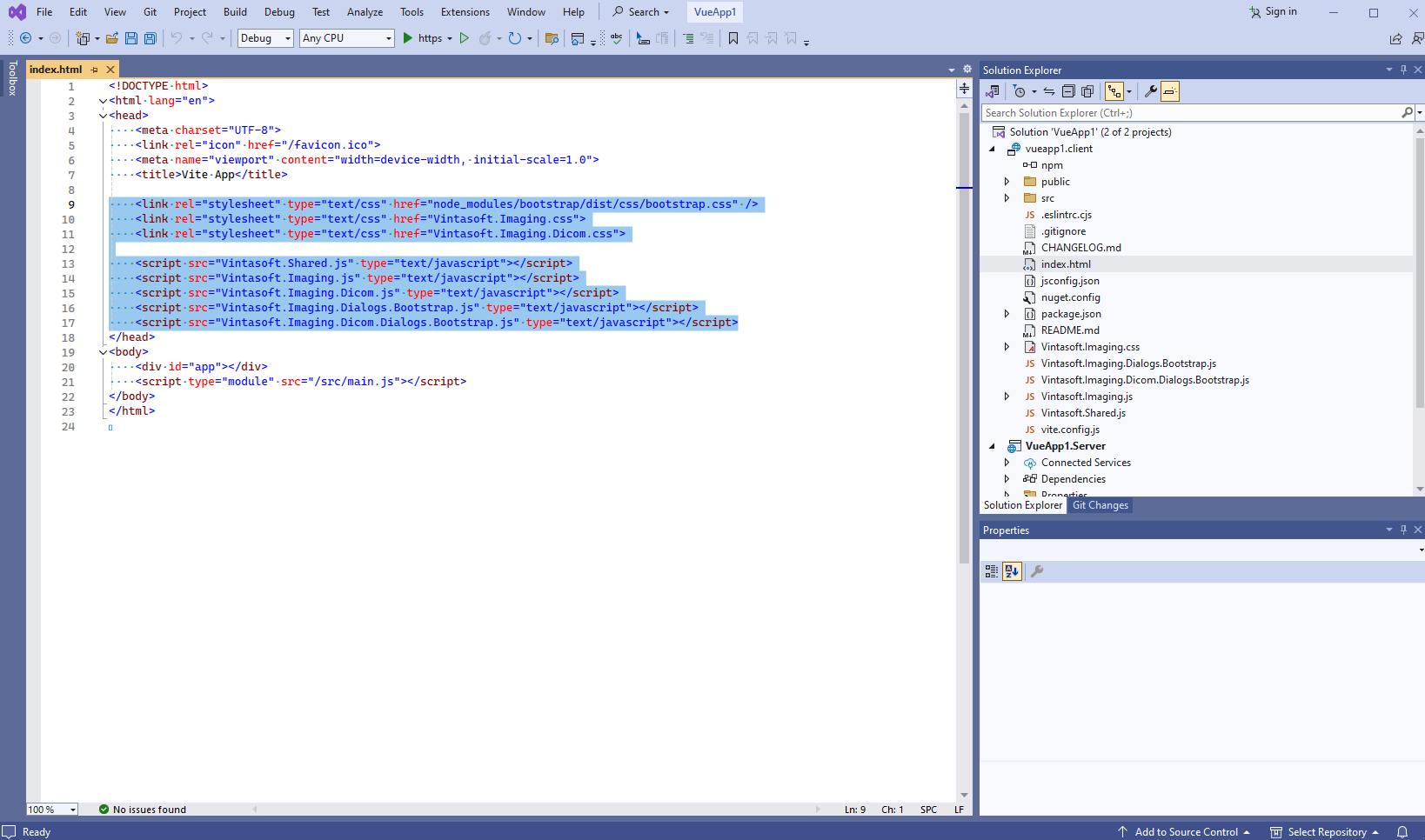

• Add references to Vintasoft JavaScript files to the header of "index.html" file in "vueapp1.client" project.
  Add links to the Vintasoft CSS-files to the "index.html" file in "vueapp1.client" project.
  Add link to the "bootstrap.css" file to the "index.html" file in "vueapp1.client" project.


  Here are source codes of "index.html" file after update:

  • HTML

  <!DOCTYPE html>
  <html lang="en">
  <head>
      <meta charset="UTF-8">
      <link rel="icon" href="/favicon.ico">
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <title>Vite App</title>

      <link rel="stylesheet" type="text/css" href="node_modules/bootstrap/dist/css/bootstrap.css" />
      <link rel="stylesheet" type="text/css" href="Vintasoft.Imaging.css">
      <link rel="stylesheet" type="text/css" href="Vintasoft.Imaging.Dicom.css">

      <script src="Vintasoft.Shared.js" type="text/javascript"></script>
      <script src="Vintasoft.Imaging.js" type="text/javascript"></script>
      <script src="Vintasoft.Imaging.Dicom.js" type="text/javascript"></script>
      <script src="Vintasoft.Imaging.Dialogs.Bootstrap.js" type="text/javascript"></script>
      <script src="Vintasoft.Imaging.Dicom.Dialogs.Bootstrap.js" type="text/javascript"></script>
  </head>
  <body>
      <div id="app"></div>
      <script type="module" src="/src/main.js"></script>
  </body>
  </html>



"vueapp1.client" project: Create Vue-component that allows to view DICOM images.

• In "vueapp1.client" project in folder "src\components\" create "DicomViewerDemo.vue" file that will contain source codes of Vue-component:
  • Select "Add => New Item..." context menu for folder "src\components\" in "vueapp1.client" project => "Add new item" dialog will appear
  • Install template "Vue TypeScript Template" from internet if template is not installed in Visual Studio
  • Select "Vue TypeScript Template" type for new item
  • Set "DicomViewerDemo.vue" as element name
  • Click the "Add" button => dialog will be closed and file "DicomViewerDemo.vue" will be added into folder "src\components\"

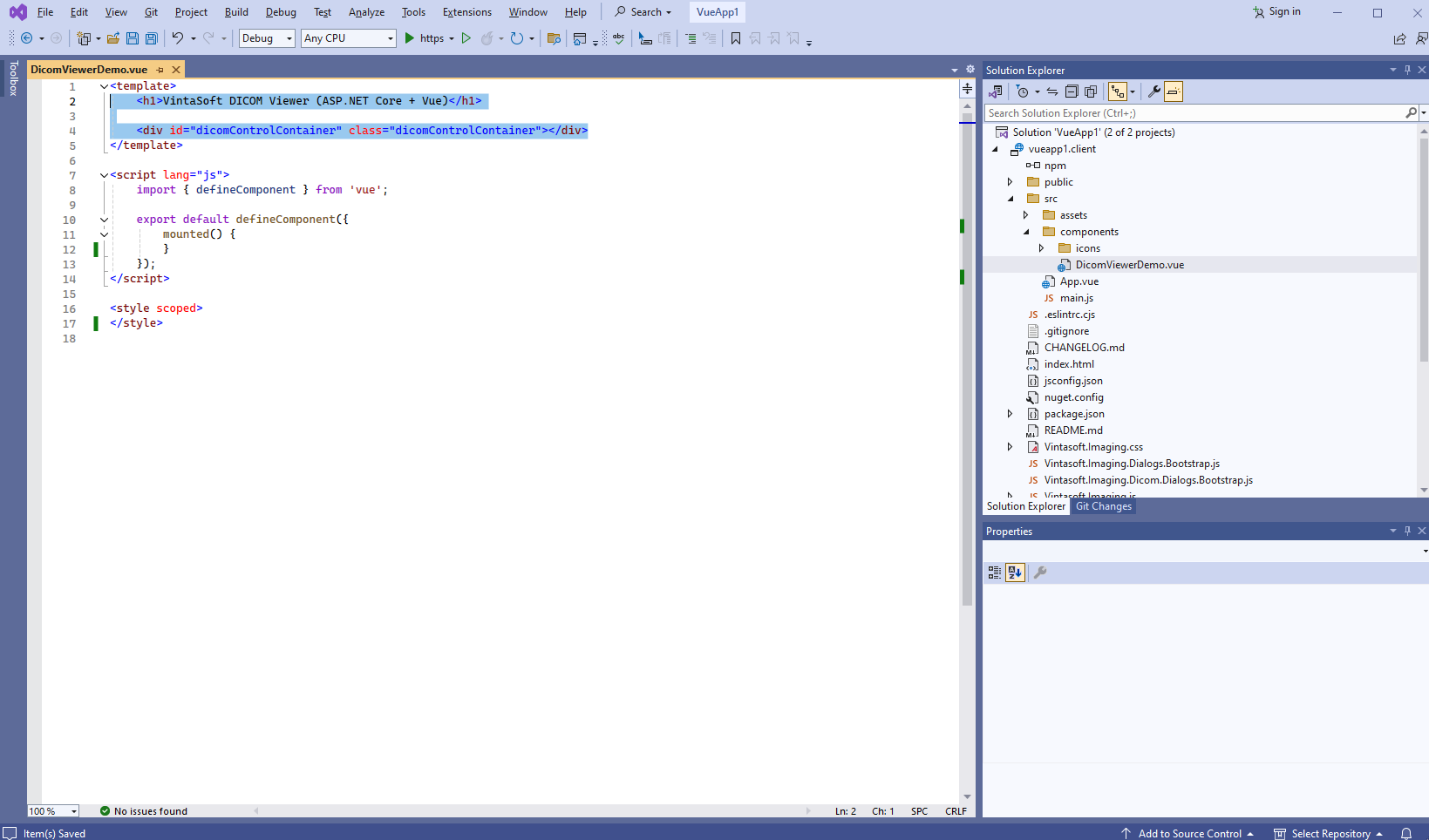

  In DicomViewerDemo.vue file add template that represents page header and div-element that displays DICOM viewer:

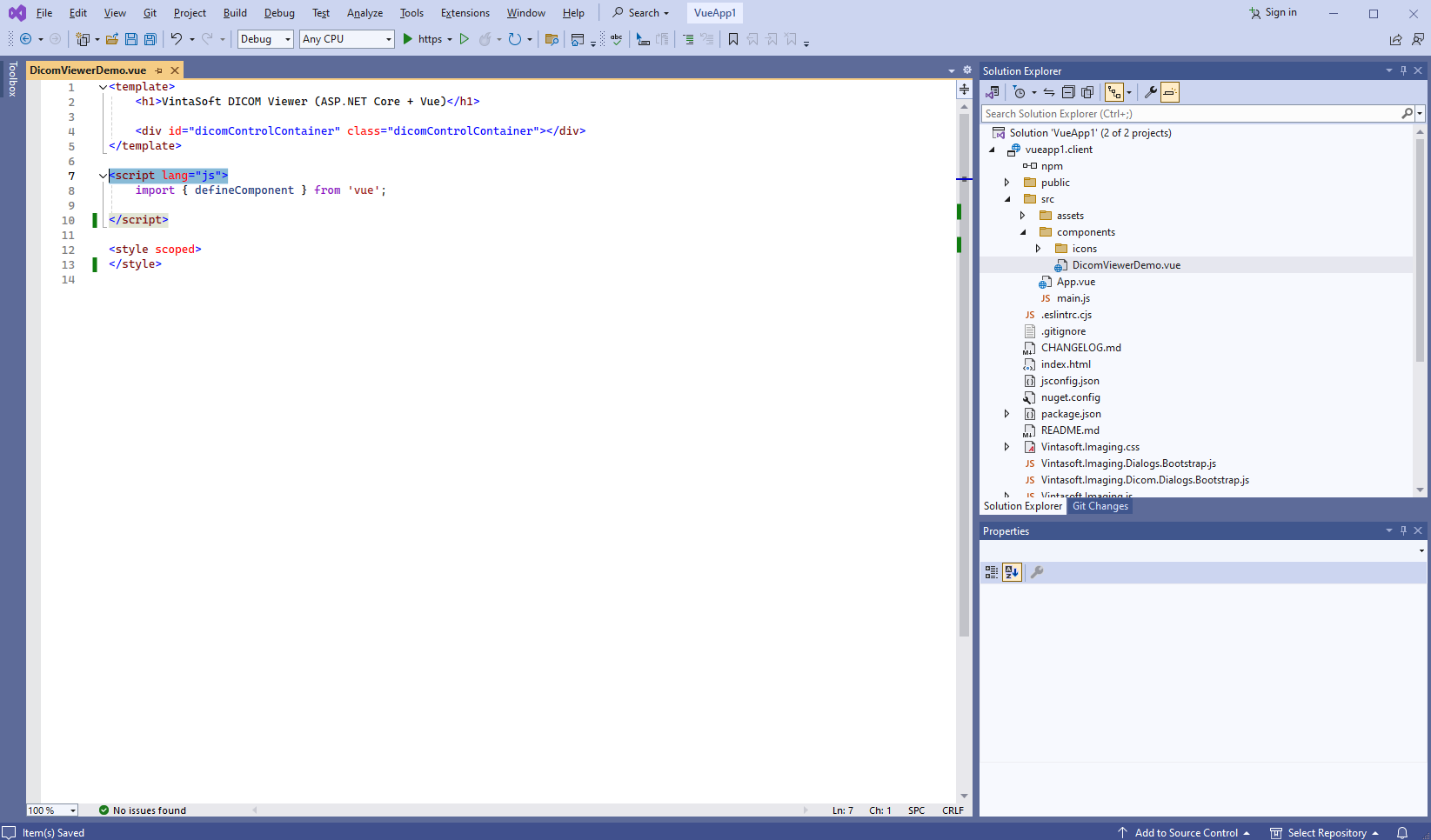

  In DicomViewerDemo.vue file change script type from TypeScript to JavaScript:

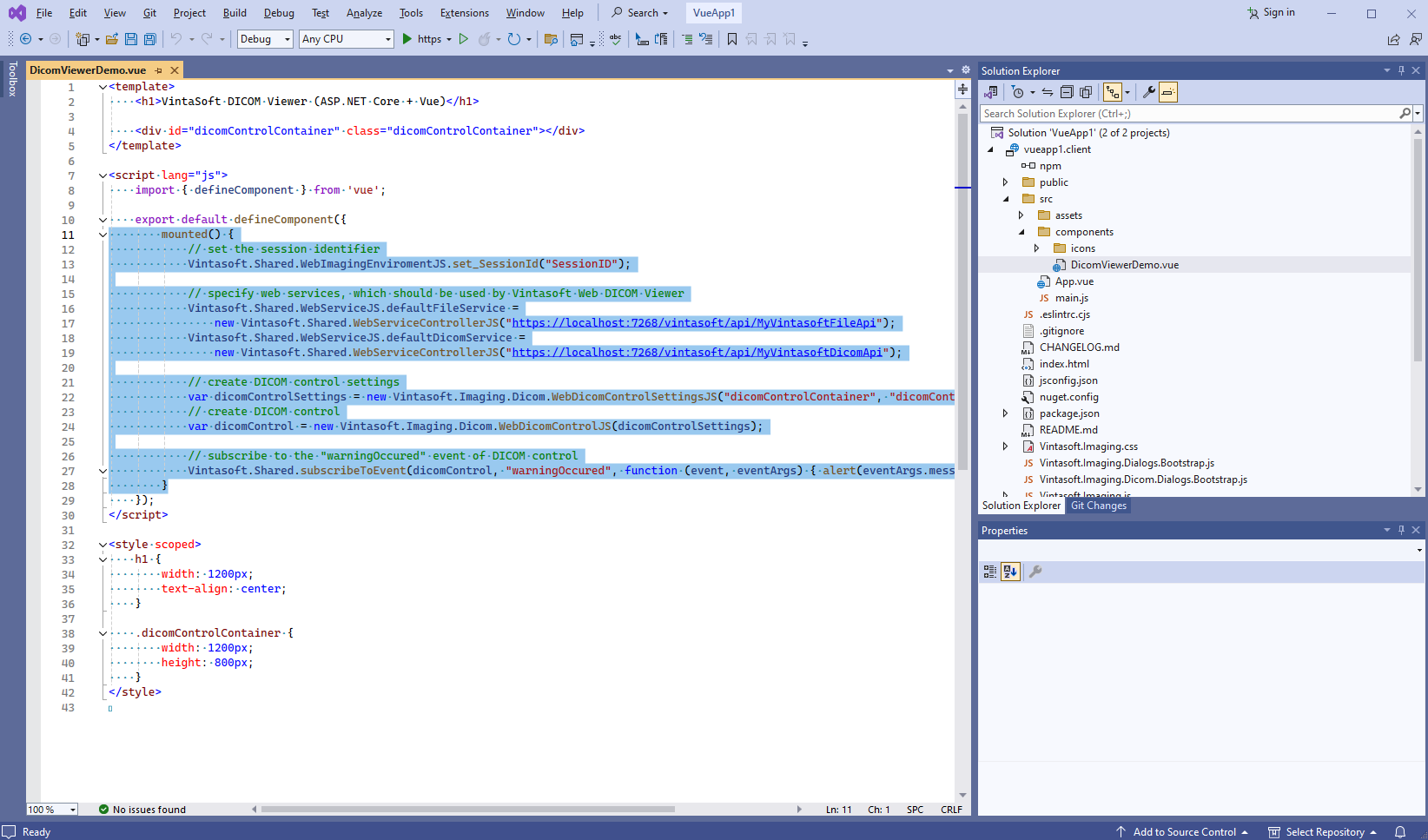

  In DicomViewerDemo.vue file add 'mounted' function (contains JavaScript code that initializes and creates web DICOM viewer):

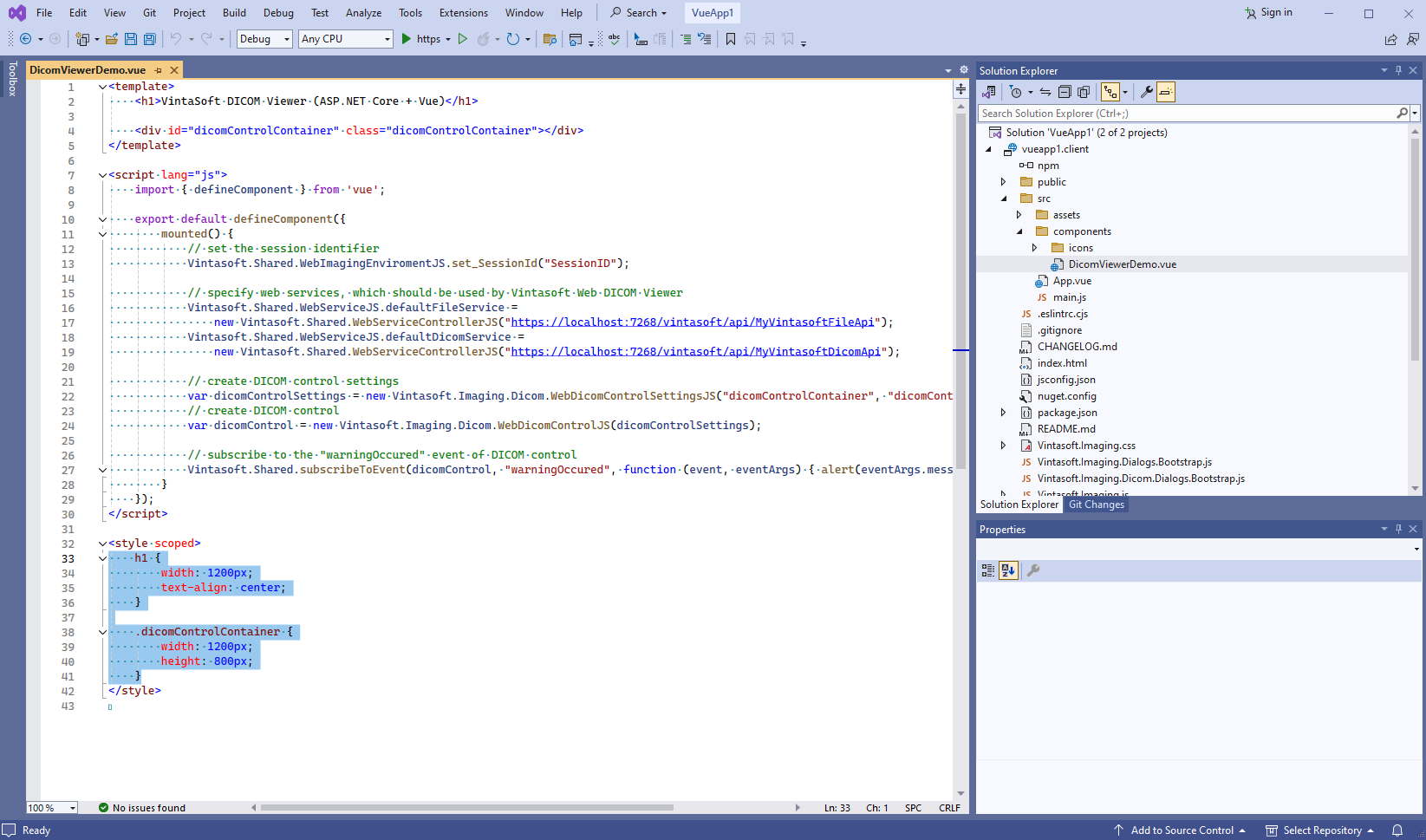

  In DicomViewerDemo.vue file add CSS-style for Vue-component:


  Here is HTML/CSS/JavaScript code of DicomViewerDemo Vue-component:

  • JavaScript

  <template>
    <h1>VintaSoft DICOM Viewer (ASP.NET Core + Vue)</h1>

    <div id="dicomControlContainer" class="dicomControlContainer"></div>
  </template>

  <script lang="js">
    import { defineComponent } from 'vue';

    export default defineComponent({
      mounted() {
        setTimeout(__init, 500);
      }
    });

    function __init() {
      // set the session identifier
      Vintasoft.Shared.WebImagingEnviromentJS.set_SessionId("SessionID");

      // specify web services, which should be used by Vintasoft Web DICOM Viewer
      Vintasoft.Shared.WebServiceJS.defaultFileService =
        new Vintasoft.Shared.WebServiceControllerJS("/vintasoft/api/MyVintasoftFileApi");
      Vintasoft.Shared.WebServiceJS.defaultDicomService =
        new Vintasoft.Shared.WebServiceControllerJS("/vintasoft/api/MyVintasoftDicomApi");

      // create DICOM control settings
      var dicomControlSettings = new Vintasoft.Imaging.Dicom.WebDicomControlSettingsJS("dicomControlContainer", "dicomControl");
      // create DICOM control
      var dicomControl = new Vintasoft.Imaging.Dicom.WebDicomControlJS(dicomControlSettings);

      // subscribe to the "warningOccured" event of DICOM control
      Vintasoft.Shared.subscribeToEvent(dicomControl, "warningOccured", function (event, eventArgs) { alert(eventArgs.message); });

      // add DICOM file "LossyJpeg_Monochrome2_000.0000.dcm" to the DICOM control
      dicomControl.addFiles(["LossyJpeg_Monochrome2_000.0000.dcm"]);
    }
  </script>

  <style scoped>
    h1 {
      width: 1200px;
      text-align: center;
    }

    .dicomControlContainer {
      width: 1200px;
      height: 800px;
    }
  </style>

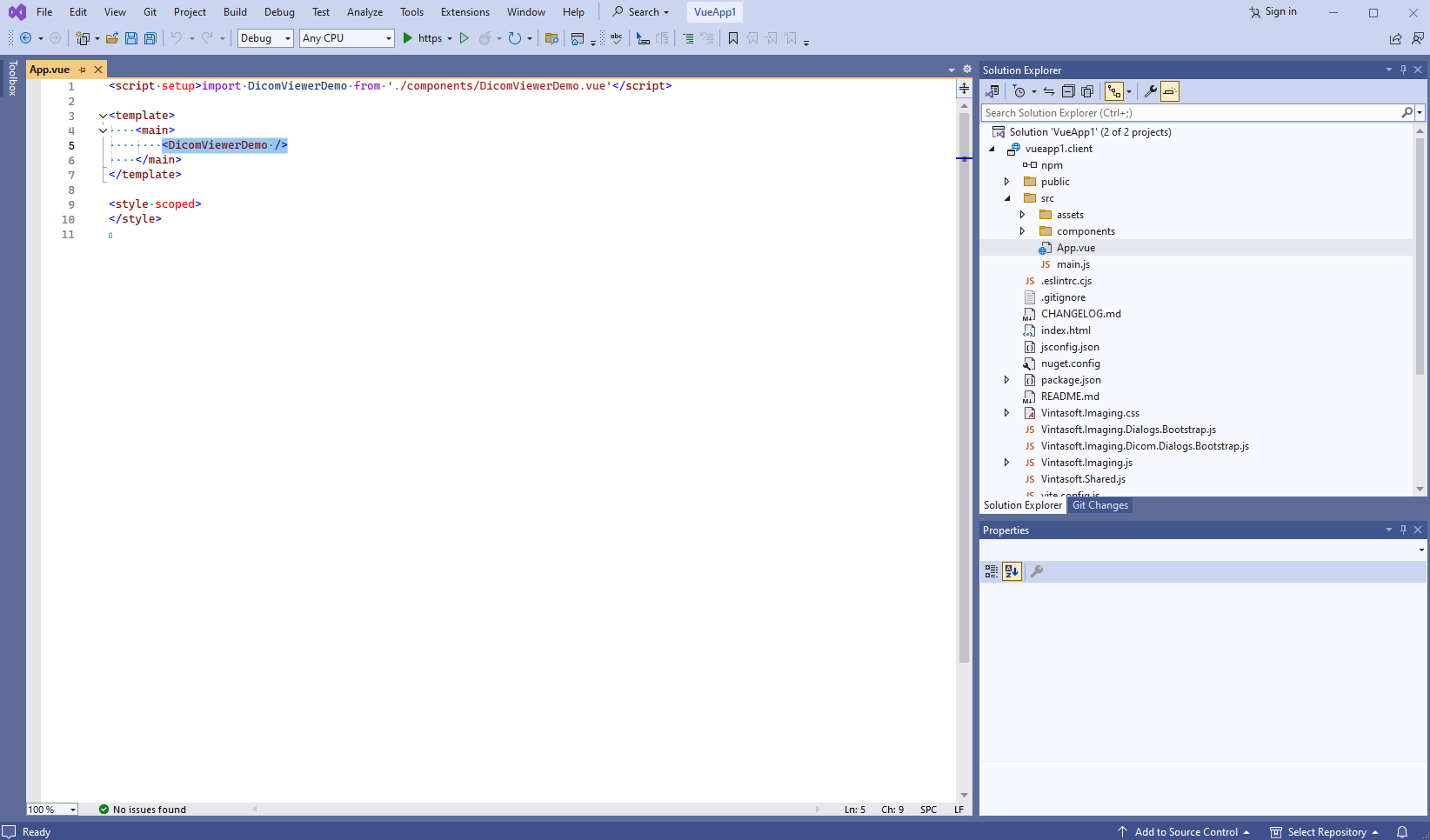

• Add created Vue-component to the Vue-application code - "src\App.vue" file.


  Here are source codes of "App.vue" file after update:

  • JavaScript

  <script setup>import DicomViewerDemo from './components/DicomViewerDemo.vue'</script>

  <template>
      <main>
          <DicomViewerDemo />
      </main>
  </template>

  <style scoped>
  </style>

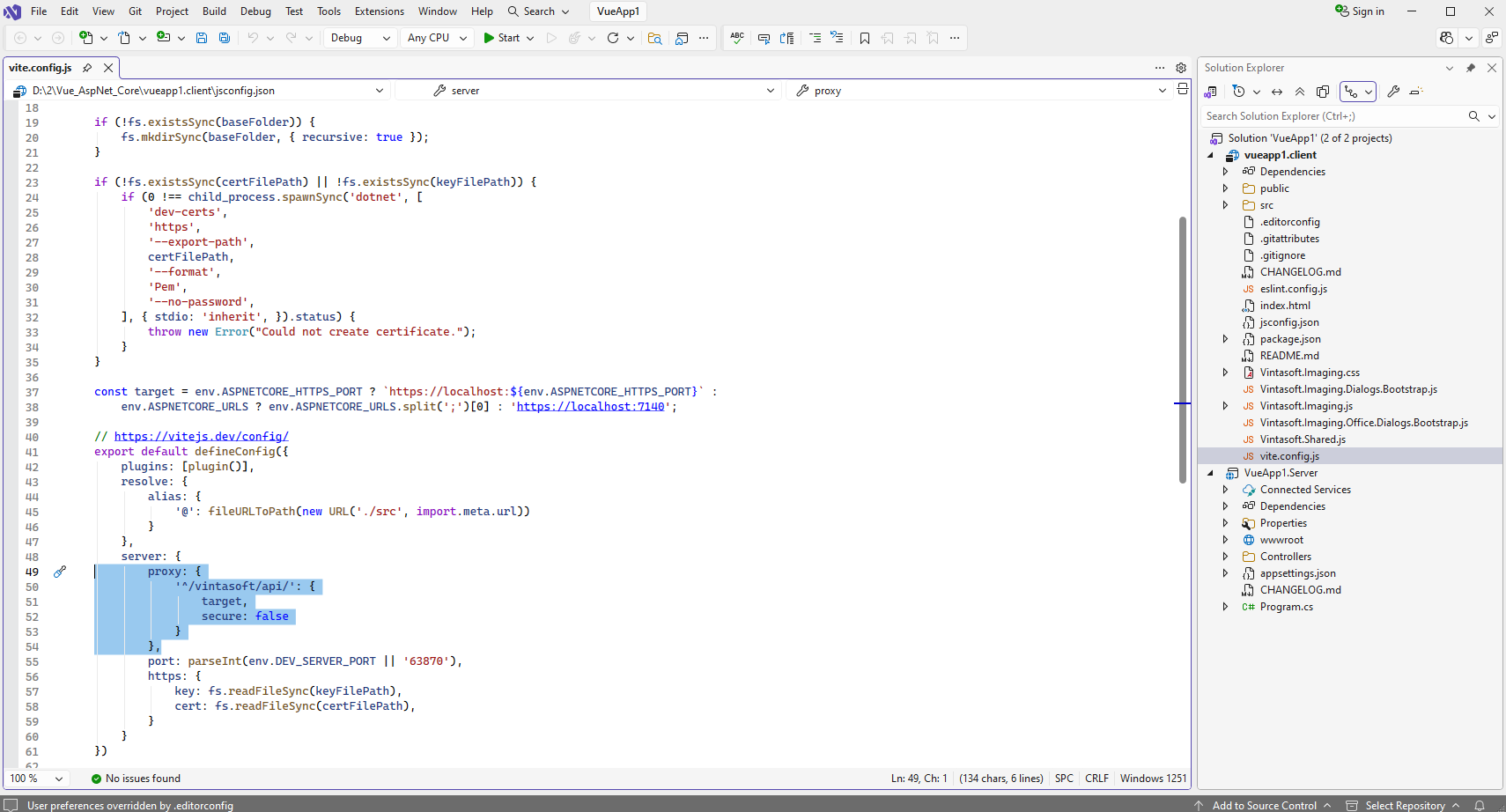

• Open "vite.config.js" file in "vueapp1.client" project and specify that Vue.js aplication can have access to the ASP.NET Core Web API controller "/vintasoft/api/" in "VueApp1.Server" project:
  • JavaScript

  import { fileURLToPath, URL } from 'node:url';

  import { defineConfig } from 'vite';
  import plugin from '@vitejs/plugin-vue';
  import fs from 'fs';
  import path from 'path';
  import child_process from 'child_process';
  import { env } from 'process';

  const baseFolder =
      env.APPDATA !== undefined && env.APPDATA !== ''
          ? `${env.APPDATA}/ASP.NET/https`
          : `${env.HOME}/.aspnet/https`;

  const certificateName = "vueapp1.client";
  const certFilePath = path.join(baseFolder, `${certificateName}.pem`);
  const keyFilePath = path.join(baseFolder, `${certificateName}.key`);

  if (!fs.existsSync(baseFolder)) {
      fs.mkdirSync(baseFolder, { recursive: true });
  }

  if (!fs.existsSync(certFilePath) || !fs.existsSync(keyFilePath)) {
      if (0 !== child_process.spawnSync('dotnet', [
          'dev-certs',
          'https',
          '--export-path',
          certFilePath,
          '--format',
          'Pem',
          '--no-password',
      ], { stdio: 'inherit', }).status) {
          throw new Error("Could not create certificate.");
      }
  }

  const target = env.ASPNETCORE_HTTPS_PORT ? `https://localhost:${env.ASPNETCORE_HTTPS_PORT}` :
      env.ASPNETCORE_URLS ? env.ASPNETCORE_URLS.split(';')[0] : 'https://localhost:7140';

  // https://vitejs.dev/config/
  export default defineConfig({
      plugins: [plugin()],
      resolve: {
          alias: {
              '@': fileURLToPath(new URL('./src', import.meta.url))
          }
      },
      server: {
          proxy: {
              '^/vintasoft/api/': {
                  target,
                  secure: false
              }
          },
          port: parseInt(env.DEV_SERVER_PORT || '63870'),
          https: {
              key: fs.readFileSync(keyFilePath),
              cert: fs.readFileSync(certFilePath),
          }
      }
  })






Run the "Vue and ASP.NET Core" application and see the result.
