    KeyZoneRecognizerCommand Class
    In This Topic
    Recognizes key zones on an image.

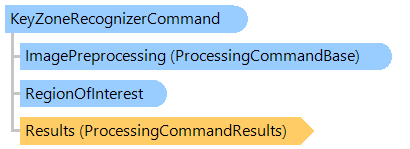

    Object Model
    KeyZoneRecognizerCommand ClassProcessingCommandBase ClassRegionOfInterest ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    'Declaration

    Public MustInherit Class KeyZoneRecognizerCommand
       Inherits Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public abstract class KeyZoneRecognizerCommand : Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public __gc abstract class KeyZoneRecognizerCommand : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public ref class KeyZoneRecognizerCommand abstract : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    Example
    This example shows how to create custom key zone recognizer based on barcode recognition.
    ''' <summary>
    ''' Represents key zone based on recognized barcode.
    ''' </summary>
    Public Class BarcodeKeyZone
        Inherits Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone

        #Region "Constructors"

        ''' <summary>
        ''' Initializes a new instance of the <see cref="BarcodeKeyZone"/> class.
        ''' </summary>
        ''' <param name="barcodeInfo">The barcode information.</param>
        Public Sub New(barcodeInfo As Vintasoft.Barcode.IBarcodeInfo)
            MyBase.New()
            _barcodeInfo = barcodeInfo
            If TypeOf barcodeInfo Is Vintasoft.Barcode.BarcodeInfo.AztecInfo Then
                ' get the barcode center from barcode info
                _location = DirectCast(barcodeInfo, Vintasoft.Barcode.BarcodeInfo.AztecInfo).BulleyeCenter
            Else
                ' calculate the barcode center

                _location = System.Drawing.PointF.Empty
                Dim points As System.Drawing.Point() = barcodeInfo.Region.GetPoints()
                For i As Integer = 0 To points.Length - 1
                    _location.X += points(i).X
                    _location.Y += points(i).Y
                Next
                _location.X /= points.Length
                _location.Y /= points.Length
            End If
        End Sub

        ''' <summary>
        ''' Initializes a new instance of the <see cref="BarcodeKeyZone"/> class.
        ''' </summary>
        ''' <param name="barcodeInfo">The barcode information.</param>
        ''' <param name="location">The location.</param>
        Private Sub New(barcodeInfo As Vintasoft.Barcode.IBarcodeInfo, location As System.Drawing.PointF)
            MyBase.New()
            _barcodeInfo = barcodeInfo
            _location = location
        End Sub

        #End Region



        #Region "Properties"

        Private _location As System.Drawing.PointF
        ''' <summary>
        ''' Gets the location of the key zone on the image.
        ''' </summary>
        Public Overrides ReadOnly Property Location() As System.Drawing.PointF
            Get
                Return _location
            End Get
        End Property

        Private _barcodeInfo As Vintasoft.Barcode.IBarcodeInfo
        ''' <summary>
        ''' Gets the barcode information.
        ''' </summary>
        Public ReadOnly Property BarcodeInfo() As Vintasoft.Barcode.IBarcodeInfo
            Get
                Return _barcodeInfo
            End Get
        End Property

        #End Region



        #Region "Methods"

        ''' <summary>
        ''' Applies a transformation to the key zone.
        ''' </summary>
        ''' <param name="m">The <see cref="Vintasoft.Imaging.Utils.AffineMatrix" />
        ''' that specifies the transformation to apply.</param>
        Public Overrides Sub Transform(m As Vintasoft.Imaging.Utils.AffineMatrix)
            If m Is Nothing Then
                Return
            End If
            _location = Vintasoft.Imaging.Utils.PointFAffineTransform.TransformPoint(m, _location)
        End Sub

        ''' <summary>
        ''' Returns the similarity of specified <see cref="Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone" />
        ''' and the current key zone.
        ''' </summary>
        ''' <param name="zone">The <see cref="Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone" />
        ''' to compare with.</param>
        ''' <returns>
        ''' The similarity of specified keyzone and the current key zone in range from 0 to 1.<br />
        ''' 0 means that zones are absolutely NOT similar;
        ''' 1 means that zones are perfectly similar.
        ''' </returns>
        Public Overrides Function CalculateSimilarity(zone As Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone) As Double
            Dim barcodeZone As BarcodeKeyZone = TryCast(zone, BarcodeKeyZone)
            If barcodeZone Is Nothing Then
                Return 0
            End If

            If barcodeZone.BarcodeInfo.Value = BarcodeInfo.Value AndAlso barcodeZone.BarcodeInfo.BarcodeType = BarcodeInfo.BarcodeType Then
                Return 1
            End If

            Return 0
        End Function

        ''' <summary>
        ''' Creates a new object that is a copy of the current instance.
        ''' </summary>
        ''' <returns>A new object that is a copy of this instance.</returns>
        Public Overrides Function Clone() As Object
            Return New BarcodeKeyZone(BarcodeInfo, Location)
        End Function

        #End Region

    End Class
    ''' <summary>
    ''' Recognizes key zones, based on barcodes, on an image.
    ''' </summary>
    Public Class BarcodeKeyZoneRecognizerCommand
        Inherits Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZoneRecognizerCommand

        #Region "Constructors"

        ''' <summary>
        ''' Initializes a new instance of the <see cref="BarcodeKeyZoneRecognizerCommand"/> class.
        ''' </summary>
        Public Sub New()
            MyBase.New()
            ' set default barcode reader settings
            Settings.ScanBarcodeTypes = Vintasoft.Barcode.BarcodeType.Aztec
            Settings.ScanDirection = Vintasoft.Barcode.ScanDirection.Horizontal Or Vintasoft.Barcode.ScanDirection.Vertical
            Settings.AutomaticRecognition = True
            ' 3 barcode by page
            Settings.ExpectedBarcodes = 3
        End Sub

        #End Region



        #Region "Properties"

        Shared _supportedPixelFormats As System.Collections.ObjectModel.ReadOnlyCollection(Of Vintasoft.Imaging.PixelFormat)
        ''' <summary>
        ''' Gets a list of supported pixel formats for this processing command.
        ''' </summary>
        Public Overrides ReadOnly Property SupportedPixelFormats() As System.Collections.ObjectModel.ReadOnlyCollection(Of Vintasoft.Imaging.PixelFormat)
            Get
                If _supportedPixelFormats Is Nothing Then
                    Dim supportedPixelFormats__1 As New System.Collections.Generic.List(Of Vintasoft.Imaging.PixelFormat)()
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.BlackWhite)
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.Bgr24)
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.Bgr32)
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.Indexed1)
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.Indexed8)
                    supportedPixelFormats__1.Add(Vintasoft.Imaging.PixelFormat.Gray8)
                    _supportedPixelFormats = supportedPixelFormats__1.AsReadOnly()
                End If
                Return _supportedPixelFormats
            End Get
        End Property

        Private _settings As New Vintasoft.Barcode.ReaderSettings()
        ''' <summary>
        ''' Gets or sets the barcode reader settings.
        ''' </summary>
        ''' <value>
        ''' The reader settings.
        ''' </value>
        Public Property Settings() As Vintasoft.Barcode.ReaderSettings
            Get
                Return _settings
            End Get
            Set
                If value Is Nothing Then
                    Throw New System.ArgumentNullException()
                End If
                _settings = value
            End Set
        End Property

        #End Region



        #Region "Methods"

        ''' <summary>
        ''' Creates a new <see cref="BarcodeKeyZoneRecognizerCommand"/> that is a copy of the current
        ''' instance.
        ''' </summary>
        ''' <returns>A new <see cref="BarcodeKeyZoneRecognizerCommand"/> that is a copy of this
        ''' instance.</returns>
        Public Overrides Function Clone() As Object
            Dim recognizer As New BarcodeKeyZoneRecognizerCommand()
            recognizer.IsNested = IsNested
            recognizer.RegionOfInterest = RegionOfInterest
            recognizer.Settings = Settings.Clone()
            Return recognizer
        End Function


        ''' <summary>
        ''' Recognizes key zones in the specified rectangle of the specified image.
        ''' </summary>
        ''' <param name="image">The image where key zones must be searched.</param>
        ''' <param name="rect">The region of interest on image.</param>
        ''' <returns>An array of recognized key zones.</returns>
        Protected Overrides Function Recognize(image As Vintasoft.Imaging.VintasoftImage, rect As System.Drawing.Rectangle) As Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone()
            Dim reader As New Vintasoft.Barcode.BarcodeReader()
            reader.Settings = Settings.Clone()
            reader.Settings.ScanRectangle = rect
            Using bitmap As System.Drawing.Bitmap = image.GetAsBitmap()
                Dim infos As Vintasoft.Barcode.IBarcodeInfo() = reader.ReadBarcodes(bitmap)
                Dim result As Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone() = New Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone(infos.Length - 1) {}
                For i As Integer = 0 To infos.Length - 1
                    result(i) = New BarcodeKeyZone(infos(i))
                Next
                Return result
            End Using
        End Function

        #End Region

    End Class
    /// <summary>
    /// Represents key zone based on recognized barcode.
    /// </summary>
    public class BarcodeKeyZone : Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone
    {

        #region Constructors

        /// <summary>
        /// Initializes a new instance of the <see cref="BarcodeKeyZone"/> class.
        /// </summary>
        /// <param name="barcodeInfo">The barcode information.</param>
        public BarcodeKeyZone(Vintasoft.Barcode.IBarcodeInfo barcodeInfo)
            : base()
        {
            _barcodeInfo = barcodeInfo;
            if (barcodeInfo is Vintasoft.Barcode.BarcodeInfo.AztecInfo)
            {
                // get the barcode center from barcode info
                _location = ((Vintasoft.Barcode.BarcodeInfo.AztecInfo)barcodeInfo).BulleyeCenter;
            }
            else
            {
                // calculate the barcode center

                _location  = System.Drawing.PointF.Empty;
                System.Drawing.Point[] points = barcodeInfo.Region.GetPoints();
                for (int i = 0; i < points.Length; i++)
                {
                    _location.X += points[i].X;
                    _location.Y += points[i].Y;
                }
                _location.X /= points.Length;
                _location.Y /= points.Length;
            }
        }

        /// <summary>
        /// Initializes a new instance of the <see cref="BarcodeKeyZone"/> class.
        /// </summary>
        /// <param name="barcodeInfo">The barcode information.</param>
        /// <param name="location">The location.</param>
        private BarcodeKeyZone(Vintasoft.Barcode.IBarcodeInfo barcodeInfo,
            System.Drawing.PointF location)
            : base()
        {
            _barcodeInfo = barcodeInfo;
            _location = location;
        }

        #endregion



        #region Properties

        System.Drawing.PointF _location;
        /// <summary>
        /// Gets the location of the key zone on the image.
        /// </summary>
        public override System.Drawing.PointF Location
        {
            get
            {
                return _location;
            }
        }

        Vintasoft.Barcode.IBarcodeInfo _barcodeInfo;
        /// <summary>
        /// Gets the barcode information.
        /// </summary>
        public Vintasoft.Barcode.IBarcodeInfo BarcodeInfo
        {
            get
            {
                return _barcodeInfo;
            }
        }

        #endregion



        #region Methods

        /// <summary>
        /// Applies a transformation to the key zone.
        /// </summary>
        /// <param name="m">The <see cref="Vintasoft.Imaging.Utils.AffineMatrix" />
        /// that specifies the transformation to apply.</param>
        public override void Transform(Vintasoft.Imaging.Utils.AffineMatrix m)
        {
            if (m == null)
                return;
            _location = Vintasoft.Imaging.Utils.PointFAffineTransform.TransformPoint(m, _location);
        }

        /// <summary>
        /// Returns the similarity of specified <see cref="Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone" />
        /// and the current key zone.
        /// </summary>
        /// <param name="zone">The <see cref="Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone" />
        /// to compare with.</param>
        /// <returns>
        /// The similarity of specified keyzone and the current key zone in range from 0 to 1.<br />
        /// 0 means that zones are absolutely NOT similar;
        /// 1 means that zones are perfectly similar.
        /// </returns>
        public override double CalculateSimilarity(
            Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone zone)
        {
            BarcodeKeyZone barcodeZone = zone as BarcodeKeyZone;
            if (barcodeZone == null)
                return 0;

            if (barcodeZone.BarcodeInfo.Value == BarcodeInfo.Value &&
                barcodeZone.BarcodeInfo.BarcodeType == BarcodeInfo.BarcodeType)
                return 1;

            return 0;
        }

        /// <summary>
        /// Creates a new object that is a copy of the current instance.
        /// </summary>
        /// <returns>A new object that is a copy of this instance.</returns>
        public override object Clone()
        {
            return new BarcodeKeyZone(BarcodeInfo, Location);
        }

        #endregion

    }
    /// <summary>
    /// Recognizes key zones, based on barcodes, on an image.
    /// </summary>
    public class BarcodeKeyZoneRecognizerCommand :
        Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZoneRecognizerCommand
    {

        #region Constructors

        /// <summary>
        /// Initializes a new instance of the <see cref="BarcodeKeyZoneRecognizerCommand"/> class.
        /// </summary>
        public BarcodeKeyZoneRecognizerCommand()
            : base()
        {
            // set default barcode reader settings
            Settings.ScanBarcodeTypes = Vintasoft.Barcode.BarcodeType.Aztec;
            Settings.ScanDirection =
                Vintasoft.Barcode.ScanDirection.Horizontal | Vintasoft.Barcode.ScanDirection.Vertical;
            Settings.AutomaticRecognition = true;
            // 3 barcode by page
            Settings.ExpectedBarcodes = 3;
        }

        #endregion



        #region Properties

        static System.Collections.ObjectModel.ReadOnlyCollection<Vintasoft.Imaging.PixelFormat> _supportedPixelFormats;
        /// <summary>
        /// Gets a list of supported pixel formats for this processing command.
        /// </summary>
        public override System.Collections.ObjectModel.ReadOnlyCollection<Vintasoft.Imaging.PixelFormat> SupportedPixelFormats
        {
            get
            {
                if (_supportedPixelFormats == null)
                {
                    System.Collections.Generic.List<Vintasoft.Imaging.PixelFormat> supportedPixelFormats =
                        new System.Collections.Generic.List<Vintasoft.Imaging.PixelFormat>();
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.BlackWhite);
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.Bgr24);
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.Bgr32);
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.Indexed1);
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.Indexed8);
                    supportedPixelFormats.Add(Vintasoft.Imaging.PixelFormat.Gray8);
                    _supportedPixelFormats = supportedPixelFormats.AsReadOnly();
                }
                return _supportedPixelFormats;
            }
        }

        Vintasoft.Barcode.ReaderSettings _settings = new Vintasoft.Barcode.ReaderSettings();
        /// <summary>
        /// Gets or sets the barcode reader settings.
        /// </summary>
        /// <value>
        /// The reader settings.
        /// </value>
        public Vintasoft.Barcode.ReaderSettings Settings
        {
            get
            {
                return _settings;
            }
            set
            {
                if (value == null)
                    throw new System.ArgumentNullException();
                _settings = value;
            }
        }

        #endregion



        #region Methods

        /// <summary>
        /// Creates a new <see cref="BarcodeKeyZoneRecognizerCommand"/> that is a copy of the current
        /// instance.
        /// </summary>
        /// <returns>A new <see cref="BarcodeKeyZoneRecognizerCommand"/> that is a copy of this
        /// instance.</returns>
        public override object Clone()
        {
            BarcodeKeyZoneRecognizerCommand recognizer = new BarcodeKeyZoneRecognizerCommand();
            recognizer.IsNested = IsNested;
            recognizer.RegionOfInterest = RegionOfInterest;
            recognizer.Settings = Settings.Clone();
            return recognizer;
        }


        /// <summary>
        /// Recognizes key zones in the specified rectangle of the specified image.
        /// </summary>
        /// <param name="image">The image where key zones must be searched.</param>
        /// <param name="rect">The region of interest on image.</param>
        /// <returns>An array of recognized key zones.</returns>
        protected override Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone[] Recognize(
            Vintasoft.Imaging.VintasoftImage image,
            System.Drawing.Rectangle rect)
        {
            Vintasoft.Barcode.BarcodeReader reader = new Vintasoft.Barcode.BarcodeReader();
            reader.Settings = Settings.Clone();
            reader.Settings.ScanRectangle = rect;
            using (System.Drawing.Bitmap bitmap = image.GetAsBitmap())
            {
                Vintasoft.Barcode.IBarcodeInfo[] infos = reader.ReadBarcodes(bitmap);
                Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone[] result =
                    new Vintasoft.Imaging.FormsProcessing.TemplateMatching.KeyZone[infos.Length];
                for (int i = 0; i < infos.Length; i++)
                    result[i] = new BarcodeKeyZone(infos[i]);
                return result;
            }
        }

        #endregion

    }
    Inheritance Hierarchy
    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003

    See Also
