    OpenXmlDocumentTable Class
    In This Topic
    Represents the table of an Open XML document.

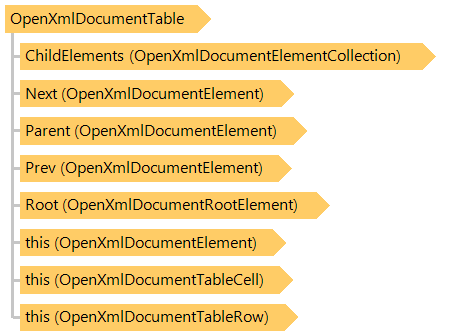

    Object Model
    OpenXmlDocumentTableRow OpenXmlDocumentTableCell OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElementCollection OpenXmlDocumentRootElement OpenXmlDocumentTable
    Syntax
    'Declaration

    <DefaultMemberAttribute("Item")>
    Public Class OpenXmlDocumentTable
       Inherits OpenXmlDocumentElement


    [DefaultMember("Item")]
    public class OpenXmlDocumentTable : OpenXmlDocumentElement


    [DefaultMember("Item")]
    public __gc class OpenXmlDocumentTable : public OpenXmlDocumentElement*


    [DefaultMember("Item")]
    public ref class OpenXmlDocumentTable : public OpenXmlDocumentElement^


    Example

    This C#/VB.NET code shows how to fill data table (example uses template document CopyTableRow_template.docx):


    Public Shared Sub DocxCopyTableRowExample()
        Dim templateFilename As String = "CopyTableRow_template.docx"
        Dim outFilename As String = "CopyTableRow.docx"
        Dim outPdfFilename As String = "CopyTableRow.pdf"

        ' create DocxDocumentEditor that allows to edit file "CopyTableRow_template.docx"
        Using editor As New Vintasoft.Imaging.Office.OpenXml.Editor.Docx.DocxDocumentEditor(templateFilename)
            ' get document body
            Dim documentBody As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentElement = editor.Body

            ' get the first table
            Dim table As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTable = editor.Tables(0)
            ' get the second table that contains template row
            Dim templateRow As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow = table(1)

            ' create an array that contains colors
            Dim colors As System.Drawing.Color() = New System.Drawing.Color() {System.Drawing.Color.Red, System.Drawing.Color.Green, System.Drawing.Color.Blue, System.Drawing.Color.Orange, System.Drawing.Color.Yellow}
            ' for each color
            For i As Integer = 0 To colors.Length - 1
                ' insert copy of template row before template row
                Dim rowCopy As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow = DirectCast(templateRow.InsertCopyBeforeSelf(), Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow)

                ' set row data
                rowCopy(0).Text = String.Format("Copy {0} ({1})", i, colors(i))
                rowCopy("[cell1]") = String.Format("cell data {0}", i)

                ' set cell colors
                rowCopy(1).SetFillColor(colors(i))
                rowCopy(2).SetFillColor(colors(i))

                ' if color has odd index in colors array
                If (i Mod 2) = 1 Then
                    ' set row height to 10mm
                    rowCopy.Height = Vintasoft.Imaging.Utils.UnitOfMeasureConverter.ConvertToPoints(10, Vintasoft.Imaging.UnitOfMeasure.Millimeters)
                End If
            Next

            ' remove template row
            templateRow.Remove()

            ' save changed document to a DOCX file
            editor.Save(outFilename)

            ' export changed document to a PDF document
            editor.Export(outPdfFilename)
        End Using
    End Sub



    public static void DocxCopyTableRowExample()
    {
        string templateFilename = "CopyTableRow_template.docx";
        string outFilename = "CopyTableRow.docx";
        string outPdfFilename = "CopyTableRow.pdf";

        // create DocxDocumentEditor that allows to edit file "CopyTableRow_template.docx"
        using (Vintasoft.Imaging.Office.OpenXml.Editor.Docx.DocxDocumentEditor editor =
            new Vintasoft.Imaging.Office.OpenXml.Editor.Docx.DocxDocumentEditor(templateFilename))
        {
            // get document body
            Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentElement documentBody = editor.Body;

            // get the first table
            Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTable table = editor.Tables[0];
            // get the second table that contains template row
            Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow templateRow = table[1];

            // create an array that contains colors
            System.Drawing.Color[] colors = new System.Drawing.Color[] {
                System.Drawing.Color.Red,
                System.Drawing.Color.Green,
                System.Drawing.Color.Blue,
                System.Drawing.Color.Orange,
                System.Drawing.Color.Yellow
            };
            // for each color
            for (int i = 0; i < colors.Length; i++)
            {
                // insert copy of template row before template row
                Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow rowCopy =
                    (Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow)templateRow.InsertCopyBeforeSelf();

                // set row data
                rowCopy[0].Text = string.Format("Copy {0} ({1})", i, colors[i]);
                rowCopy["[cell1]"] = string.Format("cell data {0}", i);

                // set cell colors
                rowCopy[1].SetFillColor(colors[i]);
                rowCopy[2].SetFillColor(colors[i]);

                // if color has odd index in colors array
                if ((i % 2) == 1)
                {
                    // set row height to 10mm
                    rowCopy.Height = Vintasoft.Imaging.Utils.UnitOfMeasureConverter.ConvertToPoints(10, Vintasoft.Imaging.UnitOfMeasure.Millimeters);
                }
            }

            // remove template row
            templateRow.Remove();

            // save changed document to a DOCX file
            editor.Save(outFilename);

            // export changed document to a PDF document
            editor.Export(outPdfFilename);
        }
    }



    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentElement
          Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTable
             Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet

    Requirements

    Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
