VintaSoft Imaging .NET SDK 15.1: Documentation for .NET developer
Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx Namespace / XlsxDocumentSheet Class
Members Object Syntax Example Hierarchy Requirements SeeAlso
In This Topic
XlsxDocumentSheet Class
In This Topic
Represents the worksheet of XLSX document.

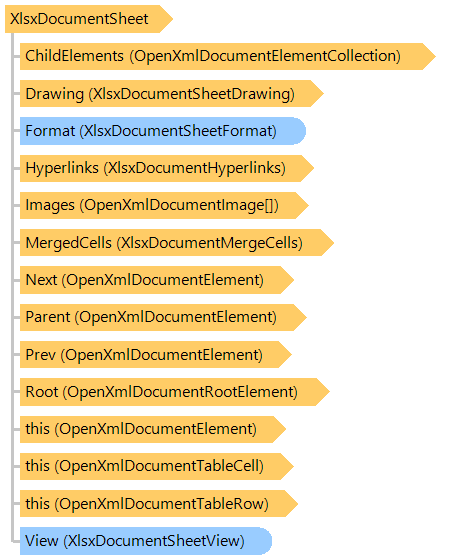

Object Model
XlsxDocumentSheetFormat XlsxDocumentSheetView XlsxDocumentSheetDrawing OpenXmlDocumentImage XlsxDocumentMergeCells XlsxDocumentHyperlinks OpenXmlDocumentTableRow OpenXmlDocumentTableCell OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElement OpenXmlDocumentElementCollection OpenXmlDocumentRootElement XlsxDocumentSheet
Syntax
Example

This C#/VB.NET code shows how to fill data table (example uses template document CopyTableRow_template.xlsx):


Public Shared Sub XlsxCopyTableRowExample()
    Dim templateFilename As String = "CopyTableRow_template.xlsx"
    Dim outFilename As String = "CopyTableRow.xlsx"
    Dim outPdfFilename As String = "CopyTableRow.pdf"

    ' create XlsxDocumentEditor that allows to edit file "CopyTableRow_template.xlsx"
    Using editor As New Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor(templateFilename)
        ' get first sheet in XLSX document
        Dim sheet As Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet = editor.Sheets(0)

        ' find  row that contains text "[cell1]"
        Dim templateRow As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow = sheet.FindRow("[cell1]")

        ' create an array that contains colors
        Dim colors As System.Drawing.Color() = New System.Drawing.Color() {System.Drawing.Color.Red, System.Drawing.Color.Green, System.Drawing.Color.Blue, System.Drawing.Color.Orange, System.Drawing.Color.Yellow}
        ' for each color
        For i As Integer = 0 To colors.Length - 1
            ' insert copy of template row before template row
            Dim rowCopy As Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow = DirectCast(templateRow.InsertCopyBeforeSelf(), Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow)

            ' set row data
            rowCopy(0).Text = String.Format("Copy {0} ({1})", i, colors(i))
            rowCopy("[cell1]") = String.Format("cell data {0}", i)

            ' set cell colors
            rowCopy(1).SetFillColor(colors(i))
            rowCopy(2).SetFillColor(colors(i))

            ' if color has odd index in colors array
            If i Mod 2 = 1 Then
                ' set row height to 10mm
                rowCopy.Height = Vintasoft.Imaging.Utils.UnitOfMeasureConverter.ConvertToPoints(10, Vintasoft.Imaging.UnitOfMeasure.Millimeters)
            End If
        Next

        ' remove template row
        templateRow.Remove()

        ' save changed document to a XLSX file
        editor.Save(outFilename)

        ' export changed document to a PDF document
        editor.Export(outPdfFilename)
    End Using
End Sub


public static void XlsxCopyTableRowExample()
{
    string templateFilename = "CopyTableRow_template.xlsx";
    string outFilename = "CopyTableRow.xlsx";
    string outPdfFilename = "CopyTableRow.pdf";

    // create XlsxDocumentEditor that allows to edit file "CopyTableRow_template.xlsx"
    using (Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor editor =
        new Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentEditor(templateFilename))
    {
        // get first sheet in XLSX document
        Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet sheet = editor.Sheets[0];

        // find  row that contains text "[cell1]"
        Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow templateRow = sheet.FindRow("[cell1]");

        // create an array that contains colors
        System.Drawing.Color[] colors = new System.Drawing.Color[] {
            System.Drawing.Color.Red,
            System.Drawing.Color.Green,
            System.Drawing.Color.Blue,
            System.Drawing.Color.Orange,
            System.Drawing.Color.Yellow
        };
        // for each color
        for (int i = 0; i < colors.Length; i++)
        {
            // insert copy of template row before template row
            Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow rowCopy =
                (Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTableRow)templateRow.InsertCopyBeforeSelf();

            // set row data
            rowCopy[0].Text = string.Format("Copy {0} ({1})", i, colors[i]);
            rowCopy["[cell1]"] = string.Format("cell data {0}", i);

            // set cell colors
            rowCopy[1].SetFillColor(colors[i]);
            rowCopy[2].SetFillColor(colors[i]);

            // if color has odd index in colors array
            if (i % 2 == 1)
            {
                // set row height to 10mm
                rowCopy.Height = Vintasoft.Imaging.Utils.UnitOfMeasureConverter.ConvertToPoints(10, Vintasoft.Imaging.UnitOfMeasure.Millimeters);
            }
        }

        // remove template row
        templateRow.Remove();

        // save changed document to a XLSX file
        editor.Save(outFilename);

        // export changed document to a PDF document
        editor.Export(outPdfFilename);
    }
}

Inheritance Hierarchy

System.Object
   Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentElement
      Vintasoft.Imaging.Office.OpenXml.Editor.OpenXmlDocumentTable
         Vintasoft.Imaging.Office.OpenXml.Editor.Xlsx.XlsxDocumentSheet

Requirements

Target Platforms: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
