    PdfInteractiveFormImportDataAction Class
    In This Topic
    Represents an import interactive form data action.

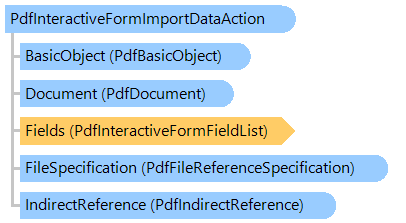

    Object Model
    PdfInteractiveFormImportDataAction ClassPdfBasicObject ClassPdfDocument ClassPdfInteractiveFormFieldList ClassPdfInteractiveFormField ClassPdfFileReferenceSpecification ClassPdfIndirectReference Class
    Syntax
    'Declaration

    Public Class PdfInteractiveFormImportDataAction
       Inherits PdfInteractiveFormAction
    public class PdfInteractiveFormImportDataAction : PdfInteractiveFormAction
    public __gc class PdfInteractiveFormImportDataAction : public PdfInteractiveFormAction
    public ref class PdfInteractiveFormImportDataAction : public PdfInteractiveFormAction
    Remarks
    An import-data action imports Forms Data Format (FDF) data into the document's interactive form from a specified file.
    Example
    This example shows how to load a form data from the specified file.
    ''' <summary>
    ''' Adds a form import button to a PDF document.
    ''' </summary>
    ''' <param name="pdfFilename">The filename of PDF document.</param>
    ''' <param name="loadFilename">The filename of import data file.</param>
    Public Shared Sub AddFormImportButton(pdfFilename As String, loadFilename As String)
        ' open PDF document
        Using document As New Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename)
            ' create PDF page
            Dim page As New Vintasoft.Imaging.Pdf.Tree.PdfPage(document, Vintasoft.Imaging.PaperSizeKind.A6)
            ' add page to the PDF document
            document.Pages.Add(page)

            ' create a button and add button to PDF page
            Dim button As Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField = CreateButtonAndAddToPdfPage(page, "Load form")

            ' create reference to a file with data that should be imported
            Dim fileReference As New Vintasoft.Imaging.Pdf.Tree.PdfFileReferenceSpecification(document, loadFilename)

            ' create the form import action
            Dim action As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormImportDataAction(document, fileReference)
            ' specify that all fields of document must be imported
            action.Fields = document.InteractiveForm.Fields

            ' set the button action
            button.Annotation.ActivateAction = action

            ' save changes to a file
            document.SaveChanges()
        End Using
    End Sub

    ''' <summary>
    ''' Creates button and adds it to PDF page.
    ''' </summary>
    ''' <param name="page">PDF page.</param>
    ''' <param name="caption">Caption of button.</param>
    Public Shared Function CreateButtonAndAddToPdfPage(page As Vintasoft.Imaging.Pdf.Tree.PdfPage, caption As String) As Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField
        ' PDF document
        Dim document As Vintasoft.Imaging.Pdf.PdfDocument = page.Document

        ' button position on PDF page
        Dim rect As New System.Drawing.RectangleF(50, page.Size.Height - 150, 200, 100)

        ' create button
        Dim button As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField(document, "button", rect)
        ' set the border style
        button.Annotation.BorderStyle = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document)
        button.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled
        button.Annotation.BorderStyle.Width = 2
        ' set the appearance characteristics
        button.Annotation.AppearanceCharacteristics = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document)
        button.Annotation.AppearanceCharacteristics.BackgroundColor = System.Drawing.Color.LightGray
        button.Annotation.AppearanceCharacteristics.ButtonNormalCaption = caption
        ' set the text default appearance
        Dim font As Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont = document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman)
        button.SetTextDefaultAppearance(font, 15F, System.Drawing.Color.Black)

        ' if PDF document does NOT have interactive form
        If document.InteractiveForm Is Nothing Then
            ' create interactive form in PDF document
            document.InteractiveForm = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document)
        End If
        ' add button to the interactive form of PDF document
        document.InteractiveForm.Fields.Add(button)

        ' if PDF page does NOT have annotation list
        If page.Annotations Is Nothing Then
            ' create annotation list for PDF page
            page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
        End If
        ' add the button annotation to PDF page
        page.Annotations.Add(button.Annotation)

        ' update field appearance
        button.UpdateAppearance()

        ' return the button
        Return button
    End Function
    /// <summary>
    /// Adds a form import button to a PDF document.
    /// </summary>
    /// <param name="pdfFilename">The filename of PDF document.</param>
    /// <param name="loadFilename">The filename of import data file.</param>
    public static void AddFormImportButton(string pdfFilename, string loadFilename)
    {
        // open PDF document
        using (Vintasoft.Imaging.Pdf.PdfDocument document =
            new Vintasoft.Imaging.Pdf.PdfDocument(pdfFilename))
        {
            // create PDF page
            Vintasoft.Imaging.Pdf.Tree.PdfPage page = new Vintasoft.Imaging.Pdf.Tree.PdfPage(
                document, Vintasoft.Imaging.PaperSizeKind.A6);
            // add page to the PDF document
            document.Pages.Add(page);

            // create a button and add button to PDF page
            Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField button =
                CreateButtonAndAddToPdfPage(page, "Load form");

            // create reference to a file with data that should be imported
            Vintasoft.Imaging.Pdf.Tree.PdfFileReferenceSpecification fileReference =
                new Vintasoft.Imaging.Pdf.Tree.PdfFileReferenceSpecification(document, loadFilename);

            // create the form import action
            Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormImportDataAction action =
                new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormImportDataAction(document, fileReference);
            // specify that all fields of document must be imported
            action.Fields = document.InteractiveForm.Fields;

            // set the button action
            button.Annotation.ActivateAction = action;

            // save changes to a file
            document.SaveChanges();
        }
    }

    /// <summary>
    /// Creates button and adds it to PDF page.
    /// </summary>
    /// <param name="page">PDF page.</param>
    /// <param name="caption">Caption of button.</param>
    public static Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField CreateButtonAndAddToPdfPage(
        Vintasoft.Imaging.Pdf.Tree.PdfPage page, string caption)
    {
        // PDF document
        Vintasoft.Imaging.Pdf.PdfDocument document = page.Document;

        // button position on PDF page
        System.Drawing.RectangleF rect = new System.Drawing.RectangleF(50, page.Size.Height - 150, 200, 100);

        // create button
        Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField button =
            new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField(document, "button", rect);
        // set the border style
        button.Annotation.BorderStyle = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document);
        button.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled;
        button.Annotation.BorderStyle.Width = 2;
        // set the appearance characteristics
        button.Annotation.AppearanceCharacteristics =
            new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document);
        button.Annotation.AppearanceCharacteristics.BackgroundColor = System.Drawing.Color.LightGray;
        button.Annotation.AppearanceCharacteristics.ButtonNormalCaption = caption;
        // set the text default appearance
        Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont font = document.FontManager.GetStandardFont(
            Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman);
        button.SetTextDefaultAppearance(font, 15f, System.Drawing.Color.Black);

        // if PDF document does NOT have interactive form
        if (document.InteractiveForm == null)
            // create interactive form in PDF document
            document.InteractiveForm = new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document);
        // add button to the interactive form of PDF document
        document.InteractiveForm.Fields.Add(button);

        // if PDF page does NOT have annotation list
        if (page.Annotations == null)
            // create annotation list for PDF page
            page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
        // add the button annotation to PDF page
        page.Annotations.Add(button.Annotation);

        // update field appearance
        button.UpdateAppearance();

        // return the button
        return button;
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.PdfAction
             Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormAction
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormImportDataAction

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
