ImageProcessingTool Class

In This Topic

Visual tool for previewing results of image processing in image viewer. Image processing can be done on the whole image or image region.

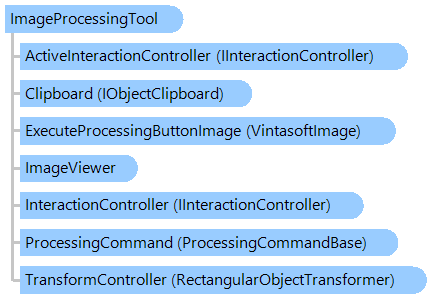

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

Public Class ImageProcessingTool
   Inherits RectangularSelectionTool

public class ImageProcessingTool : RectangularSelectionTool

public __gc class ImageProcessingTool : public RectangularSelectionTool*

public ref class ImageProcessingTool : public RectangularSelectionTool^

Remarks

Image processing result can be previewed in image viewer as follows:

place the mouse to the desired position
press the action button (ActionButton) and select the "image processing" region by holding the action button
release the action button and result of image processing will be shown in selected region

Image can be processed in image viewer as follows:

place the mouse to the desired position
press the action button (ActionButton) and select the "image processing" region by holding the action button
release the action button and result of image processing will be shown in viewer
press the "Execute Processing" button or call ExecuteProcessing method and selected region of image will be processed

If ActionButton is set to the right mouse button, context menu during action can be disabled with the DisableContextMenu property.

Example

This C#/VB.NET code shows how to add the visual tool, which applies the image processing command (invert) to an image region in image viewer, to the image viewer.

VB.NET


''' <summary>
''' Adds the visual tool, which applies the image processing command (invert) to an image region in image viewer,
''' to the image viewer.
''' </summary>
''' <param name="imageViewer">The image viewer.</param>
''' <param name="processSourceImage">Determines that processing command must be applied to the source image.</param>
Public Sub AddVisualToolForProcessingImageRegionInImageViewer(imageViewer As Vintasoft.Imaging.UI.ImageViewer, processSourceImage As Boolean)
    ' create an instance of the ImageProcessingTool class
    Dim imageProcessingTool As New Vintasoft.Imaging.UI.VisualTools.ImageProcessingTool()
    ' set the region of interest on the image
    imageProcessingTool.Rectangle = New System.Drawing.Rectangle(50, 50, 250, 150)
    ' enable preview of image processing on the image viewer
    imageProcessingTool.UseViewerZoomForPreviewProcessing = True
    ' specify that visual tool must apply the image processing command (invert) to the image region in image viewer
    imageProcessingTool.ProcessingCommand = New Vintasoft.Imaging.ImageProcessing.Color.InvertCommand()

    ' set the tool as the current tool of the ImageViewer
    imageViewer.VisualTool = imageProcessingTool

    ' if source image must be also inverted
    If processSourceImage Then
        ' applies the image processing command (invert) to the region of source image
        imageProcessingTool.ExecuteProcessing()
    End If
End Sub


/// <summary>
/// Adds the visual tool, which applies the image processing command (invert) to an image region in image viewer,
/// to the image viewer.
/// </summary>
/// <param name="imageViewer">The image viewer.</param>
/// <param name="processSourceImage">Determines that processing command must be applied to the source image.</param>
public void AddVisualToolForProcessingImageRegionInImageViewer(
    Vintasoft.Imaging.UI.ImageViewer imageViewer,
    bool processSourceImage)
{
    // create an instance of the ImageProcessingTool class
    Vintasoft.Imaging.UI.VisualTools.ImageProcessingTool imageProcessingTool =
        new Vintasoft.Imaging.UI.VisualTools.ImageProcessingTool();
    // set the region of interest on the image
    imageProcessingTool.Rectangle = new System.Drawing.Rectangle(50, 50, 250, 150);
    // enable preview of image processing on the image viewer
    imageProcessingTool.UseViewerZoomForPreviewProcessing = true;
    // specify that visual tool must apply the image processing command (invert) to the image region in image viewer
    imageProcessingTool.ProcessingCommand =
        new Vintasoft.Imaging.ImageProcessing.Color.InvertCommand();

    // set the tool as the current tool of the ImageViewer
    imageViewer.VisualTool = imageProcessingTool;

    // if source image must be also inverted
    if (processSourceImage)
        // applies the image processing command (invert) to the region of source image
        imageProcessingTool.ExecuteProcessing();
}

Inheritance Hierarchy

System.Object
   Vintasoft.Imaging.UI.VisualTools.VisualTool
      Vintasoft.Imaging.UI.VisualTools.UserInteraction.UserInteractionVisualTool
         Vintasoft.Imaging.UI.VisualTools.RectangularSelectionTool
            Vintasoft.Imaging.UI.VisualTools.ImageProcessingTool

Requirements

Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
