    TextOverlayTool Class
    In This Topic
    A visual tool for displaying static text graphic objects in an image viewer.

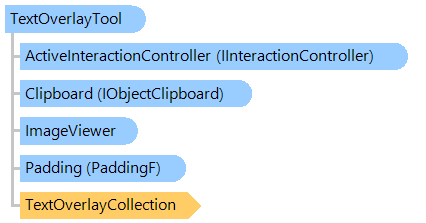

    Object Model
    TextOverlayCollection IObjectClipboard IInteractionController ImageViewer TextOverlayTool
    Syntax
    Example

    This C#/VB.NET code shows how to show the static text in image viewer.


    ''' <summary>
    ''' Shows the static text in image viewer.
    ''' </summary>
    ''' <param name="viewer">An image viewer.</param>
    Public Shared Sub ShowStaticTextExample(viewer As Vintasoft.Imaging.UI.ImageViewer)
        ' create the text overlay visual tool
        Dim textOverlayTool As New Vintasoft.Imaging.UI.VisualTools.TextOverlayTool()

        ' text anchor: viewer center
        Dim textAnchor As Vintasoft.Imaging.AnchorType = Vintasoft.Imaging.AnchorType.Bottom Or Vintasoft.Imaging.AnchorType.Left Or Vintasoft.Imaging.AnchorType.Right Or Vintasoft.Imaging.AnchorType.Top

        ' create the text overlay object
        Dim textOverlay As New Vintasoft.Imaging.UI.VisualTools.TextOverlay(textAnchor, "Text Overlay Example", New System.Drawing.Font(System.Drawing.FontFamily.GenericMonospace, 24F), New System.Drawing.SolidBrush(System.Drawing.Color.DarkGreen))

        ' add text overlay object to the text overlay collection of text overlay visual tool
        textOverlayTool.TextOverlayCollection.Add(textOverlay)

        ' set visual tool as the active visual tool of image viewer
        viewer.VisualTool = textOverlayTool
    End Sub



    /// <summary>
    /// Shows the static text in image viewer.
    /// </summary>
    /// <param name="viewer">An image viewer.</param>
    public static void ShowStaticTextExample(Vintasoft.Imaging.UI.ImageViewer viewer)
    {
        // create the text overlay visual tool
        Vintasoft.Imaging.UI.VisualTools.TextOverlayTool textOverlayTool =
            new Vintasoft.Imaging.UI.VisualTools.TextOverlayTool();

        // text anchor: viewer center
        Vintasoft.Imaging.AnchorType textAnchor =
            Vintasoft.Imaging.AnchorType.Bottom |
            Vintasoft.Imaging.AnchorType.Left |
            Vintasoft.Imaging.AnchorType.Right |
            Vintasoft.Imaging.AnchorType.Top;

        // create the text overlay object
        Vintasoft.Imaging.UI.VisualTools.TextOverlay textOverlay =
            new Vintasoft.Imaging.UI.VisualTools.TextOverlay(
                textAnchor,
                "Text Overlay Example",
                new System.Drawing.Font(System.Drawing.FontFamily.GenericMonospace, 24f),
                new System.Drawing.SolidBrush(System.Drawing.Color.DarkGreen));

        // add text overlay object to the text overlay collection of text overlay visual tool
        textOverlayTool.TextOverlayCollection.Add(textOverlay);

        // set visual tool as the active visual tool of image viewer
        viewer.VisualTool = textOverlayTool;
    }



    Inheritance Hierarchy
    Requirements

    Target Platforms: .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
