WpfGraphicObjectTool Class

In This Topic

Visual tool for displaying static graphic objects in an image viewer.

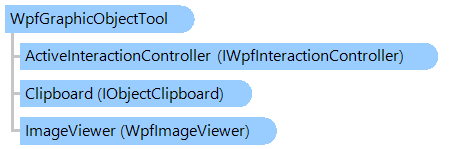

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

<DesignTimeVisibleAttribute("Visible = False")>
<ToolboxItemAttribute("ToolboxItemType = null", "ToolboxItemTypeName = ")>
<DefaultPropertyAttribute("Content")>
<ContentPropertyAttribute("Content")>
<LocalizabilityAttribute(None)>
<StyleTypedPropertyAttribute("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")>
<XmlLangPropertyAttribute("Name = Language")>
<UsableDuringInitializationAttribute("Usable = True")>
<RuntimeNamePropertyAttribute("Name = Name")>
<UidPropertyAttribute()>
<TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
<NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
Public Class WpfGraphicObjectTool
   Inherits Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool

[DesignTimeVisible("Visible = False")]
[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public class WpfGraphicObjectTool : Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool

[DesignTimeVisible("Visible = False")]
[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public __gc class WpfGraphicObjectTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool*

[DesignTimeVisible("Visible = False")]
[ToolboxItem("ToolboxItemType = null", "ToolboxItemTypeName = ")]
[DefaultProperty("Content")]
[ContentProperty("Content")]
[Localizability(None)]
[StyleTypedProperty("Property = FocusVisualStyle", "StyleTargetType = System.Windows.Controls.Control")]
[XmlLangProperty("Name = Language")]
[UsableDuringInitialization("Usable = True")]
[RuntimeNameProperty("Name = Name")]
[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public ref class WpfGraphicObjectTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool^

Example

This C#/VB.NET code shows how to draw two graphic object on viewer: first object - rectangle (red) that uses coordinate system of current image, second object - ellipse (green) that uses coordinate system of image viewer:

VB.NET


''' <summary>
''' Tests the graphics objects on image viewer.
''' </summary>
''' <param name="viewer">The viewer.</param>
Public Shared Sub TestGraphicsObjects(viewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer)
    ' objects location and size
    Dim objectBBox As New System.Windows.Rect(40, 60, 80, 100)

    ' object fill brush
    Dim brush As System.Windows.Media.Brush = New System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(128, 255, 255, 255))

    ' create Rectangular Graphic Object
    Dim rect As New Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfRectangularGraphicObject(objectBBox, New System.Windows.Media.Pen(System.Windows.Media.Brushes.Red, 10), brush)
    ' use current image coordinate space for rectange
    rect.PointTransform = New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfPixelsToImageViewerPointTransform()

    ' create Elliptical Graphic Object
    Dim ellipse As New Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfEllipticalGraphicObject(objectBBox, New System.Windows.Media.Pen(System.Windows.Media.Brushes.Green, 10), brush)
    ' use image viewer coordinate space for ellipse
    ellipse.PointTransform = Nothing

    ' create GraphicObjectTool
    Dim graphicObjects As New Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool()
    graphicObjects.GraphicObjectCollection.Add(rect)
    graphicObjects.GraphicObjectCollection.Add(ellipse)

    ' set GraphicObjectTool as current tool of ImageViewer
    viewer.VisualTool = graphicObjects
End Sub


/// <summary>
/// Tests the graphics objects on image viewer.
/// </summary>
/// <param name="viewer">The viewer.</param>
public static void TestGraphicsObjects(Vintasoft.Imaging.Wpf.UI.WpfImageViewer viewer)
{
    // objects location and size
    System.Windows.Rect objectBBox = new System.Windows.Rect(40, 60, 80, 100);

    // object fill brush
    System.Windows.Media.Brush brush =
        new System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(128, 255, 255, 255));

    // create Rectangular Graphic Object
    Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfRectangularGraphicObject rect =
        new Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfRectangularGraphicObject(
            objectBBox, new System.Windows.Media.Pen(System.Windows.Media.Brushes.Red, 10), brush);
    // use current image coordinate space for rectange
    rect.PointTransform = new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfPixelsToImageViewerPointTransform();

    // create Elliptical Graphic Object
    Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfEllipticalGraphicObject ellipse =
        new Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfEllipticalGraphicObject(
            objectBBox, new System.Windows.Media.Pen(System.Windows.Media.Brushes.Green, 10), brush);
    // use image viewer coordinate space for ellipse
    ellipse.PointTransform = null;

    // create GraphicObjectTool
    Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool graphicObjects =
        new Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool();
    graphicObjects.GraphicObjectCollection.Add(rect);
    graphicObjects.GraphicObjectCollection.Add(ellipse);

    // set GraphicObjectTool as current tool of ImageViewer
    viewer.VisualTool = graphicObjects;
}

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               System.Windows.FrameworkElement
                  System.Windows.Controls.Control
                     System.Windows.Controls.ContentControl
                        Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                           Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool
                              Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
                                 Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool

Requirements

Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
