    WpfTextOverlayTool Class
    In This Topic
    A visual tool for displaying static text graphic objects in an image viewer.

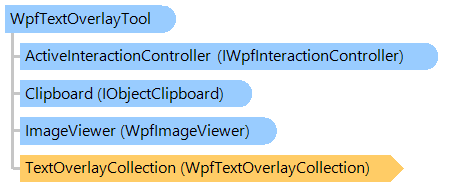

    Object Model
    WpfTextOverlayTool ClassIWpfInteractionController InterfaceWpfImageViewer ClassWpfTextOverlayCollection ClassWpfTextOverlay Class
    Syntax
    'Declaration

    <DefaultPropertyAttribute("Content")>
    <ContentPropertyAttribute("Content")>
    <LocalizabilityAttribute(LocalizationCategory.None, Readability=Readability.Unreadable)>
    <StyleTypedPropertyAttribute(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)>
    <XmlLangPropertyAttribute("Language")>
    <UsableDuringInitializationAttribute(True)>
    <RuntimeNamePropertyAttribute("Name")>
    <UidPropertyAttribute("Uid")>
    <TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>
    <NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>
    Public Class WpfTextOverlayTool
       Inherits Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public class WpfTextOverlayTool : Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public __gc class WpfTextOverlayTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
    [DefaultProperty("Content")]
    [ContentProperty("Content")]
    [Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
    [StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
    [XmlLangProperty("Language")]
    [UsableDuringInitialization(true)]
    [RuntimeNameProperty("Name")]
    [UidProperty("Uid")]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public ref class WpfTextOverlayTool : public Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
    Example
    This example shows how to show the static text in image viewer.
    ''' <summary>
    ''' Shows the static text in image viewer.
    ''' </summary>
    ''' <param name="viewer">An image viewer.</param>
    Public Shared Sub ShowStaticTextExample(viewer As Vintasoft.Imaging.Wpf.UI.WpfImageViewer)
    	' create the text overlay visual tool
    	Dim textOverlayTool As New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool()

    	' text anchor
    	Dim textAnchor As Vintasoft.Imaging.UI.AnchorType = Vintasoft.Imaging.UI.AnchorType.Bottom Or Vintasoft.Imaging.UI.AnchorType.Left Or Vintasoft.Imaging.UI.AnchorType.Right Or Vintasoft.Imaging.UI.AnchorType.Top

    	' create the text overlay object
    	Dim textOverlay As New Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay(textAnchor, "Text Overlay Example", New System.Windows.Media.Typeface("Arial"), 24, New System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(255, 20, 200, 20)))

    	' add text overlay object to the text overlay collection of text overlay visual tool
    	textOverlayTool.TextOverlayCollection.Add(textOverlay)

    	' set visual tool as the active visual tool of image viewer
    	viewer.VisualTool = textOverlayTool
    End Sub
    /// <summary>
    /// Shows the static text in image viewer.
    /// </summary>
    /// <param name="viewer">An image viewer.</param>
    public static void ShowStaticTextExample(Vintasoft.Imaging.Wpf.UI.WpfImageViewer viewer)
    {
        // create the text overlay visual tool
        Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool textOverlayTool =
            new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool();

        // text anchor
        Vintasoft.Imaging.UI.AnchorType textAnchor =
            Vintasoft.Imaging.UI.AnchorType.Bottom |
            Vintasoft.Imaging.UI.AnchorType.Left |
            Vintasoft.Imaging.UI.AnchorType.Right |
            Vintasoft.Imaging.UI.AnchorType.Top;

        // create the text overlay object
        Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay textOverlay =
            new Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlay(
                textAnchor,
                "Text Overlay Example",
                new System.Windows.Media.Typeface("Arial"),
                24,
                new System.Windows.Media.SolidColorBrush(System.Windows.Media.Color.FromArgb(255, 20, 200, 20)));

        // add text overlay object to the text overlay collection of text overlay visual tool
        textOverlayTool.TextOverlayCollection.Add(textOverlay);

        // set visual tool as the active visual tool of image viewer
        viewer.VisualTool = textOverlayTool;
    }
    Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Control
                         System.Windows.Controls.ContentControl
                            Vintasoft.Imaging.Wpf.UI.VisualTools.WpfVisualTool
                               Vintasoft.Imaging.Wpf.UI.VisualTools.UserInteraction.WpfUserInteractionVisualTool
                                  Vintasoft.Imaging.Wpf.UI.VisualTools.GraphicObjects.WpfGraphicObjectTool
                                     Vintasoft.Imaging.Wpf.UI.VisualTools.WpfTextOverlayTool

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
