AnnotatedThumbnailViewer Class

In This Topic

Represents a viewer control for displaying the thumbnails of image collection with annotations.

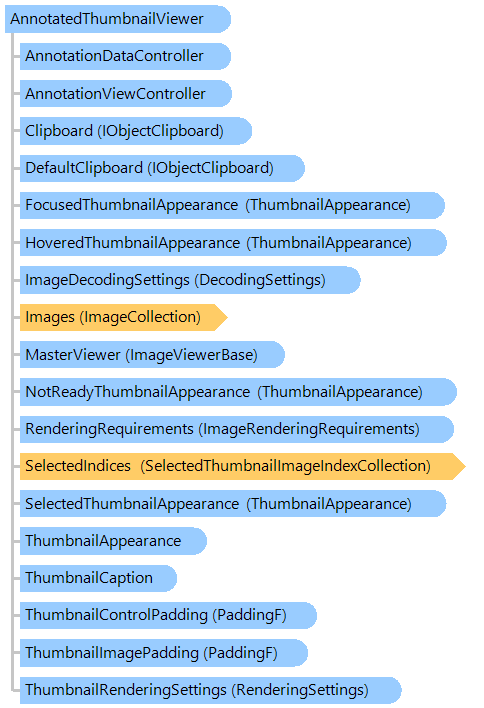

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

<DockingAttribute(Ask)>
<DesignerAttribute("System.Windows.Forms.Design.ScrollableControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")>
<DefaultPropertyAttribute("Text")>
<DefaultEventAttribute("Click")>
<DesignerAttribute("System.Windows.Forms.Design.ControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")>
<DesignerSerializerAttribute("System.Windows.Forms.Design.ControlCodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.Serialization.CodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")>
<ToolboxItemFilterAttribute("System.Windows.Forms", Allow)>
<DesignerCategoryAttribute("Component")>
Public Class AnnotatedThumbnailViewer
   Inherits Vintasoft.Imaging.UI.ThumbnailViewer

[Docking(Ask)]
[Designer("System.Windows.Forms.Design.ScrollableControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DefaultProperty("Text")]
[DefaultEvent("Click")]
[Designer("System.Windows.Forms.Design.ControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DesignerSerializer("System.Windows.Forms.Design.ControlCodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.Serialization.CodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")]
[ToolboxItemFilter("System.Windows.Forms", Allow)]
[DesignerCategory("Component")]
public class AnnotatedThumbnailViewer : Vintasoft.Imaging.UI.ThumbnailViewer

[Docking(Ask)]
[Designer("System.Windows.Forms.Design.ScrollableControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DefaultProperty("Text")]
[DefaultEvent("Click")]
[Designer("System.Windows.Forms.Design.ControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DesignerSerializer("System.Windows.Forms.Design.ControlCodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.Serialization.CodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")]
[ToolboxItemFilter("System.Windows.Forms", Allow)]
[DesignerCategory("Component")]
public __gc class AnnotatedThumbnailViewer : public Vintasoft.Imaging.UI.ThumbnailViewer*

[Docking(Ask)]
[Designer("System.Windows.Forms.Design.ScrollableControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DefaultProperty("Text")]
[DefaultEvent("Click")]
[Designer("System.Windows.Forms.Design.ControlDesigner, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.IDesigner, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")]
[DesignerSerializer("System.Windows.Forms.Design.ControlCodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a", "System.ComponentModel.Design.Serialization.CodeDomSerializer, System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")]
[ToolboxItemFilter("System.Windows.Forms", Allow)]
[DesignerCategory("Component")]
public ref class AnnotatedThumbnailViewer : public Vintasoft.Imaging.UI.ThumbnailViewer^

Remarks

AnnotatedThumbnailViewer allows to:

Preview thumbnails of images with annotations
Select multiple thumbnails
Reorder thumbnails using drag-and-drop
Remove thumbnail(s) from thumbnail viewer
Use copy/cut/paste operations

AnnotatedThumbnailViewer has the image collection (the Images property) which stores images associated with this viewer.

AnnotatedThumbnailViewer can work separately (viewer will have own image collection) or as a slave viewer of another viewer (viewer will use the image collection of master viewer).

AnnotatedThumbnailViewer starts a background thread each time when the image collection associated with it was changed. It raises the ThumbnailAdded event for each added or updated thumbnail.

Images from the AnnotatedThumbnailViewer's image collection can be reordered using drag-and-drop.

Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         System.Windows.Forms.Control
            System.Windows.Forms.ScrollableControl
               Vintasoft.Imaging.UI.ImageViewerBase
                  Vintasoft.Imaging.UI.ThumbnailViewer
                     Vintasoft.Imaging.Annotation.UI.AnnotatedThumbnailViewer

Requirements

Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

Reference

AnnotatedThumbnailViewer Members
Vintasoft.Imaging.Annotation.UI Namespace
