HolePunchFillingCommand Class
In This Topic
Fills not filled hole punches (fills white circle inside hole punch by black color) on image automatically.

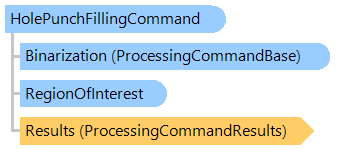

Object Model
Syntax
Remarks
Algorithm of class detects hole punches in 4 regions of source image: 1. Rectangle at the left side of source image: point=(0; 0), width=sourceImageWith*ScanAreaWidth, height=sourceImageHeight.
2. Rectangle at the right side of source image: point=(sourceImageWith-sourceImageWith*ScanAreaWidth; 0), width=sourceImageWith*ScanAreaWidth, height=sourceImageHeight.
3. Rectangle at the top side of source image: point=(0; 0), width=sourceImageWith, height=sourceImageHeight*ScanAreaHeight.
4. Rectangle at the bottom side of source image: point=(0; sourceImageHeight-sourceImageHeight*ScanAreaHeight), width=sourceImageWith, height=sourceImageHeight*ScanAreaHeight.
Here is a "good" sequence of operations for the document image processing:
- Invert an inverted image (AutoInvertCommand)
- Clear a border of an image (BorderClearCommand)
- Remove halftone from an image (HalftoneRemovalCommand)
- Deskew an image (DeskewCommand)
- Fill not filled hole punches from an image (HolePunchFillingCommand)
- Remove hole punches from an image (HolePunchRemovalCommand)
- Remove lines from an image (LineRemovalCommand)
- Invert inverted text regions on an image (AutoTextInvertCommand)
- Despeckle an image (DespeckleCommand)
- Remove border of an image (BorderRemovalCommand)
RegionOfInterest property can be used for specifying the region of interest for this command.
Example
This C#/VB.NET code shows how to load an image of document from disk, prepare the image of document for OCR and save the result to the new image file.
Class DocumentCommandsExample
Public Sub ProcessImage()
' [ do not forget to set your image file path here! ]
' create an image collection
Using images As New Vintasoft.Imaging.ImageCollection()
' add image to the image collection
images.Add("Flower.jpg")
Try
Try
' for each image in image collection
For Each image As Vintasoft.Imaging.VintasoftImage In images
' invert an image if image is inverted
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.AutoInvertCommand(), image)
' clear noise on a border of the image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.BorderClearCommand(), image)
' remove halftone from the image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.HalftoneRemovalCommand(), image)
' detect the correct orientation of the image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.DeskewCommand(), image)
' remove hole punches on image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.HolePunchRemovalCommand(), image)
' remove tables on image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.LineRemovalCommand(Vintasoft.Imaging.ImageProcessing.LinesType.Tables), image)
' invert inverted text regions on an image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.AutoTextInvertCommand(), image)
' remove noise from the image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.DespeckleCommand(), image)
' remove border around the image
ExecuteCommand(New Vintasoft.Imaging.ImageProcessing.Document.BorderRemovalCommand(), image)
Next
Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
' show error message
System.Windows.Forms.MessageBox.Show(ex.Message)
Return
End Try
' save the processed image collection to a new TIFF file
images.SaveSync("processed-image.tif")
Finally
images.ClearAndDisposeItems()
End Try
End Using
End Sub
Private Sub ExecuteCommand(command As Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase, image As Vintasoft.Imaging.VintasoftImage)
' subscribe to the progress event of command
AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)
' execute the command
command.ExecuteInPlace(image)
' unsubscribe from the progress event of command
RemoveHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)
End Sub
Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
' update progress info using e.Progress property
' ...
' cancel execution of command using e.Cancel property if necessary
' ...
End Sub
End Class
class DocumentCommandsExample
{
public void ProcessImage()
{
// [ do not forget to set your image file path here! ]
// create an image collection
using (Vintasoft.Imaging.ImageCollection images = new Vintasoft.Imaging.ImageCollection())
{
// add image to the image collection
images.Add("Flower.jpg");
try
{
try
{
// for each image in image collection
foreach (Vintasoft.Imaging.VintasoftImage image in images)
{
// invert an image if image is inverted
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.AutoInvertCommand(), image);
// clear noise on a border of the image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.BorderClearCommand(), image);
// remove halftone from the image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.HalftoneRemovalCommand(), image);
// detect the correct orientation of the image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.DeskewCommand(), image);
// remove hole punches on image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.HolePunchRemovalCommand(), image);
// remove tables on image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.LineRemovalCommand(
Vintasoft.Imaging.ImageProcessing.LinesType.Tables),
image);
// invert inverted text regions on an image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.AutoTextInvertCommand(), image);
// remove noise from the image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.DespeckleCommand(), image);
// remove border around the image
ExecuteCommand(
new Vintasoft.Imaging.ImageProcessing.Document.BorderRemovalCommand(), image);
}
}
catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
{
// show error message
System.Windows.Forms.MessageBox.Show(ex.Message);
return;
}
// save the processed image collection to a new TIFF file
images.SaveSync("processed-image.tif");
}
finally
{
images.ClearAndDisposeItems();
}
}
}
void ExecuteCommand(
Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase command,
Vintasoft.Imaging.VintasoftImage image)
{
// subscribe to the progress event of command
command.Progress +=
new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);
// execute the command
command.ExecuteInPlace(image);
// unsubscribe from the progress event of command
command.Progress -=
new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);
}
void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
{
// update progress info using e.Progress property
// ...
// cancel execution of command using e.Cancel property if necessary
// ...
}
}
