    PdfInteractiveFormPushButtonField Class
    In This Topic
    Provides information about interactive form field that defines push button.

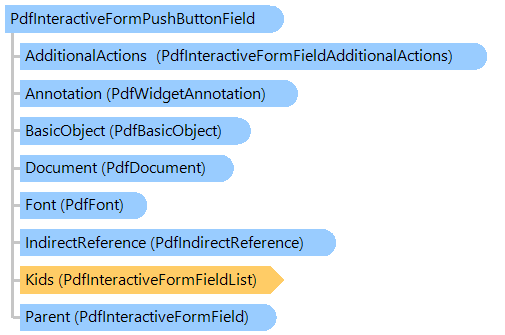

    Object Model
    PdfInteractiveFormPushButtonField ClassPdfInteractiveFormFieldAdditionalActions ClassPdfWidgetAnnotation ClassPdfBasicObject ClassPdfDocument ClassPdfFont ClassPdfIndirectReference ClassPdfInteractiveFormFieldList ClassPdfInteractiveFormField ClassPdfInteractiveFormField Class
    Syntax
    'Declaration

    Public Class PdfInteractiveFormPushButtonField
       Inherits PdfInteractiveFormButtonField
    public class PdfInteractiveFormPushButtonField : PdfInteractiveFormButtonField
    public __gc class PdfInteractiveFormPushButtonField : public PdfInteractiveFormButtonField
    public ref class PdfInteractiveFormPushButtonField : public PdfInteractiveFormButtonField
    Example
    This example shows how to create a PDF document with the push button field:
    Class PdfInteractiveFormPushbuttonFieldExample
        ''' <summary>
        ''' Creates a PDF document with push button field.
        ''' </summary>
        ''' <param name="filename">The filename.</param>
        Public Shared Sub CreateDocumentWithPushbuttonField(filename As String)
            ' create PDF document
            Using document As New Vintasoft.Imaging.Pdf.PdfDocument()
                ' create interactive form in PDF document
                document.InteractiveForm = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document)

                ' specify that the viewer application must construct appearance streams and
                ' appearance properties for all widget annotations
                document.InteractiveForm.NeedAppearances = True

                ' create an empty page
                Dim page As New Vintasoft.Imaging.Pdf.Tree.PdfPage(document, Vintasoft.Imaging.PaperSizeKind.A4)
                ' add page to the document
                document.Pages.Add(page)

                Dim width As Single = 70
                Dim height As Single = 30
                ' create a rectangle that defines push box position on PDF page
                Dim rect As New System.Drawing.RectangleF((page.Size.Width - width) / 2, ((page.Size.Height - height) / 3) * 2, width, height)

                ' create a push button field
                Dim button As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField(document, "BestFitButton", rect)

                ' set the border style
                button.Annotation.BorderStyle = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document)
                button.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled
                button.Annotation.BorderStyle.Width = 1

                ' set the appearance characteristics
                button.Annotation.AppearanceCharacteristics = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document)
                button.Annotation.AppearanceCharacteristics.BackgroundColor = System.Drawing.Color.LightGray
                button.Annotation.AppearanceCharacteristics.ButtonNormalCaption = "BestFit"

                ' set the activate action
                button.Annotation.ActivateAction = New Vintasoft.Imaging.Pdf.Tree.PdfGotoAction(New Vintasoft.Imaging.Pdf.Tree.PdfDestinationFit(document, page))

                ' set the default appearance of text
                Dim font As Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont = document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman)
                button.SetTextDefaultAppearance(font, 12, System.Drawing.Color.Black)

                ' add the push button field to the interactive form of document
                document.InteractiveForm.Fields.Add(button)

                ' add annotation, associated with push button field, to the page
                page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
                page.Annotations.Add(button.Annotation)

                ' save the document
                document.Save(filename)
            End Using
        End Sub
    End Class
    class PdfInteractiveFormPushbuttonFieldExample
    {
        /// <summary>
        /// Creates a PDF document with push button field.
        /// </summary>
        /// <param name="filename">The filename.</param>
        public static void CreateDocumentWithPushbuttonField(string filename)
        {
            // create PDF document
            using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument())
            {
                // create interactive form in PDF document
                document.InteractiveForm =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document);

                // specify that the viewer application must construct appearance streams and
                // appearance properties for all widget annotations
                document.InteractiveForm.NeedAppearances = true;

                // create an empty page
                Vintasoft.Imaging.Pdf.Tree.PdfPage page = new Vintasoft.Imaging.Pdf.Tree.PdfPage(
                    document, Vintasoft.Imaging.PaperSizeKind.A4);
                // add page to the document
                document.Pages.Add(page);

                float width = 70;
                float height = 30;
                // create a rectangle that defines push box position on PDF page
                System.Drawing.RectangleF rect = new System.Drawing.RectangleF(
                    (page.Size.Width - width) / 2,
                    ((page.Size.Height - height) / 3) * 2,
                    width, height);

                // create a push button field
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField button =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField(
                        document, "BestFitButton", rect);

                // set the border style
                button.Annotation.BorderStyle =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document);
                button.Annotation.BorderStyle.Style =
                    Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled;
                button.Annotation.BorderStyle.Width = 1;

                // set the appearance characteristics
                button.Annotation.AppearanceCharacteristics =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document);
                button.Annotation.AppearanceCharacteristics.BackgroundColor = System.Drawing.Color.LightGray;
                button.Annotation.AppearanceCharacteristics.ButtonNormalCaption = "BestFit";

                // set the activate action
                button.Annotation.ActivateAction = new Vintasoft.Imaging.Pdf.Tree.PdfGotoAction(
                    new Vintasoft.Imaging.Pdf.Tree.PdfDestinationFit(document, page));

                // set the default appearance of text
                Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont font = document.FontManager.GetStandardFont(
                    Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman);
                button.SetTextDefaultAppearance(font, 12, System.Drawing.Color.Black);

                // add the push button field to the interactive form of document
                document.InteractiveForm.Fields.Add(button);

                // add annotation, associated with push button field, to the page
                page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
                page.Annotations.Add(button.Annotation);

                // save the document
                document.Save(filename);
            }
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormField
             Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormButtonField
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormPushButtonField

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
