ImageViewerProcessingTool Class
In This Topic
Represents a visual tool for processing of rectangular area in image viewer.

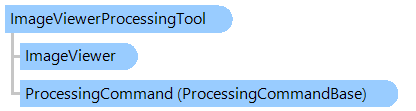

Object Model
ProcessingCommandBase ImageViewer ImageViewerProcessingTool
Syntax
'Declaration

Public Class ImageViewerProcessingTool
   Inherits VisualTool

public class ImageViewerProcessingTool : VisualTool

Remarks

This visual tool is faster than ImageProcessingTool because this tool processes only image region, which is visible in image viewer, and ImageProcessingTool always processes the whole image loaded in image viewer.

Example

This C#/VB.NET code shows how to add the visual tool, which changes brightness of visible area of image viewer, to the image viewer.


''' <summary>
''' Adds the visual tool, which changes brightness of visible area of image viewer, to the image viewer.
''' </summary>
''' <param name="imageViewer">The image viewer.</param>
''' <param name="imageBrightness">The image brightness value in percents. Valid values are from -100 to 100.</param>
Public Sub AddVisualToolForProcessingVisibleAreaInImageViewer(imageViewer As Vintasoft.Imaging.UI.ImageViewer, imageBrightness As Integer)
    ' create command for changing of image brightness
    Dim changeBrightnessCommand As New Vintasoft.Imaging.ImageProcessing.Color.ChangeBrightnessCommand()
    ' set the command parameters
    changeBrightnessCommand.Brightness = imageBrightness

    ' create an instance of the ImageViewerProcessingTool class
    Dim imageViewerProcessingTool As New Vintasoft.Imaging.UI.VisualTools.ImageViewerProcessingTool()
    ' specify that visual tool must use the command for processing visible area in image viewer
    imageViewerProcessingTool.ProcessingCommand = changeBrightnessCommand

    ' set the tool as the current tool of the ImageViewer
    imageViewer.VisualTool = imageViewerProcessingTool
End Sub


/// <summary>
/// Adds the visual tool, which changes brightness of visible area of image viewer, to the image viewer.
/// </summary>
/// <param name="imageViewer">The image viewer.</param>
/// <param name="imageBrightness">The image brightness value in percents. Valid values are from -100 to 100.</param>
public void AddVisualToolForProcessingVisibleAreaInImageViewer(
    Vintasoft.Imaging.UI.ImageViewer imageViewer,
    int imageBrightness)
{
    // create command for changing of image brightness
    Vintasoft.Imaging.ImageProcessing.Color.ChangeBrightnessCommand changeBrightnessCommand =
        new Vintasoft.Imaging.ImageProcessing.Color.ChangeBrightnessCommand();
    // set the command parameters
    changeBrightnessCommand.Brightness = imageBrightness;

    // create an instance of the ImageViewerProcessingTool class
    Vintasoft.Imaging.UI.VisualTools.ImageViewerProcessingTool imageViewerProcessingTool =
        new Vintasoft.Imaging.UI.VisualTools.ImageViewerProcessingTool();
    // specify that visual tool must use the command for processing visible area in image viewer
    imageViewerProcessingTool.ProcessingCommand = changeBrightnessCommand;

    // set the tool as the current tool of the ImageViewer
    imageViewer.VisualTool = imageViewerProcessingTool;
}

Inheritance Hierarchy

System.Object
   Vintasoft.Imaging.UI.VisualTools.VisualTool
      Vintasoft.Imaging.UI.VisualTools.ImageViewerProcessingTool

Requirements

Target Platforms: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
