    PdfInteractiveFormBarcodeField Class
    In This Topic
    Provides information about the barcode interactive form field.

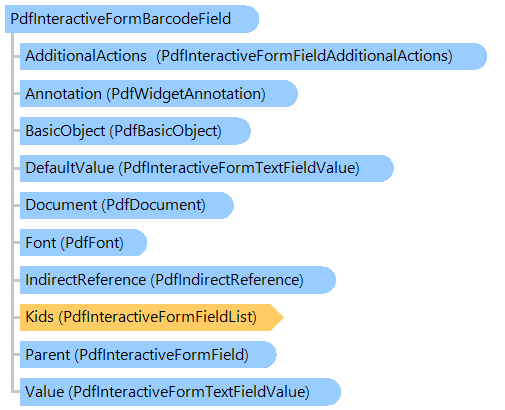

    Object Model
    PdfInteractiveFormBarcodeField ClassPdfInteractiveFormFieldAdditionalActions ClassPdfWidgetAnnotation ClassPdfBasicObject ClassPdfInteractiveFormTextFieldValue ClassPdfDocument ClassPdfFont ClassPdfIndirectReference ClassPdfInteractiveFormFieldList ClassPdfInteractiveFormField ClassPdfInteractiveFormField ClassPdfInteractiveFormTextFieldValue Class
    Syntax
    'Declaration

    Public Class PdfInteractiveFormBarcodeField
       Inherits PdfInteractiveFormTextField
    public class PdfInteractiveFormBarcodeField : PdfInteractiveFormTextField
    public __gc class PdfInteractiveFormBarcodeField : public PdfInteractiveFormTextField
    public ref class PdfInteractiveFormBarcodeField : public PdfInteractiveFormTextField
    Remarks
    This field supports the barcode symbologies defined in PDF Refernece 1.7 Extension Level 3: DataMatrix, QRCode, PDF417.
    Example
    This example shows how to create a PDF document with PDF417 barcode field.
    Class PdfInteractiveFormBarcodeFieldExample
    	''' <summary>
    	''' Creates a PDF document with barcode field.
    	''' </summary>
    	''' <param name="filename">The filename.</param>
    	''' <param name="barcodeSymbology">The barcode symbology.</param>
    	Public Shared Sub CreateDocumentWithBarcodeField(filename As String, barcodeSymbology As Vintasoft.Imaging.Pdf.Tree.InteractiveForms.BarcodeSymbologyType)
    		' create PDF document
    		Using document As New Vintasoft.Imaging.Pdf.PdfDocument(New Vintasoft.Imaging.Pdf.PdfFormat("1.7", False, True))
    			' create interactive form in PDF document
    			document.InteractiveForm = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document)
    			document.InteractiveForm.CalculationOrder = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldList(document)

    			' create an empty page
    			Dim page As New Vintasoft.Imaging.Pdf.Tree.PdfPage(document, Vintasoft.Imaging.PaperSizeKind.A4)
    			page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
    			' add page to the document
    			document.Pages.Add(page)


    			Dim width As Single = 200
    			Dim height As Single = 25
    			' create a rectangle that defines the field position on PDF page
    			Dim rect As New System.Drawing.RectangleF((page.Size.Width - width) / 2, page.Size.Height - height * 8, width, height)

    			' create text field (barcode value)
    			Dim textField As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "TextField", rect)
    			textField.TextValue = "test"
    			textField.DefaultValue = textField.Value
    			' set the text default appearance
    			textField.SetTextDefaultAppearance(document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman), 12, System.Drawing.Color.Black)
    			' set the appearance characteristics
    			textField.Annotation.AppearanceCharacteristics = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document)
    			textField.Annotation.AppearanceCharacteristics.BorderColor = System.Drawing.Color.Gray
    			textField.Annotation.BorderStyle = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document)
    			textField.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled
    			document.InteractiveForm.AddField(textField, page)


    			width = 200
    			height = 150
    			' create a rectangle that defines the field position on PDF page
    			rect = New System.Drawing.RectangleF((page.Size.Width - width) / 2, ((page.Size.Height - height) / 3) * 2, width, height)

    			' create a barcode field
    			Dim barcodeField As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormBarcodeField(document, "BarcodeField", barcodeSymbology, rect)

    			' set barcode field value
    			barcodeField.TextValue = textField.TextValue

    			' set the barcode single module width to 0.02 inch
    			barcodeField.ModuleWidth = 0.02F

    			' add the text field to the interactive form of document
    			document.InteractiveForm.Fields.Add(barcodeField)

    			' add annotation, associated with the text field, to the page
    			page.Annotations.Add(barcodeField.Annotation)

    			' create the calculate action of barcode value
    			Dim calculateValueAction As New Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document, "event.value = this.getField('TextField').value;")

    			' add the barcode field to the calculated fields (calcualtion order)
    			' of the document interactive form fields
    			barcodeField.AdditionalActions = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document)
    			barcodeField.AdditionalActions.Calculate = calculateValueAction
    			document.InteractiveForm.CalculationOrder.Add(barcodeField)

    			' update (create) field appearances
    			document.InteractiveForm.UpdateAppearances()

    			' save the document
    			document.Save(filename)
    		End Using
    	End Sub
    End Class
    class PdfInteractiveFormBarcodeFieldExample
    {
        /// <summary>
        /// Creates a PDF document with barcode field.
        /// </summary>
        /// <param name="filename">The filename.</param>
        /// <param name="barcodeSymbology">The barcode symbology.</param>
        public static void CreateDocumentWithBarcodeField(string filename,
            Vintasoft.Imaging.Pdf.Tree.InteractiveForms.BarcodeSymbologyType barcodeSymbology)
        {
            // create PDF document
            using (Vintasoft.Imaging.Pdf.PdfDocument document =
                new Vintasoft.Imaging.Pdf.PdfDocument(
                    new Vintasoft.Imaging.Pdf.PdfFormat("1.7", false, true)))
            {
                // create interactive form in PDF document
                document.InteractiveForm =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document);
                document.InteractiveForm.CalculationOrder =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldList(document);

                // create an empty page
                Vintasoft.Imaging.Pdf.Tree.PdfPage page = new Vintasoft.Imaging.Pdf.Tree.PdfPage(
                    document, Vintasoft.Imaging.PaperSizeKind.A4);
                page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
                // add page to the document
                document.Pages.Add(page);


                float width = 200;
                float height = 25;
                // create a rectangle that defines the field position on PDF page
                System.Drawing.RectangleF rect = new System.Drawing.RectangleF(
                    (page.Size.Width - width) / 2,
                    page.Size.Height - height * 8,
                    width, height);

                // create text field (barcode value)
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField textField =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(
                        document, "TextField", rect);
                textField.TextValue = "test";
                textField.DefaultValue = textField.Value;
                // set the text default appearance
                textField.SetTextDefaultAppearance(
                    document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman),
                    12, System.Drawing.Color.Black);
                // set the appearance characteristics
                textField.Annotation.AppearanceCharacteristics =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document);
                textField.Annotation.AppearanceCharacteristics.BorderColor = System.Drawing.Color.Gray;
                textField.Annotation.BorderStyle = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document);
                textField.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Beveled;
                document.InteractiveForm.AddField(textField, page);


                width = 200;
                height = 150;
                // create a rectangle that defines the field position on PDF page
                rect = new System.Drawing.RectangleF(
                    (page.Size.Width - width) / 2,
                    ((page.Size.Height - height) / 3) * 2,
                    width, height);

                // create a barcode field
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormBarcodeField barcodeField =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormBarcodeField(
                        document, "BarcodeField", barcodeSymbology, rect);

                // set barcode field value
                barcodeField.TextValue = textField.TextValue;

                // set the barcode single module width to 0.02 inch
                barcodeField.ModuleWidth = 0.02f;

                // add the text field to the interactive form of document
                document.InteractiveForm.Fields.Add(barcodeField);

                // add annotation, associated with the text field, to the page
                page.Annotations.Add(barcodeField.Annotation);

                // create the calculate action of barcode value
                Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction calculateValueAction =
                    new Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document,
                        @"event.value = this.getField('TextField').value;");

                // add the barcode field to the calculated fields (calcualtion order)
                // of the document interactive form fields
                barcodeField.AdditionalActions =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document);
                barcodeField.AdditionalActions.Calculate = calculateValueAction;
                document.InteractiveForm.CalculationOrder.Add(barcodeField);

                // update (create) field appearances
                document.InteractiveForm.UpdateAppearances();

                // save the document
                document.Save(filename);
            }
        }
    }
    Inheritance Hierarchy
    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
