    PdfInteractiveFormTextField Class
    In This Topic
    Provides information about the text interactive form field.

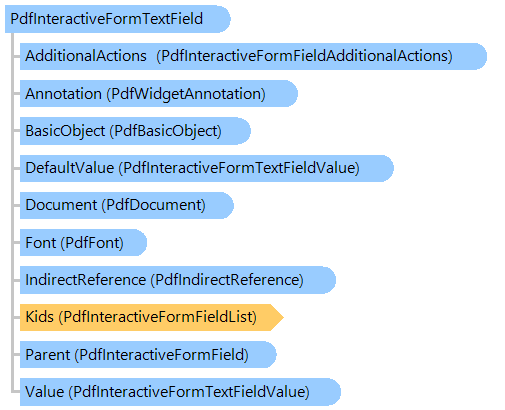

    Object Model
    PdfInteractiveFormTextField ClassPdfInteractiveFormFieldAdditionalActions ClassPdfWidgetAnnotation ClassPdfBasicObject ClassPdfInteractiveFormTextFieldValue ClassPdfDocument ClassPdfFont ClassPdfIndirectReference ClassPdfInteractiveFormFieldList ClassPdfInteractiveFormField ClassPdfInteractiveFormField ClassPdfInteractiveFormTextFieldValue Class
    Syntax
    'Declaration

    Public Class PdfInteractiveFormTextField
       Inherits PdfInteractiveFormField
    public class PdfInteractiveFormTextField : PdfInteractiveFormField
    public __gc class PdfInteractiveFormTextField : public PdfInteractiveFormField
    public ref class PdfInteractiveFormTextField : public PdfInteractiveFormField
    Example
    This example shows how to create a PDF document with numeric-only text field.
    Class PdfInteractiveFormTextFieldExample
    	''' <summary>
    	''' Creates a PDF document with numeric text field.
    	''' </summary>
    	''' <param name="filename">The filename.</param>
    	Public Shared Sub CreateDocumentWithNumericTextField(filename As String)
    		' create PDF document
    		Using document As New Vintasoft.Imaging.Pdf.PdfDocument()
    			' create interactive form in PDF document
    			document.InteractiveForm = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document)

    			' specify that the viewer application must construct appearance streams and
    			' appearance properties for all widget annotations
    			document.InteractiveForm.NeedAppearances = True

    			' create an empty page
    			Dim page As New Vintasoft.Imaging.Pdf.Tree.PdfPage(document, Vintasoft.Imaging.PaperSizeKind.A4)
    			' add page to the document
    			document.Pages.Add(page)

    			Dim width As Single = 100
    			Dim height As Single = 25
    			' create a rectangle that defines the field position on PDF page
    			Dim rect As New System.Drawing.RectangleF((page.Size.Width - width) / 2, ((page.Size.Height - height) / 3) * 2, width, height)

    			' create a text field
    			Dim textField As New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(document, "NumericField", rect, "12345")

    			' create the text value validation method that accepts numbers (0-9 digits) only
    			Dim javaScriptCode As String = "var regex = /[^0-9]/;if(regex.test(event.change)) event.change = '';"
    			Dim action As New Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document, javaScriptCode)
    			textField.AdditionalActions = New Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document)
    			' set the validation action for the AdditionalActions.Keystroke trigger event
    			textField.AdditionalActions.Keystroke = action

    			' set the default appearance of text
    			Dim font As Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont = document.FontManager.GetStandardFont(Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman)
    			textField.SetTextDefaultAppearance(font, 12, System.Drawing.Color.Black)

    			' set the border style
    			textField.Annotation.BorderStyle = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document)
    			textField.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Inset
    			textField.Annotation.BorderStyle.Width = 1

    			' set the appearance characteristics
    			textField.Annotation.AppearanceCharacteristics = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document)
    			textField.Annotation.AppearanceCharacteristics.BorderColor = System.Drawing.Color.Gray

    			' add the text field to the interactive form of document
    			document.InteractiveForm.Fields.Add(textField)

    			' add annotation, associated with the text field, to the page
    			page.Annotations = New Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document)
    			page.Annotations.Add(textField.Annotation)

    			' save the document
    			document.Save(filename)
    		End Using
    	End Sub
    End Class
    class PdfInteractiveFormTextFieldExample
    {
        /// <summary>
        /// Creates a PDF document with numeric text field.
        /// </summary>
        /// <param name="filename">The filename.</param>
        public static void CreateDocumentWithNumericTextField(string filename)
        {
            // create PDF document
            using (Vintasoft.Imaging.Pdf.PdfDocument document = new Vintasoft.Imaging.Pdf.PdfDocument())
            {
                // create interactive form in PDF document
                document.InteractiveForm =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfDocumentInteractiveForm(document);

                // specify that the viewer application must construct appearance streams and
                // appearance properties for all widget annotations
                document.InteractiveForm.NeedAppearances = true;

                // create an empty page
                Vintasoft.Imaging.Pdf.Tree.PdfPage page = new Vintasoft.Imaging.Pdf.Tree.PdfPage(
                    document, Vintasoft.Imaging.PaperSizeKind.A4);
                // add page to the document
                document.Pages.Add(page);

                float width = 100;
                float height = 25;
                // create a rectangle that defines the field position on PDF page
                System.Drawing.RectangleF rect = new System.Drawing.RectangleF(
                    (page.Size.Width - width) / 2,
                    ((page.Size.Height - height) / 3) * 2,
                    width, height);

                // create a text field
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField textField =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField(
                        document, "NumericField", rect, "12345");

                // create the text value validation method that accepts numbers (0-9 digits) only
                string javaScriptCode =
                    "var regex = /[^0-9]/;if(regex.test(event.change)) event.change = '';";
                Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction action =
                    new Vintasoft.Imaging.Pdf.Tree.PdfJavaScriptAction(document, javaScriptCode);
                textField.AdditionalActions =
                    new Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormFieldAdditionalActions(document);
                // set the validation action for the AdditionalActions.Keystroke trigger event
                textField.AdditionalActions.Keystroke = action;

                // set the default appearance of text
                Vintasoft.Imaging.Pdf.Tree.Fonts.PdfFont font = document.FontManager.GetStandardFont(
                    Vintasoft.Imaging.Pdf.Tree.Fonts.PdfStandardFontType.TimesRoman);
                textField.SetTextDefaultAppearance(font, 12, System.Drawing.Color.Black);

                // set the border style
                textField.Annotation.BorderStyle = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyle(document);
                textField.Annotation.BorderStyle.Style = Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationBorderStyleType.Inset;
                textField.Annotation.BorderStyle.Width = 1;

                // set the appearance characteristics
                textField.Annotation.AppearanceCharacteristics =
                    new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationAppearanceCharacteristics(document);
                textField.Annotation.AppearanceCharacteristics.BorderColor = System.Drawing.Color.Gray;

                // add the text field to the interactive form of document
                document.InteractiveForm.Fields.Add(textField);

                // add annotation, associated with the text field, to the page
                page.Annotations = new Vintasoft.Imaging.Pdf.Tree.Annotations.PdfAnnotationList(document);
                page.Annotations.Add(textField.Annotation);

                // save the document
                document.Save(filename);
            }
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.Pdf.Tree.PdfTreeNodeBase
          Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormField
             Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormTextField
                Vintasoft.Imaging.Pdf.Tree.InteractiveForms.PdfInteractiveFormBarcodeField

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
