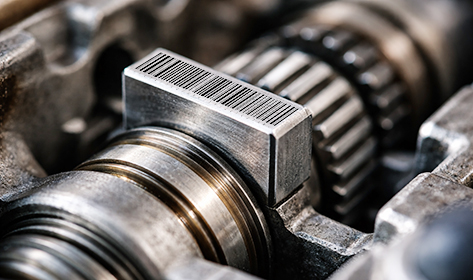

Direct Part Marking (DPM) is the applying of a barcode directly to the surface of a product, eliminating the need for stickers or paper labels. The barcode becomes part of the part and is retained throughout the product's entire lifecycle - from manufacturing and logistics to service and disposal. This approach is especially important in cases where traditional labels quickly wear out, are susceptible to tearing, burning, or abrasion due to chemicals or mechanical stress.
Unlike printed labels with high-contrast black-on-white, DPM barcodes often have low-contrast metal-on-metal or laser-engraved-on-painted surfaces. This places increased demands on the technology of applying barcodes to the surface, the quality of the surface and the algorithms for recognizing barcodes. To confidently read such barcodes, it is necessary to use specialized software that supports working with complex quality images.
The application areas for direct part marking
DPM is actively used in industries where traceability of each individual part is critical and labeling reliability is high:
- Automotive industry - marking of cylinder blocks, gearboxes, suspension components and safety systems.
- Aerospace industry - identification of engine components, turbine blades, airframe components, fasteners.
- Medical devices and implants - marking of surgical instruments, implants, endoscopic equipment.
- Electronics and instrumentation - codes on printed circuit boards, microcircuit housings, sensors and measuring modules.
- Defense and mechanical engineering industries - accounting and monitoring of the resource of critical parts, components and assemblies.
In all these cases, DPM enables end-to-end identification: each part has a unique "passport" in the form of a two-dimensional barcode (usually Data Matrix or QR), which simplifies quality management, service, and warranty obligations.
What barcodes are used for direct part marking?
Two-dimensional barcodes are commonly used for direct part marking, as they allow to store more information in a limited space and are more resistant to partial damage. The most common options are:
- Data Matrix ECC 200 is the de facto industry standard for direct part marking. It ensures high data density and resilience to corruption thanks to built-in error correction.
- QR Code is popular due to its widespread use and universal support, but in very tight spaces and severely damaged environments, Data Matrix often shows more consistent results.
- Micro QR and compact 2D code variants are used when the area for marking is extremely small (electronic components, miniature parts).

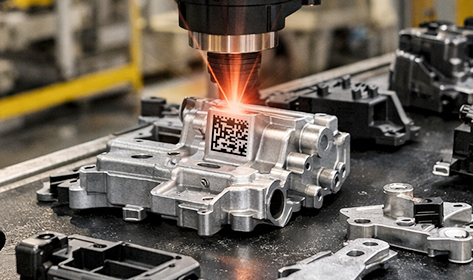

It's important that the recognition software used supports both traditional printed barcodes and DPM codes applied by etching, microperforation, or laser engraving.
VintaSoft Barcode .NET SDK supports a wide range of 1D and 2D barcodes, including Data Matrix and QR, and provides image preprocessing tools that improve the reliability of recognition of complex DPM markings.
Main problems of reading DPM barcodes
Despite its robustness and durability, DPM marking poses significant challenges for machine vision systems and recognition algorithms:
- Low contrast: The barcode and background are made of the same material, and the difference is formed only due to microrelief or changes in the reflectivity of the surface.
- Glare and uneven lighting: Metal parts often produce bright glare that can wash out parts of the barcode and obscure module elements.
- Curvature and complex surface geometry: Barcodes can be applied to cylindrical or complex-shaped parts, which leads to image distortion.
- Small module size: When trying to fit the maximum amount of data into a minimum area, the size of individual pixels in a barcode becomes so small that the requirements for camera optics and resolution increase significantly.
- Wear and damage: Scratches, carbon deposits, corrosion, repainting of parts - all this reduces the readability of the barcode.
To compensate for these factors, DPM systems utilize specialized illumination (ring, darkfield, and dome), high-quality optics, and advanced image processing algorithms. Software components such as the
VintaSoft Barcode .NET SDK enable pre-filtering, adaptive thresholding, and geometric distortion correction, resulting in robust barcode recognition even when modules are partially visible.
Why is it important to choose a reliable SDK for DPM code recognition?
The success of a DPM project is largely determined by how reliably barcodes are read in real-world production conditions. Hardware (cameras, lenses, lighting) only solves half the problem. The other half is software, which must correctly process complex images and quickly decode barcodes in a stream.
Using the
VintaSoft Barcode .NET SDK gives developers the following benefits:
- Support for multiple barcode formats: From classic linear to two-dimensional (Data Matrix, QR, etc.), allowing you to work with both DPM and conventional labels within a single solution.
- High decoding accuracy: The SDK includes optimized algorithms capable of extracting data even from contrast-weak and partially damaged barcodes.
- Flexible integration into .NET applications: The library supports a wide range of .NET technologies (desktop, web and server applications), which simplifies the implementation of the barcode recognition system into the existing IT infrastructure.
- Image pre-processing tools: The developer can apply filtering, brightness equalization, binarization, and other operations before decoding, increasing the reliability of DPM barcode reading.
Thanks to this,
VintaSoft Barcode .NET SDK allows to build solutions that can operate reliably on conveyors, in shop floor terminals, quality control systems, and service applications.
Practical recommendations for implementing DPM in production
To ensure a direct marking system operates reliably and predictably, it is important to consider several key aspects at the design stage:
- Plan the barcode location in advance: Designate a sufficiently flat and accessible area on the part for the DPM, taking into account future camera access and possible contamination.
- Coordinate surface quality requirements: Rough processing, rust, and thick layers of paint significantly reduce the readability of DPM markings.
- Determine the optimal barcode size and data density: Don't try to squeeze as much information into as little space as possible—it's better to store some of the data in the IC and only apply the identifier to the part.
- Test different lighting schemes: Metallic and glossy surfaces often require dark field or dome lighting solutions to minimize glare.
- Test decoding reliability on real samples: Use an industrial SDK, such as VintaSoft Barcode .NET SDK, and test recognition on parts after all manufacturing operations (painting, heat treatment, washing, etc.).
Following these recommendations helps avoid typical problems when a system works well in the laboratory, but produces a high percentage of errors in real-world conditions on the shop floor.
Conclusion
Direct Part Marking (DPM) barcodes have become a key tool for traceability and product lifecycle management in many industries, from automotive to medical and aviation. While choosing the right barcode type, application technology, and lighting scheme is necessary, it is not sufficient for success. Complementing these with reliable recognition software that can handle low contrast, distortion, and damage is crucial.
Using
VintaSoft Barcode .NET SDK allows .NET application developers to create identification systems that are robust to real-world production conditions. As a result, businesses gain a reliable foundation for digital transformation: accurate part tracking, accelerated production and service processes, reduced errors, and increased supply chain transparency.
