Sometimes, when attempting to extract text from a PDF document, you may end up with a jumble of unrelated characters. This can happen if the PDF contains a font with corrupted text encoding - corruption that was likely intentional. The document's creator simply did not want anyone to extract text from the document.
If you still need to restore the text encoding of font within the PDF document, follow these steps:
- Obtain the list of glyphs for a font with corrupted text encoding.
- For each font glyph, obtain the glyph image, perform text recognition on the image and determine the corresponding text character.
- Based on the data from the previous step, create the correct text encoding for the font and save it within the font.
- Save the changes to the PDF document.
VintaSoft Imaging .NET SDK +
VintaSoft PDF .NET Plug-in (Reader+Writer) +
VintaSoft OCR .NET Plug-in allows you to perform all the necessary steps to restore the font text encoding in a PDF document.
Here is C# code demonstrating how to restore "corrupted" font text encoding in a PDF document:
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Windows.Forms;
using Vintasoft.Imaging;
using Vintasoft.Imaging.Drawing;
using Vintasoft.Imaging.Fonts;
using Vintasoft.Imaging.Ocr;
using Vintasoft.Imaging.Ocr.Results;
using Vintasoft.Imaging.Ocr.Tesseract;
using Vintasoft.Imaging.Pdf;
using Vintasoft.Imaging.Pdf.Content.TextExtraction;
using Vintasoft.Imaging.Pdf.Tree.Fonts;
namespace Vintasoft.Demos
{
internal static class PdfFontExamples
{
/// <summary>
/// Restores text encodings in fonts of PDF document.
/// </summary>
/// <param name="pdfFilename">The filename of PDF document.</param>
public static void RestoreTextEncodingInAllPdfFontsOfPdfDocument(string pdfFilename)
{
// open PDF document
using (PdfDocument pdfDocument = new PdfDocument(pdfFilename))
{
// get fonts of PDF document
PdfFont[] pdfFonts = pdfDocument.GetFonts();
// for each PDF font
for (int i = 0; i < pdfFonts.Length; i++)
{
// restore text encoding in PDF font
RestoreTextEncodingInPdfFont(pdfFonts[i]);
}
// save changed document to a new PDF file
pdfDocument.Save("result.pdf");
}
}
/// <summary>
/// Restores text excoding in PDF font.
/// </summary>
/// <param name="pdfFont">PDF font.</param>
private static void RestoreTextEncodingInPdfFont(PdfFont pdfFont)
{
// get the PDF text symbols from PDF font
PdfTextSymbol[] pdfTextSymbols = PdfTextSymbol.GetFontSymbols(pdfFont);
if (pdfTextSymbols == null)
{
return;
}
// if font contains more than 256 symbols
if (pdfTextSymbols.Length > 256)
{
MessageBox.Show("This demo project does not allow to process PDF font if font contains more than 256 symbols. Please change the code if necessary.");
return;
}
UInt64[] charCodes = new UInt64[pdfTextSymbols.Length];
for (int i = 0; i < pdfTextSymbols.Length; i++)
charCodes[i] = pdfTextSymbols[i].ContentSymbolCode;
// sort text symbols by the symbol content code
Array.Sort(charCodes, pdfTextSymbols);
try
{
// the Unicode overrides
Dictionary<uint, char> unicodeOverrides = new Dictionary<uint, char>();
// create Tesseract OCR engine
using (TesseractOcr tesseractOcr = new TesseractOcr())
{
// initialize OCR engine
OcrEngineSettings ocrEngineSettings = new OcrEngineSettings(new OcrLanguage[] { OcrLanguage.English });
ocrEngineSettings.RecognitionRegionType = RecognitionRegionType.RecognizeSingleBlock;
tesseractOcr.Init(ocrEngineSettings);
// dictionary: PDF text symbol => a rectangle on image, where symbol drawn
Dictionary<PdfTextSymbol, Rectangle> pdfTextSymbolToImageRectMap = new Dictionary<PdfTextSymbol, Rectangle>();
// create image with glyphs of PDF text symbols
using (VintasoftImage imageWithTextSymbols = CreateImageWithGlyphsOfPdfTextSymbols(pdfTextSymbols, ref pdfTextSymbolToImageRectMap))
{
#if DEBUG_FONT_ENCODING
// for debug purposes save the image with glyphs of PDF text symbols
imageWithTextSymbols.Save(string.Format("Font-{0}-symbols.png", pdfFont.FontName));
#endif
// recognizes text in image
OcrPage ocrResult = tesseractOcr.Recognize(imageWithTextSymbols);
// get the dictionary from PDF text symbol to the Unicode symbol
Dictionary<PdfTextSymbol, char> pdfTextSymbolToCharMap = GetPdfTextSymbolToCharMap(pdfFont, ocrResult, pdfTextSymbolToImageRectMap);
// for each PDF text symbol
foreach (PdfTextSymbol pdfTextSymbol in pdfTextSymbolToCharMap.Keys)
{
// get Unicode symbol for PDF text symbol
char unicodeSymbol = pdfTextSymbolToCharMap[pdfTextSymbol];
// if OCR recognized new Unicode symbol for PDF text symbol
if (pdfTextSymbol.Symbol != unicodeSymbol)
{
// save information about new Unicode symbol for PDF text symbol
unicodeOverrides[(uint)pdfTextSymbol.ContentSymbolCode] = unicodeSymbol;
}
}
}
}
// create the dictionary: content code => Unicode symbol
Dictionary<uint, char> contentCodeToUnicodeSymbol = GetContentCodeToUnicodeSymbols(pdfTextSymbols, unicodeOverrides);
// set the Unicode mapping for PDF font
pdfFont.SetUnicodeMapping(contentCodeToUnicodeSymbol);
}
catch (Exception ex)
{
MessageBox.Show("Error: " + ex.Message);
}
}
/// <summary>
/// Creates image with glyphs of PDF text symbols.
/// </summary>
/// <param name="pdfTextSymbols">PDF text symbols.</param>
/// <param name="pdfTextSymbolToImageRectMap">Dictionary: PDF text symbol => a rectangle on image, where symbol drawn.</param>
/// <returns>An image with font symbols.</returns>
private static VintasoftImage CreateImageWithGlyphsOfPdfTextSymbols(
PdfTextSymbol[] pdfTextSymbols,
ref Dictionary<PdfTextSymbol, Rectangle> pdfTextSymbolToImageRectMap)
{
// a string that contains characters, which are available in PDF font
string availableChars = "";
// for each PDF text symbol
foreach (PdfTextSymbol fontSymbol in pdfTextSymbols)
{
// add character to a string with available characters
availableChars += fontSymbol.Symbol;
}
// the size of cell, where symbol is drawn
const int CELL_SIZE = 200;
// calculate the image width
int imageWidth = CELL_SIZE * 8;
// calculate the image height
int imageHeight = CELL_SIZE * (availableChars.Length / 8);
if ((availableChars.Length % 8) != 0)
imageHeight += CELL_SIZE;
imageHeight += CELL_SIZE;
// create image that will contain glyphs of PDF text symbols
VintasoftImage imageWithTextSymbols = new VintasoftImage(imageWidth, imageHeight, PixelFormat.Bgr24);
// create graphics object for image
using (DrawingEngine drawingEngine = imageWithTextSymbols.CreateDrawingEngine())
{
// fill the image
drawingEngine.FillRectangle(Color.FromArgb(255, Color.White), new RectangleF(0, 0, imageWidth, imageHeight));
using (IDrawingBrush brush = drawingEngine.DrawingFactory.CreateSolidBrush(Color.FromArgb(255, Color.Black)))
{
using (IDrawingPen pen = drawingEngine.DrawingFactory.CreatePen(brush, 1))
{
// for each PDF text symbol
for (int i = 0; i < pdfTextSymbols.Length; i++)
{
PdfTextSymbol fontSymbol = pdfTextSymbols[i];
// get the outline of PDF text symbol
FontSymbolOutline fontSymbolOutline = fontSymbol.GetOutline();
// get graphics path that represents outline of PDF text symbol
IGraphicsPath graphicsPath = fontSymbolOutline.GetGraphicsPath();
// if graphics path exists
if (graphicsPath != null)
{
// calculate the position of graphics path on image
int x = (i % 8) * CELL_SIZE + CELL_SIZE;
int y = (i / 8) * CELL_SIZE + CELL_SIZE;
// save the transform for drawing engine
drawingEngine.SaveTransform();
// apply necessary transform to the drawing engine
AffineMatrix transform = new AffineMatrix();
transform.Translate(x, y);
transform.ScalePrepend(50f / 1000, 50f / 1000);
drawingEngine.MultiplyTransformPrepend(transform);
// fill the graphics path on image
drawingEngine.FillPath(brush, graphicsPath);
// restore the transform for drawing engine
drawingEngine.RestoreTransform();
// save information about position of PDF text symbol on image
pdfTextSymbolToImageRectMap.Add(pdfTextSymbols[i], new Rectangle(x, y, CELL_SIZE, CELL_SIZE));
}
}
}
}
}
return imageWithTextSymbols;
}
/// <summary>
/// Returns the dictionary from content code to the Unicode symbol for selected PDF font.
/// </summary>
/// <param name="textSymbols">The text symbols.</param>
/// <param name="unicodeOverrides">The Unicode overrides.</param>
/// <returns>The dictionary from content code to the Unicode symbol for selected PDF font.</returns>
private static Dictionary<uint, char> GetContentCodeToUnicodeSymbols(PdfTextSymbol[] textSymbols, Dictionary<uint, char> unicodeOverrides)
{
Dictionary<uint, char> result = new Dictionary<uint, char>();
foreach (PdfTextSymbol symbol in textSymbols)
result[(uint)symbol.ContentSymbolCode] = symbol.Symbol;
foreach (KeyValuePair<uint, char> item in unicodeOverrides)
result[item.Key] = item.Value;
return result;
}
/// <summary>
/// Returns the dictionary from PDF text symbol to the Unicode symbol.
/// </summary>
/// <param name="pdfFont">PDF font.</param>
/// <param name="ocrResult">OCR result.</param>
/// <param name="pdfTextSymbolToImageRectMap">The dictionary from PDF text symbol to the image rectangle.</param>
/// <returns>The dictionary from PDF text symbol to the Unicode symbol.</returns>
private static Dictionary<PdfTextSymbol, char> GetPdfTextSymbolToCharMap(
PdfFont pdfFont,
OcrPage ocrResult,
Dictionary<PdfTextSymbol, Rectangle> pdfTextSymbolToImageRectMap)
{
// Dictionary: PDF text symbol => Unicode char
Dictionary<PdfTextSymbol, char> pdfTextSymbolToCharMap = new Dictionary<PdfTextSymbol, char>();
// Dictionary: PDF text symbol => char bounding box
Dictionary<PdfTextSymbol, Rectangle> pdfTextSymbolToCharBoundingBoxMap = new Dictionary<PdfTextSymbol, Rectangle>();
// for each region in OCR result
foreach (OcrTextRegion ocrRegion in ocrResult.Regions)
{
// for each paragraph in region' paragraphs
foreach (OcrParagraph ocrParagraph in ocrRegion.Paragraphs)
{
// for each text line in text lines of paragraph
foreach (OcrTextLine ocrTextLine in ocrParagraph.TextLines)
{
// for each word in words of text line
foreach (OcrWord ocrWord in ocrTextLine.Words)
{
// for each OCR symbol in word's symbols
foreach (OcrSymbol ocrSymbol in ocrWord.Symbols)
{
// get the bounding box of OCR symbol
Rectangle ocrSymbolBoundingBox = ocrSymbol.GetBoundingBox();
// the maximum area for intersection rectangle between the bounding box of OCR symbol and bounding box of PDF text symbol
int intersectionRectAreaMax = 0;
// for each PDF text symbol in dictionary with bounding boxes
foreach (PdfTextSymbol pdfTextSymbol in pdfTextSymbolToImageRectMap.Keys)
{
// get the intersection rectangle between the bounding box of OCR symbol and bounding box of PDF text symbol
Rectangle intersectionRect = Rectangle.Intersect(ocrSymbolBoundingBox, pdfTextSymbolToImageRectMap[pdfTextSymbol]);
// get the area of intersection rectangle
int intersectionRectArea = intersectionRect.Width * intersectionRect.Height;
// if the area of intersection rectangle is greater than the maximum area for intersection rectangle
if (intersectionRectArea > intersectionRectAreaMax)
{
// if OCR symbol contains only 1 text char
if (ocrSymbol.Text.Length == 1)
{
// if we do not have information about Unicode char for PDF text symbol
if (!pdfTextSymbolToCharMap.ContainsKey(pdfTextSymbol))
{
// save information about Unicode char for PDF text symbol
pdfTextSymbolToCharMap.Add(pdfTextSymbol, ocrSymbol.Text[0]);
// save information about char bounding box for PDF text symbol
pdfTextSymbolToCharBoundingBoxMap.Add(pdfTextSymbol, ocrSymbolBoundingBox);
// update the maximum area for intersection rectangle
intersectionRectAreaMax = intersectionRectArea;
}
}
}
}
}
}
}
}
}
#if DEBUG_FONT_ENCODING
// create image that contains glyph and Unicode symbol for each recognized PDF text symbol
string imageWithTextSymbolsName = string.Format("Font-{0}-symbols.png", pdfFont.FontName);
using (VintasoftImage image = new VintasoftImage(imageWithTextSymbolsName))
{
using (DrawingEngine drawingEngine = image.CreateDrawingEngine())
{
foreach (PdfTextSymbol pdfTextSymbol1 in pdfTextSymbolToCharMap.Keys)
{
drawingEngine.DrawString(
string.Format("{0}", pdfTextSymbolToCharMap[pdfTextSymbol1]),
drawingEngine.DrawingFactory.CreateSystemFont("Arial", 16, false, false),
drawingEngine.DrawingFactory.CreateSolidBrush(Color.Red),
new PointF(pdfTextSymbolToImageRectMap[pdfTextSymbol1].X, pdfTextSymbolToImageRectMap[pdfTextSymbol1].Y));
drawingEngine.DrawRectangle(drawingEngine.DrawingFactory.CreatePen(Color.Green), pdfTextSymbolToImageRectMap[pdfTextSymbol1]);
drawingEngine.DrawRectangle(drawingEngine.DrawingFactory.CreatePen(Color.Blue), pdfTextSymbolToCharBoundingBoxMap[pdfTextSymbol1]);
}
}
image.Save(string.Format("Font-{0}-symbols-OCR.png", pdfFont.FontName));
}
#endif
return pdfTextSymbolToCharMap;
}
}
}
The
VintaSoft Imaging .NET SDK distribution package includes the VintaSoft PDF Editor Demo project, which allows you to restore or modify the font text encoding in a PDF document. To test this functionality in the VintaSoft PDF Editor Demo, follow these steps:

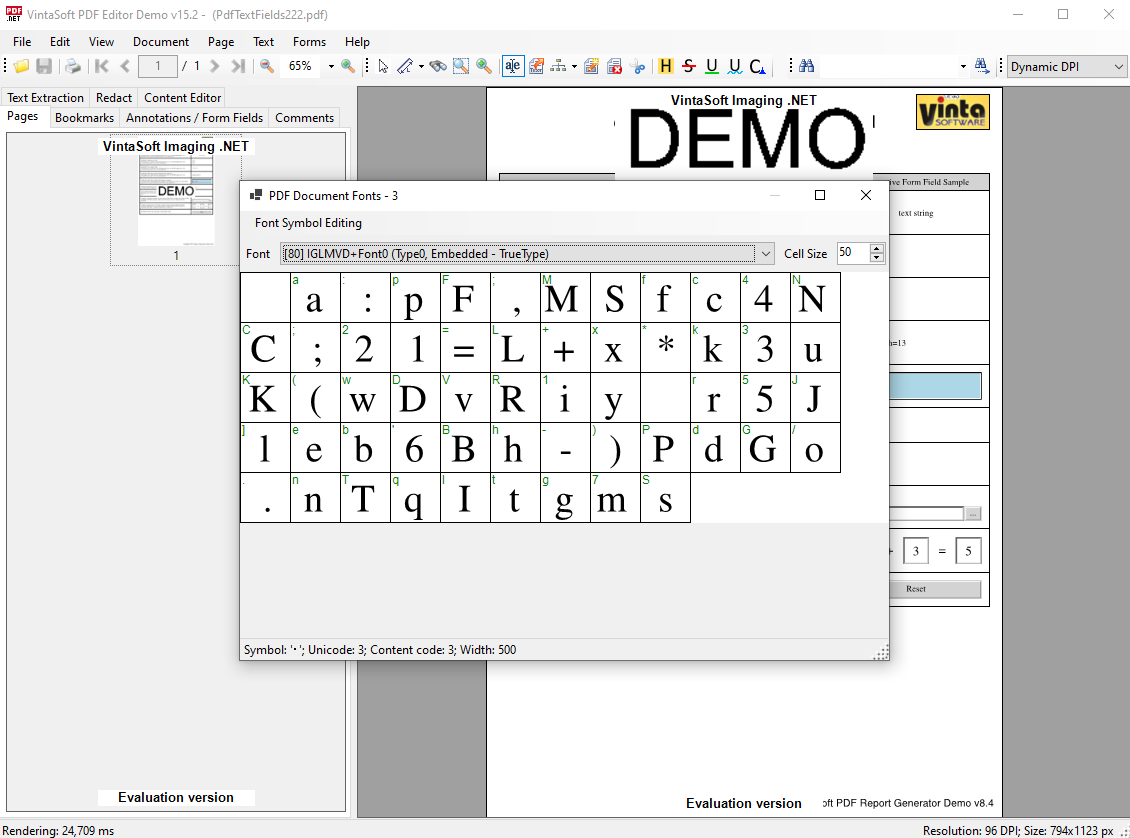

- Run VintaSoft PDF Editor Demo ("[SdkInstallPath]\VintaSoft\Imaging .NET 15.1\Bin\DotNet10\AnyCPU\PdfEditorDemo.exe").

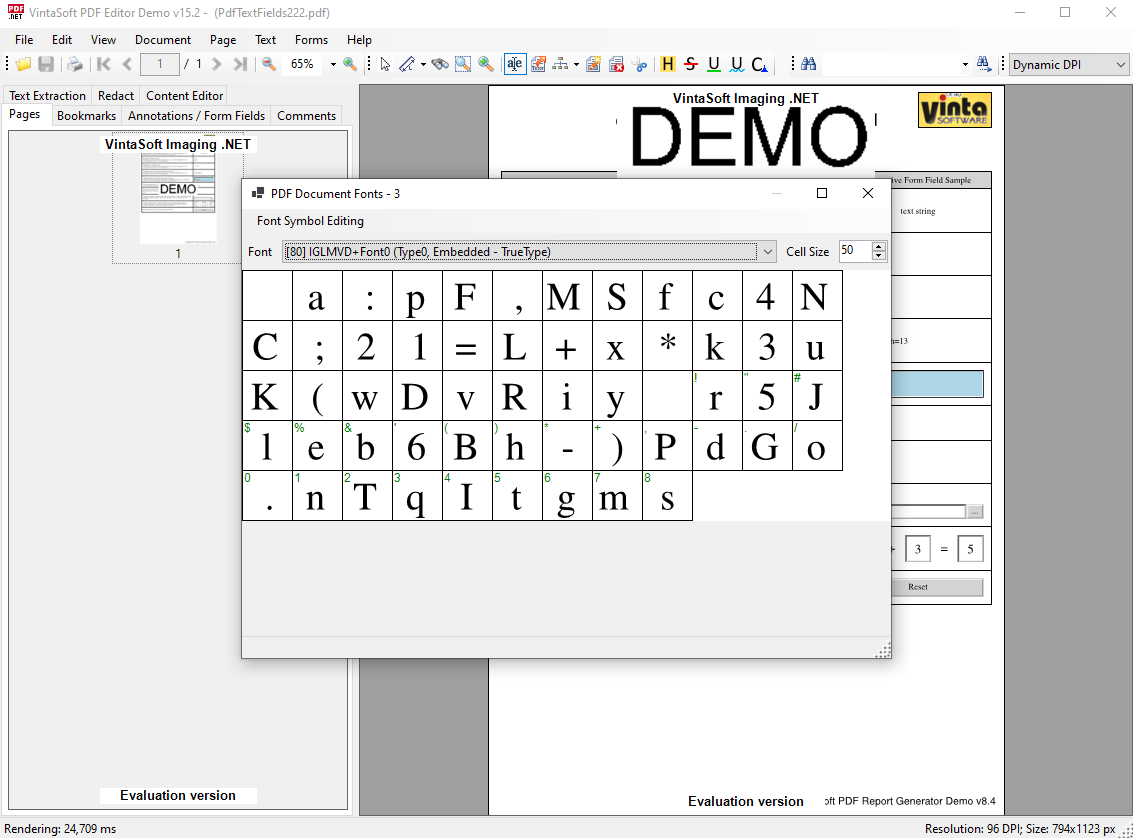

- Open the PDF document containing a font with "corrupted" text encoding.

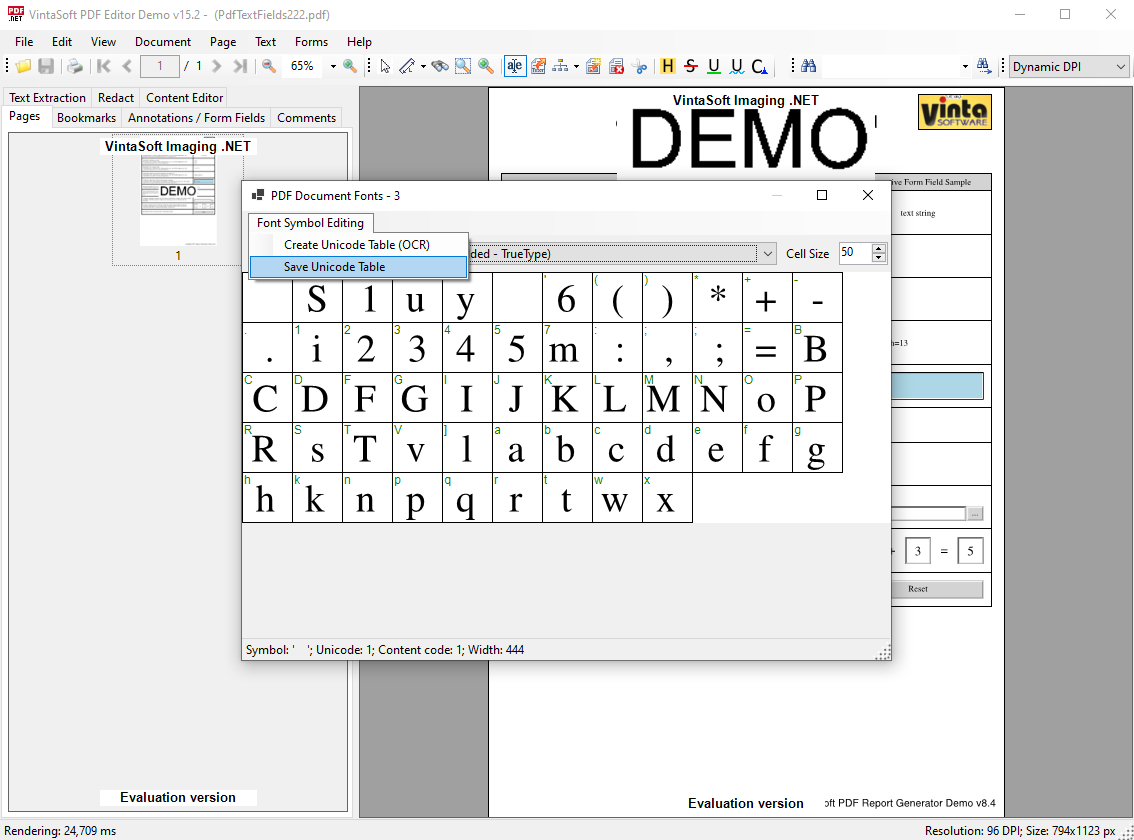

- Select the "Document => Fonts" menu; the "PDF document fonts" dialog will open.

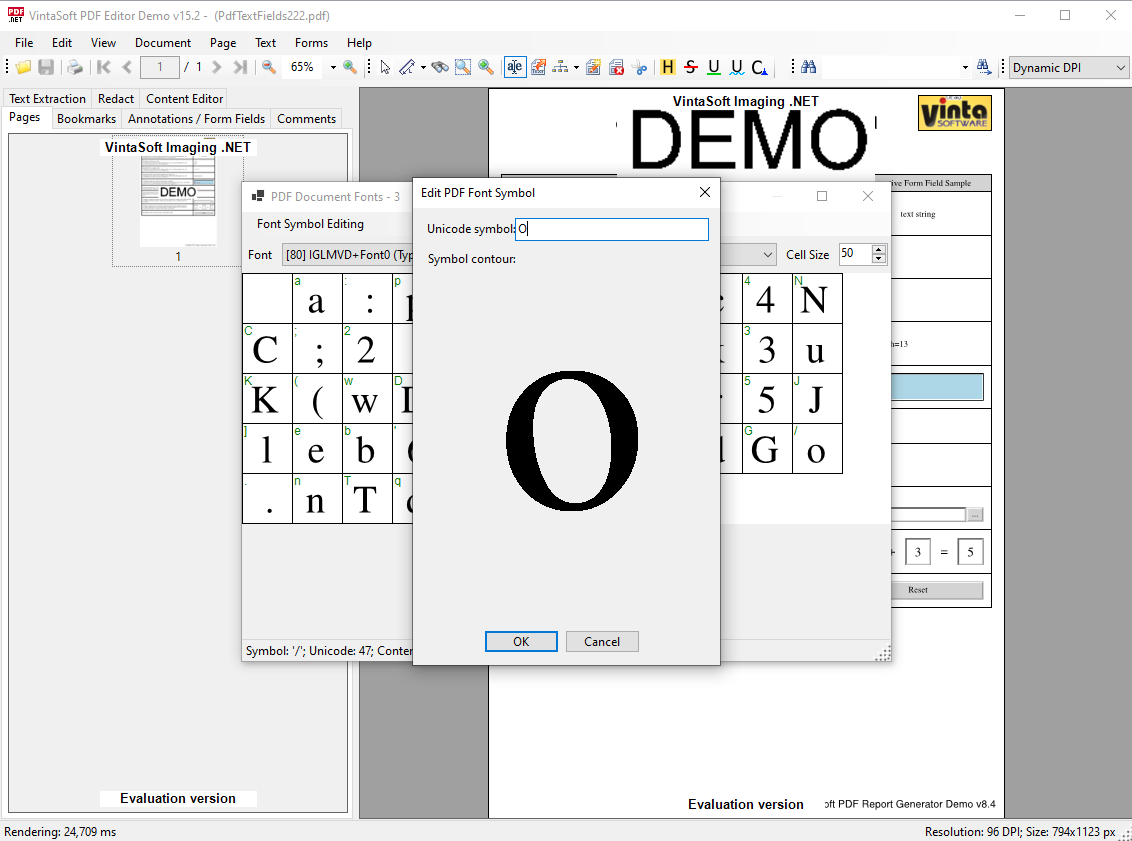

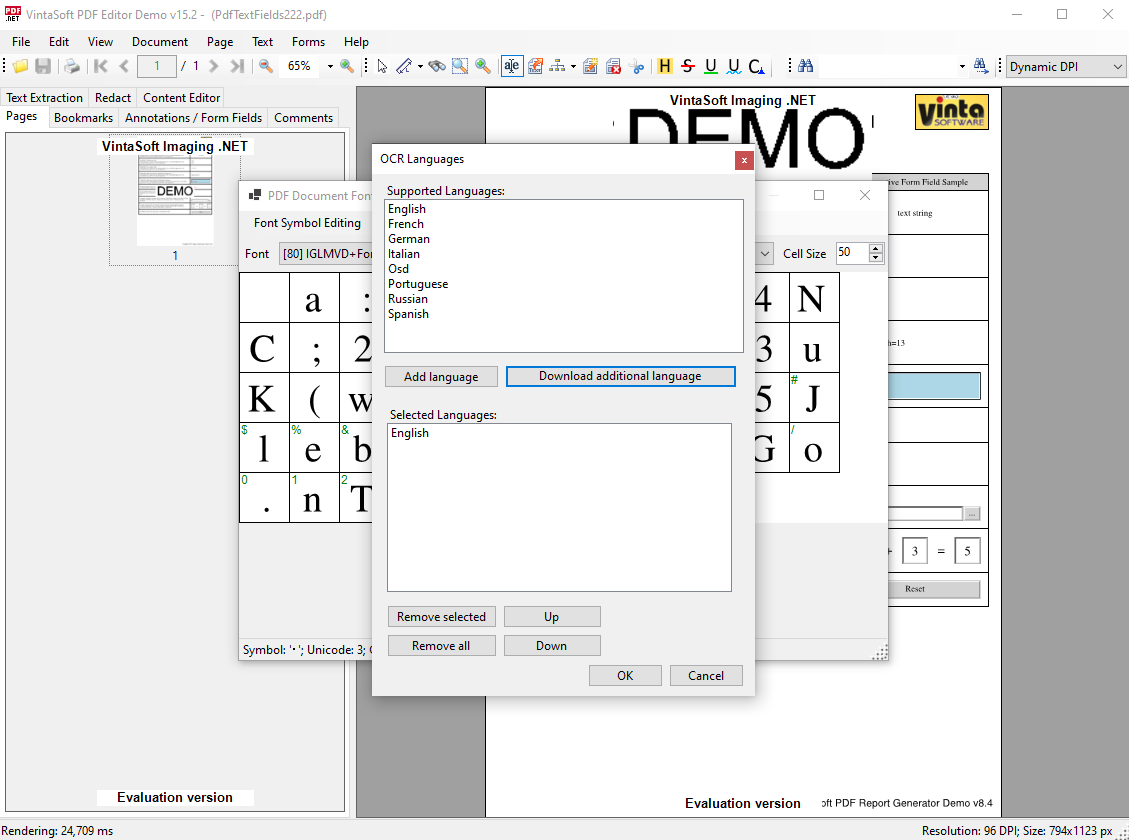

- Select the menu "Font symbol Editing => Create Unicode table (OCR)"; a dialog box with text recognition settings will open. Specify the desired settings and click the "OK" button.
- Text recognition will be performed on the font glyph images and the text character corresponding to each glyph will be displayed in the top-left corner.
- If a text character for a glyph is displayed incorrectly (this can happen if text recognition failed), click on the glyph; a window for editing the text character will appear. Enter the correct character and click the "OK" button.
- Select the "Font symbol Editing => Save Unicode table" menu; the text encoding will be saved to the PDF document.
- Select the "File => Save as..." menu and save the modified document as a PDF file.
- Open the PDF document in Adobe Reader (or VintaSoft PDF Editor Demo) and verify that you can extract the correct text from the PDF document.
