The miniaturization of electronic components is making traditional identification methods increasingly inconvenient. Where a large linear barcode or sticker once sufficed, today only a few square millimeters of empty space remain. This is why manufacturers are switching to compact two-dimensional DataMatrix barcodes and building automated traceability and quality control processes around them.

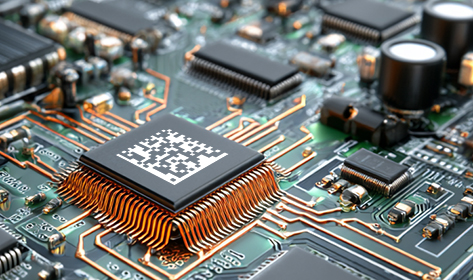

A miniature DataMatrix barcode as a "passport" for an electronic component
DataMatrix is a two-dimensional barcode that is well suited for small surfaces: chips, circuit boards, connectors, and sensors. Unlike linear barcodes, it:
- stores more information in a smaller area;
- is resistant to partial damage due to redundancy and error correction;
- can be read in any orientation, which is important on an assembly line.
Direct Marking Process (DPM) technology is often used for electronic components: the code is laser- or mechanically applied directly to the part body. This marking does not peel off or get lost during soldering and can accompany the component throughout the entire product lifecycle, from incoming inspection to service.
Where exactly in electronics are miniature barcodes needed
DataMatrix barcode scanning is becoming a core technology at various stages of the production cycle:
1.
Warehouse and incoming inspection. Delivered batches of microchips, connectors, and modules are marked with barcodes. During acceptance, scanning links the physical tray with MES (Manufacturing Execution System) / ERP (Enterprise Resource Planning) data: batch number, supplier, date, and technical parameters.
2.
Surface mounting and assembly. At the printed circuit board and module level, DataMatrix barcodes allow for unambiguous tracking of the components from which each unit was assembled. This is the foundation of traceability, especially in automotive, telecom, and medical electronics.
3.
Testing and Configuration. At functional test stations, barcode reading automatically retrieves the required test profile and calibration parameters and stores test results for a specific product.
4.
Packaging, Logistics, and After-Sales Service. In a finished device, the DataMatrix barcode facilitates automated packaging, warranty registration, and diagnostics and failure analysis in service centers.
A single compact barcode becomes the link between the physical world of production and digital control systems.
What does the DataMatrix miniature barcode scanning system consist of
Reliable reading of truly small barcodes on complex surfaces requires more than just a single scanner, but a coordinated set of machine vision tools.
1.

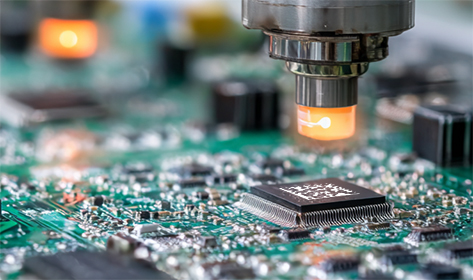

Camera and optics A high-resolution sensor and a properly selected lens ensure a sufficient number of pixels per barcode module. This is critical when the DataMatrix barcode is measured in millimeters and must be read on the fly or on dozens of components within a frame.
2.
Lighting Contrast depends on lighting, especially when DPM marking on metal or dark plastic. Various illumination schemes are used (ring, side, dome) to minimize glares and emphasize the barcode's microrelief.
3.
Barcode Recognizer Software The software recognizes barcodes in images, handling tilt, rotation, partial loss of elements, and low contrast. It also implements integrity and format verification mechanisms for encoded data.
The main difficulties in reading miniature DataMatrix barcodes
Working with miniature barcodes in real production differs from the ideal examples in documentation:
- Small size and dense component packing. If a tray or panel contains dozens of parts with barcodes, each occupying a few millimeters, the camera must provide both a wide field of view and sufficient magnification. This requires compromises in optics and careful selection of the working distance.
- Glare and low contrast of DPM codes. Laser engraving on metal housings produces poor contrast. Incorrect lighting causes the barcode to blend into the background or be obscured by reflections.
- Movement and vibration on the line. With conveyor-based imaging, exposure time is limited, and possible vibration or movement of the part during frame capture blurs fine barcode elements.
- Variety of media. Circuit boards, ceramics, metals, matte and glossy plastics — all behave differently in terms of light reflection and barcode readability. A one-size-fits-all approach almost always leads to a loss of reliability.
Understanding these issues at the scanning system design stage helps avoid subsequent rework and unexpected line stoppages.
How DataMatrix barcode scanning helps automate manufacturing
Properly configured scanning of miniature barcodes, for example, using
VintaSoft Barcode .NET SDK, provides not only technological but also managerial benefits.
1.
Automated identification without operator intervention. The entire cycle—from component receipt to finished product shipment—can be completed automatically: the system automatically recognizes the object and performs the necessary actions in the MES line.
2.
Full traceability of the batch and individual item. Each product is assigned a "digital trace": used components, test results, date, and assembly change. This simplifies defect analysis, targeted product recalls, and customer interactions.
3.
Improved quality through quality control at every step. By scanning the DataMatrix barcode at every key stage, blind spots are eliminated. A failed module can be quickly linked to a specific batch of chips or a specific line experiencing an increase in defects.
4.
Reduction of manual labor and errors. Operators are freed from manually entering serial numbers and manually scanning each unit. This reduces typos and speeds up the processing of lots.
Practical steps for implementation
To ensure that the DataMatrix miniature barcode scanning system truly works for automation and doesn't become a source of problems, it's important to consider several points:
- Clearly define the requirements. At what distance will barcodes be read, what is the minimum module size, how many barcodes can be in the field of view at once, and what is the conveyor speed. These parameters determine the choice of camera, optics, and illumination.
- Test on real samples. Lab tests on ideal targets give a distorted picture. It's better to immediately test the system's operation on real boards, cases and trays, with the same speed and illumination settings as on the production line.
- Allow some margin for marking quality. Even a good barcode reader won't fully compensate for low contrast or extremely small barcode size. DataMatrix barcode application rules (minimum size, contrast and placement tolerances) should be documented in process flow charts.
- Integrate scanning with IT systems. The benefit of identification only becomes apparent when the scanned data is immediately used: for product routing, recording test results, and generating reports. Therefore, interfaces with MES/ERP systems should be planned in advance.
Conclusion
Miniature DataMatrix barcodes are a natural response to the miniaturization trend in electronics. Scanning them allows for visibility of every component and every product in the production flow, automatically matching physical objects with digital data.
A well-designed system that integrates a camera, optics, lighting, and the
VintaSoft Barcode .NET SDK transforms barcode reading from a bottleneck into a routine, unnoticeable, yet critical step in an automated production line. For companies this means less manual labor, more predictable quality, and real, rather than merely formal, product traceability.
