WpfDicomSimpleAnnotationViewBase Class

Provides the abstract base class that determines how to display a simple DICOM annotation and how user can interact with annotation.

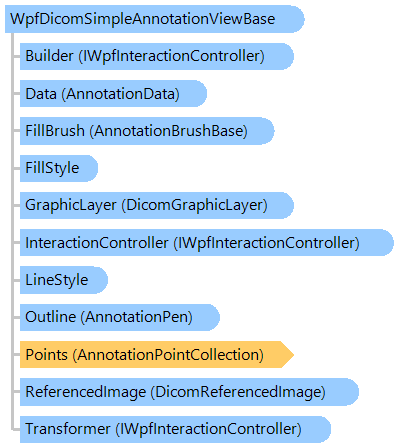

Object Model

Syntax

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public abstract class WpfDicomSimpleAnnotationViewBase : WpfDicomAnnotationView, IWpfPointBasedAnnotation, IWpfPointBasedInteractiveObject

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public __gc abstract class WpfDicomSimpleAnnotationViewBase : public WpfDicomAnnotationView*, IWpfPointBasedAnnotation, IWpfPointBasedInteractiveObject

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public ref class WpfDicomSimpleAnnotationViewBase abstract : public WpfDicomAnnotationView^, IWpfPointBasedAnnotation, IWpfPointBasedInteractiveObject

'Declaration

<UidPropertyAttribute()>
<TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
<NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
Public MustInherit Class WpfDicomSimpleAnnotationViewBase
   Inherits WpfDicomAnnotationView
   Implements IWpfPointBasedAnnotation, IWpfPointBasedInteractiveObject

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               Vintasoft.Imaging.Annotation.Wpf.UI.WpfAnnotationView
                  Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomAnnotationView
                     Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomSimpleAnnotationViewBase
                        Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomCompoundAnnotationViewBase
                        Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomCircleAnnotationView
                        Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomPointAnnotationView
                        Vintasoft.Imaging.Annotation.Dicom.Wpf.UI.WpfDicomPolylineAnnotationView

Requirements

Target Platforms: .NET9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

Reference

WpfDicomSimpleAnnotationViewBase Members
Vintasoft.Imaging.Annotation.Dicom.Wpf.UI Namespace
