WpfMprPerpendicularMultiSliceView Class

Vintasoft.Imaging.Dicom.Mpr.Wpf.UI Namespace / WpfMprPerpendicularMultiSliceView Class

Members Object Syntax Hierarchy Requirements SeeAlso

In This Topic

In This Topic

Determines how to display an interactive object, which is associated with MprPerpendicularMultiSlice object, and how user can interact with it.

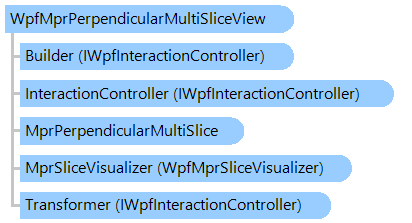

Object Model

Syntax

'Declaration

<UidPropertyAttribute()>
<TypeDescriptionProviderAttribute("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")>
<NameScopePropertyAttribute("Name = NameScope", "Type = System.Windows.NameScope")>
Public Class WpfMprPerpendicularMultiSliceView
   Inherits WpfMprSliceView
   Implements IWpfRectangularInteractiveObject

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public class WpfMprPerpendicularMultiSliceView : WpfMprSliceView, IWpfRectangularInteractiveObject

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public __gc class WpfMprPerpendicularMultiSliceView : public WpfMprSliceView*, IWpfRectangularInteractiveObject

[UidProperty()]
[TypeDescriptionProvider("TypeName = MS.Internal.ComponentModel.DependencyObjectProvider")]
[NameScopeProperty("Name = NameScope", "Type = System.Windows.NameScope")]
public ref class WpfMprPerpendicularMultiSliceView : public WpfMprSliceView^, IWpfRectangularInteractiveObject

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               Vintasoft.Imaging.Dicom.Mpr.Wpf.UI.WpfMprSliceView
                  Vintasoft.Imaging.Dicom.Mpr.Wpf.UI.WpfMprPerpendicularMultiSliceView

Requirements

Target Platforms: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

Reference

WpfMprPerpendicularMultiSliceView Members
Vintasoft.Imaging.Dicom.Mpr.Wpf.UI Namespace
