VintaSoft Imaging .NET SDK v8.6
Vintasoft.Imaging.ImageProcessing.Color Namespace / GetAlphaChannelMaskCommand Class
Members Example



In This Topic
    GetAlphaChannelMaskCommand Class
    In This Topic
    Extracts the alpha channel of an image.

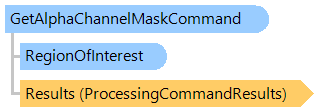

    Object Model
    GetAlphaChannelMaskCommand ClassRegionOfInterest ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    'Declaration

    Public Class GetAlphaChannelMaskCommand
       Inherits Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public class GetAlphaChannelMaskCommand : Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public __gc class GetAlphaChannelMaskCommand : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    public ref class GetAlphaChannelMaskCommand : public Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
    Example
    This example shows how to load an image from disk, get alpha-channel of the image and save the result to a new image file.
    Class GetAlphaChannelMaskCommandExample
        Public Sub ProcessImage()
            ' [ do not forget to set your image file path here! ]
            ' open an existing image
            Dim image As New Vintasoft.Imaging.VintasoftImage("Flower.jpg")

            ' create the command
            Dim command As New Vintasoft.Imaging.ImageProcessing.Color.GetAlphaChannelMaskCommand()
            ' subscribe to progress event
            AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

            Try
                ' execute the command
                command.ExecuteInPlace(image)
            Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                ' show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message)
                Return
            End Try

            ' save the processed image to the new file
            image.Save("processed-image.tif")
        End Sub

        Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
            ' update progress info using e.Progress property
            ' ...

            ' cancel execution of command using e.Cancel property if necessary
            ' ...
        End Sub
    End Class
    class GetAlphaChannelMaskCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // open an existing image
            Vintasoft.Imaging.VintasoftImage image = new Vintasoft.Imaging.VintasoftImage("Flower.jpg");

            // create the command
            Vintasoft.Imaging.ImageProcessing.Color.GetAlphaChannelMaskCommand command =
                new Vintasoft.Imaging.ImageProcessing.Color.GetAlphaChannelMaskCommand();
            // subscribe to progress event
            command.Progress +=
                new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

            try
            {
                // execute the command
                command.ExecuteInPlace(image);
            }
            catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
            {
                // show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message);
                return;
            }

            // save the processed image to the new file
            image.Save("processed-image.tif");
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.Color.GetAlphaChannelMaskCommand

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
