    DilateCommand Class
    In This Topic
    Applies the morphological dilate filter to an image. This filter widens and enhances dark areas of the image.

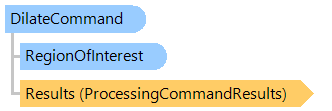

    Object Model
    DilateCommand ClassRegionOfInterest ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    Example
    This example shows how to load an image from disk, apply the morphological dilate filter to the image and save the result to a new image file.
    Class DilateCommandExample
    	Public Sub ProcessImage()
    		' [ do not forget to set your image file path here! ]
    		' open an existing image
    		Dim image As New Vintasoft.Imaging.VintasoftImage("Flower.jpg")

    		' create the command
    		Dim command As New Vintasoft.Imaging.ImageProcessing.Filters.DilateCommand()
    		' subscribe to progress event
    		AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

    		Try
    			' execute the command
    			command.ExecuteInPlace(image)
    		Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
    			' show error message if problem occured
    			System.Windows.Forms.MessageBox.Show(ex.Message)
    			Return
    		End Try

    		' save the processed image to the new file
    		image.Save("processed-image.tif")
    	End Sub

    	Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
    		' update progress info using e.Progress property
    		' ...

    		' cancel execution of command using e.Cancel property if necessary
    		' ...
    	End Sub
    End Class
    class DilateCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // open an existing image
            Vintasoft.Imaging.VintasoftImage image = new Vintasoft.Imaging.VintasoftImage("Flower.jpg");

            // create the command
            Vintasoft.Imaging.ImageProcessing.Filters.DilateCommand command =
                new Vintasoft.Imaging.ImageProcessing.Filters.DilateCommand();
            // subscribe to progress event
            command.Progress +=
                new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

            try
            {
                // execute the command
                command.ExecuteInPlace(image);
            }
            catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
            {
                // show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message);
                return;
            }

            // save the processed image to the new file
            image.Save("processed-image.tif");
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.Filters.DilateCommand

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
