VintaSoft Imaging .NET SDK v8.6
Vintasoft.Imaging.ImageProcessing.Filters Namespace / MeanCommand Class
Members Example



In This Topic
    MeanCommand Class
    In This Topic
    Applies the arithmetic mean filter to an image.

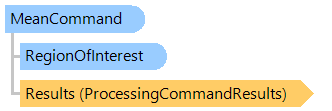

    Object Model
    MeanCommand ClassRegionOfInterest ClassProcessingCommandResults ClassProcessingCommandResult Class
    Syntax
    Remarks
    An arithmetic mean filter operation on an image removes short tailed noise such as uniform and Gaussian type noise from the image at the cost of blurring the image. The arithmetic mean filter is defined as the average of all pixels within a local region of an image.
    Example
    This example shows how to load an image from disk, apply the arithmetic mean filter to the image and save the result to a new image file.
    Class MeanCommandExample
        Public Sub ProcessImage()
            ' [ do not forget to set your image file path here! ]
            ' open an existing image
            Dim image As New Vintasoft.Imaging.VintasoftImage("Flower.jpg")

            ' create the command
            Dim command As New Vintasoft.Imaging.ImageProcessing.Filters.MeanCommand()
            ' subscribe to progress event
            AddHandler command.Progress, New System.EventHandler(Of Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)(AddressOf command_Progress)

            Try
                ' execute the command
                command.ExecuteInPlace(image)
            Catch ex As Vintasoft.Imaging.ImageProcessing.ImageProcessingException
                ' show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message)
                Return
            End Try

            ' save the processed image to the new file
            image.Save("processed-image.tif")
        End Sub

        Private Sub command_Progress(sender As Object, e As Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs)
            ' update progress info using e.Progress property
            ' ...

            ' cancel execution of command using e.Cancel property if necessary
            ' ...
        End Sub
    End Class
    class MeanCommandExample
    {
        public void ProcessImage()
        {
            // [ do not forget to set your image file path here! ]
            // open an existing image
            Vintasoft.Imaging.VintasoftImage image = new Vintasoft.Imaging.VintasoftImage("Flower.jpg");

            // create the command
            Vintasoft.Imaging.ImageProcessing.Filters.MeanCommand command =
                new Vintasoft.Imaging.ImageProcessing.Filters.MeanCommand();
            // subscribe to progress event
            command.Progress +=
                new System.EventHandler<Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs>(command_Progress);

            try
            {
                // execute the command
                command.ExecuteInPlace(image);
            }
            catch (Vintasoft.Imaging.ImageProcessing.ImageProcessingException ex)
            {
                // show error message if problem occured
                System.Windows.Forms.MessageBox.Show(ex.Message);
                return;
            }

            // save the processed image to the new file
            image.Save("processed-image.tif");
        }

        void command_Progress(object sender, Vintasoft.Imaging.ImageProcessing.ImageProcessingProgressEventArgs e)
        {
            // update progress info using e.Progress property
            // ...

            // cancel execution of command using e.Cancel property if necessary
            // ...
        }
    }
    Inheritance Hierarchy

    System.Object
       Vintasoft.Imaging.ImageProcessing.ProcessingCommandBase
          Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion
             Vintasoft.Imaging.ImageProcessing.Filters.MeanCommand

    Requirements

    Target Platforms: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2003
