TiffFile Class
In This Topic
Provides low-level functions for manipulating TIFF file.

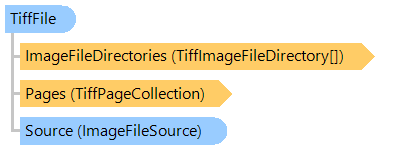

Object Model
TiffPageCollection TiffImageFileDirectory ImageFileSource TiffFile
Syntax
Remarks

Class allows to:

  • get TIFF file info
  • get collection of TIFF pages
  • get TIFF page info (see the TiffPage for more info)
  • add TIFF page
  • insert TIFF page
  • delete TIFF page
  • save TIFF page in a separate image file
  • pack TIFF file (remove unused space)

Supported compression algorithms:
  • without compression (read / write)
  • CCITT Group 3 fax (read)
  • CCITT Group 4 fax (read / write)
  • CCITT Rle (read)
  • Macintosh Packbits (read)
  • LZW (read / write)
  • Deflate (read / write)
  • JPEG (read / write)

Example

Here is an example that shows how to manipulate multipage TIFF file:


Class TiffFileExample
    Public Sub RunExample()
        ' [ do not forget to set your image file path here! ]
        ' open an existing image file
        Dim tiff As New Vintasoft.Imaging.Codecs.ImageFiles.Tiff.TiffFile("c:\multipage.tif")

        ' save page 2 as JPEG file
        tiff.Pages(2).Save("c:\page2.jpg")

        ' load PNG image
        Dim image As New Vintasoft.Imaging.VintasoftImage("c:\test.png")

        ' add the PNG image to TIFF file
        tiff.Pages.Add(image)

        ' remove pages 3 and 5
        tiff.Pages.RemoveAt(3)
        tiff.Pages.RemoveAt(5)

        ' save changes (space used by pages 3 and 5 will be deleted from TIFF file)
        tiff.SaveChanges()
    End Sub

End Class


class TiffFileExample
{
    public void RunExample()
    {
        // [ do not forget to set your image file path here! ]
        // open an existing image file
        Vintasoft.Imaging.Codecs.ImageFiles.Tiff.TiffFile tiff =
            new Vintasoft.Imaging.Codecs.ImageFiles.Tiff.TiffFile(@"c:\multipage.tif");

        // save page 2 as JPEG file
        tiff.Pages[2].Save(@"c:\page2.jpg");

        // load PNG image
        Vintasoft.Imaging.VintasoftImage image =
            new Vintasoft.Imaging.VintasoftImage(@"c:\test.png");

        // add the PNG image to TIFF file
        tiff.Pages.Add(image);

        // remove pages 3 and 5
        tiff.Pages.RemoveAt(3);
        tiff.Pages.RemoveAt(5);

        // save changes (space used by pages 3 and 5 will be deleted from TIFF file)
        tiff.SaveChanges();
    }

}

Inheritance Hierarchy
Requirements

Target Platforms: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
